Quick Start Guide

EDS8/16PS

QUICK CONNECT

Complete the following steps in order. Refer to the numbers in the

figure below.

1. Connect a serial device to your unit.

2. Connect an Ethernet cable to the RJ45 port.

3. Supply power to your unit using the power cord that was included in

the packaging.

4. Supply power to the serial device.

2W W W . L A N T R O N I X . C O M 3

The EDS products allow serial devices to connect and communicate over an

Ethernet network.This Quick Start will step you through hardware installation

and initial configuration of your EDS8PS or EDS16PS.

WHAT'S IN THE BOX

In addition to the EDS8PS or EDS16PS, the box contains the following items:

PART # COMPONENT DESCRIPTION

500-041 Power cord

500-103 RJ45-DB9F Null Modem Cable

CD-EDSPS-XX CD-ROM containing the User Guide, software utilities,

and Quick Start Guide.

PINOUTS

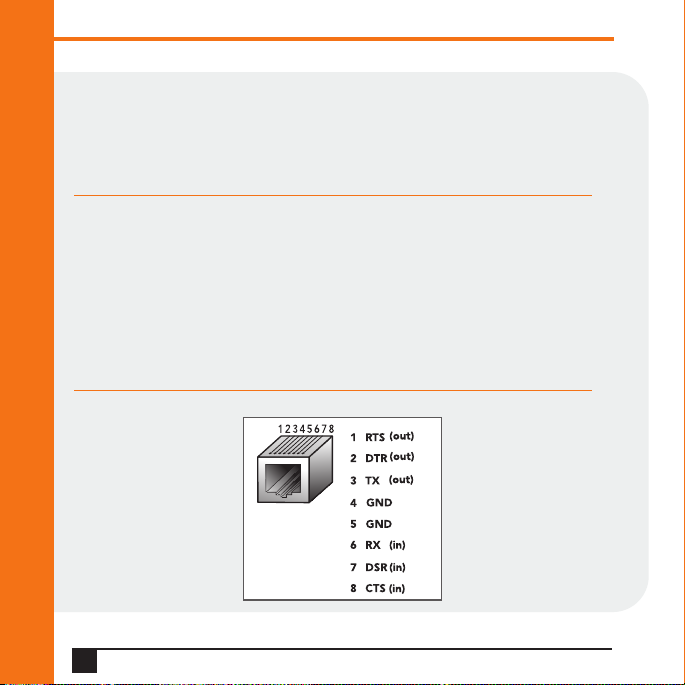

RS-232 Pin Assignment

10/100 BASE-T

Ethernet

Serial Device

Quick Start Guide

EDS8/16PS

QUICK CONNECT

Complete the following steps in order. Refer to the numbers in the

figure below.

1. Connect a serial device to your unit.

2. Connect an Ethernet cable to the RJ45 port.

3. Supply power to your unit using the power cord that was included in

the packaging.

4. Supply power to the serial device.

2W W W . L A N T R O N I X . C O M 3

The EDS products allow serial devices to connect and communicate over an

Ethernet network.This Quick Start will step you through hardware installation

and initial configuration of your EDS8PS or EDS16PS.

WHAT'S IN THE BOX

In addition to the EDS8PS or EDS16PS, the box contains the following items:

PART # COMPONENT DESCRIPTION

500-041 Power cord

500-103 RJ45-DB9F Null Modem Cable

CD-EDSPS-XX CD-ROM containing the User Guide, software utilities,

and Quick Start Guide.

PINOUTS

RS-232 Pin Assignment

10/100 BASE-T

Ethernet

Serial Device

4WWW.LANTRONIX.COM

QUICK SETUP USING THE DEVICEINSTALLER UTILITY

Step 1: Install DeviceInstaller

To use the DeviceInstaller utility, first install it from the product CD:

1. Insert the product CD into your CD-ROM drive.

2. If the CD does not launch automatically:

a) Click the Start button on the Task Bar and select Run.

b) Enter your CD drive letter, colon,backslash,Launch.exe (e.g., D:\Launch.exe).

3. Click the DeviceInstaller button.

4. Respond to the installation wizard prompts.

(When prompted to select an installation type, select Typical.)

Note: For more information about DeviceInstaller, see the DeviceInstaller Online Help.

Step 2: Configure Network Settings

To assign an IP address manually:

1. Click Start > Programs >Lantronix > DeviceInstaller >DeviceInstaller.

If your PC has more than one network adapter, a message displays. Select an

adapter and click OK.

Quick Start Guide

EDS8/16PS

IP ADDRESSING

Your unit must have a unique IP address on your network. The IP address can be

assigned automatically or you can assign it manually.

DHCP

Many networks use an automatic method of assigning an IP address called

DHCP. If you are unsure whether your network uses DHCP, check with your

systems administrator.

The EDS looks for a DHCP server when it first powers up. You can use the

DeviceInstaller graphical user interface to search the network if your unit has been

assigned an IP address by the DHCP server. If the EDS does not acquire an IP, or you

do not use DHCP, you must assign a fixed IP address using the serial port of the EDS.

FIXED IP ADDRESS

In most installations, a fixed IP address is desirable. The system administrator

generally provides the IP address.

The IP address must be within a valid range, unique to your network, and in the

same subnet as your PC. You will need the following information before you set

up the unit as described in this Quick Start Guide.

IP Address:

___ ___ ___ ___

Subnet Mask:

___ ___ ___ ___

Gateway:

___ ___ ___ ___

The following section describes assigning an IP address using DeviceInstaller.

Note: For detailed instructions on assigning the IP address using the serial port, please

see the User Guide or the Lantronix web site.

4WWW.LANTRONIX.COM

QUICK SETUP USING THE DEVICEINSTALLER UTILITY

Step 1: Install DeviceInstaller

To use the DeviceInstaller utility, first install it from the product CD:

1. Insert the product CD into your CD-ROM drive.

2. If the CD does not launch automatically:

a) Click the Start button on the Task Bar and select Run.

b) Enter your CD drive letter, colon,backslash,Launch.exe (e.g., D:\Launch.exe).

3. Click the DeviceInstaller button.

4. Respond to the installation wizard prompts.

(When prompted to select an installation type, select Typical.)

Note: For more information about DeviceInstaller, see the DeviceInstaller Online

Help.

Step 2: Obtain the IP address

1. Click Start > Programs > Lantronix > DeviceInstaller > DeviceInstaller.

If your PC has more than one network adapter, a message displays. Select an

adapter and click OK.

Quick Start Guide

EDS8/16PS

IP ADDRESSING

Your unit must have a unique IP address on your network. The IP address can be

assigned automatically or you can assign it manually.

DHCP

Many networks use an automatic method of assigning an IP address called

DHCP. If you are unsure whether your network uses DHCP, check with your

systems administrator.

The EDS looks for a DHCP server when it first powers up. You can use the

DeviceInstaller graphical user interface to search the network if your unit has been

assigned an IP address by the DHCP server. If the EDS does not acquire an IP, or you

do not use DHCP, you must assign a fixed IP address using the serial port of the EDS.

FIXED IP ADDRESS

In most installations, a fixed IP address is desirable. The system administrator

generally provides the IP address.

The IP address must be within a valid range, unique to your network, and in the

same subnet as your PC. You will need the following information before you set

up the unit as described in this Quick Start Guide.

IP Address:

___ ___ ___ ___

Subnet Mask:

___ ___ ___ ___

Gateway:

___ ___ ___ ___

The following section describes assigning an IP address using DeviceInstaller.

Note: For detailed instructions on assigning the IP address using the serial port, please

see the User Guide or the Lantronix web site.

USING THE DEVICEINSTALLER UTILITY CONTINUED…

6. Click the Assign button and wait several seconds until a confirmation message

displays. Click Finish.

7. Click the Close button to close the dialog box and return to the main window.

6W W W . L A N T R O N I X . C O M

Quick Start Guide

EDS8/16PS

USING THE DEVICEINSTALLER UTILITY CONTINUED…

Note: If the unit already has an IP address (e.g., DHCP has assigned an IP address),

click the Search icon and select the unit from the list of Lantronix device

servers on the local network.

2. Note the device IP address.

3. Access Web Manager by entering the device IP address in the address bar of a

browser. The device's factory default username is "admin" and factory default

password is the last 8 characters of the Device ID (for devices manufactured after

January 1, 2020) or "PASS" (for all older devices).

Step 3: Complete the Configuration

Assign an IP address in the network settings and perform other configuration.

To use Setup Mode (a command line interface), double-click the unit in

the DeviceInstaller list and click the Telnet Configuration tab or use a

Telnet client.

Note: Please see your product's User Guide and Command Reference for

detailed instructions on configuration.

6W W W . L A N T R O N I X . C O M

Quick Start Guide

EDS8/16PS

USING THE DEVICEINSTALLER UTILITY CONTINUED…

Note: If the unit already has an IP address (e.g., DHCP has assigned an IP address),

click the Search icon and select the unit from the list of Lantronix device

servers on the local network.

2. Click the Assign IP icon .

3. If prompted, enter the hardware address (on the product label) and click Next.

4. Select Assign a specific IP address and click Next.

5. Enter the IP address. The Subnet mask displays automatically based on the

IP address; if desired, you may change it. On a local network, you can leave the

Default gateway blank (all zeros). Click Next.

CONFIGURATION USING WEB MANAGER

Use the menu to navigate to sub pages and configure the EDS.

CONTACT

For questions and technical support, please check our online knowledge base

at www.lantronix.com/support

Lantronix

15353 Barranca Parkway, Irvine, CA 92618, USA

Phone: (949) 453-3990 or Fax: (949) 453-3995

www.lantronix.com

W W W . L A N T R O N I X . C O M 13

Quick Start Guide

EDS8/16PS

LEDS MEANING

Transmit (green) Blinking = EDS is transmitting data on the serial port.

Receive (yellow) Blinking = EDS is receiving data on the serial port.

Power (blue) ON = EDS is receiving power.

Diagnostic (yellow) Fast blink = initial startup (loading OS).

Slow blink (once per second) = operating system startup.

ON = unit has finished booting.

Speed (yellow) ON = EDS is connected to a 100 Mbps Fast

Ethernet network.

OFF = EDS is connected to a 10 Mbps Ethernet network.

Activity (green) Blink = EDS is sending data to or receiving data from the

Ethernet network.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Lantronix Server Handbücher

Lantronix

Lantronix WiPort NR Bedienungsanleitung

Lantronix

Lantronix SDS1101 Bedienungsanleitung

Lantronix

Lantronix EDS1100 Installationshandbuch

Lantronix

Lantronix DeviceLinx EDS00812N-01 Bedienungsanleitung

Lantronix

Lantronix EDS-MD EDS-MD4 Installationshandbuch

Lantronix

Lantronix SLC 8000 Bedienungsanleitung

Lantronix

Lantronix xPico XPW100A003-01-B Kurzanleitung zur Einrichtung

Lantronix

Lantronix SLM Bedienungsanleitung

Lantronix

Lantronix xport pro Installationshandbuch

Lantronix

Lantronix xPort Pro XPP1004000-02R Kurzanleitung zur Einrichtung

Lantronix

Lantronix EDS-MD Series Bedienungsanleitung

Lantronix

Lantronix XPress DR+ Bedienungsanleitung

Lantronix

Lantronix SLC48 Bedienungsanleitung

Lantronix

Lantronix XPort Kurzanleitung zur Einrichtung

Lantronix

Lantronix Com Port Redirector Bedienungsanleitung

Lantronix

Lantronix MSS100 Bedienungsanleitung

Lantronix

Lantronix MSS4 Bedienungsanleitung

Lantronix

Lantronix XPress DR+ Bedienungsanleitung

Lantronix

Lantronix MSS4 Bedienungsanleitung

Lantronix

Lantronix XPico 900-691-R Bedienungsanleitung

Lantronix

Lantronix WiBox 2100E Bedienungsanleitung

Lantronix

Lantronix xSenso 2100 Bedienungsanleitung

Lantronix

Lantronix XPort Bedienungsanleitung

Lantronix

Lantronix WiPort Bedienungsanleitung

Beliebte Server Handbücher anderer Marken

HP AlphaServer ES47 Bedienungsanleitung

Dell

Dell PowerEdge R410 Bedienungsanleitung

PowerNAS

PowerNAS CMA Bedienungsanleitung

Supero

Supero FatTwin F617R3-FT Bedienungsanleitung

MSI

MSI P1-109N-L70 Bedienungsanleitung

Dell

Dell PowerEdge XE9640 Handbuch

Dell

Dell PS4100 Montageanleitung

EtroVISION

EtroVISION EV3151 Bedienungsanleitung

NEC

NEC Express5800/T110j Bedienungsanleitung

HP ProLiant Gen9 Bedienungsanleitung

Compaq

Compaq ProLiant 3000 Handbuch

Dell

Dell PowerEdge 3YPMN Bedienungsanleitung

iRobo

iRobo IPC2U Bedienungsanleitung

Nortel

Nortel 1000 Con?guration guide Bedienungsanleitung

Asus

Asus AP7500 Bedienungs- und Wartungshandbuch

Avid Technology

Avid Technology AirSpeed 5000 Bedienungsanleitung

HP Integrity rx2600 Installationsanleitung

Milestone

Milestone Husky IVO 350T Bedienungsanleitung
