XPressTM DR Quick Start Guide

1 HARDWARE REVIEW

4 DEVICEINSTALLER

2 HARDWARE INSTALLATION

1.Connect the XPress DR to the network through the Ethernet port.

(The unit must be on the same network as your computer.)

2.Connect power (9-30 VDC or 9-24VAC).

3.Verify that the green Link “L” LED is lit.

DC+

DC-

9-30VDC

9-30VAC

GND

3 IP ADDRESSING

Your XPress DR must have a unique IP address on your network.

The IP address can be assigned automatically or manually.

DHCP

Many networks use an automatic method of assigning an IP

address called DHCP. If you are unsure whether your network

uses DHCP, check with your systems administrator.

The XPress DR looks for a DHCP server when it first powers

up. You can use the DeviceInstaller™ graphical user interface

to search the network if your unit has been assigned an IP

address by the DHCP server. If the XPress DR does not acquire

an IP address, or you do not use DHCP, you must assign a

fixed IP address.

FIXED IP ADDRESS

In most installations, a fixed IP address is desirable. The

systems administrator generally provides the IP address.

The IP address must be within a valid range, unique to your

network, and in the same subnet as your PC.

The following section describes assigning an IP address using

DeviceInstaller.

INSTALL DeviceInstaller™

REQUIREMENTS: Computer must have a working Ethernet adapter

running Windows as the Operating System (OS). For device

discovery, the computer and device should be connected to the

same IP subnet.

1.Download the latest version of DeviceInstaller from

http://www.lantronix.com/downloads. The minimum

required version for DeviceInstaller is 4.4.0.2.

2.Run the executable to start the installation process on the

computer being used to configure the XPress DR.

3.Follow the installation wizard prompts.

WARNING - Do not connect or disconnect when the area is

known to be hazardous.

Quick Start Guide

Serial RJ45 Port

(RS-232 and RS-422/485)

RS-232 or RS-422/485

Select Switch

(for Serial Screw Terminal Block)

Serial Data Activity LEDs

(Transmit/Receive)

Screw Terminals

(9-30VDC or 9-24VAC)

Screw Terminals

(RS-232 and RS-422/485)

Reset Switch

Status LEDs

(Fault/Ready/Activity/Link)

RJ45 Ethernet Port

(10/100BASE-T)

WHAT’S

IN THE

BOX

XPress DR Device Server

1. Run DeviceInstaller

Click: Start > Programs > Lantronix > DeviceInstaller > DeviceInstaller.

2. Upon launch, DeviceInstaller will search for Lantronix devices on

the network. Select the unit from the list of Lantronix devices on

the local network. (You may also click on the Search icon if your

device isn’t found immediately.)

3. Note the device IP address.

4. Access Web Manager by entering the device IP address in the address

bar of a browser. The device does not have a factory default username.

The factory default password is the last 8 characters of the Device ID (for

devices manufactured after January 1, 2020) or is left blank (for all older

devices).

5. Assign an IP address in the network settings and perform other

configuration.

If DeviceInstaller is unable to discover the XPress DR:

• In Windows Device Manager, ensure that the Ethernet adapter is

installed and working properly.

• If your PC or laptop has more than one network interface,

make sure the correct interface is selected in DeviceInstaller.

• Go to Tools>Options and make sure the correct network

interface is selected. If not, check the correct interface,

click on OK, and restart DeviceInstaller.

• Check the Link “L” LED indicator on the XPress DR to make

sure there is a physical connection between the Ethernet

adapter and the unit.

XPressTM DR Quick Start Guide

Contact Technical Support

For technical support queries, visit http://www.lantronix.com/support or call (800) 422-7044 Monday – Friday from 6:00 a.m. – 5:00 p.m.,

Pacific Time, excluding holidays.

Latest Firmware For the latest firmware downloads, visit http://www.lantronix.com/support/downloads.

IP Address Assignment Tutorial To view a tutorial on how to assign an IP address, visit http://www.lantronix.com/support/tutorials.

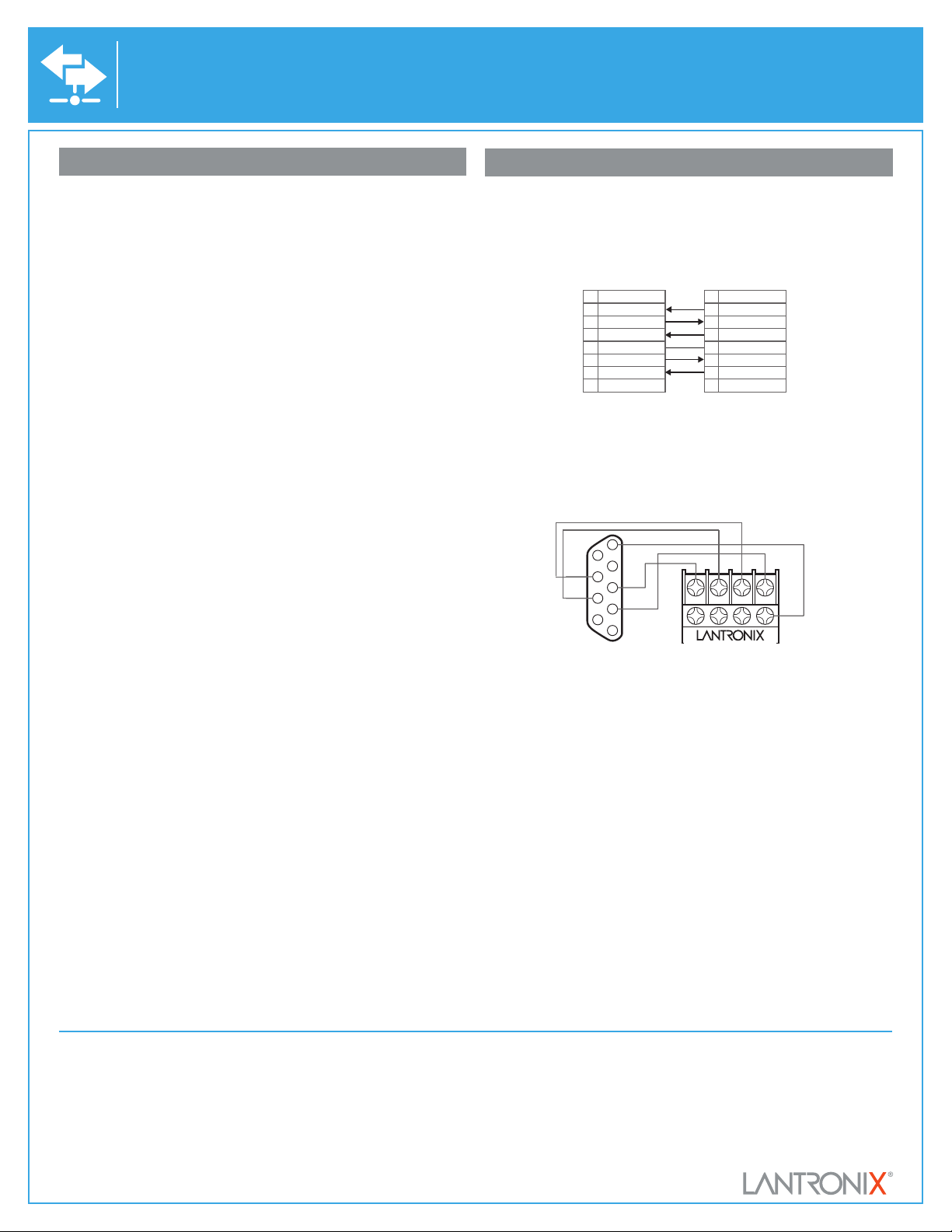

5 CONFIGURING 7 CONNECTING SERIAL DEVICES

The cable diagram below is for connecting a PC (COM Port) to the XPress

DR serial RJ45 port. You can use the serial RJ45 port to configure and test

port settings prior to connection to your automation device.

The cable diagram below is for connecting a PC (COM Port) to the

XPress DR serial screw terminals.

RS-232 Configuration

DTR (Out)

DSR (In)

TXD (Out)

RXD (In)

Signal Ground

RTS (Out)

CTS (In)

DTE, 9-PIN, FEMALE

RXD (In)

DTR (Out)

TXD (Out)

Signal Ground

CTS (In)

RTS (Out)

No Connection

SERIAL RJ45

RS-232 Configuration

DTE, 9-PIN, FEMALE

GND

TXD

RXD

CTS

RTS

GND

CTS RTS TXD

For additional configurations, please refer to the XPress DR User

Guide: http://www.lantronix.com/support/downloads.
