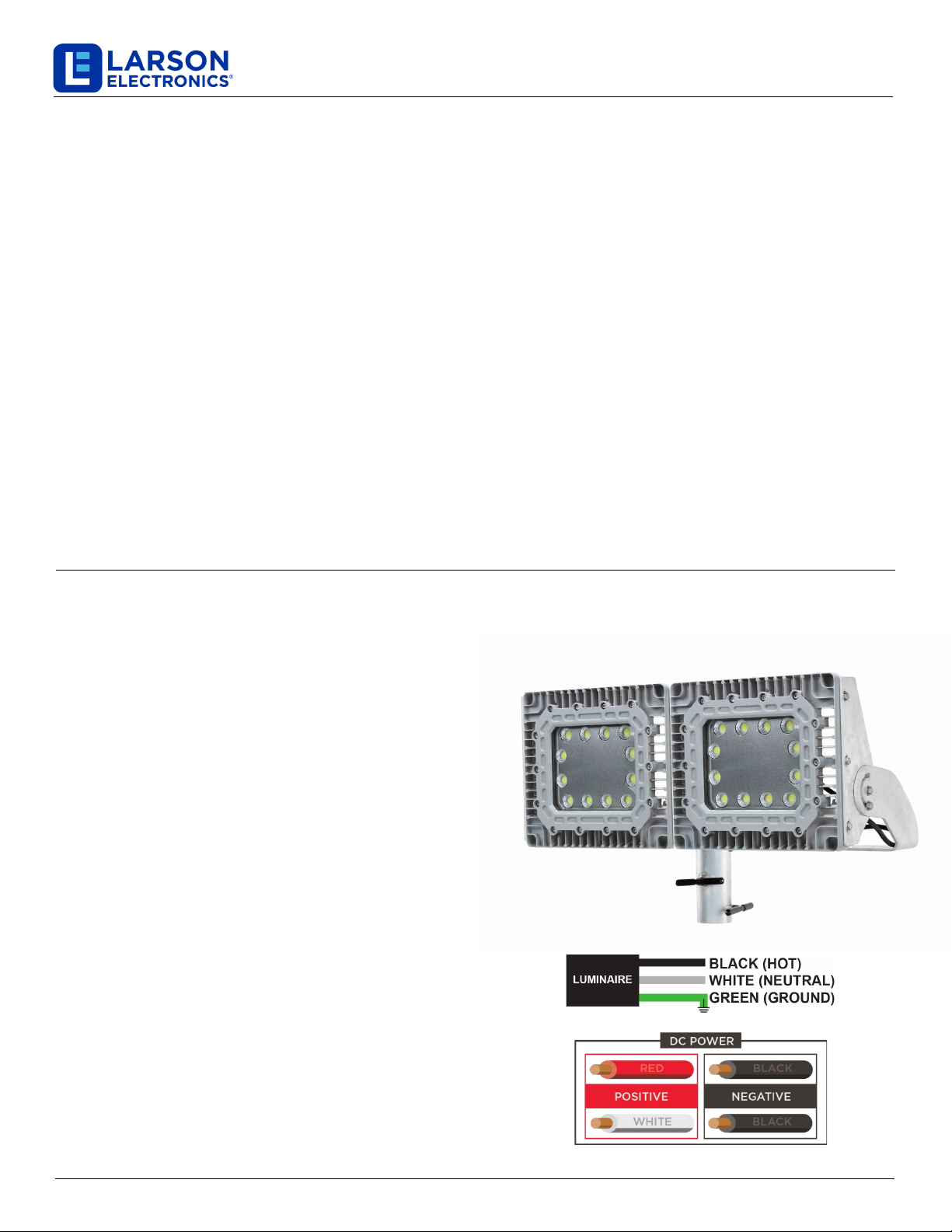

Larson Electronics EPLC2-PT-2X150LED-RT Bedienungsanleitung

EPLC2-PT-2X150LED-RT

Larson Electronics, LLC Phone: (877) 348-9680 Fax: (903) 498-3364 www.larsonelectronics.com 1of 2

Explosion Proof 300 Watt Pole Top LED Light Fixture

35,000 Lumens - C1D2 / C2D1

Instruction Manual

Thank you for your purchase of the Larson Electronics EPLC2-PT-2X150LED-RT Explosion Proof LED light fixture.

WARNING

TO AVOID THE RISK OFFIRE, EXPLOSION OR ELECTRIC SHOCK, THIS PRODUCT SHOULD BE INSTALLED,

INSPECTED AND MAINTAINED BY A QUALIFIED ELECTRICIAN ONLY, IN ACCORDANCE WITH ALL

APPLICABLE ELECTRICAL CODES.

TO AVOID ELECTRIC SHOCK:

•BE CERTAIN ELECTRICAL POWER IS OFF BEFORE AND DURING INSTALLATION AND MAINTENANCE.

•PRODUCT MUST BE CONNECTEDTOA WIRING SYSTEM WITHAN EQUIPMENT-GROUNDING

CONDUCTOR.

TO AVOID EXPLOSION:

•MAKE SURE THE SUPPLY VOLTAGE IS WITHIN THE VOLTAGE RATING.

•ENSURE THE MARKED T RATING IS LESS THAN THE IGNITION TEMPERATURE OF THE HAZARDOUS

ATMOSPHERE.

•DO NOT OPERATE IN AMBIENT TEMPERATURES ABOVE THOSE INDICATED ON THE PRODUCT

NAMEPLATE.

•DO NOT OPERATE IF THE LENS, CORD, SEALS, HOUSING, RECEPTACLES, ETC. IS CRACKED OR

DAMAGED. IF SO, DISCONTINUE USE AND CONTACT MANUFACTURER FOR REPLACEMENT PARTS.

•ALL FASTENERS SHOULD BE PROPERLY SEATED.

The Larson Electronics EPLC2-PT-2X150LED-RT Explosion Proof pole top slip fitter light fixture provides operators with a

powerful and energy efficient alternative to traditional hazardous location luminaries. Cree LED technology and compact

design makes this lamp an excellent replacement upgrade option for bulky and high maintenance cost older fixtures.

Mounting

Each unit is equipped with an innovative trunnion style mounting

bracket and is attached to a slip fit yoke for easy installation. The

slip fit yoke is built to customer`s specs, enabling operators to

mount this explosion proof LED light to their specific pole

diameter. Loosen the T-handle set screws in the slip fitter, and

slide over the top of the mounting pole. Face the light in the

desired direction, and tighten set screws securely to hold the unit

in place. Once light is mounted, vertical tilt angle can be adjusted

using the adjustment screws on either side of the trunnion mount.

Loosen the adjustment screws, tilt light to desired angle, and

tighten screws securely to hold in place.

Wiring

We strongly encourage a licensed electrician install this

product, in all locations, especially in outdoor areas where

weatherproofing may be required.

Warning: Check product label for correct input voltage!

Attach supply line wires to the appropriate light fixture wires

as shown in the applicable diagram 

Secure each pair of wires according to the applicable diagram.

Utilize a junction box or similar device and take precautionary

steps for weatherproofing all connections if installed in a location

where water may come in contact with the unit. Ensure the unit is

properly grounded and that wiring is done according to all local

and national electrical/building codes.

Larson Electronics, LLC Phone: (877) 348-9680 Fax: (903) 498-3364 www.larsonelectronics.com 2of 2

EPLC2-PT-2X150LED-RT

MAINTENANCE

Caution: To avoidpersonal injury, disconnect power to the light and allow the unit to cool downbefore

performing maintenance.

Warning:No user serviceable parts inside of fixture. Risk of electric shock. Removal of the lens will void

any warranty.

1. Perform visual, mechanical and electrical inspections on a regular basis. We recommend routine

checks to be made on a yearly basis. Frequency of use and environment should determine this. It is

recommended to follow an Electrical Preventive Maintenance Program as described in NFPA 70B:

Recommended practice for Electrical Equipment.

2. The lens should be cleaned periodically as needed to ensure continued photometric performance.

Clean the lens with a damp, non-abrasive, lint-free cloth. If not sufficient, use mild soap or a liquid

cleaner.

3. Inspect the cooling fins on the luminaire to ensure that they are free of any obstructions or

contamination (i.e. excessive dust build-up). Clean with a non-abrasive cloth if needed.

4. Do not operate if the lens is cracked or damaged. All fasteners should be properly seated.

Note: It is not necessary to open the fixture and clean or touch the LED’s.

USE AND CARE

Unauthorized modification may impair the function and/or safety of this device and could affect the life of the equipment.

Always check for damaged or worn out parts before using the device. Store it in a secure place out of the reach of

children when not in use.Inspect for good working condition prior to storage and before re-use.

REPLACEMENT PARTS

The EPLC2-PT-2X150LED-RT is designed to provide years of reliable performance. Should the need for replacement

parts arise, please contact Larson Electronics.

THESE INSTRUCTIONS MAY NOT COVER ALL DETAILS OR VARIATIONS OF THIS PRODUCT FOR YOUR EQUIPMENT OR INSTALLATION REQUIREMENTS.

SHOULD FURTHER INFORMATION NOT COVERED BY THESE INSTRUCTIONS BE REQUIRED, PLEASE CONTACT LARSON ELECTRONICS BY EMAIL AT

SAL[email protected] OR BY PHONE AT 1-877-348-9680 FOR FURTHER ASSISTANCE.

PLEASE VISIT LARSONELECTRONICS.COM FOR WARRANTY AND RETURN INFORMATION.
