Portable Light Tower - 4 X 1000 Watt Metal Halide Lights

Instruction Manual

Do not attempt operation until you are familiar with all warnings, precautions, and procedures outlined within this instruction sheet.

Read carefully before operating. Retain these instructions for future reference.

WARNING:

IMPORTANT

READ CAREFULLY BEFORE INSTALLING THIS FIXTURE. SAVE THESE INSTRUCTIONS FOR FUTURE

REFERENCE. THE WAL-C-4XM MUST BE WIRED IN ACCORDANCE WITH NATIONAL ELECTRICAL CODE

AND ALL APPLICABLE LOCAL CODES. PROPER GROUNDING IS REQUIRED FOR SAFETY.

WE STRONGLY ENCOURAGE ONLY A LICENSED ELECTRICIAN INSTALL, OPERATE AND MAINTAIN THIS

PRODUCT. IF YOU ARE NOT QUALIFIED OR UNFAMILIAR WITH ANY ASPECT OF THIS INSTRUCTION

SHEET, CONSULT AN ELECTRICIAN.

The WAL-C-4XM is a mounted mini light tower and provides 400,000 lumens of light output. This portable light tower has a removable

four light head assembly mounted on top of a four leg steel TOWER equipped with 8 inch wheels for easy positioning of the unit from one

area of the workspace to another. The light assembly on this unit produces a wide flood pattern of light that is ideal for illuminating large

workspaces and job sites. This light is designed for heavy duty use in demanding conditions including emergency services, mining,

construction, marine, and industrial operations where durability and portability is important.

This portable light tower is comprised of a removable light assembly fitted with four metal halide lamps mounted atop a four leg tripod

fabricated from heavy duty steel. This adjustable and collapsible tower can be extended to fourteen feet and collapsed to seven feet and

is locked into position with t-handle locking pins. The unit is extended and lowered using an included hand crank cable winch equipped

with a brake for fast and safe deployment. Included solid wheels allow the operator to tilt the unit back and simply roll the entire assembly

to a new location when fully deployed. The light fixture assembly can be removed by releasing the hand knob and sliding the light and

mounting bracket off of the center support while the legs can be collapsed, aiding in deployment, storage and transport. The lamps can

be easily adjusted up, down or from side to side independently of each other and locked into position for maximum coverage of the work

area.

MAST HEAD INSTALLATION

1. Locate light head. Color, style, and mounted lights will vary.

2. The light head is equipped with a T-Handle / Hand Screw.

3. Make sure the hand screw is loose, to allow the head to slide over the top stage of the

mast.

4. Using a pair of slings, wrap both slings around the light head in between the lights on both

sides.

5. Attach the slings to a forklift or other lifting device.

6. With 2 people holding the light head steady, slowly raise the light head above the mast.

7. A ladder will need to be placed on both sides of the mast, in order for 2 people to guide the

head in to place.

8. Once the light head is on top of the light mast, tighten the T-Handle to ensure the light head

is safely secured to the top of the mast.

9. Slings are recommended for installing heavy loads and to ensure operator safety. Should

other methods be used, Larson Electronics shall not be held responsible for damages or

personal injuries.

WARNING: MAKE SURE POWER IS TURNED OFF BEFORE STARTING THE

INSTALLATION OR PERFORMING ANY MAINTENANCE.

RISK OF FIRE/ELECTRIC SHOCK – DISCONNECT POWER AT BREAKER BEFORE INSTALLING OR SERVICING.

RISK OF PERSONAL INJURY – FIXTURE MAY BECOME UNSTABLE OR DAMAGED IF NOT INSTALLED PROPERLY.

RISK OF BURN – ALLOW FIXTURE TO COOL BEFORE SERVICING.

WAL-C-4XM

Larson Electronics, LLC Phone: (800) 369-6671 Fax: (903) 498-3364 www.larsonelectronics.com 2 of 2

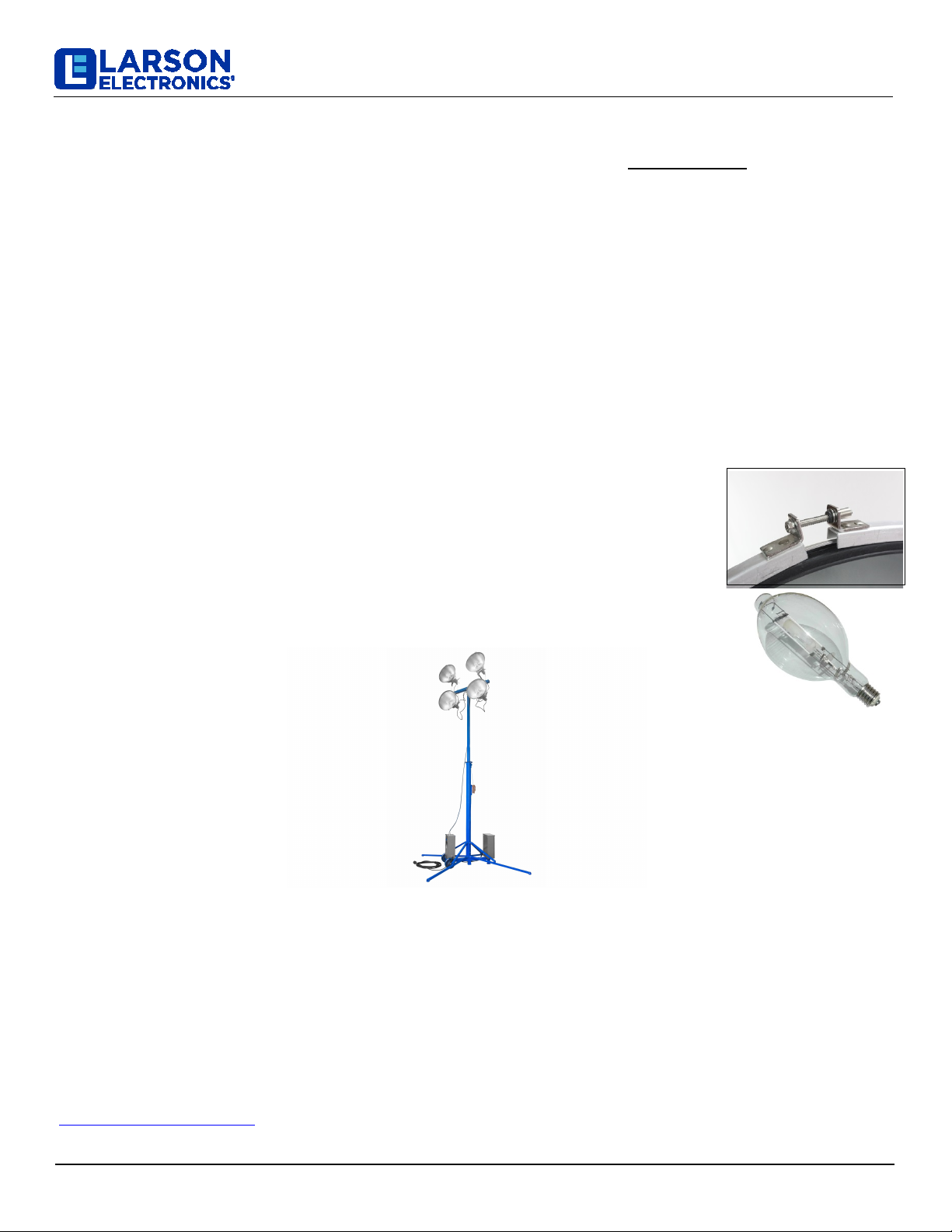

Replacing the Bulb

1. To replace the bulb, loosen the screw to remove the outer ring holding the lens.

2. Carefully remove the outer ring, glass lens and rubber seal.

3. Remove the old bulb from the unit.

4. Replace with 1000 watt BT56 lamp. See part# WAL-SB-1000W-MH to purchase

replacement bulb.

5. Replace the seal, glass lens and outer ring. Hand tight the outer ring until snug. Do not

over tighten.

LIGHT MAST OPERATION

1. Position light mast in the desired location. Ensure that the unit is completely level and ensure the

mast is free and clear from any overhead obstructions. Deploy legs to stabilize mast.

2. (If applicable) Attach equipment to mast head. Use appropriate measures for securing attached

devices. Drill thru-holes as necessary. Do not exceed weight capacity listed onnameplate!

3. Install mast head. See mast head installation steps.

4. Use the hand winch for extending the mast. Turn this clockwise until it stops. You should hear a clicking noise from

the hand winch indicating the proper direction. Do not force the winch any further past its stopping point!

5. To lower the mast, rotate the upper winch counter-clockwise. The winch will not click at this point and you should

visually see the mast lowering. Stop once there is no more tension on the cable. Do not allow excessive slack on

winch cable.

6. Mate the cord cap with a compatible receptacle outputting the correct voltage to power lights.

Check product label to verify correct input voltage!

•WARNING: Power cables can become pinched or tangled around light mast while lowering or rotating. Take

caution in keeping cables clear.

THESE INSTRUCTIONS MAY NOT COVER ALL DETAILS OR VARIATIONS OF THIS PRODUCT FOR YOUR EQUIPMENT OR INSTALLATION REQUIREMENTS.

SHOULD FURTHER INFORMATION NOT COVERED BY THESE INSTRUCTIONS BE REQUIRED, PLEASE CONTACT LARSON ELECTRONICS BY EMAIL AT

[email protected] OR BY PHONE AT 1-800-369-6671 FOR FURTHER ASSISTANCE.

PLEASE VISIT LARSONELECTRONICS.COM FOR WARRANTY AND RETURN INFORMATION.

USE AND CARE

Unauthorized modification may impair the function and/or safety of this device and could affect the life of the equipment.

Always check for damaged or worn out parts before using the device. Store it in a secure place out of the reach of

children when not in use. Inspect for good working condition prior to storage and before re-use.

REPLACEMENT PARTS

The WAL-C-4XM is designed to provide years of reliable performance. Should the need for replacement parts arise,

please contact Larson Electronics.
