Larson Electronics LEDHWP-SC-1500 Bedienungsanleitung

Features

•

Lumileds LED, high luminous efficiency and

long working life.

High efficiency LED Driver, the wide range

input voltage AC100-277V

/ 200 - 480 V.

Die Cast aluminium cooling design,high quality

and better cooling for LED Tj < 85℃.

Excellent Optics design, greatly improve the

light utilization and evenness.

Product Applications

The LED Semi-Cutoff Wall Pack series can be

widely used in indoor or outdoor lighting(Wet

location),like mechanical or electronic

processing workshops, storage warehouses,

steel mills, gas stations, toll booth, waiting

rooms, the platforms of railway station , indoor

stadiums.

LEDHWP-SC-1500

150 Watt Traditional Semi Cut-Off LED Wall Pack - 16000

Lumens - Replaces 600 Watt Metal Halide Fixt

Instruction Manual

Larson Electronics, LLC Phone: (800) 369-6671 Fax: (903) 498-3364 www.larsonelectronics.com 1of 3

LED SEMI-CUTOFF

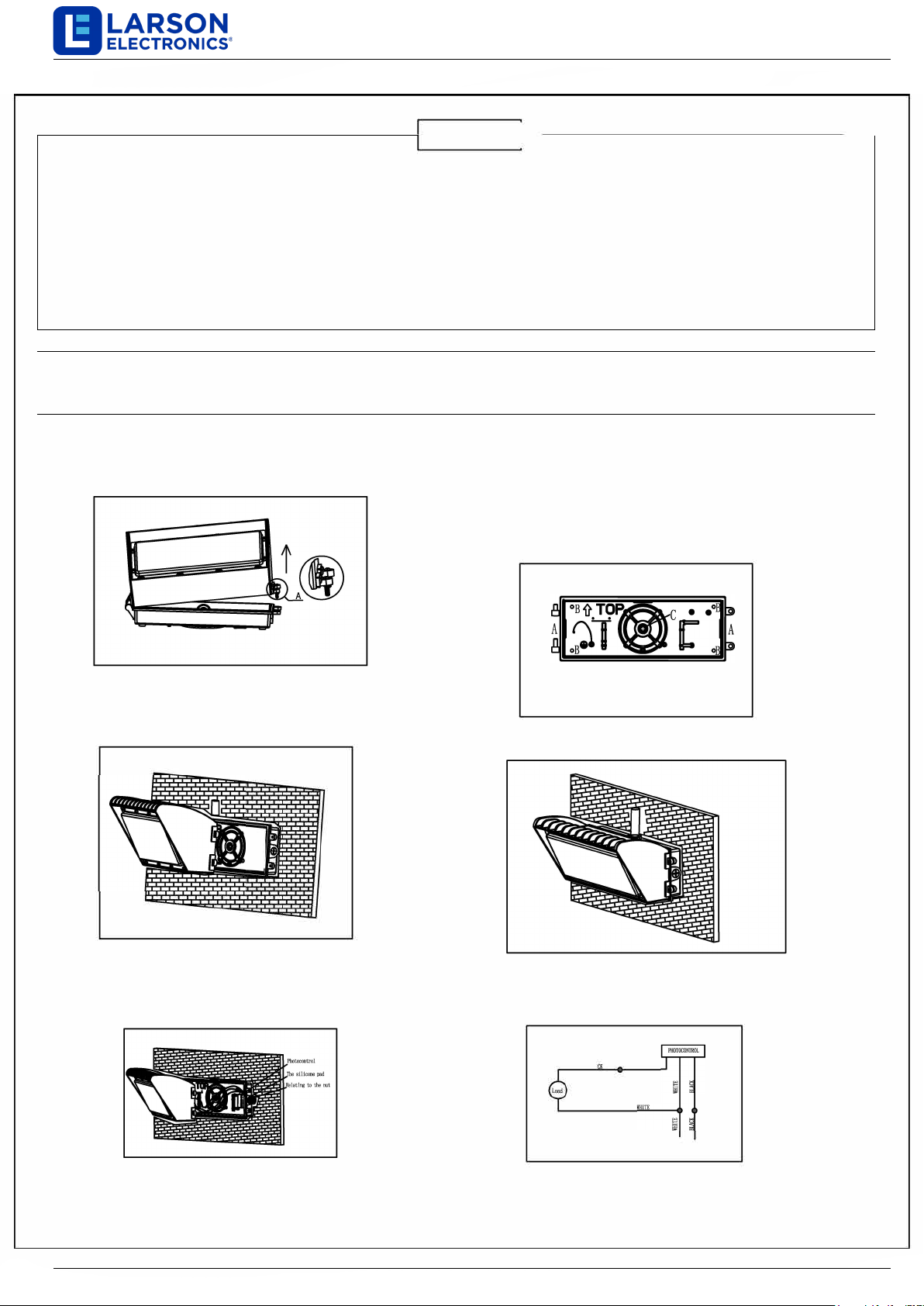

Installation Guide

& WARNING :--------------�



          

             

                        

       

                      

            

                       

  

1. Unpacking



2. Installation

 



 

  

•

 







 







  





  





       

  

 

 



B Red

LEDHWP-SC-1500

Larson Electronics, LLC Phone: (800) 369-6671 Fax: (903) 498-3364 www.larsonelectronics.com 2of 3

LEDHWP-SC-1500

Power

Input Voltage

Driver Efficiency

Luminous Flux

Color Temperature

CRI

Lighting Angle

LED Brightness Decay

Working Life

Working Temperature

Storage Temperature

Protection Level

Cable

150W

AC100-277V/200-480V

>0.95

>90%

16000 Lm

4000K/5000K

Ra>80

60*90°

<5%/6000 hrs

>50000 hrs

-30 - +45℃

-40 -+80℃

Wet Location/IP65

Input Connect, 1.5m

Specifications

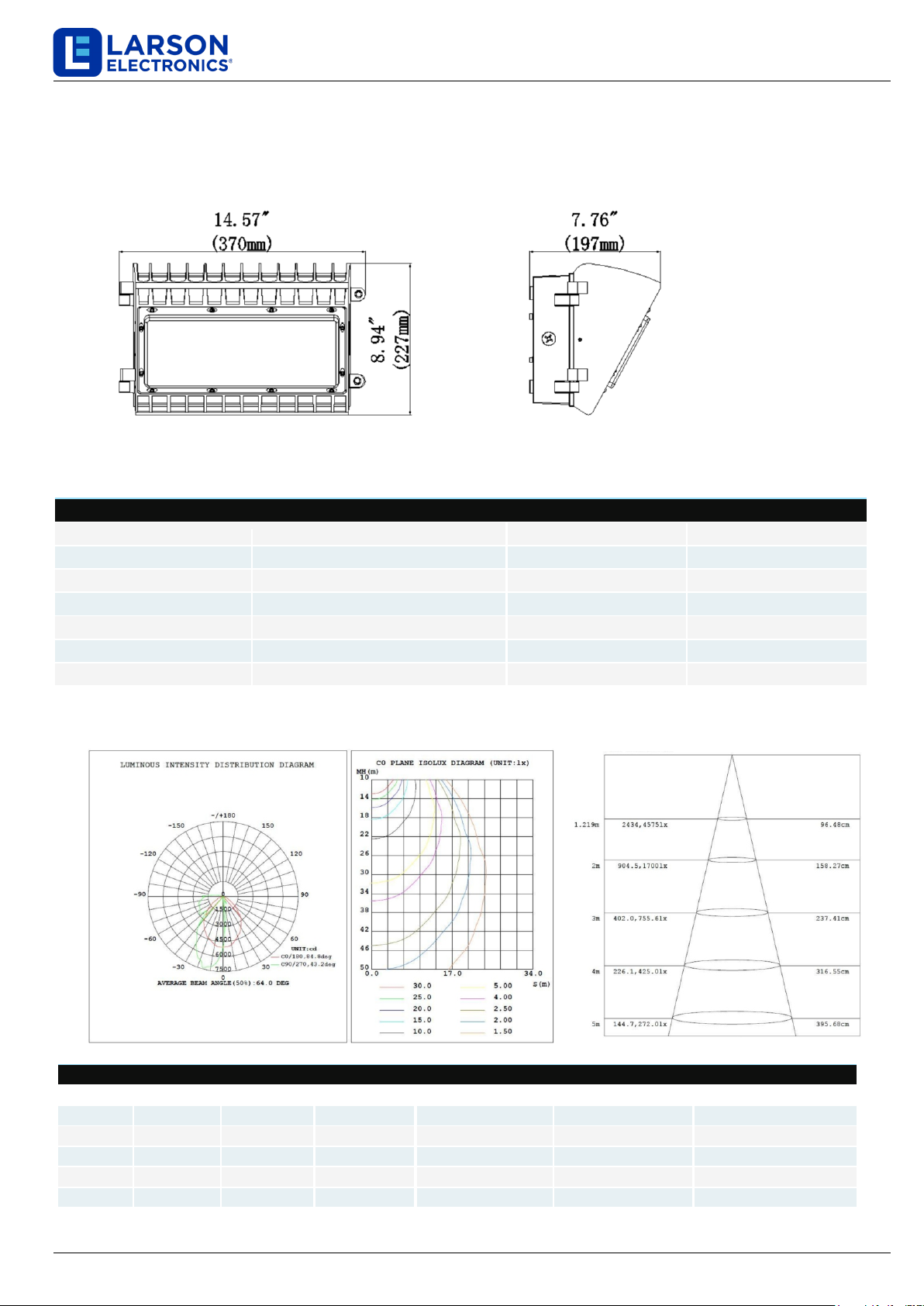

Technical Parameters

Photometry

Unit：inch(mm)

Structure Features

Shell materials: Aluminum & PC.

Finish: Black/White

Net weight：6.8Kg (15 lbs)

Product

Size:370mm*227mm*197mm

•

Carton Size:385mm*320mm*280mm

•

Example:

LEDHWP-SC-1500

WSD

HWP 27

Conmpany

WISDOM

Product

HWP

Semi-Cutoff

Wall Pack

Power

15W(150W)

Voltage

AC100-277V

Color Temp

0K(

000K)

K(5

00K)±500

Control

Photocell

00-

480

LEDHWP-SC-1500

Larson Electronics, LLC Phone: (800) 369-6671 Fax: (903) 498-3364 www.larsonelectronics.com 3of 3
