LaserLiner Greenline-Laser 3P Bedienungsanleitung

Greenline-Laser 3P / 5P

Laser

532-650 nm

Greenline-

Laser 3P

Greenline-

Laser 5P

Function / Application

Cross-line laser with intense light green laser lines for horizontal and vertical

levelling with plum function.

– The vertical lines are aligned at right angles to one another.

– A simple, precise plumb function is afforded by the additional plumb laser

at the bottom and the laser cross at the top.

– Individually switchable laser lines.

– Out-Of-Level: is indicated by optical signals when the unit is outside its

self-levelling range.

– Long-lasting, powerful lithium-ion rechargeable battery.

– The pivoted housing can be turned with a vernier adjustment mechanism

to permit exact positioning of laser lines.

– Automatic levelling range 2°, accuracy 2 mm / 10 m.

General safety instructions

Caution: Do not look directly into the beam. Lasers must be kept out of

reach of children. Never intentionally aim the device at people. This is a

quality laser measuring device and is 100% factory adjusted within the

stated tolerance. For reasons of product liability, we must also draw your

attention to the following: Regularly check the calibration before use, after

transport and after extended periods of storage. We also wish to point out

that absolute calibration is only possible in a specialist workshop. Calibration

by yourself is only approximate and the accuracy of the calibration will

depend on the care with which you proceed.

Laser radiation!

Do not stare into the beam

or observe it directly with

optical instruments.

Class 2M laser

< 5 mW · 532-650 nm

EN 60825-1:2007-10

Read the operating instructions and the enclosed brochure „Guarantee

and additional notices“ completely. Follow the instructions they

contain. Safely keep these documents for future reference.

Greenline-Laser 3P / 5P

Greenline-Laser 3P

1H 2V 1D Greenline-Laser 5P

1H 4V 1D

Green laser technology

The distance at which a laser is visible to the naked eye depends on its

colour i.e. wavelength. This is because of the human eye‘s physiology –

green appears brighter to us than red. Depending on ambient light, green

lasers are therefore many times more visible than red lasers; in indoor areas

this is as much as 12 times brighter. This permits applications on dark

surfaces, over longer distances and work in very bright ambient light.

A red laser with a 635 nm wavelength is used as a reference value for

brightness differentiation.

In contrast to red lasers, green laser light can only be produced indirectly.

This is a source of potential characteristic fluctuations:

– The optimal operating temperature is 20°C. Outside its operating

temperature range of 0 – 40°C this green laser is darker. IMPORTANT:

Allow the unit enough time to adapt to the ambient temperature before

switching the unit on.

– Laser brightness may vary somewhat from one unit to another. This is a

natural phenomena and excluded from warranty claims.

Special product features

Automatic alignment of the device with a magnetically

dampened pendulum system. The device is brought into initial position

and aligns itself autonomously.

Transport LOCK: The device is protected with a pendelum

lock during transport.

GRX-READY technology allows the line lasers to be used

even when the laser lines are no longer visible. The laser lines pulsate

at a high frequency and can be detected by special laser receivers, even

at great distances.

Number and direction of the lasers

H = horizontal laser / V = vertical laser / D = downpoint

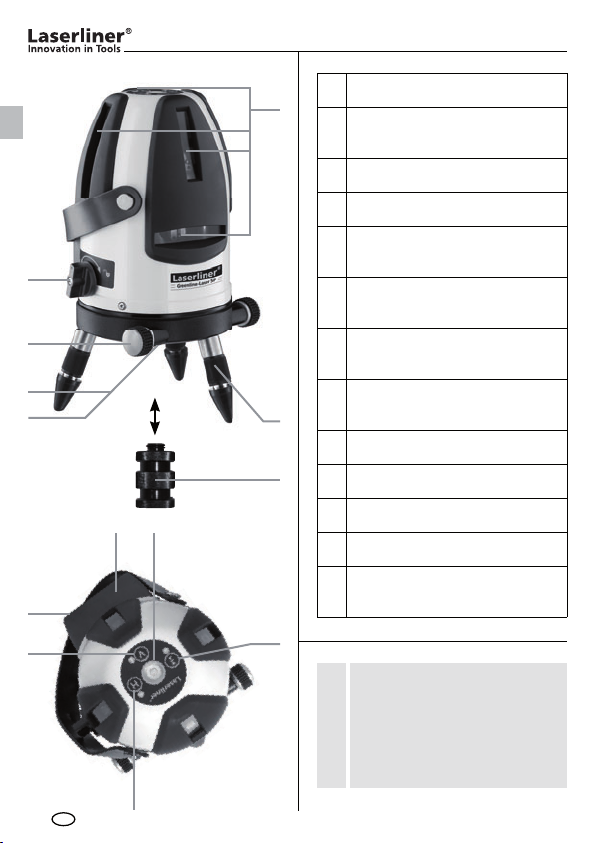

Laser emitting window

ON / OFF switch;

Transport fastener

Vernier adjustment

5/8" thread (underside)

Window for plumb laser

(underside)

Adjustable feet with

removable rubber caps

Adapter for crank tripods

and teleskopic stands

Vial for approximate

alignment

Battery compartment

Hand receiver mode

Horizontal laser lines

Vertical laser line

Connection socket

for battery charger

For transport, the device

must always be switched off

with the transport securing

device (2) so as to protect

device from damage.

Greenline-Laser 3P / 5P

Horizontal and vertical levelling

Turn the transport fastener (2) clockwise and release the pendulum lock.

The lasers are now automatically aligned by the pendulum system and the

horizontal laser lights constantly. The lasers can be switched on and off

individually with the H and V buttons. It is now ready for levelling in the

horizontal or vertical plane.

If the device is too far off the horizontal (more than 2°), the lasers will

blink. Align the device using the adjustable feet (6) or place on a more

level surface. The round vial (8) is provided as an aid to alignment.

Positioning laser lines

The top section of the laser unit can be turned on the plinth to align the

lasers approximately. Precise positioning can then be done with the Vernier

adjustment (3). The adjustable feet (6) allow the device to be positioned on

sloping surfaces.

Use of lithium-ion rechargeable battery

Before using the laser for the first time, insert the

battery in the device and fully charge (at least 5

hours). Connect the battery charger to charge

the battery. The LED lights red while the battery

is charging and green when the battery is fully

charged. Recharge the battery as soon as one or

several laser lines switch off. The rechargeable

battery can also be charged when it is not inserted

in the device.

– The battery may only be charged with the battery charger provided

and used only in this laser device. Any other use may cause injury

or fire.

– Make sure there are no conductive objects in the vicinity of the

battery contacts. Short-circuiting of these contacts can cause burn

injuries or fire.

– Do not open the rechargeable battery. This could cause short-circuits.

Hand receiver mode

Optional: Working with the laser receiver GRX

Use an GRX laser receiver (optional) to carry out levelling at great distances

or when the laser lines are no longer visible.

To work with a laser receiver, switch the line laser into hand receiver mode

with the Hand receiver mode button (10). The laser lines will now pulsate

with high frequency, making the laser lines darker. The laser receiver GRX

can detect these pulsating laser lines.

Green lasers can only be used with special laser receivers, which are

available on request.

Follow the operating instructions of the corresponding laser receiver.

Greenline-Laser 3P / 5P

A2 A2

< 2 mm / 10 m = OK

Performing the calibration check:

3. Position the device as near as possible to the wall at the height

of point A1.

4. Turn the device through 180° and mark point A3.

The difference between points A2 and A3 is the tolerance.

Preparing the calibration check:

It is possible for you to check the calibration of the laser. To do this, position

the device midway between 2 walls, which must be at least 5 metres apart.

Do this by turning the unit on, thus releasing the transport restraint (cross

laser on). Please use a tripod.

1. Mark point A1 on the wall.

2. Turn the device through 180° and mark point A2.

You now have a horizontal reference between points A1 and A2.

When A2 and A3 are more than 2Ɓmm / 10Ɓm apart, an adjustment

is necessary. Contact your authorised dealer or else the UMAREX-

LASERLINER Service Department.

2,5 m

< 2 mm = OK

Technical data (Subject to technical alterations)

Self-levelling range ± 2°

Precision ± 2 mm / 10 m

Laser wavelength linelaser (green) 532 nm

Laser wavelength plumb laser (red) 650 nm

Laser class / line laser output power 2M / < 5 mW

Laser class / plumb laser output power 2 / ÷1 mW

Power supply

Lithium-ion rechargeable battery

Battery operating time (all lasers on) 3P / 5P approx. 10 h / approx. 4 h

Battery recharging time approx. 5 h

Operating temperature 0°C ... + 40°C

Storage temperature -10°C ... + 60°C

Weight (incl. battery) 1,7 kg

Dimensions (W x H x D) 135 x 135 x 215 mm

Checking the vertical line:

Position the device about 5 m from a wall. Fix a plumb bob with a line of 2.5

m length on the wall, making sure that the bob can swing freely. Switch on the

device and align the vertical laser to the plumb line. The precision is within the

specified tolerance if the deviation between the laser line and the plumb line is

not greater than ± 1.5 mm.

Checking the horizontal line:

Position the device about 5 m from a wall and

switch on the cross laser. Mark point B on the wall.

Turn the laser cross approx. 2.5 m to the right and

mark point C. Check whether the horizontal line

from point C is level with point B to within ± 2 mm. Repeat the process by

turning the laser to the left.

Regularly check the adjustment before use, after transport and after

extended periods of storage.

Greenline-Laser 3P / 5P

EU directives and disposal

This device complies with all necessary standards

for the free movement of goods within the EU.

This product is an electric device and must be collected

separately for disposal according to the European

Directive on waste electrical and electronic equipment.

Further safety and supplementary notices at:

www.laserliner.com/info

Greenline-Laser 3P / 5P

8.037.96.01.1 / Rev.0211

SERVICE

Umarex GmbH & Co KG

– Laserliner –

Möhnestraße 149, 59755 Arnsberg, Germany

Tel.: +49 2932 638-300, Fax: +49 2932 638-333

[email protected]

Umarex GmbH & Co KG

Donnerfeld 2

59757 Arnsberg, Germany

Tel.: +49 2932 638-300, Fax: -333

www.laserliner.com


