Lasertec TruPulse L2 Bedienungsanleitung
LTI Part #0145007
© LTI 2023 Rev 01 06/08/23
TruPulse®l2
Quick reference
field Guide
LTI Technical Support
Toll Free: 1.877.696.2584
Phone: 1.303.649.1000
Email: [email protected]
Web: www.lasertech.com
LTI YouTube®Channel
www.youtube.com/lasertechpro
for TruPulse®Training Videos
LTI Corporate Headquarters
6912 South Quentin Street, Suite A
Centennial, CO 80112 USA
Fire Button
Up Button
Down Button
LTI Hours of Operation
Monday through Friday
8:00 am to 5:00 pm (MST)
(Excluding Holidays)
TruPulse®L2
*For detailed instructions on the TruPulse L2 operations, please refer to
www.lasertech.com/laser-distance-measurement and navigate to TruPulse L2 product webpage.
Display/Menu
Button
Inclination
Measurement Modes Display Icons
TruPulse®L2
Display Icons
Degrees
Percent
Feet
Meters
Slope
Distance
Horizontal
Distance
Vertical
Distance
Height
2D Missing Line
Closest Farthest Continuous Filter
Laser Firing
Battery Life
Indicator
Target Modes

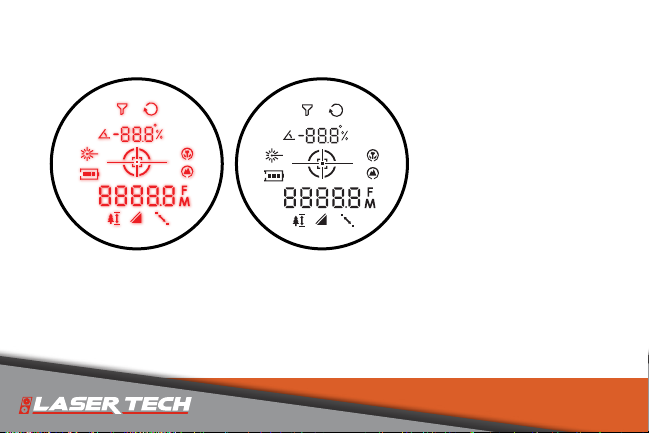

TruPulse®L2 Display
The TruPulse L2 is equipped
with a dual color display
and can show information
in Red or Black. With a
built-in light sensor that
reads ambient light, the
internal software adjusts
the red brightness intensity
based on the measured
light reading.
Short Press DISP/MENU button toggles the Automatic brightness display. Short Press the button
to change the display color from black to red. For low light conditions, it is recommended to use
the red display, and in bright sunny conditions, the black display.
Change Display Options:
1-Shot Distance 2-Shot Missing Line
2-Shot Height 3-Shot Height
TruPulse®L2
Values & Key Code
= Horizontal Distance (HD)
= Slope Distance (SD)
= Vertical Distance (VD)
= Height (HT)
= Inclination (INC)
Measured by TruPulse
Calculated by TruPulse
Measurement
Icons
Inclination
Value
Range
Value
[
1
]
Press-and-hold Display/Menu button then press Up or Down
Arrow button to scroll until the UoM option is displayed. The last UoM
options chosen will be displayed.
Change Units of Measurement (UoM)
[
2
]
Press Display/Menu button to enter option selections, the icon will be
displayed indicating the UoM option menu. Then press the Up or Down buttons
to scroll through UoM options.
Press
and
Hold
Press
Press
Menu
Button
Meters/Degrees Feet/Degrees Feet/PercentageMeters/Percentage
Press Press Press
Press
Change Units of Measurement (UoM) Continued
[
1
]
Press Fire button to select UoM option and ready to take measurement.
The TruPulse L2 has ve Target Modes which allow you to select or
eliminate targets and to take the most accurate measurements possible in
various eld conditions.
Select Targeting Mode
[
1
]
Press-and-hold Display/Menu button then press Up or Down button
to scroll to the Target Mode option screen display.
[
2
]
Press-and-hold Display/Menu button to enter the Targeting Mode option
selections, the icon will be displayed indicating the Target Mode option menu.
Then press Up or Down button to scroll through options.
[
3
]
Press Fire button to select option. Ready to take measurement with selected
Targeting Mode option. The icon of selected mode will be displayed. Standard
Mode does not have an icon displayed.
[
4
]
Repeat steps to change target mode option.
Press
and
Hold
Press
Press
Menu
Button
Standard Farthest Closest ContinuousFilter
Press Press Press Press
Press
Select Targeting Mode Continued
Measure Distance
In the Slope Distance Mode , the TruPulse L2 will automatically
calculate and .
Measurements are from the 1/4-20 tripod mount (center) of the laser
to the target.
[
1
]
Press the Up or Down button until screen is displayed.
[
2
]
Aim at the target where you have a clear line of sight then press-and-hold the
re button .
[
2.1
]
The laser indicator will be displayed until measurement is acquired or
re button is released.
Displayed result will “ash” indicating measurement acquired.
