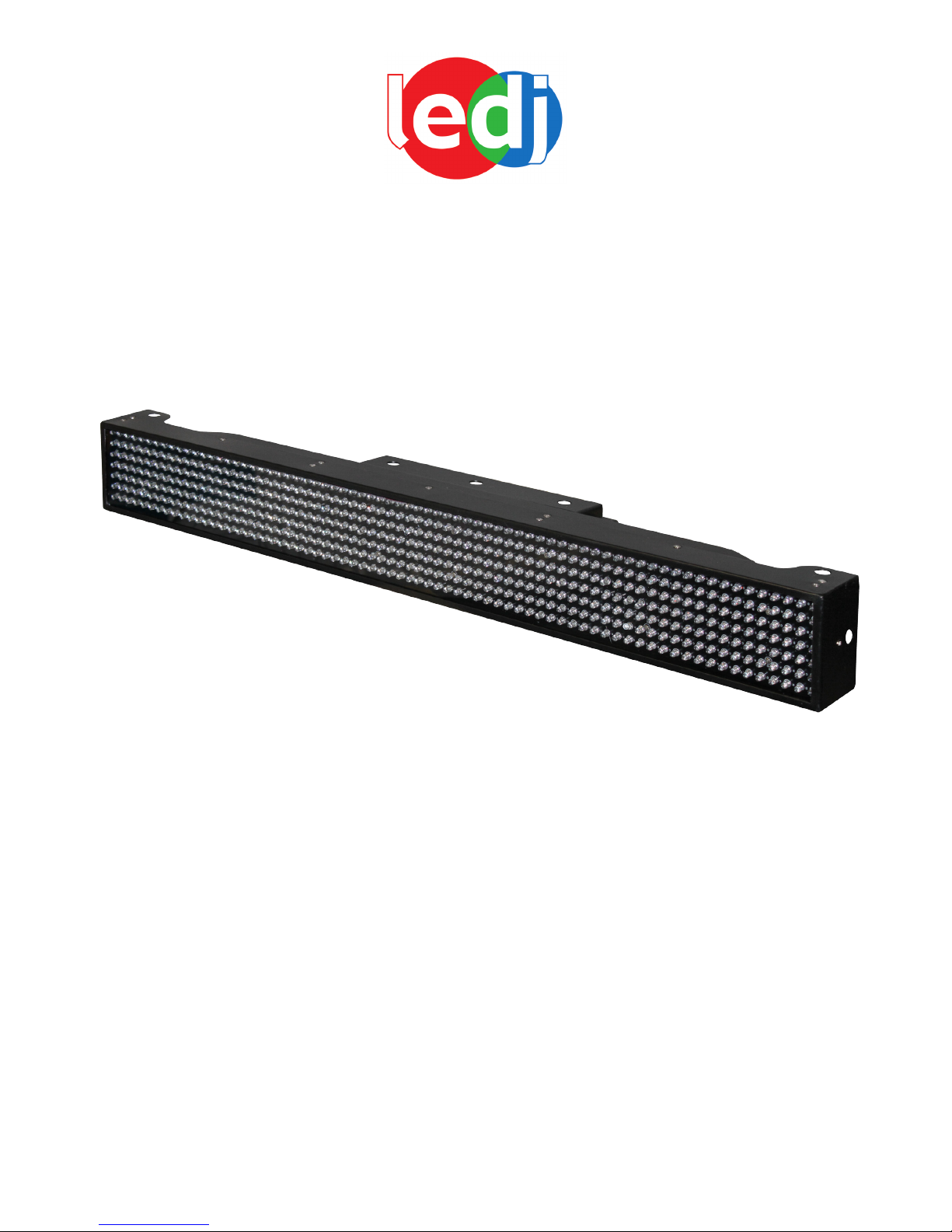

Pixel Bar

(Order code: LEDJ73A)

USER MANUAL

WARNING

FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY

BEFORE YOUR INITIAL START-UP!

CAUTION!

Keep this equipment away from rain,

moisture and liquids.

SAFETY INSTRUCTIONS

Every person involved with the installation, operation & maintenance of this

equipment should:

- Be competent

- Follow the instructions of this manual

CAUTION! TAKE CARE USING THIS EQUIPMENT!

HIGH VOLTAGE-RISK OF ELECTRIC SHOCK!!

Before your initial start-up, please make sure that there is no damage caused during

transportation. Should there be any, consult your dealer and do not use the

equipment.

To maintain the equipment in good working condition and to ensure safe operation, it is necessary

for the user to follow the safety instructions and warning notes written in this manual.

Please note that damages caused by user modications to this equipment are not

subject to warranty.

PIXEL BAR SAFETY

IMPORTANT:

The manufacturer will not accept liability for any resulting damages caused

by the non-observance of this manual or any unauthorised modication to the

equipment.

• Never let the power-cable come into contact with other cables. Handle the power-cable

and all mains voltage connections with particular caution!

• Never remove warning or informative labels from the equipment.

• Do not open the equipment and do not modify the equipment.

• Do not connect this equipment to a dimmer-pack.

• Do not switch the equipment on and off in short intervals, as this will reduce the

system’s life.

• Only use the equipment indoors.

• Do not expose to ammable sources, liquids or gases.

• Always disconnect the power from the mains when equipment is not in use or before

cleaning! Only handle the power-cable by the plug. Never pull out the plug by pulling the

power-cable.

• Make sure that the available voltage is between 220v/240v.

• Make sure that the power-cable is never crimped or damaged. Check the equipment and

the power-cable periodically.

• If the equipment is dropped or damaged, disconnect the mains power supply immediately.

Have a qualied engineer inspect the equipment before operating again.

• If the equipment has been exposed to drastic temperature uctuation (e.g. after

transportation), do not switch it on immediately. The arising condensation might damage

the equipment. Leave the equipment switched off until it has reached room temperature.

• If your product fails to function correctly, discontinue use immediately. Pack the unit

securely (preferably in the original packing material), and return it to your Prolight dealer

for service.

• Only use fuses of same type and rating.

• Repairs, servicing and power connection must only be carried out by a qualied

technician. THIS UNIT CONTAINS NO USER SERVICEABLE PARTS.

• WARRANTY; One year from date of purchase.

OPERATING DETERMINATIONS

If this equipment is operated in any other way, than those described in this manual,

the product may suffer damage and the warranty becomes void.

Incorrect operation may lead to danger e.g.: short-circuit, burns, electric shocks,

lamp failure etc.

Do not endanger your own safety and the safety of others!

Incorrect installation or use can cause serious damage to people and property.

Setup

Operating Instructions

The LEDJ Pixel Bar is a DMX-512 controllable unit made up of high efciency and Ultra Bright

LEDs and will operate in stand alone, master/slave, sound activated or DMX control modes.

HBR-1D Operation (optional)

To operate the Pixel Bar via the (optional) LEDJ HBR-1D controller (LEDJ123), please

ensure that the Pixel Bar has been set into “SLAVE MODE” and connect the controller to the

3-pin XLR socket on the rear of the unit.

The HBR-1D can be used in conjunction with the MB-2 Footswitch (LEDJ124), by plugging the

5-pin XLR from the MB-2 into the HBR-1D controller.

Note: please follow the user manuals supplied with the optional MB-2 and HBR-1D

controllers for details of various operation modes.

PIXEL BAR INTRODUCTION

Introduction

Features

• DMX channels: 27/24/15/9 or 6 selectable

• 504 x 5mm LEDs (R: 168, G: 168, B: 168)

• Sound control via internal microphone

• 3-pin XLR In/Out for DMX linking

• Power IEC In/Out sockets

• 14 built-in programmes & 7 static colours

• 4 push button menu with LCD display

• Master/Slave functions

• Auto run mode

• Consumption: 51W

• Beam 25 degrees

• Fuse: 1A/240V

Over view

LCD Screen

Mode Button

Set Up Button

Up Button

Down Button

Power Input

DMX In

Hanging Bracket

DMX Out

Power Output

PIXEL BAR OPERATION MODES

Operation modes

Sound Active mode:

To activate the unit in sound active mode, press the “MODE” button to show “SOUND MODE”

on the LCD screen. Now press the “SET UP” button to select the desired sensitivity level by using

the “UP” and “DOWN” buttons. Press the “SET UP” button again to select the frequency number

and adjust by using the “UP” and “DOWN” buttons.

“SENS” 00 - 31 (00 = low, 31 = high)

“FQN” 01-99 (01 = low, 99 = high)

Auto run mode:

To activate the unit in auto run mode, press the “MODE” button to show “AUTO RUN” on the

LCD screen. Now press the “SET UP” button to select the desired frequency number by using the

“UP” and “DOWN” buttons.

“FQN” 01-99 (01 = low, 99 = high)

Note: When the Pixel Bar is set to “sound” or “auto run” mode it will scroll through all of its built-in

programmes one after the other. The term “FQN’ refers to the number of times it displays the

buit-in programmes: for example if you set the “FQN” to 3, it will then repeat each programme 3

times before going on to the next one.

Slave mode:

To activate the unit in slave mode, rst you must link multiple units together and press the

“MODE” button to show “SLAVE MODE” on the LCD screen. Now on the master unit press the

“MODE” button to select the desired mode and the slave units will now run in sequence with the

master unit.

Built-in programmes:

To activate the units built-in programmes, press the “MODE” button to show “01.STATIC” on the

LCD screen. Press the “SET UP” button to choose between the 14 built-in programmes by

using the “UP” and “DOWN” buttons. Now press the “SET UP” button to select the desired

speed and adjust by using the “UP” and “DOWN” buttons. Press the “SET UP” button once

more to select the desired ash value and adjust by using the “UP” and “DOWN” buttons.

Speed values: 00 - 99 (00 = slow, 99 = fast)

Flash values: 00 - 99 (00 = slow, 99 = fast)

For the 14 built-in programmes please see page 5.

DMX mode:

To activate the unit in DMX mode, press the “MODE” button to show “DMX MODE” on the LCD

screen. Press the “SET UP” button and select the desired DMX address setting by using the

“UP” and “DOWN” buttons. Then to select one of the 5 DMX modes 27, 24, 15, 9 or 6 channel,

press the “SET UP” button again to choose the desired DMX mode by using the “UP” and

“DOWN” buttons.

For the 27, 24, 15, 9 and 6 channel DMX address information please see pages 6 & 7.

NOTE: Once the desired settings have been selected in each of the above modes, ALWAYS

conrm the settings by pressing the “SET UP” button.

PIXEL BAR BUILT-IN PROGRAMME CHART

14 Built-in programme chart

STATIC COLOR

BLACKOUT - RGB

Flash00-99

BLA=Blackout, R=Red, RG=Yellow, G=Green,

GB=Cyan, B=Blue, BR=Purple, RGB=White

Flash speed adjustable.

DREAM

Speed 00-99 Flash 00-99

Seven colour fade

Speed & Flash adjustable

METEOR

Speed 00-99 Flash 00-99

Seven colour flow

Speed & Flash adjustable

FADE

Speed 00-99 Flash 00-99

Seven colour fade in, fade out

Speed & Flash adjustable

CHANGE

Speed 00-99 Flash 00-99

Seven colour change

Speed & Flash adjustable

FLOW 1

Speed 00-99 Flash 00-99

Seven colour chase (forward)

Speed & Flash adjustable

FLOW 2

Speed 00-99 Flash 00-99

Seven colour chase (forward & reverse)

Speed & Flash adjustable

FLOW 3

Speed 00-99 Flash 00-99

Seven colour fade chase in relay pattern (forward)

Speed & Flash adjustable

FLOW 4

Speed 00-99 Flash 00-99

Seven colour fade chase in relay pattern (forward &

reverse)

Speed & Flash adjustable

FLOW 5

Speed 00-99 Flash 00-99

Seven colour chase from sides to centre

Speed & Flash adjustable

FLOW 6

Speed 00-99 Flash 00-99

Seven colour chase from centre to sides

Speed & Flash adjustable

FLOW 7

Speed 00-99 Flash 00-99

Seven colour rotating chase

Speed & Flash adjustable

FLOW 8

Speed 00-99 Flash 00-99

1.BLA-RGB 2. BLA-RGB

Two colour chase (forward)

Speed & Flash adjustable

Blackout, Red, Yellow, Green, Cyan, Blue, Purple,

White

FLOW 9

Speed00-99 Flash 00-99

1.BLA-RGB 2. BLA-RGB

Two colour chase (forward & reverse)

Speed & Flash adjustable

BLA=Blackout, R=Red, RG=Yellow, G=Green,

GB=Cyan, B=Blue, BR=Purple, RGB=White

PIXEL BAR DMX PROGRAMME CHARTS

6 channel mode DMX chart

CH 1 CH 2 CH3 CH4 CH5 CH6

0-10 blackout blackout blackout blackout blackout

11-21 Master dimmer

(0-255)

Flash

(0-255)

Red

(0-255)

Green

(0-255)

Blue

(0-255)

22-32 Red Flash(0-255)

33-43 Yellow Flash (0-255)

44-54 Green Flash (0-255)

55-65 Cyan Flash (0-255)

66-76 Blue Flash (0-255)

77-87 Purple Flash (0-255)

88-98 White Flash (0-255)

99-109 Dream Speed (0-255) Flash (0-255)

110-120 Meteor Speed (0-255) Flash (0-255)

121-131 Fade Speed (0-255) Flash (0-255)

132-142 Change Speed (0-255) Flash (0-255)

143-153 Flow 1 Speed (0-255) Flash (0-255)

154-164 Flow 2 Speed (0-255) Flash (0-255)

165-175 Flow 3 Speed (0-255) Flash (0-255)

176-186 Flow 4 Speed (0-255) Flash (0-255)

187-197 Flow 5 Speed (0-255) Flash (0-255)

198-208 Flow 6 Speed (0-255) Flash (0-255)

209-219 Flow 7 Speed (0-255) Flash (0-255)

220-230 Flow 8 Speed (0-255) Flash (0-255 Color

select

231-241 Flow 9 Speed (0-255) Flash (0-255) Color

select

242-255

Sound active

Sensitivity

(0-255)

Flash (0-255)

PIXEL BAR DMX PROGRAMME CHARTS

Note: For 9, 15 and 27 channel modes, please follow the 6 channel DMX chart for channels

1, 2 and 3.

9 channel mode DMX chart

15 channel mode DMX chart

24 channel mode DMX chart

27 channel mode DMX chart

CH1

11-21

CH2

Master

Dimmer

(0-255)

CH3

Flash

(0-255)

CH1

11-21

CH2

Master

Dimmer

(0-255)

CH3

Flash

(0-255)

CH4

CH5

CH6

CH7

CH8

CH9

CH10

CH11

CH12

CH13

CH14

CH15

CH4

CH5

CH1

11-21

CH2

Master

Dimmer

(0-255)

CH3

Flash

(0-255)

CH4

CH5

CH6

CH7

CH8

CH9

CH7

CH8

CH9

CH10

CH11

CH12

CH13

CH14

CH15

CH6

CH16

CH17

CH18

CH19

CH20

CH21

CH22

CH23

CH24

CH1

CH2

CH3

CH4

CH5

CH6

CH7

CH8

CH9

CH10

CH11

CH12

CH13

CH14

CH15

CH16

CH17

CH18

CH19

CH20

CH21

CH22

CH23

CH24

CH25

CH26

CH27

PIXEL BAR DMX SET UP

DMX-512:

• DMX (Digital Multiplex) is a universal protocol used as a form of communication between

intelligent xtures and controllers. A DMX controller sends DMX data instructions form the

controller to the xture. DMX data is sent as serial data that travels from xture to xture via the

DATA “IN” and DATA “OUT” XLR terminals located on all DMX xtures (most controllers only

have a data “out” terminal).

DMX Linking:

• DMX is a language allowing all makes and models of different manufactures to be linked together

and operate from a single controller, as long as all xtures and the controller are DMX compliant.

To ensure proper DMX data transmission, when using several DMX xtures try to use the

shortest cable path possible. The order in which xtures are connected in a DMX line does not

inuence the DMX addressing. For example; a xture assigned to a DMX address of 1 may be

placed anywhere in a DMX line, at the beginning, at the end, or anywhere in the middle. When a

xture is assigned a DMX address of 1, the DMX controller knows to send DATA assigned to

address 1 to that unit, no matter where it is located in the DMX chain.

DATA Cable (DMX cable) requirements (for DMX operation):

• The Pixel Bar can be controlled via DMX-512 protocol. The DMX address is set on the

back of the unit. Your unit and your DMX controller require a standard 3-pin XLR connector for

data input/output (gure 1).

Figure 1

Also remember that DMX cable must be daisy chained and cannot be split.

Further DMX cables can be purchased

from all good sound and lighting suppliers

or Prolight dealers.

Please quote:

CABL10 – 2M

CABL11 – 5M

CABL12 – 10M

Notice:

• Be sure to follow gures 2 & 3 when making your own cables. Do not connect the cable’s shield

conductor to the ground lug or allow the shield conductor to come in contact with the XLR’s outer

casing. Grounding the shield could cause a short circuit and erratic behaviour.

Special Note: Line termination:

• When longer runs of cable are used, you may need to use a terminator on the last unit to

avoid erratic behaviour.

Using a cable terminator (part number CABL90) will decrease the possibilities of erratic

behaviour.

5-Pin XLR DMX Connectors:

• Some manufactures use 5-pin XLR connectors for data transmission in place of 3-pin. 5-Pin

XLR xtures may be implemented in a 3-pin XLR DMX line. When inserting standard 5-pin

XLR connectors in to a 3-pin line a cable adaptor must be used. The chart below details the

correct cable conversion.

Termination reduces signal transmission problems

and interferance. it is always advisable to connect a

DMX terminal, (resistance 120 Ohm 1/4 W) between

pin 2 (DMX-) and pin 3 (DMX+) of the last fixture.

PIXEL BAR DMX SET UP

Inhaltsverzeichnis

Andere Ledj Beleuchtungsausrüstung Handbücher

Ledj

Ledj Mini Pix 9 Panel Bedienungsanleitung

Ledj

Ledj LED RGB 252 Bedienungsanleitung

Ledj

Ledj Pixel Storm 6 Tri Batten Bedienungsanleitung

Ledj

Ledj Aspect XL LEDJ302 Bedienungsanleitung

Ledj

Ledj Stage Par CZ200 3200K Bedienungsanleitung

Ledj

Ledj LEDJ02 Bedienungsanleitung

Ledj

Ledj Aspect XL Bedienungsanleitung

Ledj

Ledj Slimline 3HEX12 Series Bedienungsanleitung

Ledj

Ledj TRI LED-56 CAN Bedienungsanleitung

Ledj

Ledj Slimline 7HEX6 Series Bedienungsanleitung

Ledj

Ledj Spectra Par 30Q8 PRO Exterior Fixture Bedienungsanleitung

Ledj

Ledj Aspect Bedienungsanleitung

Ledj

Ledj S-1 Bedienungsanleitung

Ledj

Ledj LEDJ P85 Bedienungsanleitung

Ledj

Ledj LEDJ188 Bedienungsanleitung

Ledj

Ledj Libretto Mini RGBAL Profile Bedienungsanleitung

Ledj

Ledj LEDJ112 Bedienungsanleitung

Ledj

Ledj LEDJ162 Bedienungsanleitung

Ledj

Ledj Xterior Wash Tri Bedienungsanleitung

Ledj

Ledj LEDJ387 Bedienungsanleitung

Ledj

Ledj Spectra Par 15Q8 PRO Bedienungsanleitung

Ledj

Ledj Spectra QX40 Pixel MKII Exterior Fixture Bedienungsanleitung

Ledj

Ledj STAR18 Bedienungsanleitung

Ledj

Ledj LEDJ255 Bedienungsanleitung

Beliebte Beleuchtungsausrüstung Handbücher anderer Marken

Brizo

Brizo 8SP-MU-4 Bedienungsanleitung

LUCE&LIGHT

LUCE&LIGHT BROM 1.0 Bedienungsanleitung

IKEA

IKEA BJÖRKSPIREA Bedienungsanleitung

Laserworld

Laserworld Evolution Series ES-400RGB Bedienungsanleitung

Alien

Alien RG STAR Bedienungsanleitung

EuroLite

EuroLite LED B-40 Bedienungsanleitung

Qazqa

Qazqa Suplux SL 3 Black 103062 Bedienungsanleitung

Commercial Electric

Commercial Electric 54568141 Bedienungsanleitung

CREE LIGHTING

CREE LIGHTING 304 Series Bedienungsanleitung

Goobay

Goobay 49867 Bedienungsanleitung

ECOMAN ITALIA

ECOMAN ITALIA LED T8 Bedienungsanleitung

Alkalite

Alkalite Krypton KT-81 Bedienungsanleitung

Clas Ohlson

Clas Ohlson GU10 Bedienungsanleitung

DTS

DTS DELTA 10 F Bedienungsanleitung

ring

ring Solar Steplight Bedienungsanleitung

One Stop Gardens

One Stop Gardens 57696 Montageanleitung

Chauvet DJ

Chauvet DJ COREpar UV120 ILS Bedienungsanleitung

SIREM

SIREM Swimeo A2 Bedienungsanleitung
