LEGRAND 0 648 88 Bedienungsanleitung

LE10319AA

Connected lighting micromodule

0 648 88

This pack is a connected accessory which requires you to buy and install the «... with

Netatmo». connected starter pack first.

Pack contents

Connected

lighting micromodule

Characteristics

**

R L

LED

100-240VAC

50/60Hz

1x1.5mm

240VAC Max. 300W *100W 250 VA 250VA 250VA

100VAC Max. 150W *50W 125 VA 125VA 125VA

+45°C

+5°C

In default mode (on/off), this switch works with the following types of bulb:

(*)

Or 10 bulbs max. For comfortable lighting, we recommend using bulbs of the same

type and make.

(**)Use only transformers intended for operation with electronic switches. Take account or

transformer losses for power calculations. Transformers should be charged to over 60%

of their rated power.

To install or replace a remote switch, only use the product:

Do not use: a connected switch (with dimmer option) to control a connected

lighting micromodule.

x 1

Connected lighting micromodule

To control your micromodule:

At least one wireless lighting switch from the «...with Netatmo”connected ranges

must be paired with it.

To create your wireless lighting two-way switch:

Add one or several wireless lighting switches from the «...with Netatmo”connected

ranges.

Safety instructions

This product should be installed in compliance with installation rules, preferably by a qualified electrician. Incorrect installation and/or incorrect use can

lead to risk of electric shock or fire. Before carrying out the installation, read the instructions and take account of the product’s specific mounting location.

Do not open up, dismantle, alter or modify the device except where specifically required to do so by the instructions. All Legrand products must be

opened and repaired exclusively by personnel trained and approved by Legrand. Any unauthorised opening or repair completely cancels all liabilities

and the rights to replacement and guarantees. Use only Legrand brand accessories.

You can keep the existing push buttons or replace them with

wireless controls.

Before you start: wiring precautions

LE10319AA

Connected lighting micromodule

0 648 88

This pack is a connected accessory which requires you to buy and install the «... with

Netatmo». connected starter pack first.

Pack contents

Connected

lighting micromodule

Characteristics

**

R L

LED

100-240VAC

50/60Hz

1x1.5mm

240VAC Max. 300W *100W 250 VA 250VA 250VA

100VAC Max. 150W *50W 125 VA 125VA 125VA

+45°C

+5°C

In default mode (on/off), this switch works with the following types of bulb:

(*)

Or 10 bulbs max. For comfortable lighting, we recommend using bulbs of the same

type and make.

(**)Use only transformers intended for operation with electronic switches. Take account or

transformer losses for power calculations. Transformers should be charged to over 60%

of their rated power.

To install or replace a remote switch, only use the product:

Do not use: a connected switch (with dimmer option) to control a connected

lighting micromodule.

x 1

Connected lighting micromodule

To control your micromodule:

At least one wireless lighting switch from the «...with Netatmo”connected ranges

must be paired with it.

To create your wireless lighting two-way switch:

Add one or several wireless lighting switches from the «...with Netatmo”connected

ranges.

Safety instructions

This product should be installed in compliance with installation rules, preferably by a qualified electrician. Incorrect installation and/or incorrect use can

lead to risk of electric shock or fire. Before carrying out the installation, read the instructions and take account of the product’s specific mounting location.

Do not open up, dismantle, alter or modify the device except where specifically required to do so by the instructions. All Legrand products must be

opened and repaired exclusively by personnel trained and approved by Legrand. Any unauthorised opening or repair completely cancels all liabilities

and the rights to replacement and guarantees. Use only Legrand brand accessories.

You can keep the existing push buttons or replace them with

wireless controls.

Before you start: wiring precautions

Install the connected lighting micromodule

The «... with Netatmo» connected lighting micromodule can be easily installed in a ceiling

light or in wall lights.

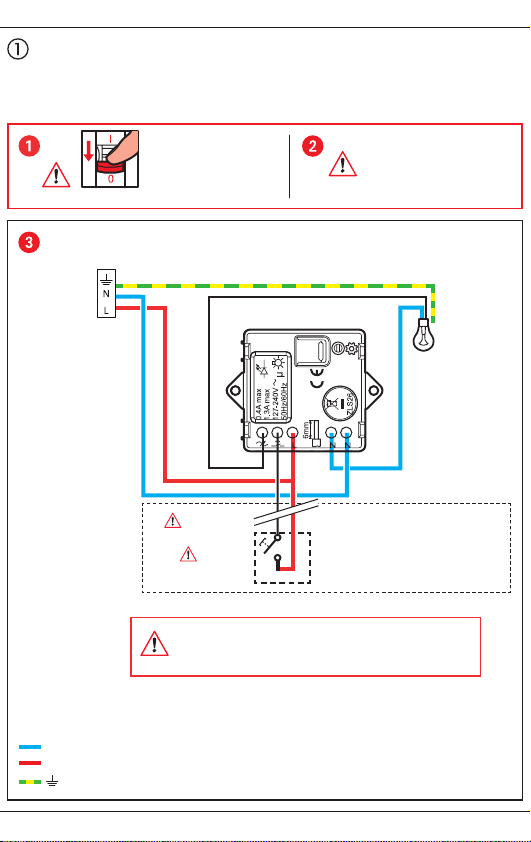

Wire the connected lighting micromodule

Option: remote control

wiring using a non-

illuminated mechanical

pushbutton.

x 5 Max.

Frequency bands: 2.4 - 2.4835 GHz

Power level: <100mW

Max. 15m

Make sure that the power is off before

continuing with the installation.

OFF

Switch off the power

at the main circuit

breaker

Make sure that the

power is off before

continuing with the

installation.

N (neutral) = blue

L (live) = any except blue and green/yellow

(earth) = green/yellow

To add a connected product to your connected installation,

you should follow the instructions:

- in the user guide in your connected starter pack

- in the Legrand Home + Control application (Settings/Add a new product section)

- or consult the user manual on legrand.fr

SIMPLIFIED EU DECLARATION OF CONFORMITY

The undersigned,

Legrand

declares that the radio-electric equipment referred to in these

instructions complies with directive 2014/53/EU.

The full text of the EU declaration of conformity is available

on the following website:

www.legrandoc.com

LEGRAND - Pro and Consumer Service - BP 30076

87002 LIMOGES CEDEX FRANCE • www.legrand.com

www.legrand.fr

Install the connected lighting micromodule

The «... with Netatmo» connected lighting micromodule can be easily installed in a ceiling

light or in wall lights.

Wire the connected lighting micromodule

Option: remote control

wiring using a non-

illuminated mechanical

pushbutton.

x 5 Max.

Frequency bands: 2.4 - 2.4835 GHz

Power level: <100mW

Max. 15m

Make sure that the power is off before

continuing with the installation.

OFF

Switch off the power

at the main circuit

breaker

Make sure that the

power is off before

continuing with the

installation.

N (neutral) = blue

L (live) = any except blue and green/yellow

(earth) = green/yellow

To add a connected product to your connected installation,

you should follow the instructions:

- in the user guide in your connected starter pack

- in the Legrand Home + Control application (Settings/Add a new product section)

- or consult the user manual on legrand.fr

SIMPLIFIED EU DECLARATION OF CONFORMITY

The undersigned,

Legrand

declares that the radio-electric equipment referred to in these

instructions complies with directive 2014/53/EU.

The full text of the EU declaration of conformity is available

on the following website:

www.legrandoc.com

LEGRAND - Pro and Consumer Service - BP 30076

87002 LIMOGES CEDEX FRANCE • www.legrand.com

www.legrand.fr
