Dual band Access Point

802.11a/b/g/n

www.legrand.fr

USER

GUIDE

Contents

1.1 / HOW TO ACCESS THE WEB-BASED INTERFACE p. 4

1.2 / ENTERING THE CONFIGURATION PASSWORD p. 5

1.3 / CONFIGURATION WIZARD p. 6

1.4 / ACCESS POINT OVERVIEW p. 7

1.5 / IP ADDRESS p. 8

1.6 / ADMINISTRATION PASSWORD p. 9

1.7 / FIRMWARE MANAGEMENT p. 10

1.8 / CONFIGURATION MANAGEMENT p. 11

1.9 / REBOOT/FULL RESET p. 12

1.10 / MANAGEMENT INTERFACE p. 13

1.11 / SNMP, UPnP & SYSLOG p. 14

1.12 / TIME SETTINGS p. 16

1.13 / ETHERNET INTERFACE p. 18

1.14 / RADIO SETTINGS p. 19

1.15 / WIRELESS NETWORKS p. 21

1.15.1 / WIRELESS NETWORK/SECURITY/Open p. 24

1.15.2 / WIRELESS NETWORK/SECURITY/Static WEP p. 25

1.15.3 / WIRELESS NETWORK/SECURITY/WEP with 802.1x p. 26

1.15.4 / WIRELESS NETWORK/SECURITY/Static WPA p. 27

1.15.5 / WIRELESS NETWORK/SECURITY/Static WPA with 802.1x p. 28

1.15.6 / WIRELESS NETWORK/SECURITY/Static WPA2 p. 29

1.15.7 / WIRELESS NETWORK/SECURITY/WPA2 with 802.1x p. 30

1.15.8 / WIRELESS NETWORK/SECURITY/Static WPA or WPA2 p. 31

1.15.9 / WIRELESS NETWORK/SECURITY/WPA or WPA2 with 802.1x p. 32

1.16 / WIRELESS NETWORK/GUEST ACCESS p. 33

1.17 / RADIUS SETTINGS p. 34

GLOSSARY p. 36

Introduction

Rear Panel of the Access Point (AP)

The port to which an uplink network cable

is connected is located on the rear panel

of the Access Point. The power is supplied

via twisted pair cable (Power over Ethernet

standard IEEE 802.3af).

Front panel of the Access Point

LED (PWR): The power LED lights when the

Access Point is powered on.

LED (WLAN): The LED blinks when the

radio is activated.

Reset button: This button has two uses:

• A short press reboots the AP

• A long press (more than 5 seconds) resets

the AP (to factory defaults)

USER GUIDE FOR LEGRAND

DUAL BAND ACCESS POINT

1.1 / HOW TO ACCESS THE WEB-BASED INTERFACE

The list shows all the Legrand Access Points in your installation.

Select an Access Point and click on "Connect" to access the web configuration interface.

1. If your computer is operating with Windows

Check that the UPnP protocol is activated on

your computer. If it is not, follow this procedure:

-Click on the Start Menu> Settings> Control

Panel

-Click on Add or Remove Programs in the

Control Panel.

-Click on Add/Remove Windows Components.

-In the Components list, select Networking

Services, then click on Details.

- Make sure the Universal Plug-and-Play check

box Is selected. Click on OK, then Next until the

installation is complete.

UPnP is now activated on your computer. When

you click on the Network Neighbourhood icon

on your desktop.

-Click on Start

-Click on Computer

-Click on Network

A window opens displaying the Legrand AP

detected using UPnP.

Double-click on one of the Access Points to access the web configuration interface.

2. If your computer is operating with another version of Windows or with

MAC, Linux, Unix or another operating system

Use the CD-ROM to launch the Legrand Control

Point discovery utility.

Insert the CD-ROM SUPPLIED WITH THE

ACCESS POINT (AP). This CD provides the tools

you need to configure your wireless network.

The main menu will be displayed automatically on

the screen. If the main menu does not open auto-

matically, browse the contents of the CD-ROM

using the Windows Explorer, then double-click on

the setup.exe file.

- XP

- Vista/7

The first time you connect to the management web interfaces, or following a full reset, you will

not be asked to enter a password to configure the Access Point. It is strongly recommended

that you password protect your Legrand Access Point, as this will make access to the man-

agement web interfaces subject to prior authentication. The Login will then be "admin", and

the password will have to match with the one previously configured.

1.2 / ENTERING THE CONFIGURATION PASSWORD

USER GUIDE FOR LEGRAND

DUAL BAND ACCESS POINT

Caution

Depending on the web browser you use,

a Remember my password dialogue box

may appear if the management web inter-

faces are password-protected. Enabling this

option means your browser will fill in the

password automatically for you each time

you subsequently connect to the manage-

ment web interfaces.

Do not check this option if other people

have access to your PC, as they could

modify the Access Point configuration

without having to provide the configuration

password.

This page provides quick access to the main security features of your Access Point.

When your configuration is complete, the

connection between your computer and the

Access Point will be interrupted. In order to

restore your computerís wireless connectiv-

ity, you will need to apply the same encryp-

tion and key to your PCís wireless connec-

tion settings.

Your AP is now secure and ready to use.

If you need to modify the advanced set-

tings use the web interface menu.

1.3 / CONFIGURATION WIZARD

USER GUIDE FOR LEGRAND

DUAL BAND ACCESS POINT

First enter your chosen network name

(Choose a network name (SSID)).

In the Choose your WPA key field, select a

wireless key (at least 8 characters long). This

will have to be entered on all wireless devices

to be connected to the wireless network.

In the Choose a new admin password field,

enter your chosen password.

This password will be required to modify the

configuration of your Access Point.

Click on Apply & Save to update and save

this configuration.

With this quick installation page, your Access

Point is configured using the Static WPA or

WPA2 encryption method (using the key pro-

vided).

AP name

This name will help you to identify your

Access Point.

When you select Add a guest access limi-

ted to an Internet access, you can define

an open (hotspot) wireless network which will

only provide access to the Internet. Enter the

name of this limited-access network in the

Choose the guest access network name

(SSID)) field.

1.4 / ACCESS POINT OVERVIEW

USER GUIDE FOR LEGRAND

DUAL BAND ACCESS POINT

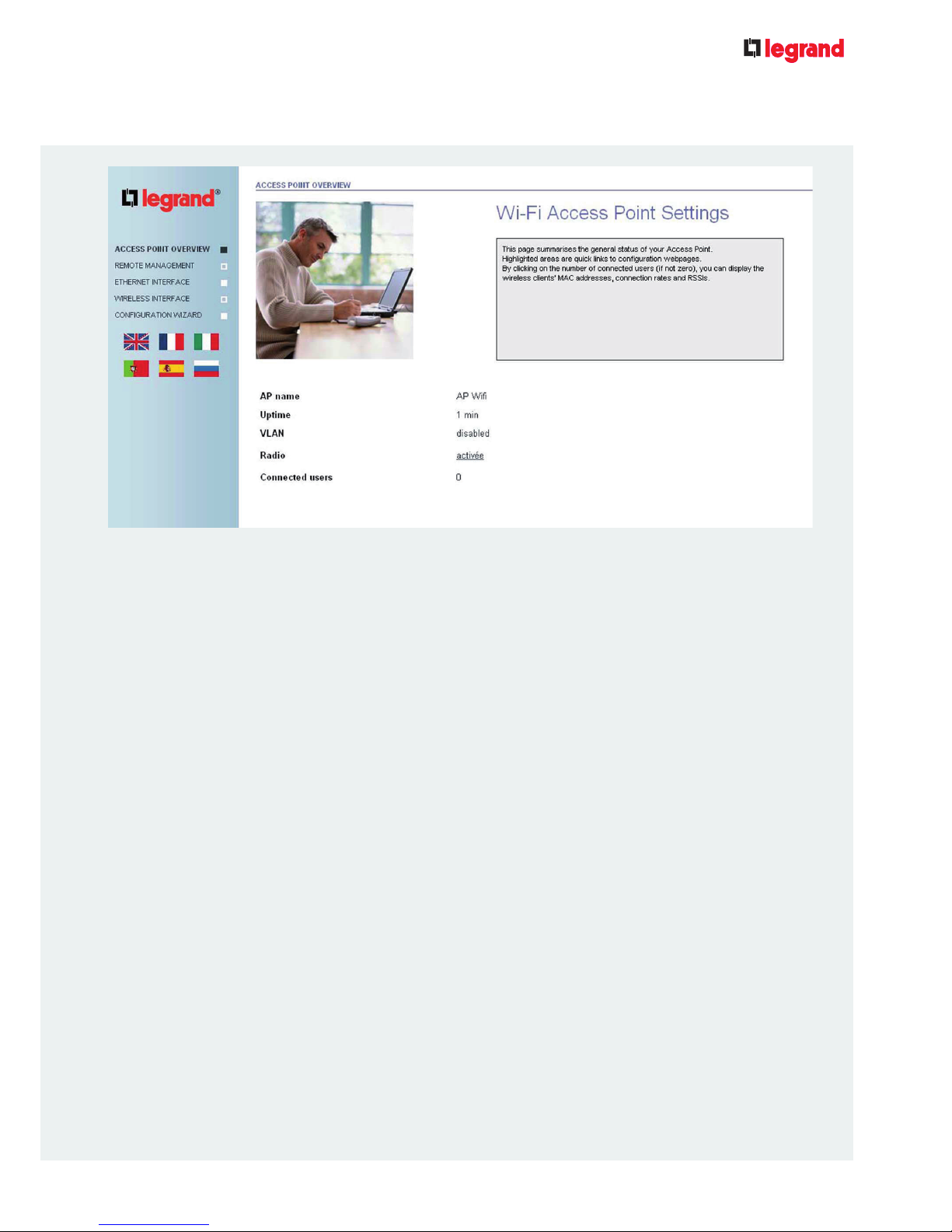

The screen gives an overview of the main information on the Legrand AP.

AP name This name will identify your Access Point (it is shown in the

discovery utility).

Uptime Shows how long the Legrand AP has been running since its

last reboot/power on

VLAN Status of VLAN trunking (Enabled/Disabled)

Radio Status of the radio (Enabled/Disabled)

Connected users Number of wireless clients currently connected

The detailed list of client PCs connected to the radio can be displayed by

clicking on the number of connected users.

1.5 / IP ADDRESS

USER GUIDE FOR LEGRAND

DUAL BAND ACCESS POINT

AP name

This name will help you to identify your

Access Point.

Allow management access on VLAN

All management/configuration access to the

AP can be restricted to a specific VLAN on the

uplink port.

By default VLANs are disabled, and access to

the management interface is allowed from any

interface.

If necessary, one VLAN on the uplink port can

be selected as the only way to access the

management interface (for this, the VLANs

must first be enabled, see the Ethernet

Interface section).

Note: If VLANs are enabled you can restrict

management/configuration access to a spe-

cific VLAN ID or to the native VLAN.

Dynamically retrieve an IP address (DHCP)

You can use either Dynamic (DHCP) or Static

(use the next IP address) IP addressing to

manage the AP.

By default or after a full reset, the Access

Point is set to use DHCP.

Toggle AUTO-IP in the absence of DHCP

If Toggle AUTO-IP in the absence of DHCP

is selected, the AP returns to automatic IP

addressing mode (169.254.0.0/16) if no

DHCP server can be found on the network.

Use the following IP address

(An IP address must be unique in your net-

work. The Netmask, Default gateway and

DNS Server values can be safely copied

from a computer already configured with stat-

ic IP addressing in your network).

IP address: Enter the static IP address for

your Access Point.

Netmask: Enter the IP Netmask for your net-

work.

Default gateway: Enter the default gateway

IP address (used for any traffic beyond the

local network)

DNS server: Enter your DNS IP address

(optional).

After you have changed the settings on this

page, click on Apply to confirm your chang-

es.

USER GUIDE FOR LEGRAND

DUAL BAND ACCESS POINT

1.6 / ADMINISTRATION PASSWORD

This page enables you to change the Access Pointís configuration password. Enter the new

password in both fields, and click on Apply to confirm the changes.

Important:

If you restore the Access Pointís factory

defaults your password settings will be

erased. No password will be required for the

web interface after a factory default reset.

1.7 / FIRMWARE MANAGEMENT

USER GUIDE FOR LEGRAND

DUAL BAND ACCESS POINT

The Current firmware version field shows the firmware version installed on your Legrand

AP.

The firmware upgrade web page shows the

current firmware version on the Access Point.

Before upgrading the firmware on the Access

Point, download the latest version from http://

www.wifi.legrandelectric.com.

Press Browse to select a firmware file on

your computer.

Then click on Upgrade to upgrade the

firmware.

This takes a few minutes.

Note: When upgrading the firmware, do not interrupt the Web browser and do not power

down your Access Point.
