Leica FlexLine plus Bedienungsanleitung

Leica FlexLine plus

Quick Guide

Version 2.0

English

FlexLine plus, Important Information about your Instrument

1 Important Information about your Instrument

Read and follow the User Manual on the accompanying USB stick before using the

product or the accessories delivered with the product.

Keep for future reference!

Intended use • Measuring horizontal and vertical angles.

• Measuring distances.

• Visualising the aiming direction and vertical axis.

Laser products The instruments contain the following laser products:

*optional laser product

Laser product Laser class

EDM (Electronic Distance Measurement) module

• measurements with reflectors Class 1

• measurements without reflectors Class 3R

EGL (Electronic Guide Light)*Exempt Group

Laser plummet Class 2

FlexLine plus, Important Information about your Instrument 3

• The classification for the EDM and Laser plummet is in accordance with

IEC 60825-1 (2007-03).

• The classification for the EGL is in accordance with IEC 62471 (2006-07).

CAUTION From a safety perspective, class 3R laser products should be treated as potentially

hazardous.

Precautions:

1) Prevent direct eye exposure to the beam.

2) Do not direct the beam at other people.

CAUTION From a safety perspective, class 2 laser products are not inherently safe for the eyes.

Precautions:

1) Avoid staring into the beam.

2) Avoid pointing the beam at other people.

FlexLine plus, Important Information about your Instrument

Locations of laser

apertures

The product must not be disposed with household waste.

a) LED beam red (EGL)

b) LED beam yellow

(EGL)

c) Laser beam (EDM)

d) Laser beam (Laser

plummet)

e) Exit for laser beam

(Laser plummet)

003248_002

FlexLine plus, Important Information about your Instrument 5

Conformity to

national regula-

tions

Conformity to

national regula-

tions

Hereby, Leica Geosystems AG, declares that the instrument is in compli-

ance with the essential requirements and other relevant provisions of

applicable European Directives. The declaration of conformity may be

consulted at http://www.leica-geosystems.com/ce.

• FCC Part 15 (applicable in US).

• Hereby, Leica Geosystems AG, declares that the instrument with Communication

side cover is in compliance with the essential requirements and other relevant

provisions of Directive 1999/5/EC and other applicable European Directives. The

declaration of conformity may be consulted at http://www.leica-geosys-

tems.com/ce.

Class 1 equipment according European Directive 1999/5/EC (R&TTE) can

be placed on the market and be put into service without restrictions in

any EEA Member state.

• The conformity for countries with other national regulations not covered by the

FCC part 15 or European directive 1999/5/EC has to be approved prior to use and

operation.

FlexLine plus, Instrument Components

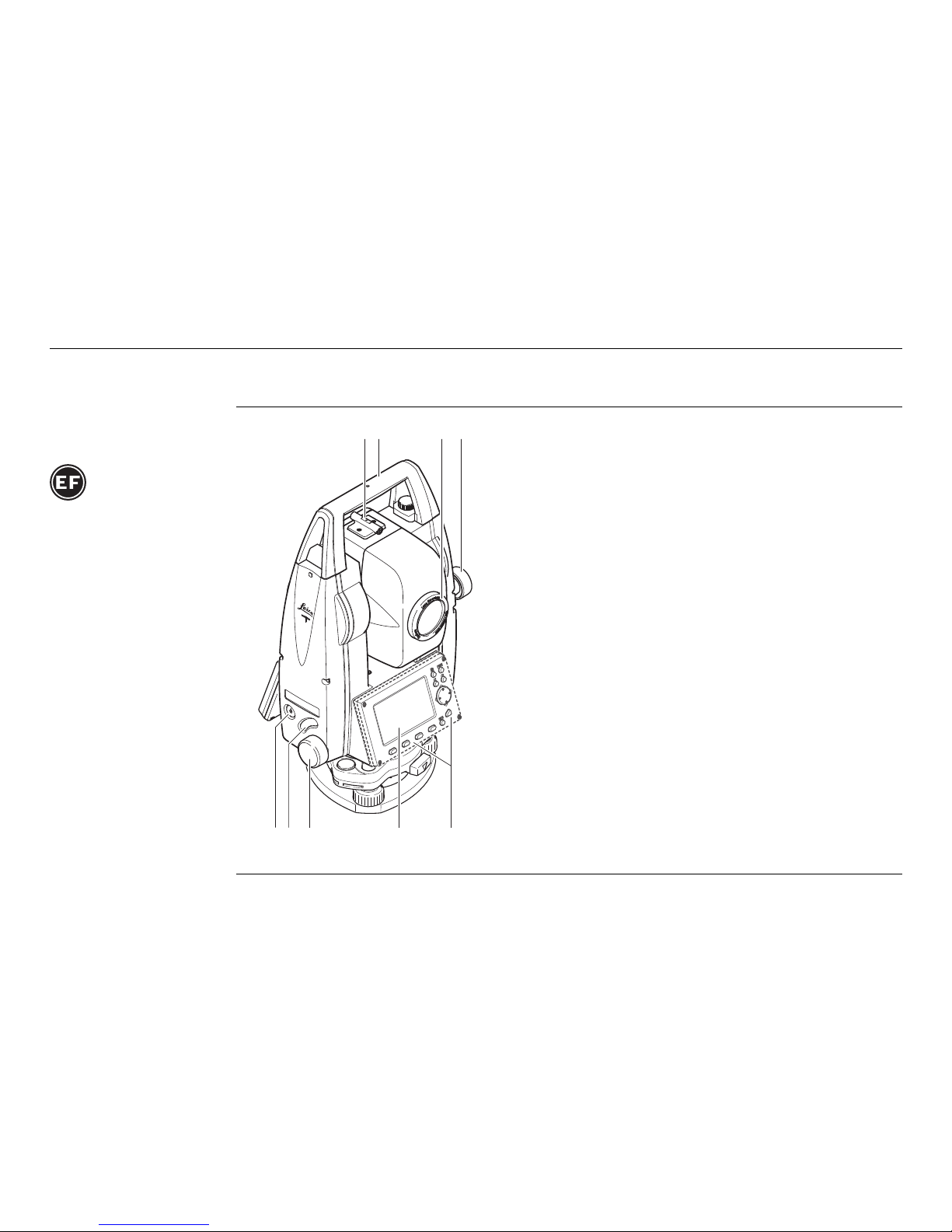

2 Instrument Components

Instrument compo-

nents part 1 of 2

(Ergofocus tele-

scope)

a) Optical sight

b) Detachable carrying handle with

mounting screw

c) Objective with integrated Electronic

Distance Measurement (EDM). Exit for

EDM laser beam

d) Vertical drive

e) On/Off key

f) Trigger key

g) Horizontal drive

h) Display

i) Second keyboard*; identical to first

keyboard

* Optional for TS02 plus

002724_002

feg h i

FlexLine plus, Instrument Components 7

Instrument compo-

nents part 2 of 2

j) Focusing telescope image

k) Eyepiece; focusing graticule

l) Battery cover

m) Serial interface RS232

n) Foot screw

o) Display

p) Keyboard

002725_002

lm no p

FlexLine plus, Instrument Components

Instrument compo-

nents part 1 of 2

(Finefocus tele-

scope)

a) Compartment for USB memory stick

and USB cable ports

b) Bluetooth antenna

c) Optical sight

d) Detachable carrying handle with

mounting screw

e) Electronic Guide Light (EGL)*

f) Objective with integrated Electronic

Distance Measurement (EDM). Exit for

EDM laser beam

g) Vertical drive

h) On/Off key

i) Trigger key

j) Horizontal drive

k) Second keyboard**; identical to first

keyboard

* Optional for TS06 plus

** Optional for TS06 plus/TS09 plus

dfeg

jkh i

TSOX_009a

FlexLine plus, Instrument Components 9

Instrument compo-

nents part 2 of 2

l) Focusing telescope image

m) Eyepiece; focusing graticule

n) Battery cover

o) Serial interface RS232

p) Foot screw

q) Display

r) Keyboard, model may vary depending

on instrument

s) Stylus

001947_002

no p q rs

FlexLine plus, Instrument Components

Keyboard Color&Touch keyboard Alphanumeric keyboard

Standard keyboard

a) Fixed keys

b) Navigation key

c) ENTER key

d) ESC key

e) Function keys F1 to F4

f) Alphanumeric keypad

g) Stylus

TSOX_139

ABC DEF GHI

JKL MNO PQR

STU VWX YZ

/$% _@& *?!

789

456

F1 F2 F3 F4

TSOX_010

TSOX_011
