LEICA SPRINTER Quick Guide English

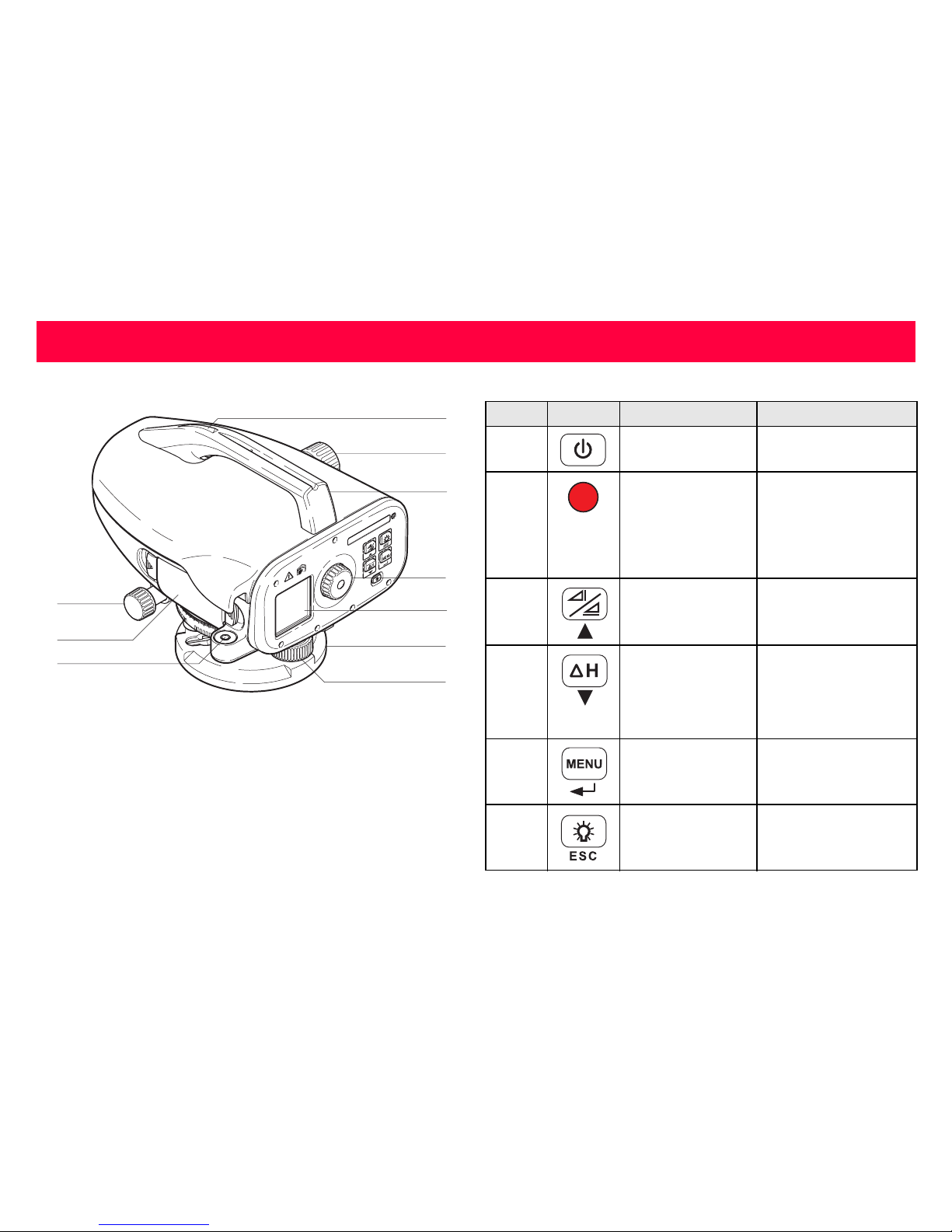

Instrument Components

a) Horizontal fine motion screw

b) Battery compartment

c) Circular level

d) Gunsight

e) Focusing knob

f) Handle

g) Eyepiece

h) LCD display

i) Base plate

j) Levelling footscrew

Operating Keys and Functions

*) when in Menu mode

Sprinter_01

Key Symbol 1st level funct. 2nd level funct.

On/Off Power On/Off

switch

NONE

MEAS Measuring

trigger key for

measuring

height and

distance

2nd function

(Continuous meas-

urement) with

prolong key press of

2 seconds

Height

/ Dist.

Alternating bet-

ween Height and

Distance display

Cursor up *

dH Height Differ-

ence measure-

ment and RL

computation

Cursor down *

MENU Activation and

selection of

settings

ENTER key for

confirmation

purpose *

Back-

light

LCD backlight

illumination

ESC key for termi-

nation of program or

setting *

Measurement Modes and Icons

Modes

Icons

Measurement

Height and Distance measurement

Symbol Mode

Measurement Mode

MENU selection Mode

Adjustment Mode

Tracking Mode

Icon Description

LCD backlight on

Staff upright measuring mode

Inverted Staff measuring mode

Different levels of LCD contrast display

(10% change per step)

Battery icon at various capacity (0%, 25%,

50%, 75%, 100%)

External power utilized *

Data stored to internal memory

MEAS

ADJ

TRK

Step Key Description

1. Press to switch on the instrument,

Leica logo is displayed follow by the

default measurement standby mode.

2. Aim at staff and focus. Lightly trigger

the measurement key to activate

measurement.

3. Height and distance measurement

are displayed.

1.235m

5.68

Reduced level, Height difference, Height and Distance measurement

In MENU setting (for SPRINTER 100M/200M):

• In submenu Recording > select Memory or Ext. if captured data to be stored.

• In submenu Input PtID > edit/input PtID as desired. Point ID only display when memory is ON.

Step Key Description

1. Press to start height difference and reduced level function.

2. Press, choose Input RL to change/input desired reference/benchmark level.

3. Press to complete input.

4. Aim at reference staff press key to initiate measurement.

5. Reference height & distance displayed follow by message Meas. Target!

6. Aim at target point press key again to display the result.

Display with active

internal memory

RL:

dH:

99.138

- 0.900 m

2.135 m

31.11 m

PtlD

2.135 m

31.11 m

99.138

- 0.900 m

RL:

dH:

MENU Setting

*) Applicable to SPRINTER 100M/200M only

740359-1.1.0en • Leica Geosystems AG • CH-9435 Heerbrugg (Switzerland) • Phone +41 71 727 31 31 • Fax +41 71 727 46 73 • www.leica-geosystems.com

No. Sub Menus Selections Descriptions

1. Input PtID * To input user point ID

2. Input Reduced

Level (RL)

Input for Benchmark value / Reference Reduced Level

3. Data

Manager *

View, Delete, Down-

load

Viewing of individual recorded data and deleting of specific measuring data,

Deleting of all data, Transferring of data via PC software.

4. Recording * Memory, External,

OFF

Data can be recorded in the internal memory of the instrument or externally to

the external device such as data collectors. If the recording is set OFF, then the

captured data will not be stored.

5. Adjustment None Adjustment program

6. Inverse Staff ON=Inverted mode

OFF=Upright mode

Setting of measurement to Inverted Staff. By default or on power on, the mode

is always set to OFF.

7. Contrast 10 levels of select. Optimum contrast setting for LCD display. Contrast is set to 50% ex factory.

8. Unit M, INT ft, US ft, Ft in

1/8in

Display Unit setting in meters, international feet, US feet, and ft in 1/8in

9. AutoOFF ON 15 min / OFF Power saving function. If set to ON 15 min, the instrument will switch off about

15 minutes after the last key press. In the case of OFF, the instrument will be

permanently switched on

10. Rounding Standard/Precise Standard = 0.001m / 0.01ft for height and 0.01m / 0.1ft for distance.

Precise = 0.0001m / 0.001 ft for height and 0.001m / 0.01 ft for distance.

In Ft in 1/8 inch; Precise/standard = ft-inch-1/8 inch for height & distance.

11. Beep ON/OFF Acoustic signal trigger key ON or OFF

12. RS232 * Baudrate

Parity

Stop Bit

Data Bit

1200, 2400, 4800, 9600, 19200, 38400

None, Odd, Even

1, 2

7, 8
