iComfort®M30 Smart Thermostat

Installation and Setup Guide

Disponible en español en www.LennoxPros.com.

Tables of Contents

Shipping and Packing List........................... 3

Thermostat.................................................... 3

Wall Plate Dimensions (H x W) ............................... 3

Compressor Short-Cycle Protection

(Compressor Protect).............................................. 3

Installation Considerations ......................... 4

Outdoor Temperature Sensor Installation

(Optional)....................................................... 5

Thermostat Installation ............................... 5

New Installation....................................................... 5

Replacement Installation......................................... 6

Common Installation Practices................................ 6

Thermostat Terminal Information ............................ 8

System Wiring Diagrams......................................... 9

Connecting Thermostat Wiring................................ 9

Supported Congurations ....................................... 9

Install Thermostat to Backplate............................. 12

Commissioning and Advanced Settings.. 12

Commissioning...................................................... 12

Advanced Settings ................................................ 15

Advanced Settings Parameter Descriptions.......... 18

Stage Control.............................................. 22

Wi-Fi Connection ........................................ 27

Connecting to Visible Home Wi-Fi Access Point... 28

Connecting to Hidden Home Wi-Fi Access Point .. 28

Wireless Terminology ............................................ 29

Wireless Connectivity Troubleshooting Tips ... 29

Determining Wireless Connection Signal

Strength................................................................. 29

Alert Codes ................................................. 30

System Test Modes .................................... 33

Save Energy Default................................... 33

Dehumidication Control........................... 34

Normal and Max.................................................... 34

Humiditrol ............................................................. 35

Auxiliary Dehumidier ........................................... 36

Humidication Control............................... 36

Normal and Max.................................................... 37

Normal and Max Dew Point Control...................... 37

Installer Checklist....................................... 39

Index ............................................................ 40

WARNING

This product contains a chemical known to the

State of California to cause cancer, birth defects,

or other reproductive harm.

Shipping and Packing List

Item Quantity

M30 Thermostat with backplate attached 1

Wall plate 1

Mounting screws (M3.5x25mm self-tapping screws) 2

Wall anchors 2

Warranty sheet 1

Installation & setup guide 1

User guide 1

System Wiring Diagrams Fold-Out Sheet 1

Thermostat

Unit Dimensions (H xW xD)

Dimensions: 3-5/16 x 4-5/16 x 7/8 in. (84 x 110 x

22mm)

Wall Plate Dimensions (H xW)

Dimensions: 4-1/2” x 5-3/4” (114 x 146mm)

ComPressor sHort-CyCle ProteCtion

(ComPressor ProteCt)

This thermostat is equipped with automatic

compressor protection to prevent potential damage

due to short cycling or extended power outages.

The non-adjustable short-cycle protection provides

a 5-minute delay between heating or cooling cycles

to prevent the compressor from being damaged.

NOTE: There is an option in advanced settings that

will allow this safety feature to be disabled.

By default it is set to ON. Short Cycle

protection is disabled during testing of the

outdoor unit. It is automatically reset once

the test is completed.

WARNING

Improper installation, adjustment, alteration, ser-

vice or maintenance can cause property damage,

personal injury or loss of life.

Installation and service must be performed

by a licensed professional HVAC installer (or

equivalent) or a service agency.

IMPORTANT

In all applications, the M30 thermostat can only

be used with all residential units and approved

commercial split-system matches, and those

which meet the following installation criteria:

Installation uses 18 gauge thermostat wire or

larger and wire run length DOES NOT EXCEED

300 feet (91 meters).

Load from any thermostat connection is 1 AMP

or less.

WARNING

Always turn off power at the main power source by

switching the circuit breaker to the OFF position

before installing or removing this thermostat.

All wiring must conform to local and national

building and electrical codes and ordinances.

CAUTION

This is a 24VAC low-voltage thermostat. Do not

install on voltages higher than 30VAC.

Do not short (jumper) across terminals on the gas

valve or at the system control to test installation.

This will damage the thermostat and void the

warranty.

Installation Considerations

Before beginning installation, note the type of

equipment, number of stages, and any accessories

being installed. This thermostat is a 24VAC low-

voltage thermostat and requires a common wire to

the thermostat to operate.

• Shut off all power to system components before

installing thermostat.

• Make sure that all wiring conforms to local

and national building and electrical codes and

ordinances.

• Never short (jumper) across terminals on the gas

valve or at the system control to test installation.

This will damage the thermostat and void the

warranty.

• Never install thermostat on outside walls or in

direct sunlight.

Outdoor Temperature Sensor

Installation (Optional)

Install the optional (purchase separately) outdoor

sensor (X2658) on a northern wall of the home,

away from direct sunlight or other heat sources that

may affect its sensitivity.

The sensor is required for:

• Outdoor temperature displays on the home

screen if enabled

• Balance point adjustment and control. The sensor

enables optimal heating equipment operation via

programmable balance points.

• Dew point humidity control

• Humiditrol EDA operation (required)

• Requires 22AWG thermostat wire or larger and

not to exceed 300 feet (91 meters) maximum run.

• Connects to To and Tc terminals on thermostat

Connect outdoor sensor to terminals Tc and To on

thermostat.

NOTE: If alert code 108 appears on the screen,

check your wiring connections to terminals

To and Tc on the thermostat. Check

resistances using the resistance table

provided in the outdoor sensor instruction.

Thermostat Installation

neW installation

The following procedure is for new installation or

installing the M30 to a new location in an existing

home.

1. Unpacked the thermostat and open the case

with a thin-blade screwdriver. Place between

wall base and unit and twist to separate unit

from base.

2. Select a location for the thermostat about 5

feet (1.5 meters) above the oor in an area with

good air circulation at average temperature.

3. Do not install the thermostat where it can be

affected by:

• Drafts or dead spots behind doors and in

corners.

• Building entrances or automatic doors

• Heat generating equipment such as kitchen

equipment

• Enclose environment unless a remote indoor

sensor is used.

• Hot or cold air from ducts.

• Radiant heat from sun or appliances.

• Concealed pipes and chimneys.

• Non-heated (non-cooled) areas such as an

outside wall behind the thermostat.

4. Run thermostat wiring from indoor unit to

location where thermostat will be installed.

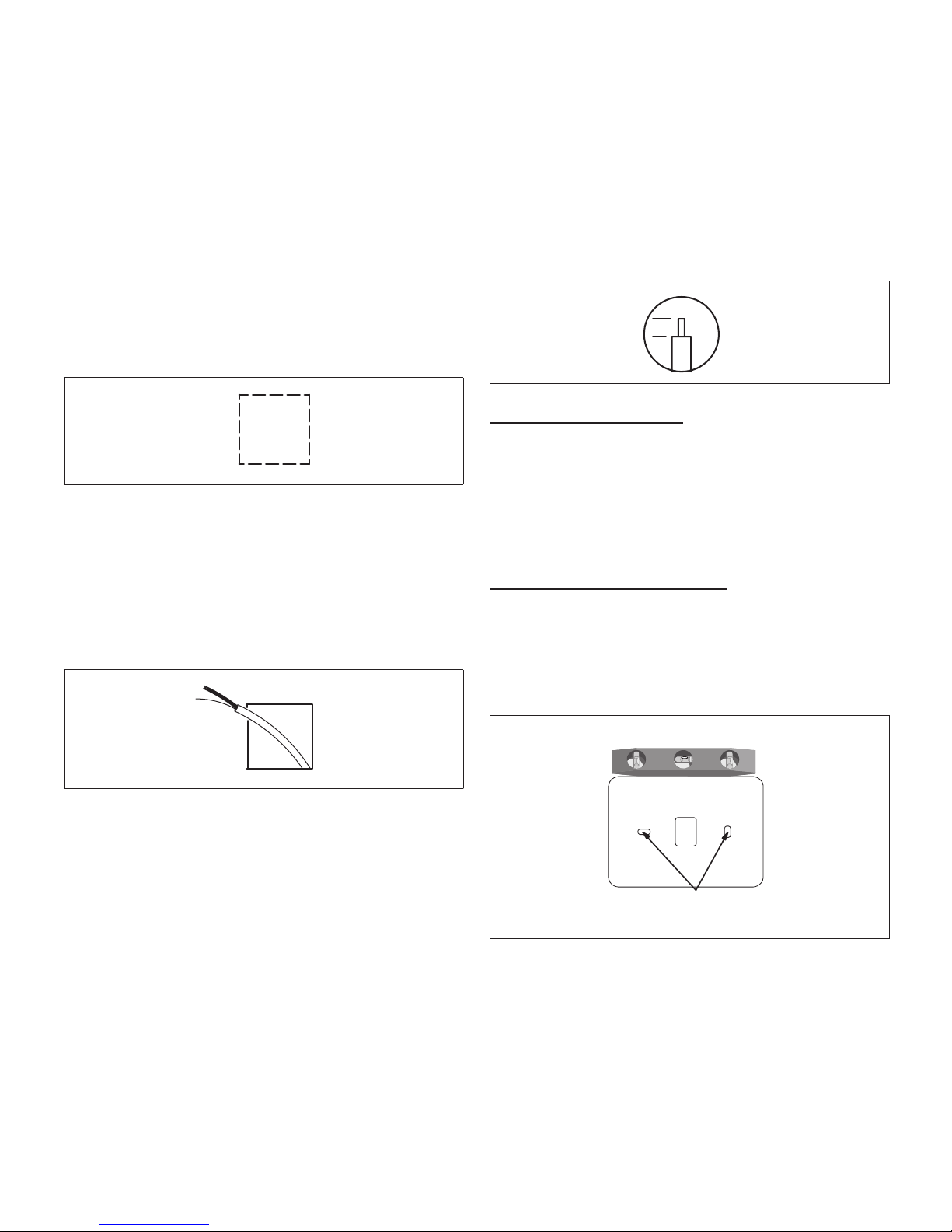

5. Drill or make opening through wall for thermostat

wiring 3/4” x 3/4” (19mm x 19mm).

6. Pull about 3 inches (76mm) of thermostat

wire through the opening and removed outer

thermostat wire jacket. This will help in routing

the thermostat wiring to the proper thermostat

terminals.

NOTE: Thermostat wires and outdoor sensor wire

can be run in the same bundle of wires if

needed.

7. Seal the hole in the wall with a suitable material

to prevent drafts from entering the thermostat

case. Not doing so could affect the thermostat’s

internal temperature sensor.

8. Trim 1/4 inch (6 mm) insulation from end of

each thermostat wire lead.

1/4”

rePlaCement installation

Use the following two steps to replace an existing

thermostat.

1. Remove existing thermostat.

2. Note the wire colors and what terminals they are

connected for future reference.

Common installation PraCtiCes

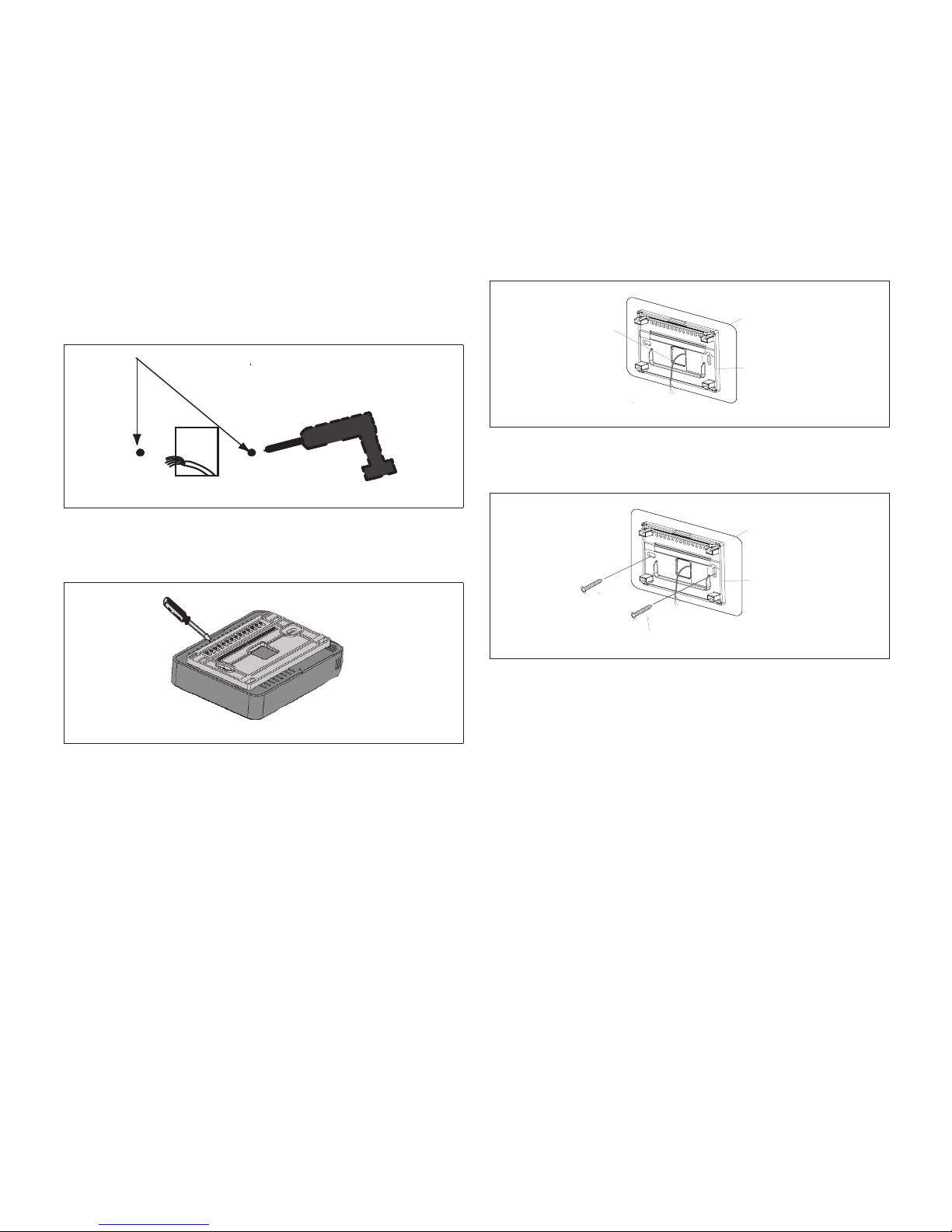

1. Use the provided wall plate as a template on

where to drill the mounting holes.

NOTE: Installation of wall plate is optional. Use

a eld-provided level to allow for proper

alignment.

(Use a level) Align Wall Plate

Use unit wall plate as template to mark desired

mounting nhole locations on wall.

2. Drill 3/16” (5 mm) holes in wall for provided

wall anchors. Insert provided wall anchors into

drilled holes.

3. Remove back plate from main thermostat

assembly using a at-head screw driver.

4. Route thermostat and outdoor temperature

sensor (optional) wiring from wall through

center openings on wall plate (use is optional)

and back plate.

Wall Plate (optional)

Thermostat

Back Plate

Run thermostat wire

through openings

5. Secure back plate and wall plate (optional) to

wall with the two provided mounting screws.

Wall Plate (optional)

Thermostat

Back Plate

Screw

tHermostat terminal information

Table 1. Terminal Designations

Terminal Purpose

Tc and To Used for connection to an optional outdoor tempera-

ture sensor.

ACC1 and

ACC2

Default factory software setting for ACC (Accessory)

is off.

Terminal function setting can be changed by going to

settings > advanced settings > terminal settings.

Available settings are off, humidify and dehumidify.

Connect accessory to terminal ACC2 and change

software setting to the applicable type of accessory.

Power is supplied by R2 to ACC1 factory jumper.

NOTE: Do not remove the factory installed

jumper between ACC1 and R2 terminals

unless a secondary 24VAC power

source is connected to ACC1.

This is the secondary 24VAC power source for ACC

(Accessory). The R2 terminal is connected to the

ACC1 terminal by factory provided jumper.

D/H

This terminal is for an optional dehumidier or hu-

midier.

Factory default software setting is for dehumidify.

Terminal settings can be changed by going to set-

tings > advanced settings > terminal settings.

Available settings are off, humidify and dehumidi-

fy.

NOTE: The user interface refers to the terminal

as H/D.

W2 Second-stage heating (non-heat pump) or 4th stage

(heat pump).

Y2 Second-stage heating or cooling.

Table 1. Terminal Designations

Terminal Purpose

O/B

Heat pump reversing valve operations. When O (de-

fault) is selected under settings > advanced set-

tings > terminal settings, the relay is ON during

cooling and OFF during heating.

When B is selected, the relay is ON during heating

and OFF during cooling.

CCommon 24VAC

GFan relay

W1 First-stage heating (non-heat pump or emergency

heat) or third-stage heating (heat pump)

Y1 First-stage heating or cooling

R24VAC power

Table 2. O/B Terminal Relationship States

State O/B Terminal Control

Power ON O terminal : ON (If O terminal selected)

B terminal : OFF (If B terminal selected

Heat only or

emergency

heat mode

O terminal : always OFF

B terminal : always ON

Cool mode

only

O terminal : always ON

B terminal : always OFF

Table 2. O/B Terminal Relationship States

State O/B Terminal Control

Heat/Cool

mode

During heating

O terminal : OFF

B terminal : ON

During cooling

O terminal : ON

B terminal : OFF

No Demand

The terminal continues the previous ON / OFF

state

Off mode The terminal state continues the state before en-

tering off mode

system Wiring Diagrams

For system diagrams, see the included fold-out

iComfort® M30 Smart Thermostat System

Diagrams sheet.

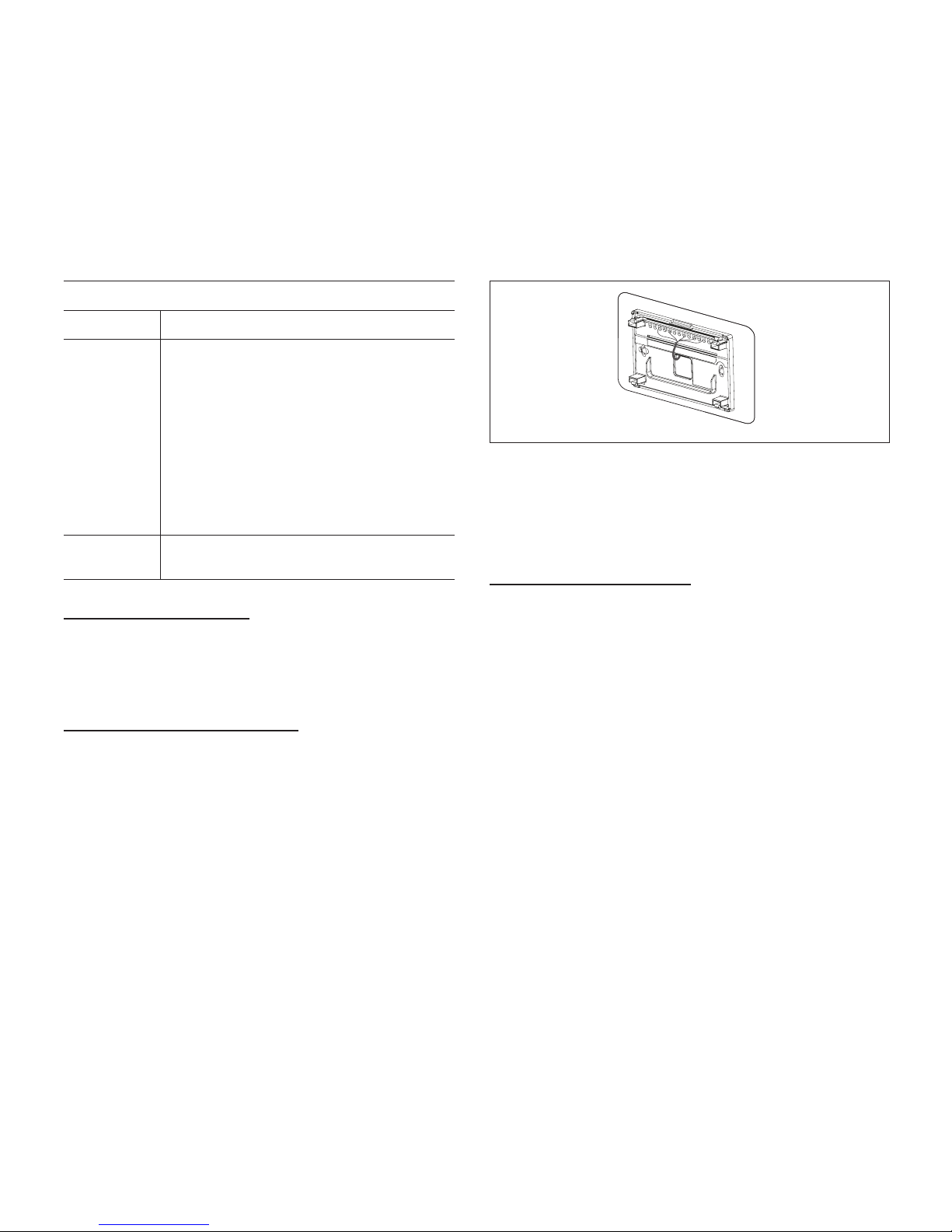

ConneCting tHermostat Wiring

Use “Table 1. Terminal Designations” on page 8

for connecting the thermostat wiring to the back

plate terminals.

If this is a replacement thermostat, connect

to terminals as noted when removing the old

thermostat. If terminals were different on old

thermostat, use “Table 1. Terminal Designations” on

page 8 and wiring diagrams provided in the kit.

NOTE: Remember to seal the hole in the wall with

a suitable material to prevent drafts from

entering the thermostat case. Not doing

so could affect the thermostat’s internal

temperature sensor.

sUPPorteD ConfigUrations

See “Table 3. Supported Congurations” on page

10.

Table 3. Supported Congurations

Outdoor unit

setting

Indoor unit

setting

Comp. Stages

Indoor Heat

Stages

Heat Stages

Cool Stages

Heat Stage

EM Heat

Stage

Cool Stage

1st

2nd

3rd

4th

1st

2nd

1st

2nd

No Heat 1 0 1 1 Y1 - - - - - Y1 -

2 0 2 2 Y1 Y1+Y2 - - - - Y1 Y1+Y2

Gas / Oil

1 1 2 1 Y1 W1 - - W1 - Y1 -

1 2 3 1 Y1 W1 W1+W2 - W1 W1+W2 Y1 -

2 1 3 2 Y1 Y1+Y2 W1 - W1 - Y1 Y1+Y2

2 2 4 2 Y1 Y1+Y2 W1 W1+ W2 W1 W1+W2 Y1 Y1+Y2

Elec

1 1 2 1 Y1 Y1+W1 - - W1 - Y1 -

1 2 3 1 Y1 Y1+W1 Y1+W1+W2 - W1 W1+W2 Y1 -

2 1 3 2 Y1 Y1+Y2 Y1+Y2+W1 - W1 - Y1 Y1+Y2

2 2 4 2 Y1 Y1+Y2 Y1+Y2+W1 Y1+Y2+W1 +W2 W1 W1+W2 Y1 Y1+Y2

Andere Handbücher für iComfort M30

Inhaltsverzeichnis

Andere Lennox Thermostat Handbücher

Lennox

Lennox ComfortSense L3722C Bedienungsanleitung

Lennox

Lennox LXTFZ01M Bedienungsanleitung

Lennox

Lennox iComfort S30 Bedienungsanleitung

Lennox

Lennox ComfortSense 7500 Series Bedienungsanleitung

Lennox

Lennox Commercial Touchscreen Thermostat Bedienungsanleitung

Lennox

Lennox ComfortSense L5732U Bedienungsanleitung

Lennox

Lennox iComfort M30 Montageanleitung

Lennox

Lennox iComfort E30 Montageanleitung

Lennox

Lennox ComfortSense L7742U Benutzerhandbuch

Lennox

Lennox icomfort Wi-Fi Bedienungsanleitung

Lennox

Lennox ComfortSense 5500 Bedienungsanleitung

Lennox

Lennox ComfortSense C0STAT05FF1L Bedienungsanleitung

Lennox

Lennox 111F-300 Bedienungsanleitung

Lennox

Lennox iComfort E30 Bedienungsanleitung

Lennox

Lennox S40 Montageanleitung

Lennox

Lennox ComfortSense 7000 series Bedienungsanleitung

Lennox

Lennox icomfort Bedienungsanleitung

Lennox

Lennox iComfort E30 Montageanleitung

Lennox

Lennox ComfortSense 5500 Montageanleitung

Lennox

Lennox X4146 Dimensionsleitfaden

Lennox

Lennox SignatureStat 81M26 Bedienungsanleitung

Lennox

Lennox iComfort S30 Smart Thermostat Bedienungsanleitung

Lennox

Lennox ComfortSense L5711U Bedienungsanleitung

Lennox

Lennox ComfortSense L7742U Benutzerhandbuch

Beliebte Thermostat Handbücher anderer Marken

EWELLY

EWELLY EW-181 Bedienungsanleitung

Prolon

Prolon T1100 Montageanleitung

Computherm

Computherm Q20 Bedienungsanleitung

Heatmiser

Heatmiser neoStat Bedienungsanleitung

Aube Technologies

Aube Technologies TH111GFCI-NP 240 VCA Bedienungsanleitung

Mars

Mars HEAT CONTROLLER IR Wireless Thermostat Bedienungsanleitung

Saswell

Saswell SAS920XWHB-7-S-RF Leitfaden

Aircalo

Aircalo TFP1-ET85P2 Bedienungsanleitung

Honeywell

Honeywell CM721 Bedienungsanleitung

Carrier

Carrier DEBONAIR 33CS Bedienungsanleitung

Gemtech

Gemtech GT7000 Bedienungsanleitung

Rollei

Rollei Smartes 45000 Bedienungsanleitung

Sinope

Sinope TH1300RF Bedienungsanleitung

Honeywell

Honeywell RLV4305 Bedienungsanleitung

Honeywell

Honeywell Prestige 2.0 THX9421 Bedienungsanleitung

NuTone

NuTone NTBZ48 Original Betriebsanleitung

Stelpro

Stelpro MAESTRO ASMT402AD Bedienungsanleitung

Honeywell

Honeywell T6811 Bedienungsanleitung
