Lenovo 3000 H200 5357 Bedienungsanleitung
Version 1.0 2008.8
3000 H User Guide
www.lenovo.com
31035089
31035089_3000 H_UG_FM_EN.indd 1 2008.8.27 6:06:02 PM
Important safety information
Before using this manual, it is important that you read and understand all the
related safety information for this product. Refer to the Safety and Warranty Guide
that you received with this product for the latest safety information. Reading and
understanding this safety information reduces the risk of personal injury or damage
to your product.
Danger: Watch out for high risks
Attention: Pay attention to low risks
Note: Pay attention to important information
© Copyright Lenovo 2008. All rights reserved.
31035089_3000 H_UG_EN.indd 1 2008.8.27 6:05:07 PM
31035089_3000 H_UG_EN.indd 2 2008.8.27 6:05:07 PM
1
Contents
Contents
Important safety information
Chapter 1 Instructions for using computer hardware ........... 1
1.1 Front view of the chassis ..........................................................2
1.2 Rear view of the chassis ..........................................................2
1.3 Using the Remote Control .......................................................4
1.4 Connecting your computer .....................................................6
Chapter 2 Rescue System operation instruction ................. 13
2.1 Installing drivers and software shipped with computer ............. 14
2.2 OneKey Recovery ..................................................................15
2.3 File Management ...................................................................16
2.4 OneKey Antivirus ...................................................................17
Chapter 3 Instructions for using computer software .......... 21
3.1 Power2Go - Burning Discs ...................................................22
3.2 WinDVD ................................................................................23
3.3 Lenovo Healthcare Software ..................................................24
3.4 Trend Micro Internet Security .................................................27
3.5 Veriface ................................................................................28
3.6 Earth link ..............................................................................29
Chapter 4 System maintenance and recovery ..................... 31
4.1 Restoring the system .............................................................32
4.2 File Backup ............................................................................32
4.3 Cleaning up the disk ..............................................................32
4.4 Checking for, and correcting disk errors .................................33
4.5 Defragmenting the disk(s) ......................................................33
4.6 Performing daily maintenance tasks .......................................33
31035089_3000 H_UG_EN.indd 1 2008.8.27 6:05:07 PM
2Contents
Chapter 5 Troubleshooting and Confirming Setup .............. 35
5.1 Troubleshooting display problems ..........................................36
5.2 Troubleshooting audio problems ............................................36
5.3 Troubleshooting software problems .......................................37
5.4 Troubleshooting problems with optical drives and hard disks ... 38
5.5 Special considerations for troubleshooting Windows .............39
31035089_3000 H_UG_EN.indd 2 2008.8.27 6:05:08 PM
1
2
3
4
5
Chapter
Instructions for using computer
hardware
This chapter contains the following
topics:
ÿ Computer hardware introduction
ÿ Information on computer connection
Read the content carefully.
Note: If the configuration description in
this chapter is different from your actual
computer, the configuration of your actual
computer should be taken as final and
binding.
User Guide 1
31035089_3000 H_UG_EN.indd 1 2008.8.27 6:04:40 PM
2User Guide
1.1 Front view of the chassis
Power button
USB connector
Headphone connector
Microphone connector
Memory Card Reader (some models are equipped with this connector).
Note: Some models are not equipped with a CD drive.
1.2 Rear view of the chassis
(If the rear view configuration in this chapter is different from your actual computer,
the rear view configuration of your actual computer should be taken as final and
binding)
31035089_3000 H_UG_EN.indd 2 2008.8.27 6:04:42 PM
3
User Guide
Voltage selection switch (Some models are equipped with this switch)
Power connector
PS/2 keyboard connector
PS/2 mouse connector
Serial connector
Parallel connector ( Some models are equipped with this connector )
On-board VGA connector ( Some models are equipped with this connector )
USB connectors
Ethernet connector
Microphone connector
Audio line-out connector
Audio line-in connector
PCI Express x16 graphics adapter connector (Some models are equipped
with this connector. For more information about the graphics adapter, see
the description below).
31035089_3000 H_UG_EN.indd 3 2008.8.27 6:04:44 PM
4User Guide

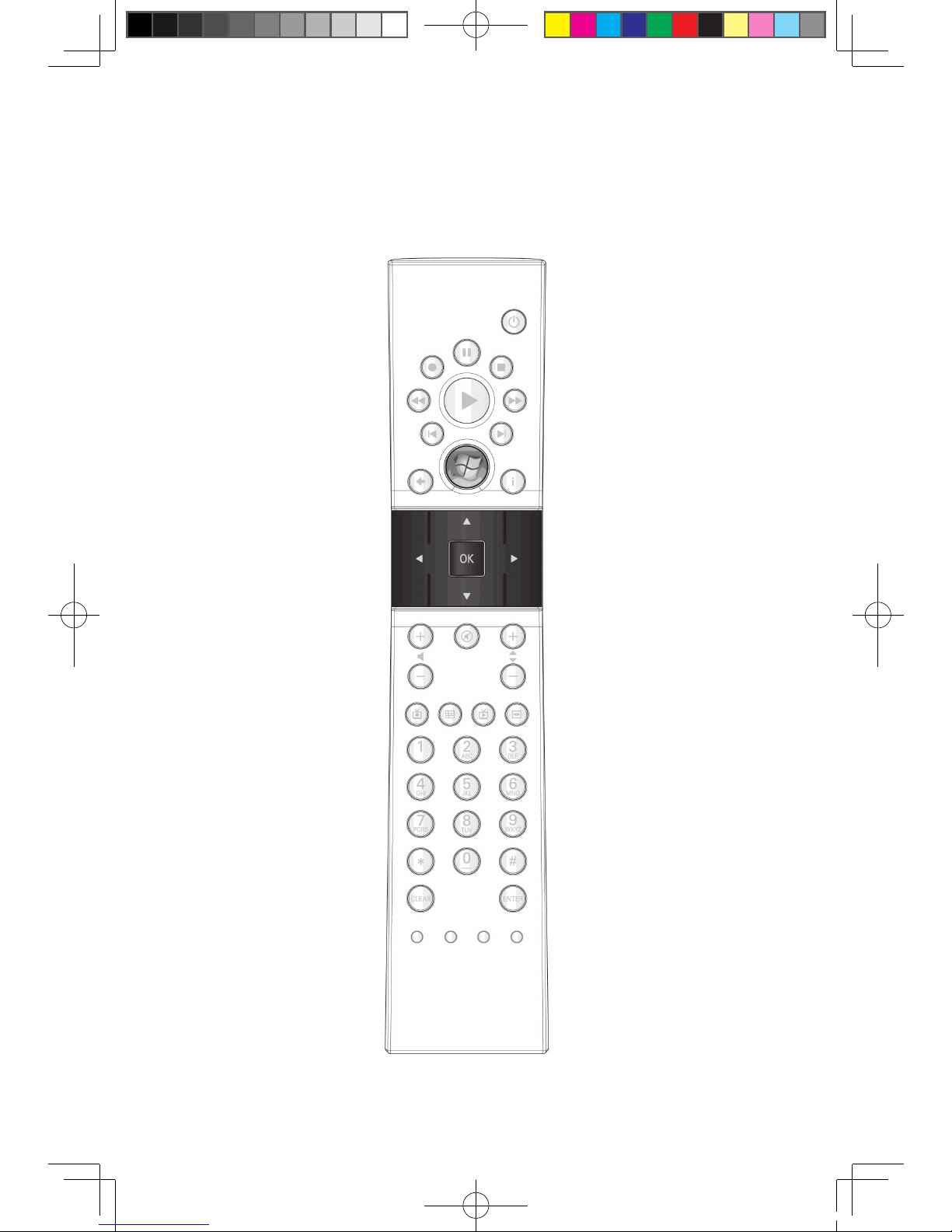

1.3 Using the Remote Control
The remote control (only shipped with some types of computers) works with the
remote control receiver on the chassis. Adjust the angle of the remote control
properly.
31035089_3000 H_UG_EN.indd 4 2008.8.27 6:04:45 PM
5
User Guide
Buttons on the remote control:
Button Description Button Description
Up Fast Forward
Down Rewind
Left Skip
Right Replay
OK Confirm Starts Windows Media
Center.
Back Turns volume up/down
Details Previous/next channel
Guide (This function is
not available in Microsoft
Windows operating
systems.)
Mute
Shows live TV on the
currently selected
channel.
DVD menu
Displays the Recorded
TV page in Windows
Media Center.
Power supply (standby)
Play 0~9 Number (or Letter) buttons
Pause ## key
Stop ** key
Record CLEAR Clear
ENTER Enter
31035089_3000 H_UG_EN.indd 5 2008.8.27 6:04:48 PM
