Lenovo IdeaCentre B510 Bedienungsanleitung
Version 2.0
Machine type: 10057/7712
2010.07
Lenovo
IdeaCentre B5 Series
User Guide
31044787
Important Safety Information
Before using this manual, it is important that you read and understand all of the
related safety information for this product. Refer to the Safety and Warranty Guide
that you received with this product for the latest safety information. Reading and
understanding this safety information reduces the risk of personal injury or damage
to your product.
Danger: Be aware of extremely hazardous or lethal situations.
Attention: Be aware of possible damage to programs, devices, or data.
Note: Pay attention to this important information.
© Copyright Lenovo 2010.
1
Contents
Contents
Important Safety Information
Chapter 1 Using the Computer Hardware.............................. 1
1.1 Front view................................................................................2
1.2 Left and right view of the computer .........................................3
1.3 Rear view of the computer.......................................................4
1.4 Computer stand ......................................................................5
1.5 Connecting your computer ......................................................6
1.6 Important information about using the computer .....................9
1.7 Keyboard...............................................................................11
1.8 Using the Infra-red (IR) Remote Control .................................12
1.9 Using the Bluetooth remote control .......................................19
Chapter 2 Using the Rescue System .................................... 31
2.1 OneKey Recovery..................................................................32
2.2 Driver and Application Installation ..........................................32
2.3 System Setup........................................................................33
2.4 System Backup .....................................................................34
2.5 System Recovery ..................................................................34
2.6 Create Recovery Disc ............................................................34
Chapter 3 Using the Computer Software ............................. 35
3.1 Lenovo Dynamic Brightness system ......................................36
3.2 Lenovo Eye Distance System ................................................37
Chapter 4 System Maintenance and Recovery.................... 39
4.1 Restoring the System ............................................................40
4.2 Backup and Restore..............................................................40
2Contents
4.3 Cleaning Up the Disk .............................................................40
4.4 Checking For, and Correcting Disk Errors ..............................41
4.5 Defragmenting the Disk(s)......................................................41
4.6 Performing Daily Maintenance Tasks......................................41
Chapter 5 Troubleshooting and Confirming Setup.............. 43
5.1 Troubleshooting Display Problems .........................................44
5.2 Troubleshooting Audio Problems ...........................................45
5.3 Troubleshooting Software Problems.......................................45
5.4 Troubleshooting Problems with Optical Drives and
Hard Disks.............................................................................46
5.5 Special considerations for troubleshooting Windows .............47
5.6 Wireless keyboard and mouse instructions ............................48
1
2
3
4
5
Chapter
This chapter contains the following
topics:
Computer hardware introduction
Information on computer connections
Note: The descriptions in this chapter might
vary from your computer, depending on
computer models and configurations.
User Guide 1
Using the Computer Hardware
2User Guide
1.1 Front view
Volume down
Volume up
Brightness down
Brightness up
LCD On/Off
Camera
Built-in microphone
Indicator lights ON/OFF button
3
User Guide
1.2 Left and right view of the computer
Attention: Be sure not to block any air vents on the computer. Blocked
air vents may cause thermal problems.
1
2
3
45
6
Optical drive USB ports (2)
Power button Headphone connector
Card reader Microphone connector
4User Guide
1.3 Rear view of the computer
14
8
9
7
10
11
12
13
AV-IN connector
(Selected models only)
TV-Tuner connector
(Selected models only)
PS/2 Keyboard connector eSATA port
Ethernet connector Wireless reset button
USB ports (2) Power connector
5
User Guide
1.4 Computer stand
15° min.
35° max.

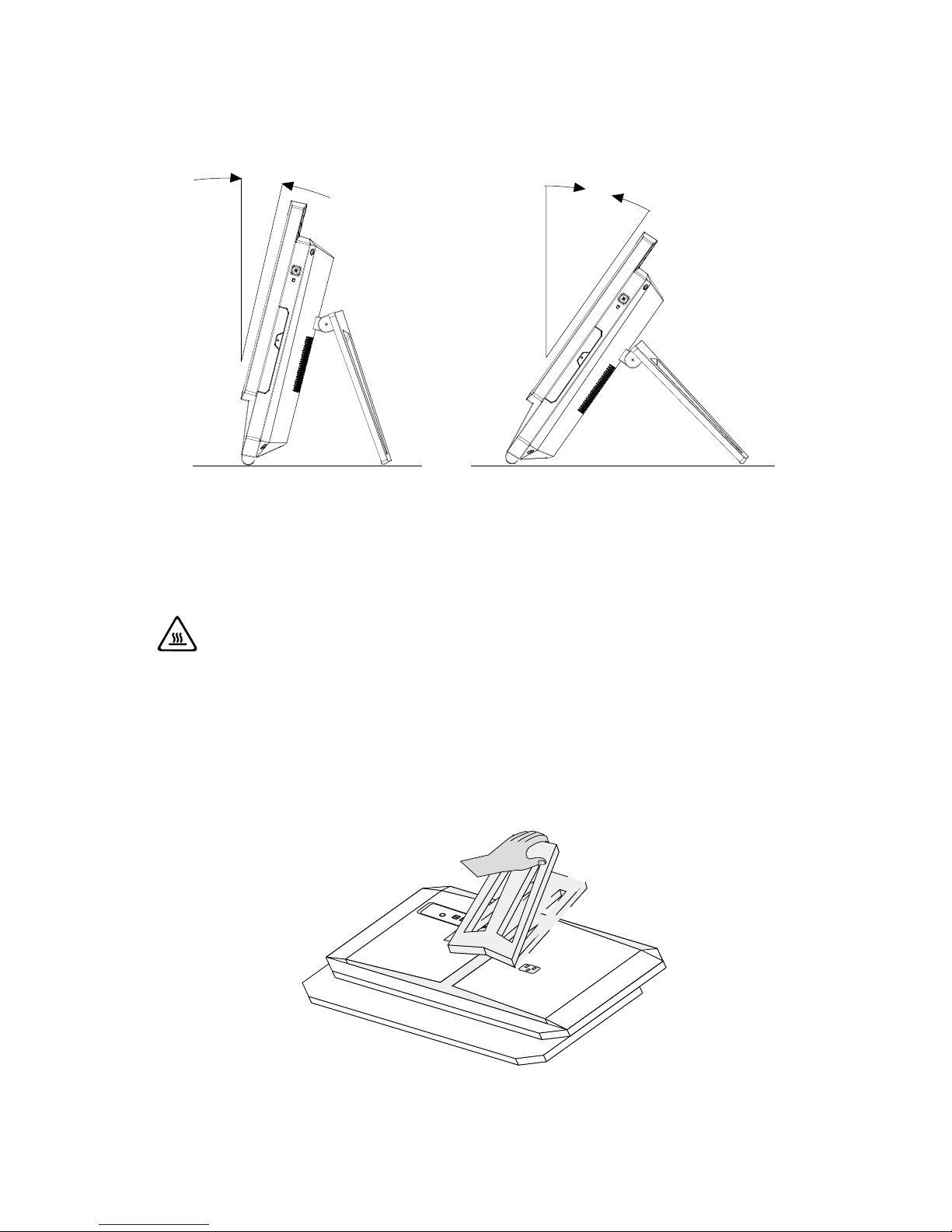

Use the stand to position the display to your preference. It can be rotated between
15º and 35º from the vertical.
The stand provides stability to the computer; it is not a removable part.
Attention:
1. The computer stand must remain installed at all times to ensure
maximum system stability.
2. Make sure the angle of the computer is at least 15 degrees from the
vertical; otherwise the computer will be unstable and could fall over.
To open the computer stand, do the following:
