Lenovo ThinkCentre M75q Gen 2 Bedienungsanleitung

Setup Guide

Guide de configuration

Einrichtungsanleitung

Guida di configurazione

Installatiegids

Manual de Configuração

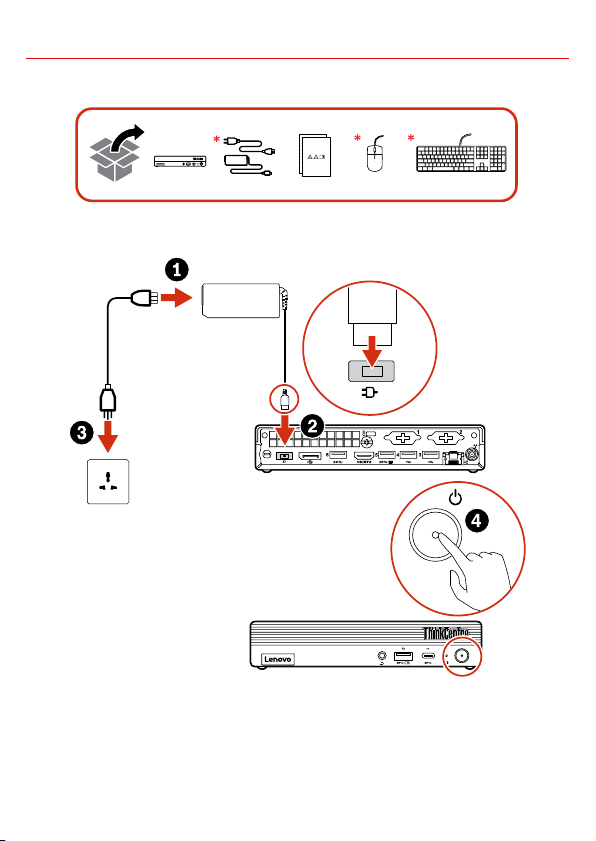

Initial Setup

* For selected models

Overview

1. ThinkCentre® LED

2. Power button

3. Storage drive activity indicator

4. USB-C® (3.2 Gen 1) connector

5. Always On USB 3.2 connector (Gen

1/Gen 2)

6. Headset connector

7. Security-lock slot

* 8. Optional connectors

* 9. Wi-Fi® antenna slot

10. Ethernet connector

11. USB 2.0 connectors

12. USB 3.2 connector Gen 1

13. HDMITM 1.4 out connector

14. USB 3.2 connector Gen 1

15. DisplayPortTM out connector

16. Power adapter connector

Read the statement on USB transfer rate in the User Guide. Refer to the Safety and Warranty Guide for accessing

the User Guide.

Additional information

European Union (EU) / United Kingdom (UK)

— Radio Equipment Compliance

Hereby, Lenovo declares that the radio equipment type

ThinkCentre M75q Gen 2 is in compliance with Directive

2014/53/EU, as well as UK Radio Equipment Regulations

SI 2017 No. 1206.

The full text of the system declarations of conformity are

available at:

https://www.lenovo.com/us/en/compliance/eu-doc for EU

and https://www.lenovo.com/us/en/compliance/uk-doc for

UK.

This radio equipment operates with the following

frequency bands and maximum radio-frequency power:

Technology Frequency

band [MHz]

Maximum

transmit

power

WLAN

802.11b/g/n/ax

2400 - 2483.5 < 20 dBm

WLAN

802.11a/n/ac/ax

5150 - 5725 < 23 dBm

WLAN

802.11a/n/ac/ax

5725 - 5875 < 13.98 dBm

Bluetooth

BR/EDR/LE

2400 - 2483.5 < 20 dBm

Usage of this device is limited to indoor use in the WLAN

band 5150 – 5350 MHz.

LENOVO, LENOVO logo, THINKCENTRE, and THINKCENTRE logo are trademarks of Lenovo. DisplayPort is a

trademark of the Video Electronics Standards Association. The terms HDMI and HDMI High-Definition Multimedia

Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries. Wi-Fi

is a registered trademark of Wi-Fi Alliance. USB-C is a registered trademark of USB Implementers Forum. All other

E-manual

Second Edition (June 2021)

LIMITED AND RESTRICTED RIGHTS NOTICE: If data or software is delivered pursuant to a General

Services Administration “GSA” contract, use, reproduction, or disclosure is subject to restrictions set forth in

Contract No. GS-35F-05925.

Reduce I Reuse I Recycle
