LEXIBOOK Laptop Master MFC105GBZ Bedienungsanleitung

MFC105GBZ

ENGLISH

CONTENTS

INTRODUCTION

Thank you for purchasing this Lexibook Laptop Master MFC105GBZ. The Lexibook Laptop

Master is more than an educative tool, specially designed for children age 6 and up. It is also a

complete laptop with many applications: Word Processor to type reports or essays, integrated

mailbox software to send and receive e-mails, Internet Explorer for browsing the net for school

projects... Everything students need to learn, progress and acquire a useful knowledge of the

digital world!

It is strongly recommended that you read the following instructions to nd all the necessary

information regarding the functions of the Lexibook Laptop Master. Please take note of all the

enclosed instructions and safety precautions.

Introduction

Safety instructions

Important safety instructions

Start-up guide

Getting to know your laptop

Unpacking the device

Installation

Charging and using the built-in lithium battery

Turning your MFC105GBZ on and off

Using the Touch Pad

Desktop icons

PDFReader

Printer setting

USB connection

Internet connection

Wi-Fi connection

Internet Security

Email application

SD card reader

Resetting the system

Troubleshooting

Specications

Maintenance

Warranty

FCC Notice

EC Declaration of conformity

ENGLISH

SAFETY INSTRUCTIONS

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK. DO NOT REMOVE COVER

(OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED

SERVICE PERSONNEL.

The graphic symbols on the back cover of the set mean the following:

The lightning ash with arrowhead symbol within an equilateral triangle is intended to

alert the user to the presence of uninsulated “dangerous voltage” within the product’s

enclosure that may be of sufcient magnitude to constitute a risk of electric shock

to persons.

The exclamation point within an equilateral triangle is intended to alert the user to

the presence of important operating and maintenance (servicing) instructions in the

literature accompanying the appliance.

WARNING:

• To reduce the risk of re or electric shock, do not expose this appliance to rain or

moisture.

• The apparatus shall not be exposed to dripping or splashing and no objects lled with

liquids, such as vases, shall be placed on the apparatus.

• The mains plug is used as the disconnect device, the disconnect device shall remain

readily operable.

• In order to disconnect the apparatus from the mains completely, the mains plug should

be disconnected from the mains socket outlet completely.

• The socket-outlet shall be installed near the equipment and shall be easily accessible.

IMPORTANT SAFETY INSTRUCTIONS

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use the product on your lap for more than 30 minutes, with at least a 5 minutes

break.

6. Do not use this unit near water.

7. Clean only with a dry cloth.

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION

WARNING: THIS PRODUCT IS NOT A TOY, ADULT SUPERVISION IS RECOMMENDED.

ENGLISH

8. Do not block any ventilation openings. Install in accordance with manufacturer’s

instructions.

9. To avoid overheating, do not leave the product in a non-ventilated space (e.g.: a schoolbag)

when it is turned on.

10. Do not install near any heat sources such as radiators, heat registers, stoves or other

apparatus (including ampliers) that produce heat.

11. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug

has two blades with one wider than the other. A grounding-type plug has two blades and a third

grounding prong. The wide blade or the third prong is provided for your safety. If the provided

plug does not t into your outlet, consult an electrician for replacement of the obsolete outlet.

12. Protect the power cord from being walked on or pinched particularly at plugs, convenience

receptacles, and the point where they exit from the unit.

13. Only use attachments/ accessories specied by the manufacturer.

14. Unplug this unit during lightning storms or when unused for long periods of time.

15. Refer all servicing to qualied service personnel. Servicing is required when the unit has

been damaged in any way, such as the following: the power-supply cord or plug has been

damaged; liquid has been spilled or objects have fallen into the unit; and/or the unit has been

exposed to rain or moisture, does not operate normally, has changed its performance or has

been dropped.

16. Do not overload wall outlet. Use only power source as indicated.

17. Use replacement parts as specied by the manufacturer.

18. Upon completion of any service or repairs to this product, ask the service technician to

perform safety checks.

START-UP GUIDE

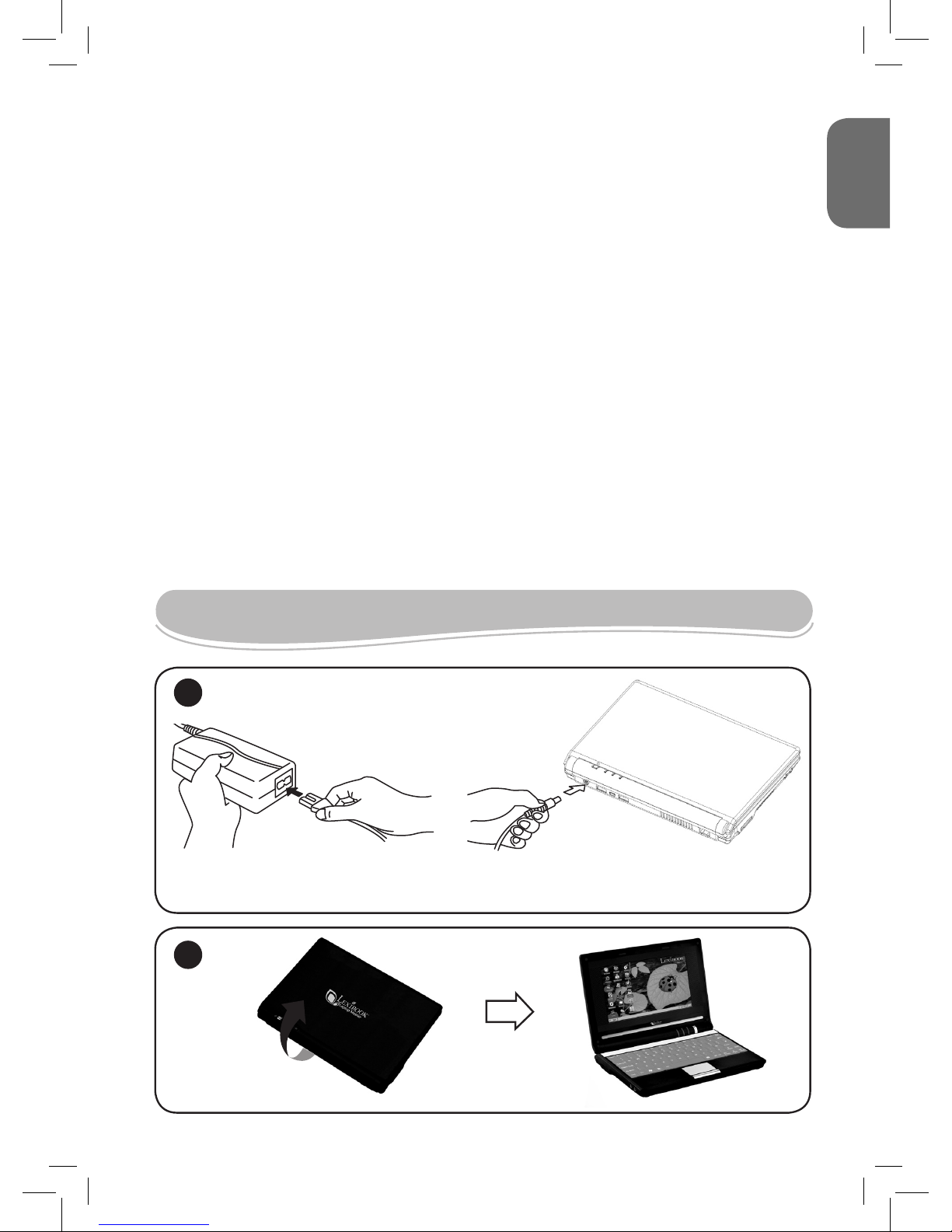

1. Connect the power cord to the AC adaptor.

2. Connect the AC adaptor’s DC output plug to the DC IN port on the back side of the computer.

3. Plug the power cord into a wall outlet. The battery charge indicator on the front of the computer should glow.

Lift up the LCD screen to open it.

ENGLISH

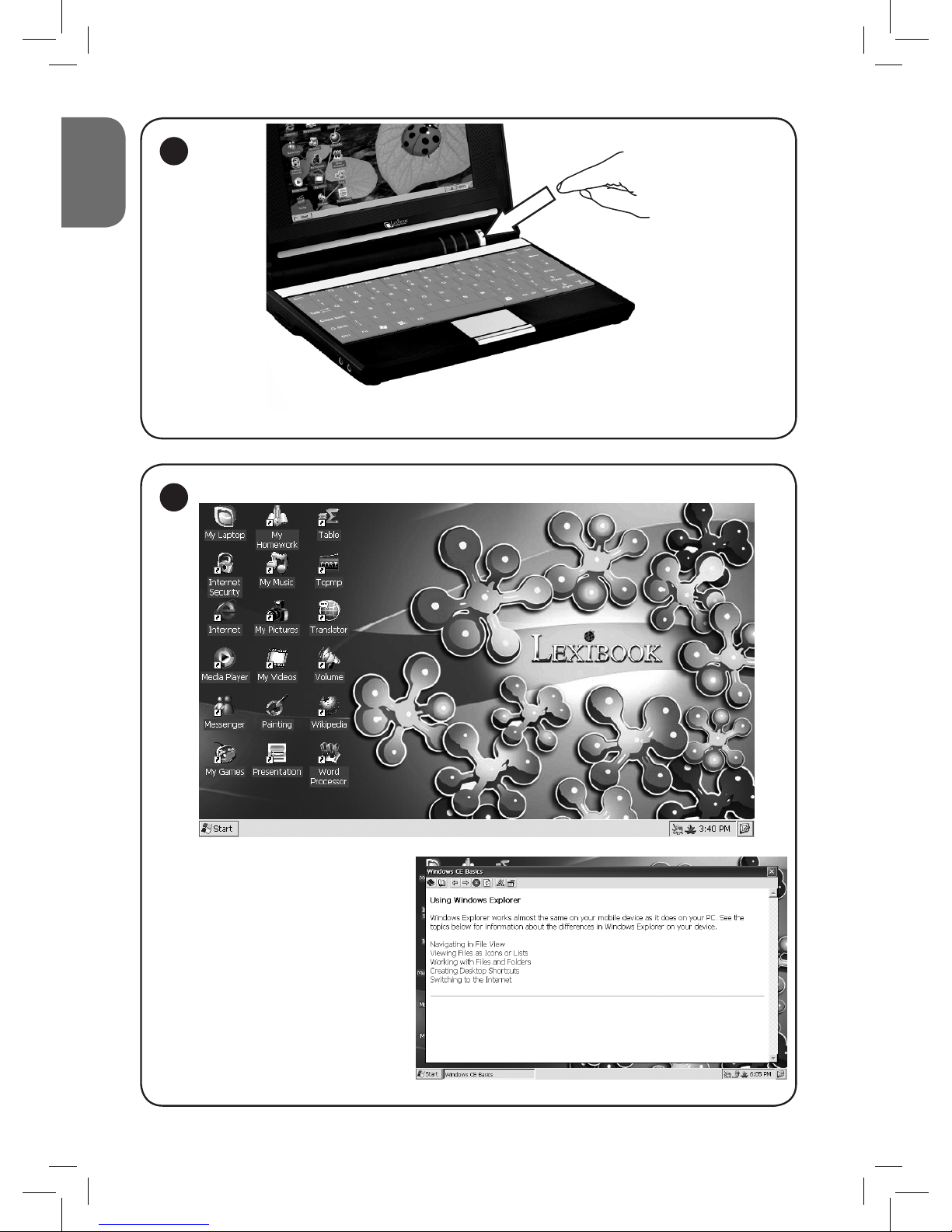

Press the power button to turn on your laptop.

Windows® CE starts automatically and after

a few seconds, the desktop is displayed on

screen.

For detailed information about how to use the

basic functions of Microsoft® Windows® CE,

use the integrated help function:

1. Click on “Start”, then “Help” and click on

“Windows CE Basics”.

2. Browse through the topics available to learn

how to use Windows® CE.

Note: You can also press the F1 key while the

desktop is displayed or when using Windows

Explorer to open the “Help” dialog box.

ENGLISH

Use the Touch Pad or a mouse (not included) to double-click on the desired icons and launch the applications

(for detailed information about the Touch Pad, refer to the “Using the Touch Pad” section, p.12).

GETTING TO KNOW YOUR LAPTOP

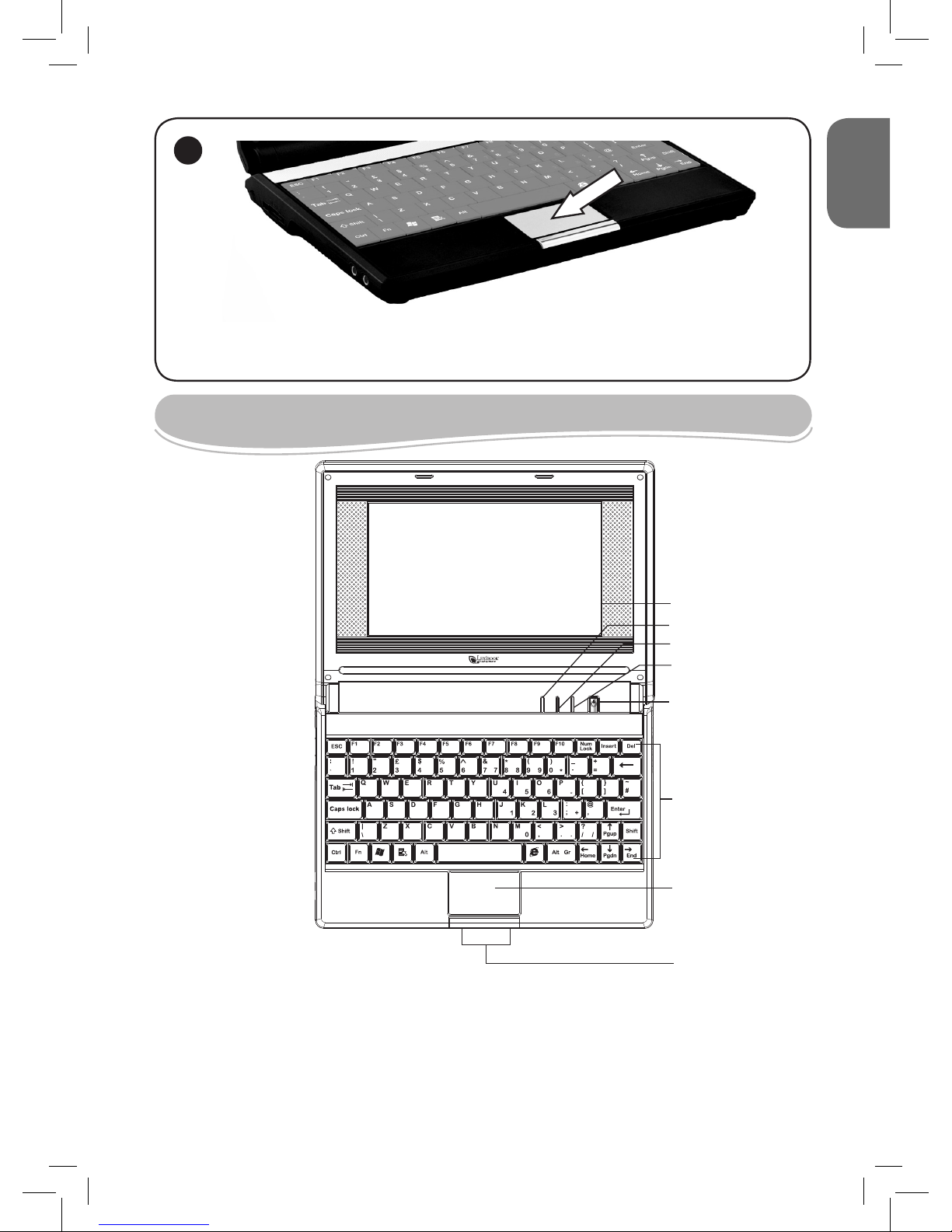

1. LCD screen

2. Battery charge indicator (red): lights up steadily when the AC adapter is plugged.

3. Operating system indicator (orange): indicates that the system is working.

4. Caps Lock indicator (green): indicates when the caps lock function is turned on or off.

5. Power ON/ Power OFF button: press to turn the laptop on. Press and hold for about 5 seconds to turn off the unit

manually.

6. Keyboard

7. Touch Pad: the Touch Pad is a built-in pointing device with functions similar to a mouse.

8. Touch Pad button: works like the two right and left buttons of an ordinary mouse.

ENGLISH

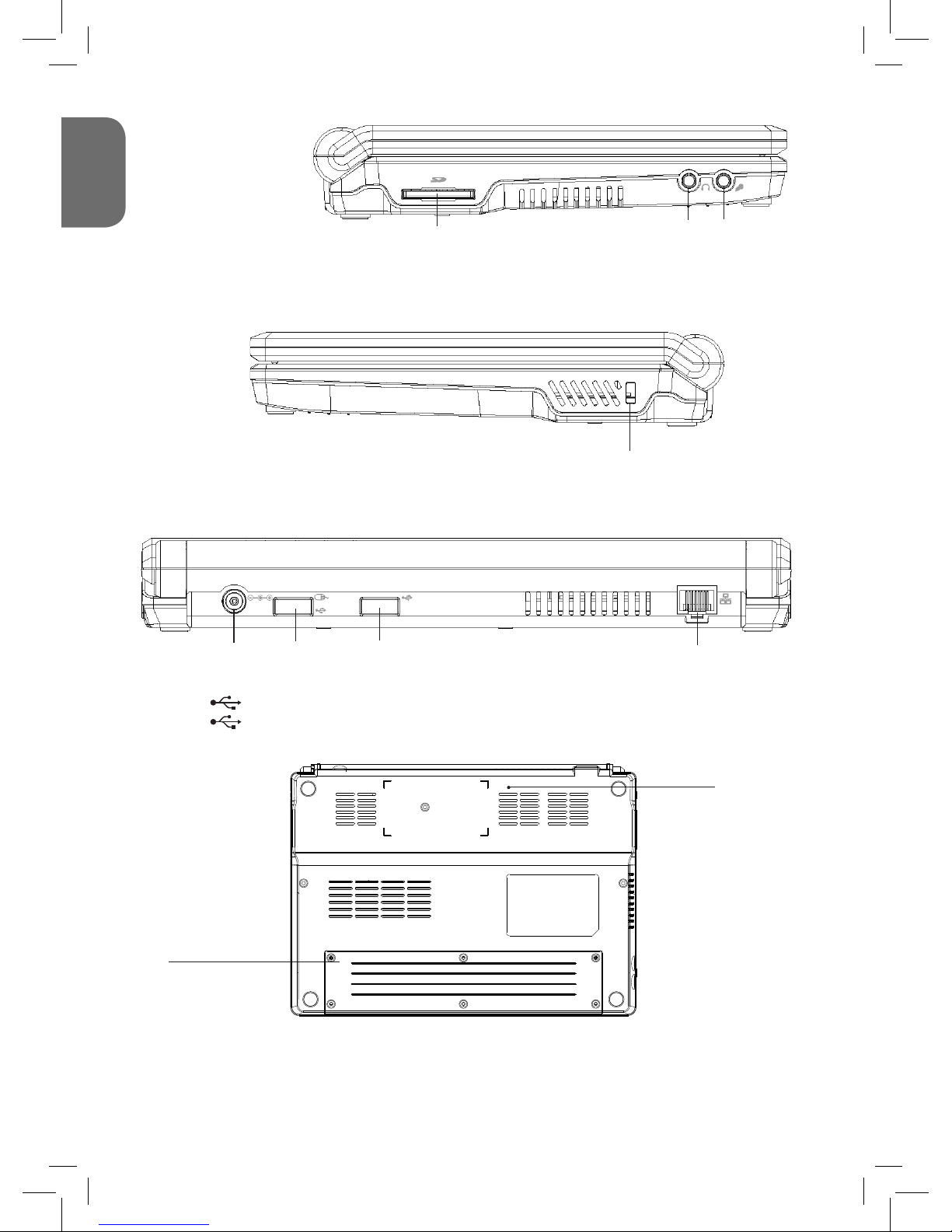

1. SD card reader: supports SD card up to 16GB.

2. Headphone Jack: the headphone jack (3.5 mm diameter) is where you connect the headphones or external

speakers.

3. Microphone jack: the microphone jack (3.5 mm diameter) is where you connect a microphone.

Left side

123

1. Kensington lock: this slot allows you to connect an optional security cable (not included) and anchor the computer to a

desk or other large object to deter theft.

Right side

1. DC IN 9.8V : the AC adaptor connects to this socket. Use only the AC adaptor supplied with the laptop. Using the wrong

adaptor can damage the product.

2. USB port : use this port to connect a USB mouse, a USB key or a printer (not included).

3. USB port : use this port to connect a USB mouse, a USB key or a printer (not included).

4. LAN jack : this jack allows you to connect to a Ethernet cable.

1. Lithium battery compartment: the integrated lithium battery powers the computer when the AC adaptor is not

connected (for more details about how to use properly the battery, refer to the “Charging and using the built-in lithium

battery” section, p.10).

2. Reset button: if the unit malfunctions press this button to reset the system (refer to the “Resetting the system” section

p.23).

Back side

Underside

ENGLISH

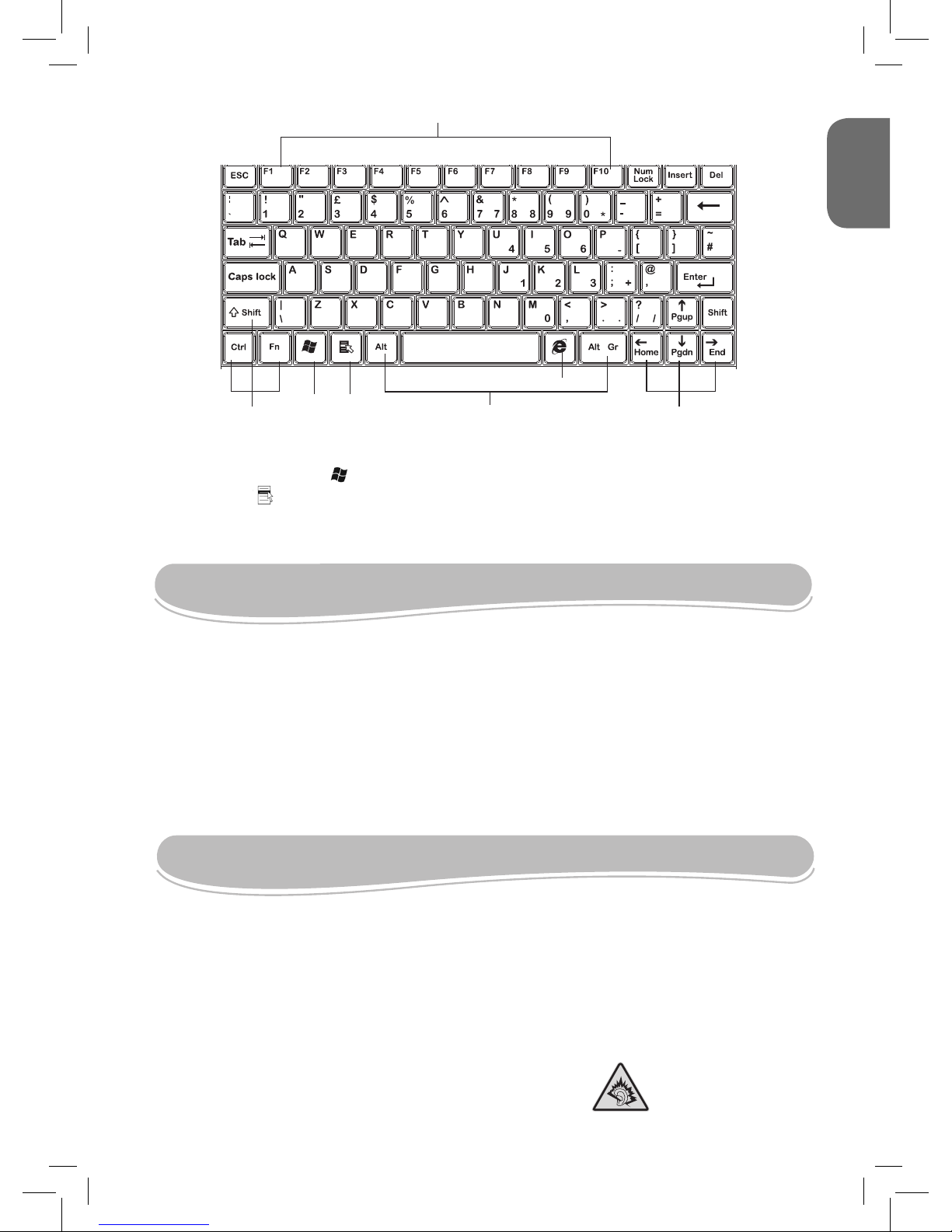

1. Function keys

2. Control keys

3. Windows “Start” menu key : press this key to open the Windows “Start” menu.

4. “Context” key : this key has the same function as the right mouse button.

5. Alt keys

6. Internet Explorer access key: press this key to launch the Internet Explorer program.

7. Direction keys

UNPACKING THE DEVICE

When unpacking, ensure that the following elements are included:

1 x Lexibook Laptop Master MFC105GBZ

1 x Lexibook Laptop Wi-Fi dongle MFA30

1 x power cord

1 x AC/DC adapter

1 x instruction manual

WARNING: All packaging materials, such as tape, plastic sheets, wire ties and tags are not part

of this laptop and should be discarded.

INSTALLATION

Mouse connection

You can use one of the USB port on the back of the laptop to plug in a mouse (reference MFA10,

sold separately).

Headphones connection

On the left side of the unit is a headphones socket, suitable for any normal earphones tted with

a 3.5mm jack plug. When the headphones are in use, the speakers are turned off.

CAUTION: too high volume, especially when using

headphones, can damage your hearing.

For this reason, please turn the volume down before

connecting the headphones.

3457

Keyboard

Prolonged use at full power can

damage the ear of the user.

ENGLISH

Please switch off the MFC105GBZ before connecting the computer to a main socket.

Before using this product for the rst time, please remove the static label from the

LCD screen.

Power connection

Use the AC/DC adapter (AC 100V- 240V~ 50/60Hz) provided with the unit to connect the

computer to a main socket.

Note:

• Only use the unit in combination with the adapter supplied. Do not use a different adapter to

power the computer.

• Whenever possible, keep the AC adapter plugged into the laptop and an electrical outlet to

recharge the battery.

• Never turn off or reset your Lexibook Laptop Master while the hard disk is in use, doing so

can result in loss or destruction of your data. Always wait at least 5 seconds after turning off the

laptop before turning it back on. Turning the power on and off in rapid succession can damage

the unit’s electrical circuitry.

CHARGING AND USING THE BUILT-IN LITHIUM BATTERY

The Lexibook Laptop Master is equipped with a built-in rechargeable lithium battery that

provides power when you don’t have access to an AC outlet. The battery life is approximately

3 hours.

IMPORTANT: The battery must be charged for at least 4 hours before using it for the rst

time.

Charging the battery and charging time

To charge the battery, plug the AC adapter into the laptop and an electrical outlet.

For a totally discharged battery, it will take approximately 4 hours to charge to 100% capacity

while the Lexibook Laptop Master is powered off. It will take about 5 hours to charge the battery

to 100% capacity while the unit is powered on. The battery charge indicator lights up steadily

during the charge.

Note:

• The battery life may vary based on usage patterns of the computer.

• Do not expose the battery to temperatures below 0°C (32°F) or above 60° C (140°F). This may

adversely affect the battery pack.

Checking the remaining power

1. To access the Power Properties menu, click the “Start” button, then select “Settings” and click
