CONTENTS

INTRODUCTION

Thank you for purchasing this Lexibook Laptop MFC100GB. The Lexibook Laptop is more than

an educative tool, specially designed for children age 6 and up. It is also a complete laptop with

many applications: Word Processor to type reports or essays, integrated mailbox software to

send and receive e-mails, Internet Explorer for browsing the net for school projects...

Everything students need to learn, progress and acquire a useful knowledge of the digital

world!

It is strongly recommended that you read the following instructions to nd all the necessary

information regarding the functions of the Lexibook Laptop. Please take note of all the enclosed

instructions and safety precautions.

Introduction

Safety instructions

Important safety instructions

Start-up guide

Getting to know your laptop

Unpacking the device

Installation

Charging and using the built-in lithium battery

Turning your MFC100GB on and off

Using the Touch Pad

Desktop icons

PDFReader

USB connection

Internet connection

Internet Security

Email application

SD card reader

Resetting the system

Troubleshooting

Specications

Maintenance

Warranty

EC Declaration of conformity

MFC100GB.indd 2 12/8/08 10:32:11

SAFETY INSTRUCTIONS

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK. DO NOT REMOVE COVER

(OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED

SERVICE PERSONNEL.

The graphic symbols on the back cover of the set mean the following:

The lightning ash with arrowhead symbol within an equilateral triangle is intended to

alert the user to the presence of uninsulated “dangerous voltage” within the product’s

enclosure that may be of sufcient magnitude to constitute a risk of electric shock

to persons.

The exclamation point within an equilateral triangle is intended to alert the user to

the presence of important operating and maintenance (servicing) instructions in the

literature accompanying the appliance.

WARNING:

• To reduce the risk of re or electric shock, do not expose this appliance to rain or

moisture.

• The apparatus shall not be exposed to dripping or splashing and no objects lled with

liquids, such as vases, shall be placed on the apparatus.

• The mains plug is used as the disconnect device, the disconnect device shall remain

readily operable.

• In order to disconnect the apparatus from the mains completely, the mains plug should

be disconnected from the mains socket outlet completely.

IMPORTANT SAFETY INSTRUCTIONS

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use the product on your lap for more than 30 minutes, with at least a 5 minutes

break.

6. Do not use this unit near water.

7. Clean only with a dry cloth.

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION

WARNING: THIS PRODUCT IS NOT A TOY, ADULT SUPERVISION IS RECOMMENDED.

MFC100GB.indd 3 12/8/08 10:32:12

8. Do not block any ventilation openings. Install in accordance with manufacturer’s

instructions.

9. To avoid overheating, do not leave the product in a non-ventilated space (e.g.: a schoolbag)

when it is turned on.

10. Do not install near any heat sources such as radiators, heat registers, stoves or other

apparatus (including ampliers) that produce heat.

11. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug

has two blades with one wider than the other. A grounding-type plug has two blades and a third

grounding prong. The wide blade or the third prong is provided for your safety. If the provided

plug does not t into your outlet, consult an electrician for replacement of the obsolete outlet.

12. Protect the power cord from being walked on or pinched particularly at plugs, convenience

receptacles, and the point where they exit from the unit.

13. Only use attachments/ accessories specied by the manufacturer.

14. Unplug this unit during lightning storms or when unused for long periods of time.

15. Refer all servicing to qualied service personnel. Servicing is required when the unit has

been damaged in any way, such as the following: the power-supply cord or plug has been

damaged; liquid has been spilled or objects have fallen into the unit; and/or the unit has been

exposed to rain or moisture, does not operate normally, has changed its performance or has

been dropped.

16. Do not overload wall outlet. Use only power source as indicated.

17. Use replacement parts as specied by the manufacturer.

18. Upon completion of any service or repairs to this product, ask the service technician to

perform safety checks.

START-UP GUIDE

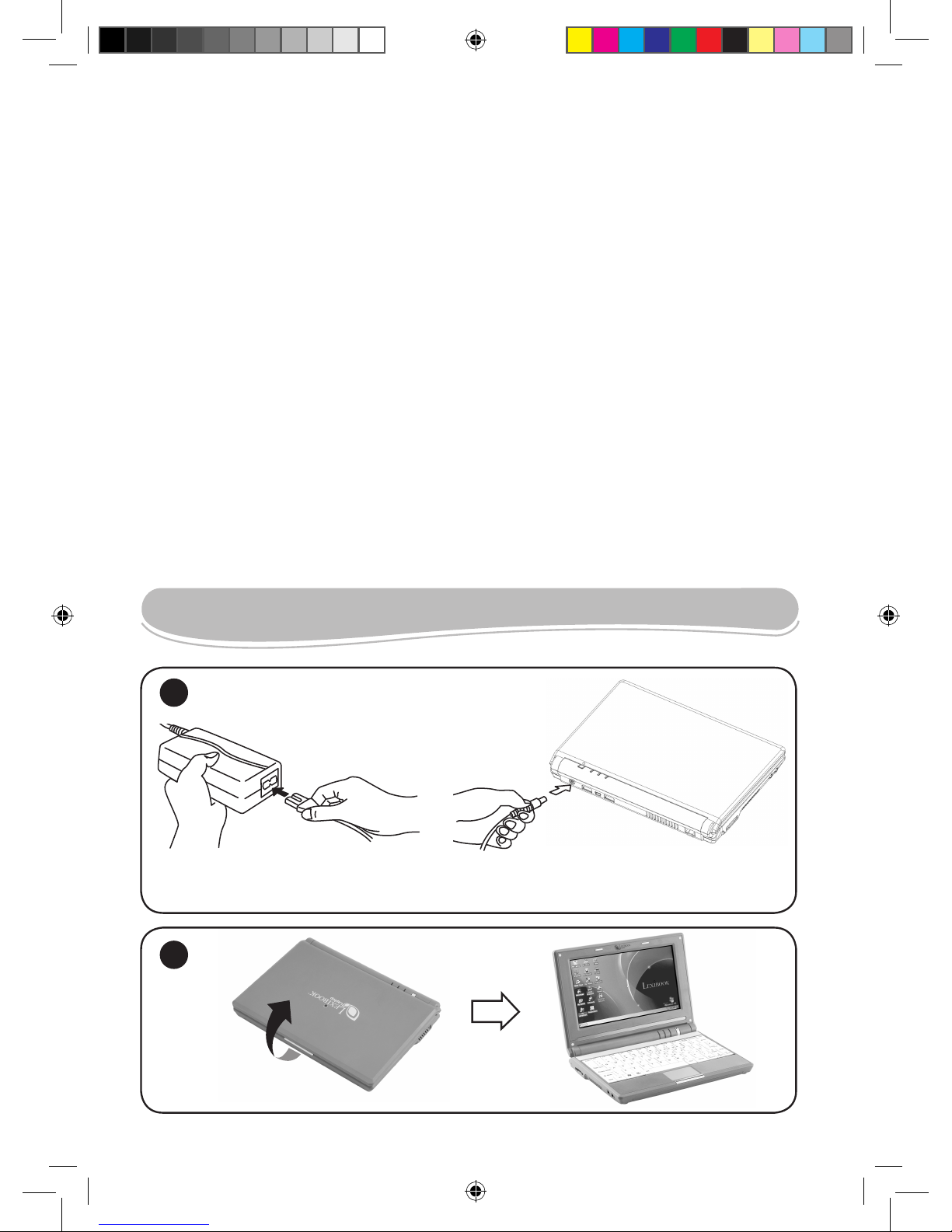

1. Connect the power cord to the AC adaptor.

2. Connect the AC adaptor’s DC output plug to the DC IN port on the back side of the computer.

3. Plug the power cord into a wall outlet. The battery charge indicator on the front of the computer should glow.

Lift up the LCD screen to open it.

MFC100GB.indd 4 12/8/08 10:32:13

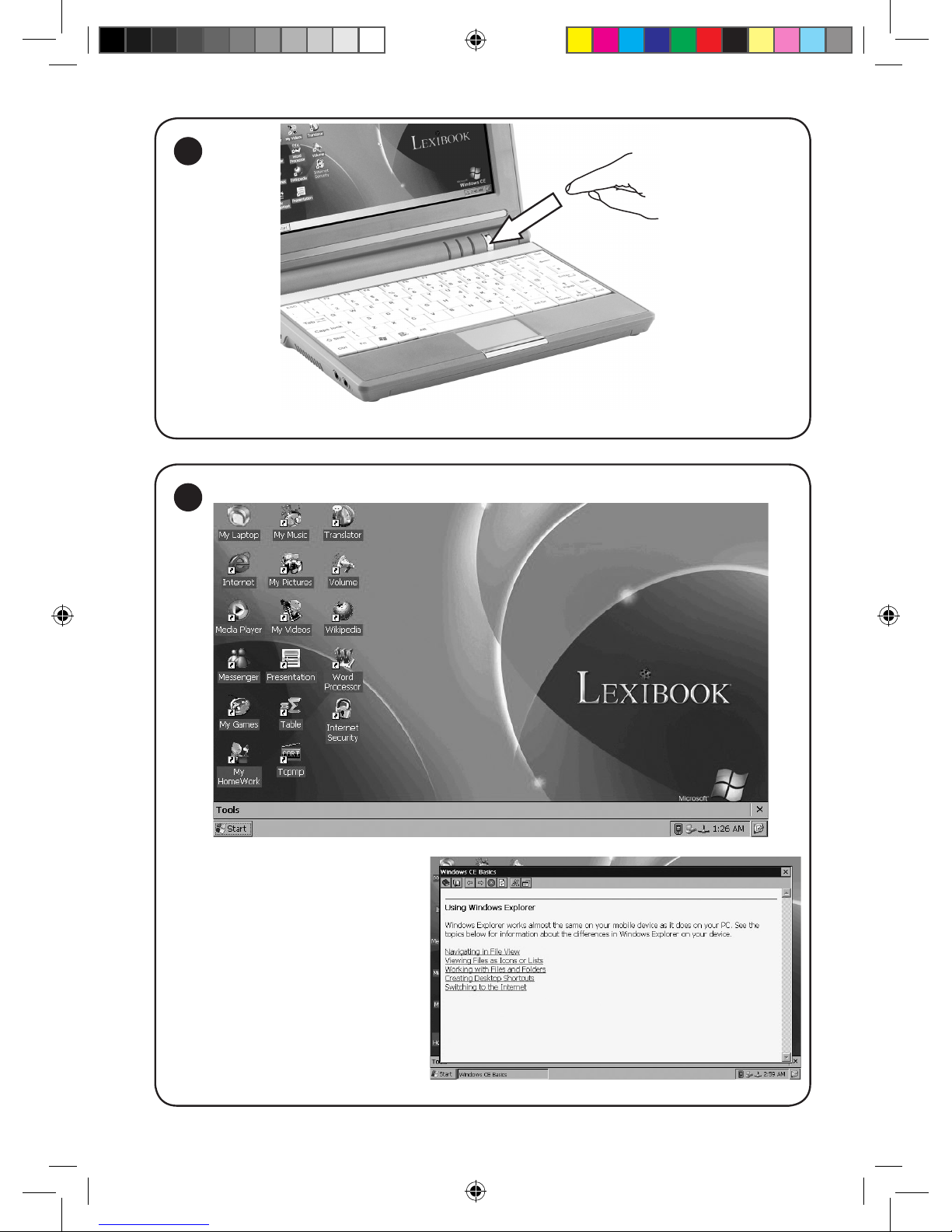

Press the power button to turn on your laptop.

Windows® CE starts automatically and after

a few seconds, the desktop is displayed on

screen.

For detailed information about how to use the

basic functions of Microsoft® Windows® CE,

use the integrated help function:

1. Click on “Start”, then “Help” and click on

“Windows CE Basics”.

2. Browse through the topics available to learn

how to use Windows® CE.

Note: You can also press the F1 key while the

desktop is displayed or when using Windows

Explorer to open the “Help” dialog box.

MFC100GB.indd 5 12/8/08 10:32:13

Use the Touch Pad or a mouse (not included) to double-click on the desired icons and launch the applications

(for detailed information about the Touch Pad, refer to the “Using the Touch Pad” section, p.11).

GETTING TO KNOW YOUR LAPTOP

1. LCD screen

2. Battery charge indicator (red): lights up steadily when the AC adapter is plugged.

3. Operating system indicator (orange): indicates that the system is working.

4. Caps Lock indicator (green): indicates when the caps lock function is turned on or off.

5. Power ON/ Power OFF button: press to turn the laptop on. Press and hold for about 5 seconds to turn off the unit

manually.

6. Keyboard

7. Touch Pad: the Touch Pad is a built-in pointing device with functions similar to a mouse.

8. Touch Pad button: works like the two right and left buttons of an ordinary mouse.

ESC Num

Lock Insert Del

Alt Gr

Enter

Pgup

PgdnHome End

]

}

[

{

Tab

Caps lock

?><

MFC100GB.indd 6 12/8/08 10:32:16

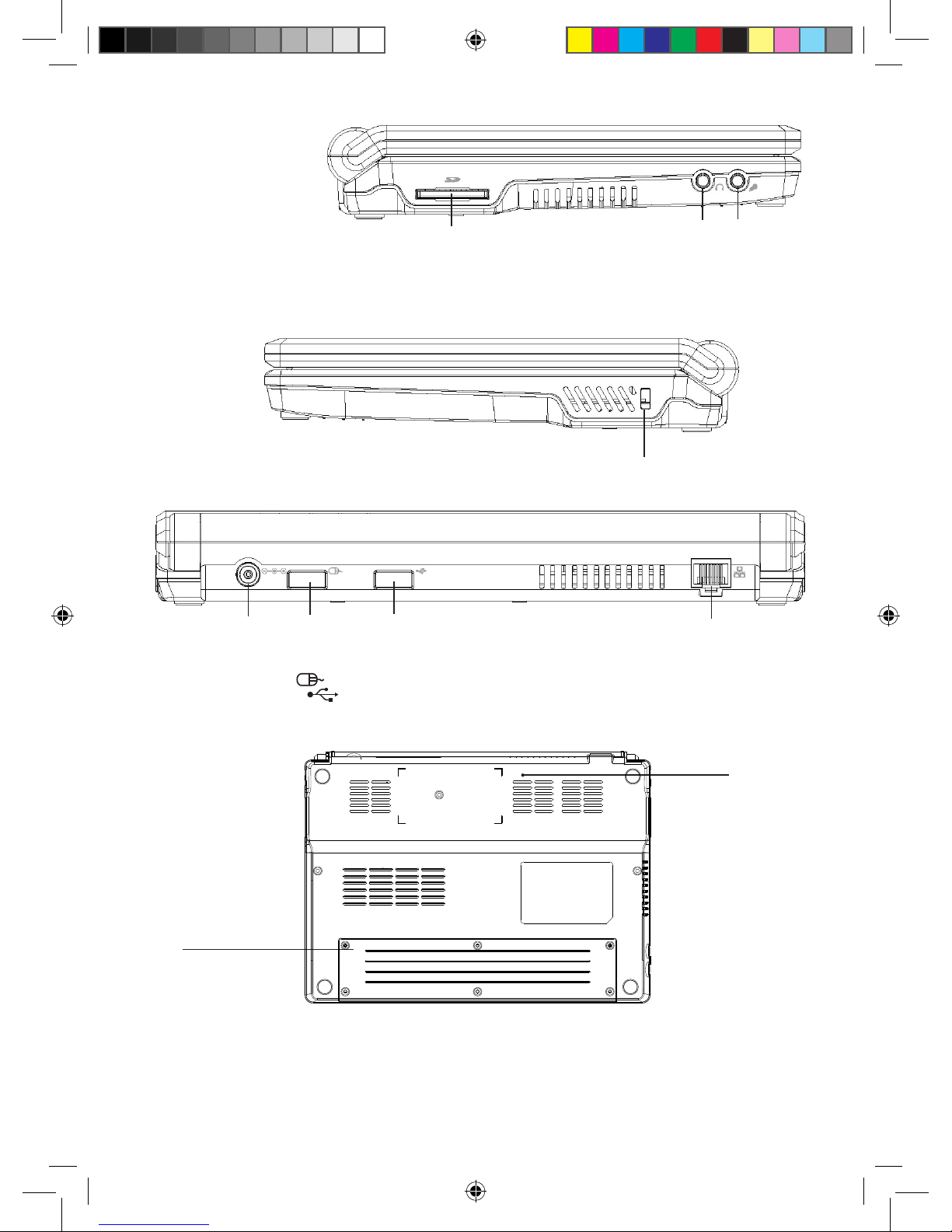

1. SD card reader: supports SD card up to 2GB.

2. Headphone Jack: the headphone jack (3.5 mm diameter) is where you connect the headphones or external

speakers.

3. Microphone jack: the microphone jack (3.5 mm diameter) is where you connect a microphone.

Left side

123

1. Kensington lock: anti-theft system.

Right side

1. DC IN 9.8V : the AC adaptor connects to this socket. Use only the AC adaptor supplied with the laptop. Using the wrong

adaptor can damage the product.

2. Mouse-only USB port : use this port to connect a USB mouse (not included).

3. USB key-only USB port : use this port to connect a USB key (not included).

4. LAN jack : this jack allows you to connect to a Ethernet cable.

1. Lithium battery compartment: the integrated lithium battery powers the computer when the AC adaptor is not

connected (for more details about how to use properly the battery, refer to the “Charging and using the built-in lithium

battery” section, p.9).

2. Reset button: if the unit malfunctions press this button to reset the system (refer to the “Resetting the system” section

p.21).

Back side

Underside

MFC100GB.indd 7 12/8/08 10:32:17

1. Function keys

2. Control keys

3. Windows “Start” menu key : press this key to open the Windows “Start” menu.

4. “Context” key : this key has the same function as the right mouse button.

5. Alt keys

6. Direction keys

UNPACKING THE DEVICE

When unpacking, ensure that the following elements are included:

1 x Lexibook Laptop MFC100GB

1 x power cord

1 x AC/DC adapter

1 x instruction manual

WARNING: All packaging materials, such as tape, plastic sheets, wire ties and tags are not part

of this laptop and should be discarded.

INSTALLATION

Mouse connection

You can use the mouse-only USB port on the back of the laptop to plug in a mouse (reference

MFA10, sold separately).

Headphones connection

On the left side of the unit is a headphones socket, suitable for any normal earphones tted with

a 3.5mm jack plug. When the headphones are in use, the speakers are turned off.

CAUTION: too high volume, especially when using headphones, can damage your hearing.

For this reason, please turn the volume down before connecting the headphones.

ESC Num

Lock Insert Del

Alt Gr

Enter

Pgup

PgdnHome End

]

}

[

{

Tab

Caps lock

?><

3456

MFC100GB.indd 8 12/8/08 10:32:19

Please switch off the MFC100GB before connecting the computer to a main socket.

Before using this product for the rst time, please remove the static label from the

LCD screen.

Power connection

Use the AC/DC adapter (AC 100V- 240V~ 50/60Hz) provided with the unit to connect the

computer to a main socket.

Note:

• Only use the unit in combination with the adapter supplied. Do not use a different adapter to

power the computer.

• Whenever possible, keep the AC adapter plugged into the laptop and an electrical outlet to

recharge the battery.

• Never turn off or reset your Lexibook Laptop while the hard disk is in use, doing so can result in

loss or destruction of your data. Always wait at least 5 seconds after turning off the laptop

before turning it back on. Turning the power on and off in rapid succession can damage the

unit’s electrical circuitry.

CHARGING AND USING THE BUILT-IN LITHIUM BATTERY

The Lexibook Laptop is equipped with a built-in rechargeable lithium battery that provides power

when you don’t have access to an AC outlet. The battery life is approximately 3.5 hours.

IMPORTANT: The battery must be charged for at least 4 hours before using it for the rst

time.

Charging the battery and charging time

To charge the battery, plug the AC adapter into the laptop and an electrical outlet.

For a totally discharged battery, it will take approximately 4 hours to charge to 100% capacity

while the Lexibook Laptop is powered off. It will take about 5 hours to charge the battery to 100%

capacity while the unit is powered on. The battery charge indicator lights up steadily during the

charge.

Note:

• The battery life may vary based on usage patterns of the computer.

• Do not expose the battery to temperatures below 0°C (32°F) or above 60° C (140°F). This may

adversely affect the battery pack.

Checking the remaining power

1. To access the Power Properties menu, click the “Start” button, then

select “Settings” and click “Control Panel”.

MFC100GB.indd 9 12/8/08 10:32:20

The lithium battery is intended to use only with this laptop. Do not disassemble the battery. Do not dispose of the

battery in re or water. To avoid risk of re, burns, or damage to your battery, do not allow a metal object to touch the

battery contacts. Handle a damaged or leaking battery with extreme care. If you come in contact with the electrolyte,

wash the exposed area with soap and water. If it contacts the eye, ush the eye with water for 15 minutes and seek

medical attention. Do not charge the lithium battery pack if the ambient temperature exceeds 45°C (113°F). To obtain

a replacement battery, contact your local dealer. Do not expose the battery to high storage temperatures (above

60°C, 140°F). When discarding a battery pack, contact your local waste disposal provider regarding local restrictions

on the disposal or recycling of batteries. Use only supplied AC Adapter for charging.

WARNING: Danger of explosion if battery is incorrectly replaced. Replace only with same

or equivalent type recommended by the manufacturer. Discard used batteries

according to the manufacturer’s instructions or local laws. Mal-function or loss of

memory may be caused by strong frequency interference or electrostatic discharge.

Should any abnormal function occurs, reset the unit or unplug the AC/DC adapter from

the mains socket and re-plug it again.

TURNING YOUR MFC100GB ON AND OFF

Turning on the unit

Press the power button to

turn on your laptop.

Windows® CE will start

automatically.

Turning off the unit

1. To turn the Lexibook

Laptop off, save your work

and close all open

applications, click on

“Start”, then “Shutdown”

and select “Shut down”.

2. Or press and hold the

power button for 4-6

seconds.

2. Double-click the “Power” option to

open the power conguration dialogue

box and check the remaining power.

Note:

• the unit will automatically shut down

a few minutes after a battery warning

message has been displayed.

• when the Lexibook Laptop is

connected to an AC outlet, you can

also double-click the battery icon in

the task bar on the lower right corner

of the screen to open the power

conguration dialogue box.

MFC100GB.indd 10 12/8/08 10:32:20

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere LEXIBOOK Laptop Handbücher

LEXIBOOK

LEXIBOOK JC598i4 Series Bedienungsanleitung

LEXIBOOK

LEXIBOOK JC798i2 10 Bedienungsanleitung

LEXIBOOK

LEXIBOOK JC598FZi1 Bedienungsanleitung

LEXIBOOK

LEXIBOOK JC598SPi2 Series Bedienungsanleitung

LEXIBOOK

LEXIBOOK JC650LPSI2 Bedienungsanleitung

LEXIBOOK

LEXIBOOK JC598i18 Series Bedienungsanleitung

LEXIBOOK

LEXIBOOK JC598i17 Series Bedienungsanleitung

LEXIBOOK

LEXIBOOK MFC100GB Bedienungsanleitung

LEXIBOOK

LEXIBOOK JC598i14 Series Bedienungsanleitung

LEXIBOOK

LEXIBOOK JC598i2 Series Bedienungsanleitung

LEXIBOOK

LEXIBOOK JC260SPBKI1 Bedienungsanleitung

LEXIBOOK

LEXIBOOK JC798i6 Series Bedienungsanleitung

LEXIBOOK

LEXIBOOK Power Spider-Man JC700SPGB Bedienungsanleitung

LEXIBOOK

LEXIBOOK POWER PINK JC261GB Bedienungsanleitung

LEXIBOOK

LEXIBOOK JC598i9 Series Bedienungsanleitung

LEXIBOOK

LEXIBOOK JC650HSMI2 Bedienungsanleitung

LEXIBOOK

LEXIBOOK JC598i3 Series Bedienungsanleitung

LEXIBOOK

LEXIBOOK Fairies Magic JC262i1 Bedienungsanleitung

LEXIBOOK

LEXIBOOK Power Net JC650I1 Bedienungsanleitung

LEXIBOOK

LEXIBOOK JC798i6 Series Bedienungsanleitung

LEXIBOOK

LEXIBOOK Laptop Master MFC105GBZ Bedienungsanleitung

LEXIBOOK

LEXIBOOK Ferrari Power Speed JC800FEi1 Bedienungsanleitung

LEXIBOOK

LEXIBOOK JC126TFi1 Bedienungsanleitung

LEXIBOOK

LEXIBOOK Laptab MFC140EN Bedienungsanleitung

Beliebte Laptop Handbücher anderer Marken

HP ze2401xt - Pavilion Notebook PC Bedienungsanleitung

Velocity

Velocity NoteMagix M10 Bedienungsanleitung

Dell

Dell Alienware 17 R2 Bedienungsanleitung

Toshiba

Toshiba A105-S2236 Bedienungsanleitung

HP ENVY 17 Handbuch

Winbook

Winbook LM Bedienungsanleitung

Dell

Dell Inspiron 1464 Bedienungsanleitung

Dell

Dell Inspiron 15R 5537 Bedienungsanleitung

HP PROBOOK 4520S Handbuch

Dell

Dell Latitude ATG D620 Bedienungsanleitung

Sony

Sony VAIO PCG-FX270 Bedienungsanleitung

Dell

Dell Latitude 7310 Bedienungsanleitung

Dell

Dell Precision GU806 Bedienungsanleitung

Sony

Sony VAIO PCG-R505JLK Bedienungsanleitung

Lenovo

Lenovo THINKPAD X32 Bedienungsanleitung

HP Compaq tc4200 Kurzanleitung

Toshiba

Toshiba mini NB300 Bedienungsanleitung

Lenovo

Lenovo ThinkPad X201 Tablet Handbuch
