Colour Television

OWNER’S MANUAL

Please read this manual carefully before operating your set.

Retain it for future reference.

Record model number and serial number of the set.

See the label attached on the back cover and quote this infor-

mation to your dealer when you require service.

Model number :

Serial number :

Contents

Installation 3

Location and function of controls 4

Remote control handset / Battery installation

Front panel / Side panel

Basic operation 8

On and off / Programme selection

Volume adjustment / Quick view

Mute function / Auto Demonstration

On screen language selection (option)

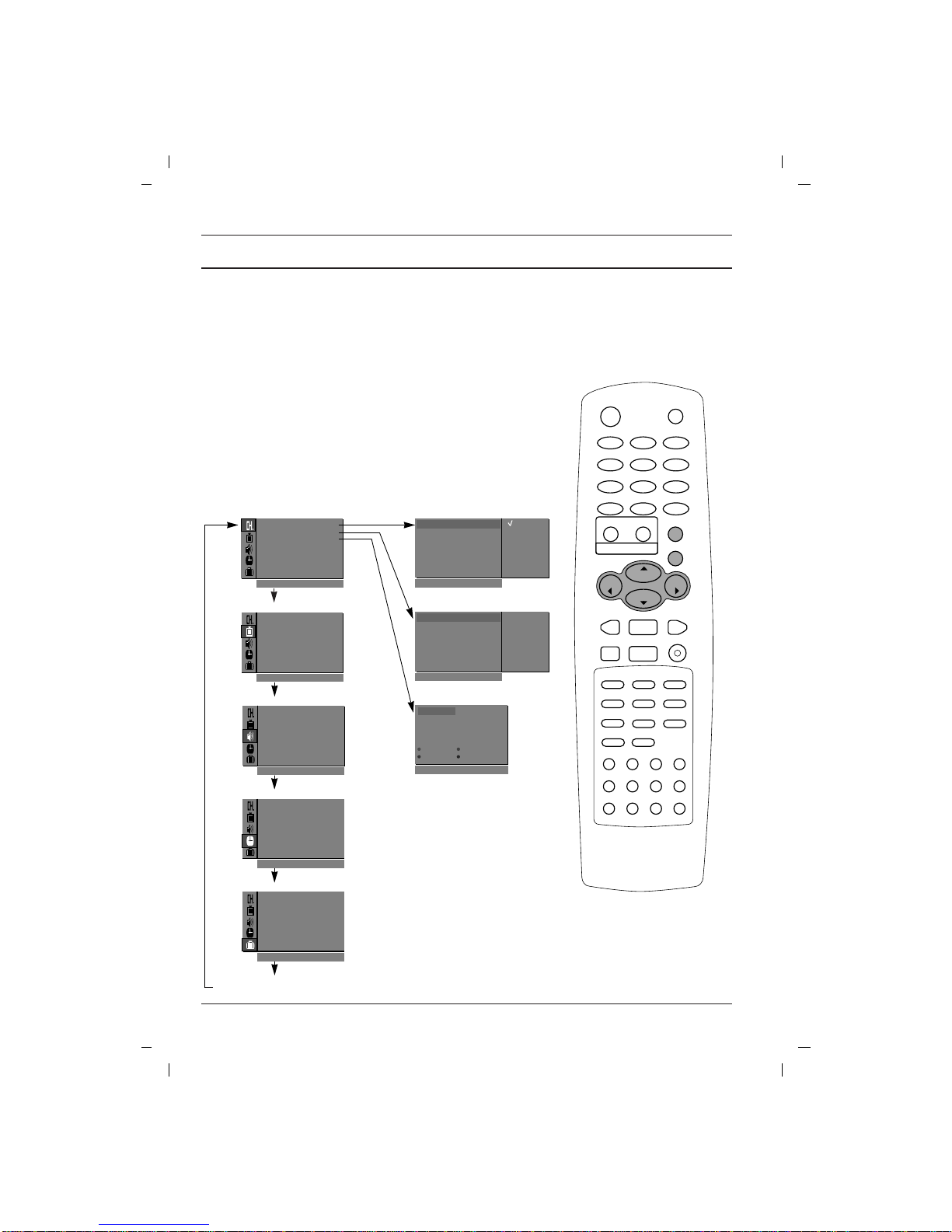

On screen menus 9

Menu selection

Setting up TV stations 10

Auto programme tuning

Manual programme tuning

Fine Tuning / Programme edit

Favourite programme

Calling the programme table

Picture adjustment 15

PSM (Picture Status Memory) / XD /

Cinema (option)

VM (Velocity Modulation) / Virtual HD (option)

Picture adjustment / Eye (option)

Turbo picture selection (option) / Picture format

Sound adjustment 19

SSM (Sound Status Memory) / Sound adjustment

X-WAVE (Wireless Sound) (option)

Turbo sound selection (option)

Sound output selection / Stereo/Dual reception

NICAM reception (option)

Time setting 22

Setting the clock / Setting the On/Off timer

Auto sleep

Other functions 23

TV and AV modes / Auto AV switching (option)

Child lock /

XD Demo (option) /

Blue back (option)

Tilt / Degaussing (option) / Sleep timer

PIP operation (option) 26

On and off / Input mode selection for sub picture

Swapping between main and sub pictures

Programme selection for sub picture

Sub picture size / Sub picture freeze

Sub picture position change

Teletext (option) 27

Switch on/off

SIMPLE text / TOP text (option)

FASTEXT / Special teletext functions

Connection of external equipment 30

Aerial socket

Audio/Video in/out sockets (option)

Euro scart sockets (option)

S-Video/Audio in sockets (S-AV) (option)

Component in sockets (option)

DTV in sockets (option) / AV out sockets

Headphone socket (option)

Troubleshooting check list

2

Installation

Power

This set operates on an AC mains supply, the voltage is as indicat-

ed on the label on the back cover. Never apply DC power to the set.

In the event of thunderstorms or powercuts, please pull out the aer-

ial and mains plugs.

Warning

To prevent fire or shock hazard, do not expose the set to rain or

moisture.

Do not place anything containing liquid on top of the set, this may

cause a fire or could give an electric shock.

Service

Never remove the back cover of the set as this can expose you to

very high voltage and other hazards. If the set does not operate

properly, unplug it and call your dealer.

Aerial

Connect the aerial cable to the socket marked on the back

cover. For the best reception an outdoor aerial should be used.

Location

Position your set so that no bright light or sunlight falls directly onto

the screen. Care should be taken not to expose the set to any

unnecessary vibration, moisture, dust or heat. Also ensure that the

set is placed in a position to allow a free flow of air. Do not cover

the ventilation openings on the back cover.

3

Location and function of controls

4

All the functions can be controlled with the remote control hand-

set. Some functions can also be adjusted with the buttons on the

front panel of the set.

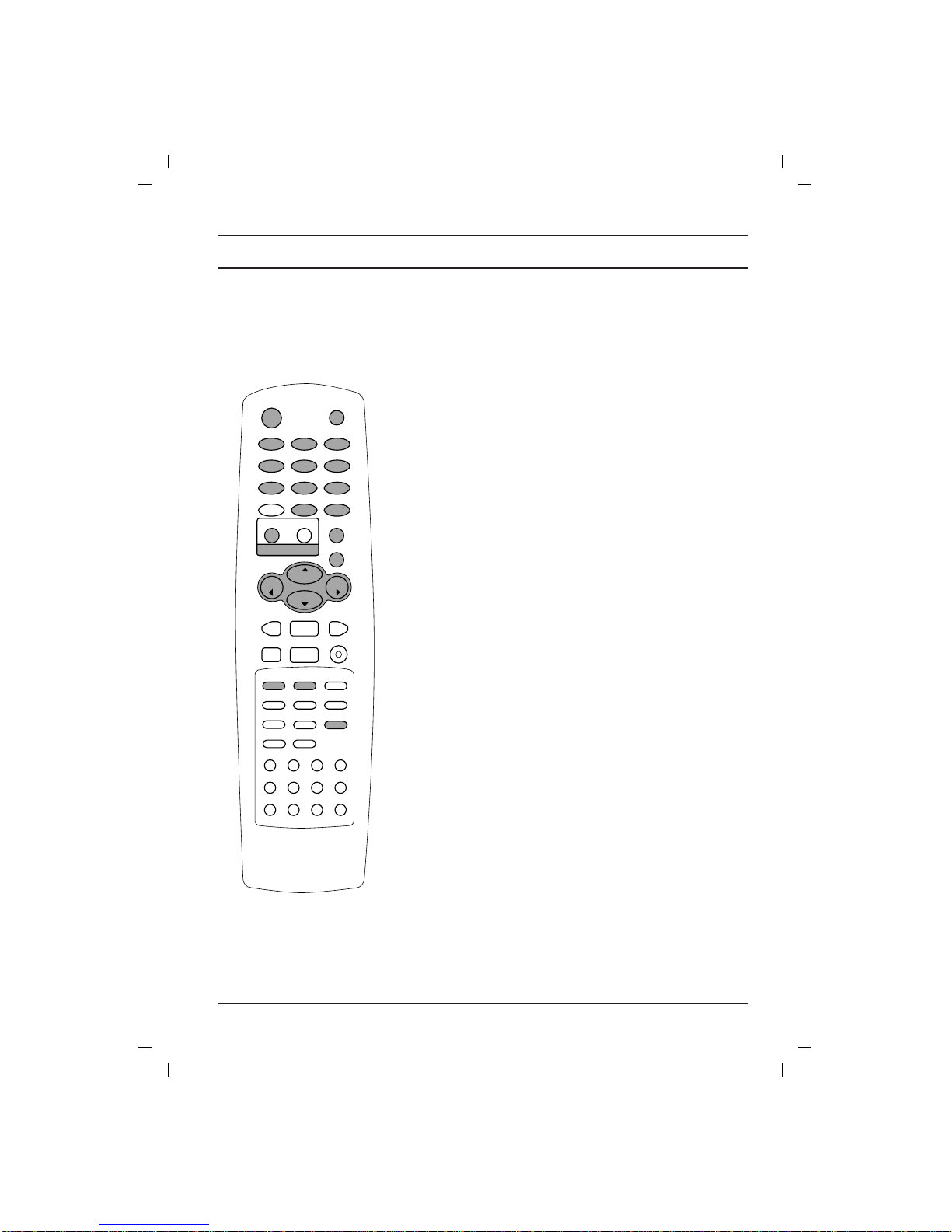

Remote control handset

Before you use the remote control handset, please install the

batteries. See the next page.

1. POWER

switches the set on from standby or off to standby.

2. NUMBER BUTTONS

Switches the set on from standby or directly select a number.

3. ARC (Aspect Ratio Control)

changes the picture format.

4. TURBO PICTURE BUTTON / SOUND BUTTON (option)

selects Turbo picture/sound.

5. DD/ EE(Programme Up/Down)

selects a programme or a menu item.

switches the set on from standby.

FF/ GG(Volume Up/Down)

adjusts the volume.

adjusts menu settings.

OK

accepts your selection or displays the current mode.

6.

VCR BUTTONS (option)

control a LG video cassette recorder.

7.

I/II

selects the language during dual language broadcast.

selects the sound output (option).

8. PSM (Picture Status Memory)

recalls your preferred picture setting.

9.

SLEEP

sets the sleep timer.

10.

MAIN STILL/*

(or STILL)

freezes motion of the picture.

11. TELETEXT BUTTONS (option)

These buttons are used for teletext.

For further details, see the ‘Teletext’ section.

12. MUTE

switches the sound on or off.

13. TV/AV

selects TV or AV mode.

switches the set on from standby.

( With TELETEXT / PIP)

FAVOURITE

STOP REC

I/II SSM LIST

PSM

SLEEP

MAIN STILL/

Q.VIEW

?

MIX TIME

SWAP INPUT

REVEAL MODE

SIZE STILL

POSITION

i

M

TEXT

PR

EYE/

INDEX/

PIP

20

OK

PR

VOL PR VOL

PLAY

FAVOURITE

STOP REC

REW FF

I/II SSM LIST

PSM

SLEEP

Q.VIEW

?

MIX TIME

REVEAL MODE

SIZE STILL

UPDATE

i

M

0

ARC TV/AV

MENU


SOUND

12 3

45 6

78 9

POWER MUTE

TEXT

T U R B O

EYE/

INDEX/

MAIN STILL/

1

2

4

3

5

6

21

7

9

12

13

14

15

18

17

16

19

8

11

10

(With TELETEXT / Without PIP)

Location and function of controls

14.

MENU

selects a menu.

15. LIST

displays the programme table.

16. SSM (Sound Status Memory)

recalls your preferred sound setting.

17.

EYE/*(option)

switches the eye function on or off.

18. Q.VIEW

returns to the previously viewed programme.

19. INDEX

/*

(option)

switches FRONT DISPLAY on or off.

20.

PIP BUTTONS (option)

PIP

switches the sub picture on or off.

PR +/-

selects a programme for the sub picture.

SWAP

alternates between main and sub picture.

INPUT

selects the input mode for the sub picture.

SIZE

adjusts the sub picture size.

STILL

freezes motion of the sub picture.

POSITION

relocates the sub picture in clockwise direction.

21. FAVOURITE

selects a favourite programme.

*: No function

COLOURED BUTTONS : These buttons are used for teletext (only

TELETEXT models) or programme edit.

Battery installation

The remote control handset is powered by two AA type batteries. To

load the batteries, turn the remote control handset over and open

the battery compartment. Install two batteries as indicated by the

polarity symbols ( and ) marked inside the compartment.

Note : To avoid damage from possible battery leakage, remove the

batteries if you do not plan to use the remote control handset for an

extended period of time.

5

+

-

FAVOURITE

STOP REC

I/II SSM LIST

PSM

SLEEP

Q.VIEW

SWAP INPUT

SIZE

STILL

POSITION

PR

EYE/

INDEX/

PIP

MAIN STILL/

20

(Without TELETEXT / With PIP)

OK

PR

VOL

PR

VOL

PLAY

FAVOURITE

STOP REC

REW FF

I/II SSM LIST

PSM

SLEEP

Q.VIEW

0

ARC TV/AV

MENU


SOUND

123

456

789

POWER MUTE

T U R B O

EYE/

MAIN STILL/

1

2

4

3

5

6

21

7

9

12

13

14

15

17

16

8

(Without TELETEXT / PIP)

18

10

ON/OFF

MENU

OK

VOL

PR

Location and function of controls

6

Front panel

ON/OFFON/OFF

127

7

5

3

4

29/32FS2 series

25

29/32FS4 series 25/29FX5 series

1 2 5 3 74

25/29FB9 series

1 2 5 3 4 7

PR

VOL

ON/OFF

MENU

OK

PR

VOL

3

29FC9 series

4

1

245

7

4

3

1

13

24

29FY1 series

75

25/29FC1 series

MENU OK VOL PR

1 2 5 3 4

@@@@@@@@e?

@@h?

@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?

@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@

@@@@@@@@

@@

?@@

?@@@@@@@@

?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@

@@g

@@@@@@@@

@@

MENU OK

VOL PR

25/29FA5 series

15

37

42

@@@@@@@@e?

@@h?

@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?

@@@@@@@@

@@

?@@

?@@@@@@@@

?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@

@@g

@@@@@@@@

@@

25/29FE6 series

1 2 3 45

@@@@@@@@e?

@@h?

@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e

@@@@@@@@

@@

?@@

?@@@@@@@@

?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@

@@g

@@@@@@@@

@@

ON/OFF

VOLMENU OK PR

25/29CC2 series

1 2 5 3 4

@@@@@@@@e?

@@h?

@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?

@@@@@@@@

@@

?@@

?@@@@@@@@

?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@

@@g

@@@@@@@@

@@

25/29FX6 series

1 3 4

5

7

2

@@@@@@@@e?

@@h?

@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?

@@@@@@@@

@@

?@@

?@@@@@@@@

?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@

@@g

@@@@@@@@

@@

ON/OFF

MENU OK VOL PR

VIDEO

AUDIO

L

R

AVIN3

29FB5 series

2 5 3 4

17

6

Location and function of controls

7

Side panel

S-VIDEO VIDEO L/MONO RAUDIO

AV IN3 AV IN3

S-VIDEO VIDEO L/MONO RAUDIO

AV IN3

8

6 6

@@@@@@@@e?

@@h?

@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?

@@@@@@@@

@@

?@@

?@@@@@@@@

?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@

@@g

@@@@@@@@

@@

1. MAIN POWER (ON/OFF)

switches the set on or off.

2. POWER/STANDBY INDICATOR

illuminates brightly when the set is in standby

mode.

dims when the set is switched on.

3. MENU

selects a menu.

4. OK

accepts your selection or displays the current

mode.

FF/ GG(Volume Down/Up)

adjusts the volume.

adjusts menu settings.

DD/ EE(Programme Up/Down)

selects a programme or a menu item.

switches the set on from standby.

5. REMOTE CONTROL SENSOR

Note : Only use the supplied remote control

handset. (When you use others, they will not

be able to function.)

6. AUDIO/VIDEO IN SOCKETS (AV IN3)

(option)

Connect the audio/video out sockets of exter-

nal equipment to these sockets.

S-VIDEO/AUDIO IN SOCKETS (S-AV)

Connect the video out socket of an S-VIDEO

VCR to the S-VIDEO socket.

Connect the audio out sockets of the

S-VIDEO VCR to the audio sockets as in AV

IN3

(option)

.

7. EYE (option)

adjusts picture according to the surrounding

conditions.

8. HEADPHONE SOCKET (option)

Connect the headphone plug to this socket.

9. TURBO SOUND / PICTURE (option)

switches Turbo sound or Turbo picture func-

tion on or off.

ON/OFF

MENU OK VOL PR

1

25/29FA3 series

23 4 68 7

5

@@@@@@@@e?

@@h?

@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?

@@@@@@@@

@@

?@@

?@@@@@@@@

?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@

@@g

@@@@@@@@

@@

1

29FC2 series

23 45

@@@@@@@@e?

@@h?

@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e

@@@@@@@@

@@

?@@

?@@@@@@@@

?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@

@@g

@@@@@@@@

@@

1

29FX4 series

23 45

@@@@@@@@e?

@@h?

@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?

@@@@@@@@

@@

?@@

?@@@@@@@@

?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@

@@g

@@@@@@@@

@@

7

ON/OFF

MENU

VOL SOUND

OK

PR PICTURE

TURBO

29Q9 series

125 4 9 7

3

Basic operation

On and off

1. Press the main power button to switch the set on.

2. If the set is in standby mode, press the POWER, DD/ EE, TV/AV or

NUMBER buttons on the remote control handset to switch it on fully.

3. Press the POWER button on the remote control handset.

The set reverts to standby mode.

4. Press the main power button again to switch the set off.

Note : If, while the set is switched on, the mains plug is discon-

nected the set will switch to standby or power on when the mains

plug is replaced in the mains power socket.

Programme selection

You can select a programme number with the DD/ EEor NUMBER

buttons.

Volume adjustment

Press the FF/ GGbutton to adjust the volume.

Quick view

Press the Q.VIEW button to view the last programme you were

watching.

Mute function

Press the MUTE button. The sound is switched off and the display

W

appears.

You can cancel it by pressing the MUTE, FF/ GG,SSM, I/II, TURBO

SOUND button.

Auto Demonstration

To review all the menus programmed in the set, press the OK but-

ton of the panel control for about 10 seconds. To stop auto demon-

stration, press any button of the panel control or POWER button of

the remote control.

On screen language selection (option)

The menu can be displayed on the screen in desired language.

First select your language.

1. Press the MENU button and then DD/ EEbutton to select the

Special menu.

2. Press the GGbutton and then DD/ EEbutton to select Language.

3. Press the GGbutton and then DD/ EEbutton to select your desired

language.

All the on screen displays will appear in the selected language.

Press the OK or FFbutton to select the Special menu.

4. Repeatedly press the MENU button to return to normal TV

viewing.

8

OK

PR

VOL PR VOL

I/II SSM

Q.VIEW

0

ARC TV/AV

MENU


SOUND

12 3

45 6

78 9

POWER MUTE

T U R B O

The dialogue between you and your set takes place on screen with

an operator menu. The buttons required for the operating steps are

also displayed.

Menu selection

1. Press the MENU button and then DD/ EEbutton to display each

menu.

2. Press the GGbutton and then DD/ EEbutton to select a menu item.

3. Press the GGbutton to display the sub menu or the pull-down

menu.

4. Change the setting of an item in the sub or pull-down menu with

the FF/ GGor DD/ EE.

You can move to the higher level menu with the OK or FFbut-

ton and to move to the lower level menu press the GGbutton.

Note :

a. In the teletext mode, menus are not displayed.

b. In some models, the

Normal

/

Turbo search

will not display,

only the

Start

will display in the

Auto programme

menu.

c. On some models, the

Language

,

Cinema

,

XD Demo

,

X-WAVE

or

Virtual HD

will not display.

On screen menus

9

OK

PR

VOL PR VOL

ARC

MENU

TV programme

Auto

O

programme {

Manual

O

programme {

Programme

O

edit {

FavouriteOprogramme

{

()O}{OOKOMENU

System {

StorageOfrom {

NormalOsearch {

TurboOsearch {

0OOARO1DOOO5OOSO69

O1OOCO03OOO6OOSO17

O2OOCO12OOO7OOSO22

O3OOSO66OOO8OOCO09

O4OOSO67OOO9OOCO11

DeleteOOOCopy

MoveOOOOOSkip

O0OOCO03

Picture menu

Station menu

PSM {

XD {

Cinema {

VM {

Virtual

O

HD {

Contrast {

Brightness {

Colour {

Sharpness {

()O}{OOKOMENU

Sound menu

()O}{OOKOMENU

Special menu

()O}{OOKOMENU

Time menu

()O}{OOKOMENU

Storage {

System {

Channel {

Fine {

Search {

Name {

Booster {

()O}{OOKOMENU

()}{OOKOMENU

System {

Storage {

Station


Sound

Time

Special

Auto programme

Manual programme

Programme edit

BG

I

DK

M

2

SSM {

DBS {

AVL {

Balance {

X-WAVE {

Clock {

Offotime {

Onotime {

Autoosleep {

Language {

Input {

Childolock {

XDoDemo {

Blueoback {

Tilt {

Degauss {

10

Setting up TV stations

Up to 100 TV stations can be stored by programme numbers (0 to 99).

Once you have preset the stations, you will be able to use the DD/ EE

or NUMBER buttons to scan the stations you programmed.

Stations can be tuned using automatic or manual modes.

Note : In some models up to 200 TV stations can be stored.

Auto programme tuning

All stations that can be received are stored by this method. It is rec-

ommended that you use auto programme during installation of this set.

1. Press the MENU button and then DD/ EEbutton to select the

Station menu.

2. Press the GGbutton and then DD/ EEbutton to select Auto pro-

gramme.

3. Press the GGbutton to display the Auto programme menu.

4. Press the GGbutton. Select a TV system with the DD/ EEbutton

on the System pull-down menu;

BG : (Asia/New Zealand/M.East/Africa/Australia)

I: (Hong Kong/South Africa)

DK : (East Europe/China/Africa/CIS)

M : (USA/Korea/Philippines) (option)

5. Press the FFbutton.

6. Press the DD/ EEbutton to select Storage from.

7. Press the GGbutton. Select the beginning programme number

with the FF/ GGbutton or NUMBER buttons on the Storage

from pull-down menu. Any number under 10 is entered with a

numeric ‘0’(or ‘00’) in front of it, i.e. ‘05’(or ‘005’) for 5.

8. Press the OK button.

9. Press the DD/ EEbutton to select Normal or Turbo search.

Option: In some models, you can only select Start.

Note :

a.

Turbo search

is faster than

Normal search

and in some

models, these searches will automatically store all receivable

stations.

b. If the programmed station has poor quality and sound, select

the system again in the

Manual programme

menu.

10. Press the GGbutton to begin auto programming.

All receivable stations are stored.

To stop auto programming, press the MENU button.

When auto programming is completed, the Programme edit

menu appears on the screen. See the ‘Programme edit’ section

to edit the stored programme.

11. Repeatedly press the MENU button to return to normal TV

OK

PR

VOL PR VOL

0

ARC

MENU

12 3

45 6

78 9

Auto

O

programme {

Manual

O

programme {

Programme

O

edit {

FavouriteOprogramme {

()O}{OOKOMENU

System

{

StorageOfrom

{

NormalOsearch

{

TurboOsearch

{

BG

I

DK

M

System

{

()O}{OOKOMENU

Station

Auto programme

System

{

StorageOfrom

{

NormalOsearch

{

TurboOsearch

{

MENU

Auto programme

MENU

OOCO01O(BG)

736%

Normal search

LG LCD Colour Television Bedienungsanleitung

Beliebte Fernseher Handbücher anderer Marken
