* * Composants du boîtier * Case components Guía de instalación
*
* * Gehäusekomponenten機殼部品介紹
- 1 -
J

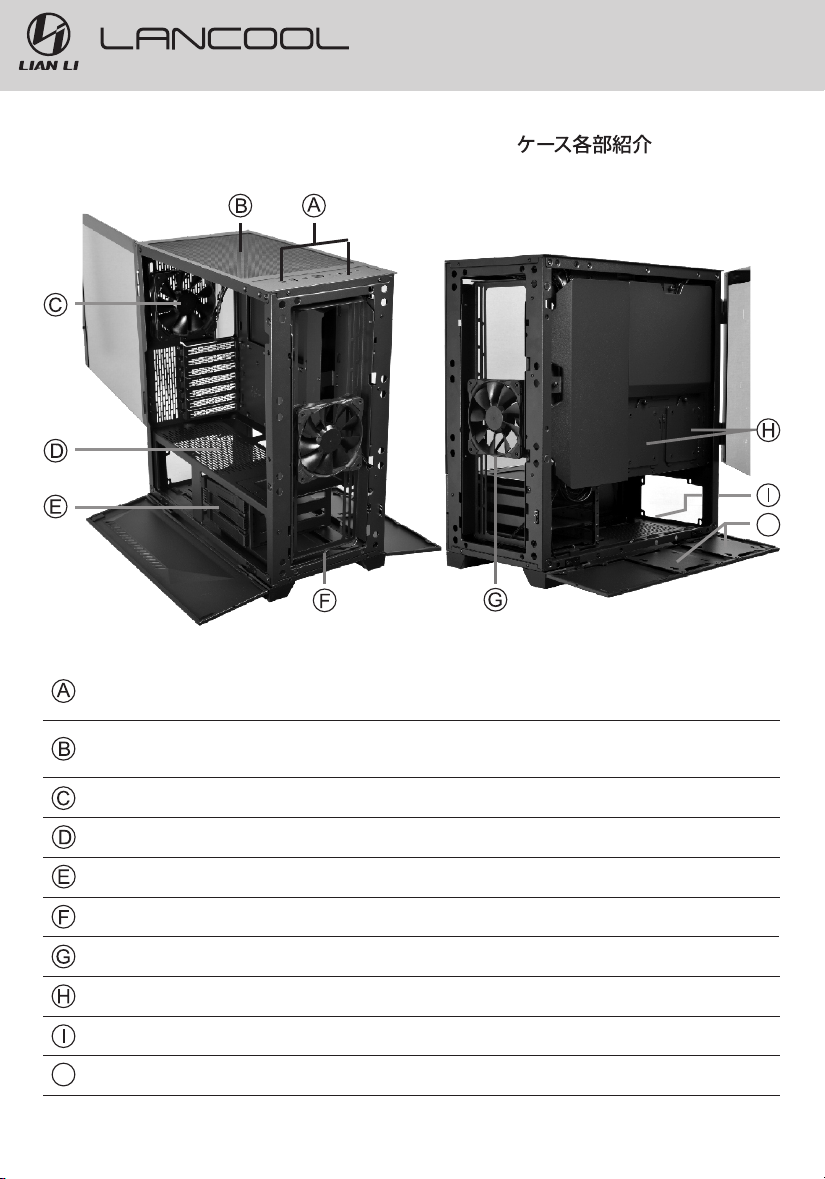

120 mm fan x 1
Removable fan tray: Supporting 120 mm fan x 3 or 140 mm fan x 2 or 360 mm radiator x 1 or 280 mm radiator x 1
Removable HDD tray: Supporting 2.5” SSD x 2
PSU tray: Supporting ATX PSU x 1 (Removable dust filter in bottom)
IO ports: 1 x AUDIO / Microphone Combo Jack, 2 x USB 3.0, 1 x USB 3.1 Type C (Optional)
Power Button, Reset Button
120 mm fan x 1, or 240 mm radiator x 1,
Removable dust filter
Supporting 120 mm fan x 2 or 140 mm fan x 2 or 120 mm radiator x 1,
Removable HDD tray: Supporting 3.5" HDD x 3 or 2.5” SSD x 3
120 mm fan x 1 (Removable dust filter in front panel)
Supporting 120 mm fan x 2
Removable HDD tray: Supporting 2.5” SSD x 2
J
Born To Perform
I I
- 2 -
Born To Perform
I I

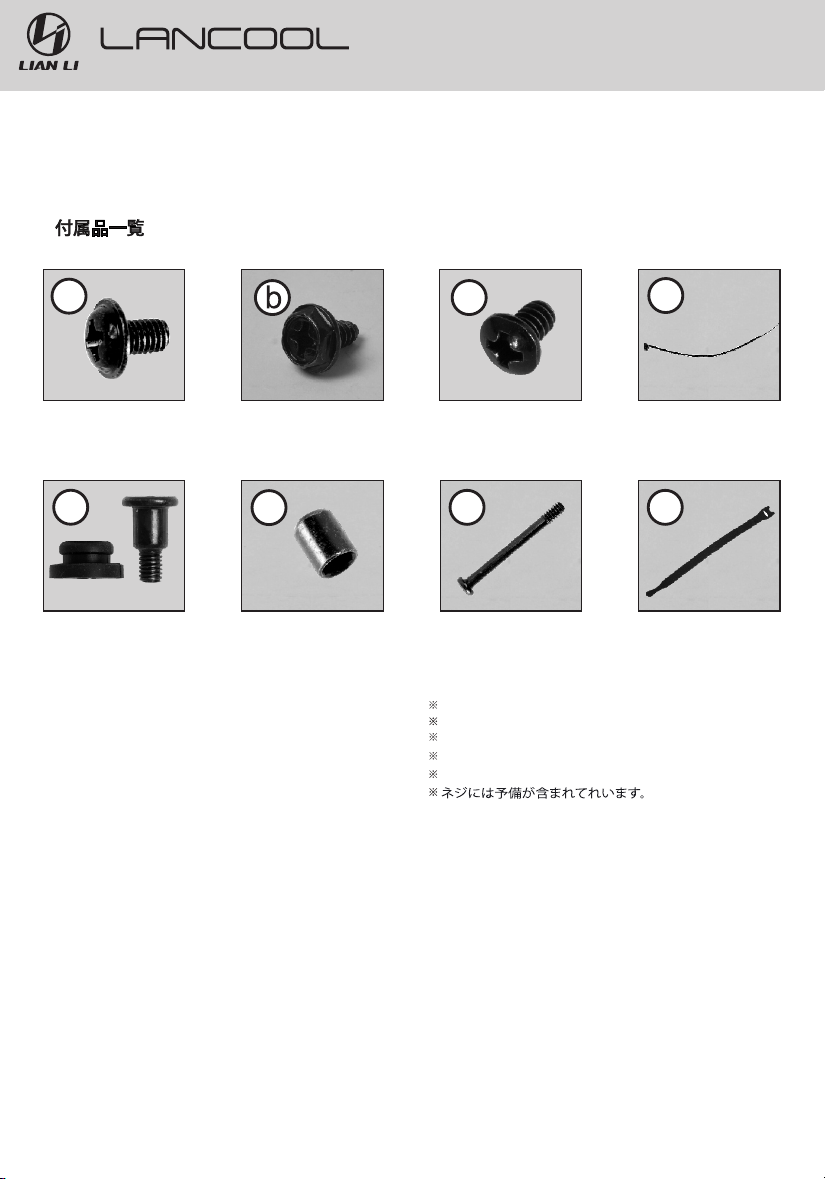

* 零件盒部品一覽表
* Hardware list
* Lista de materiales
* Liste des pièces
* Hardwareliste
*
Screws
for 3.5" HDD mount
Screws
for mother board
2.5" SSD mount
and
Screws
for PSU mounting
ef
4 pcs
29 pcs
a
8 pcs
10 pcs
d
Cable ties
for cable management
Screws /
for 2.5" SSD mount
Anti-vibration rings
12 pcs
c
1 piece
Tool
for Stand off bolt
Exceeded quantity are spare parts.
多餘的零件數量是備品.
Zusätzliche Teile können als Ersatzteile verwendet werden.
Les pièces supplémentaires sont des pièces de rechange.
Exceeded quantity are spare parts.
8 pcs
Screws
for 120 mm fan
g
2 pcs
Velcro
for cable management
h

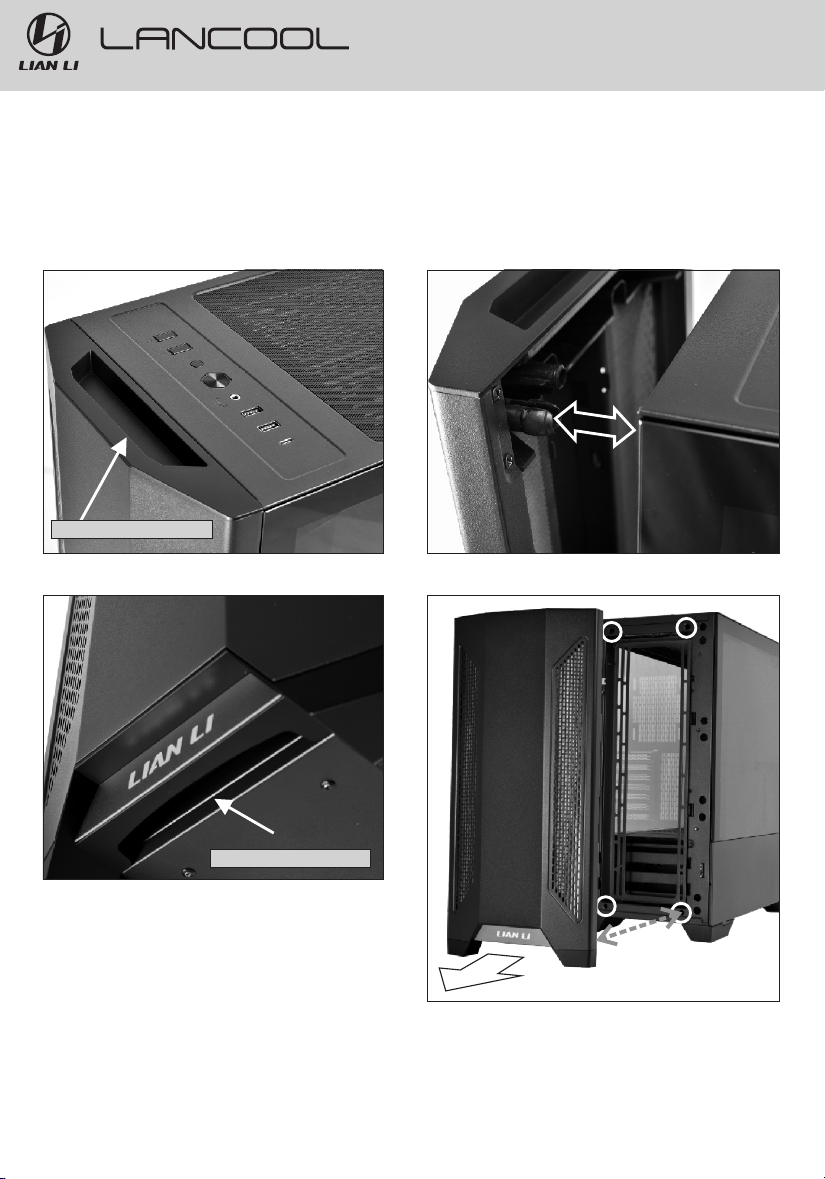

* Remove front panel
* 卸下前面板
* Retirer le panneau avant
* Frontplatte entfernen
* Retire el panel delantero
* 前面パネルを取り外す
- 3 -
Handle, Pull to release
Handle, Pull to release
Top
bottom
Born To Perform
I I
- 4 -

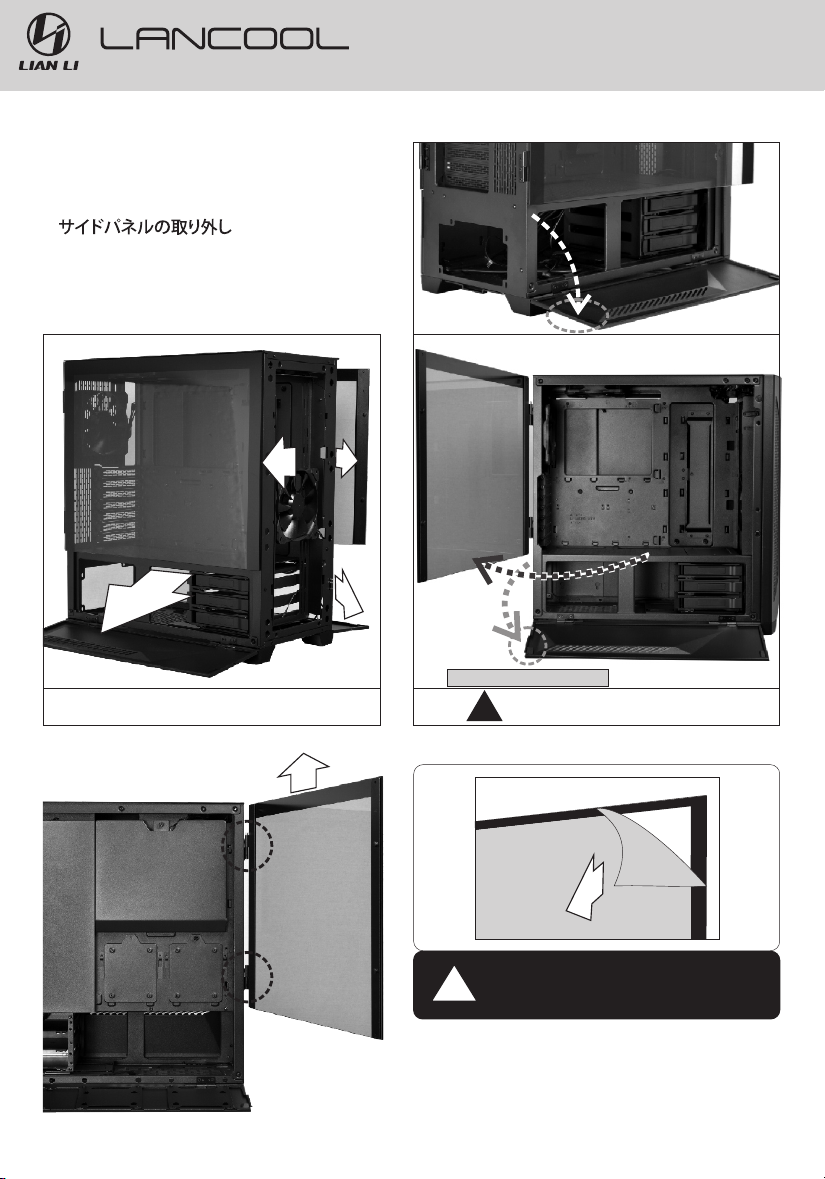

*Extracción del panel lateral
*
*Seitenwand abnehmen
*Remove the side panel
*側板拆卸
*Retirez le panneau latéral
Move up to release the side panel
First remove the front panel and then open
the side panels. Without removing the front panel.
!
1
2
Peel off the protective film
!
Attention:
Handle, Pull to release
Born To Perform
I I

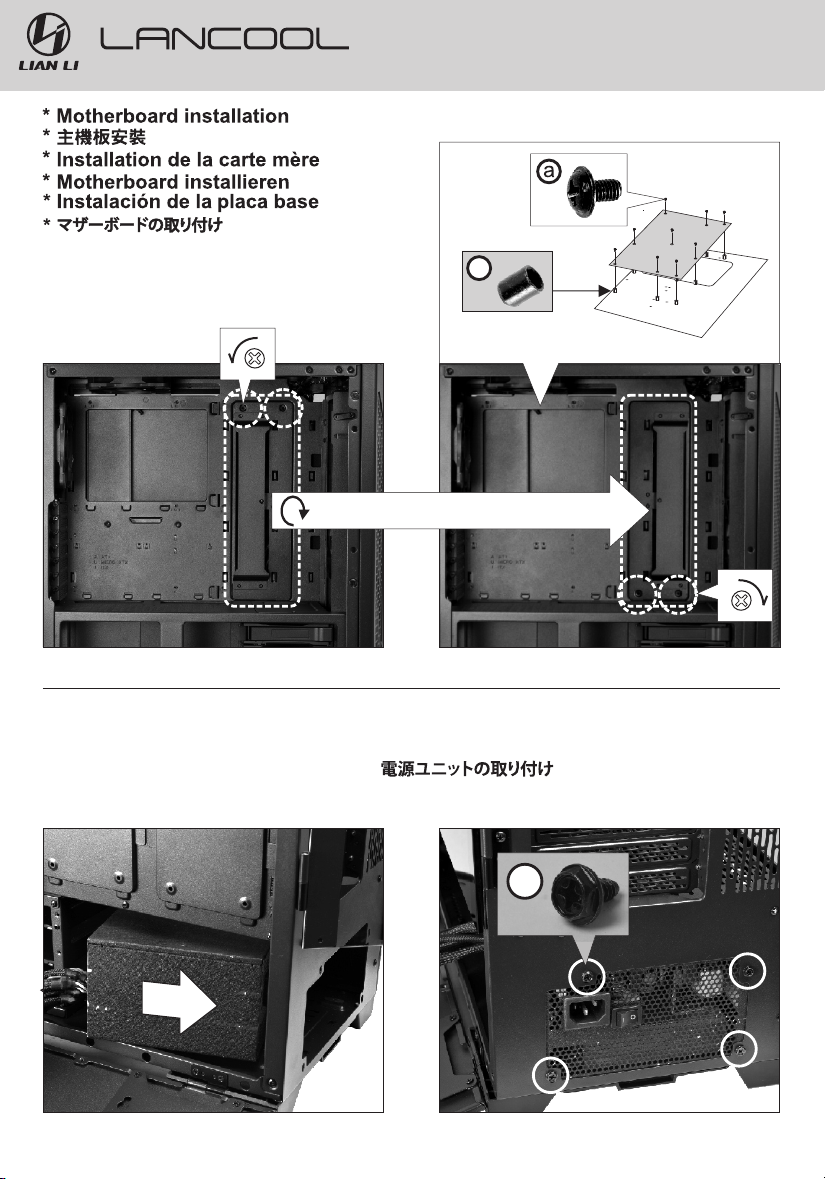

Instalación de la fuente de alimentación
*
*
PSU installation
*
電源供應器安裝
*
Installation du plateau du bloc
d'alimentation
*
*PSU-Einsatz installieren
- 5 -
Turn 180 degrees to install the E-ATX motherboard
f
Tool
for remove stand off bolt
b
Born To Perform
I I

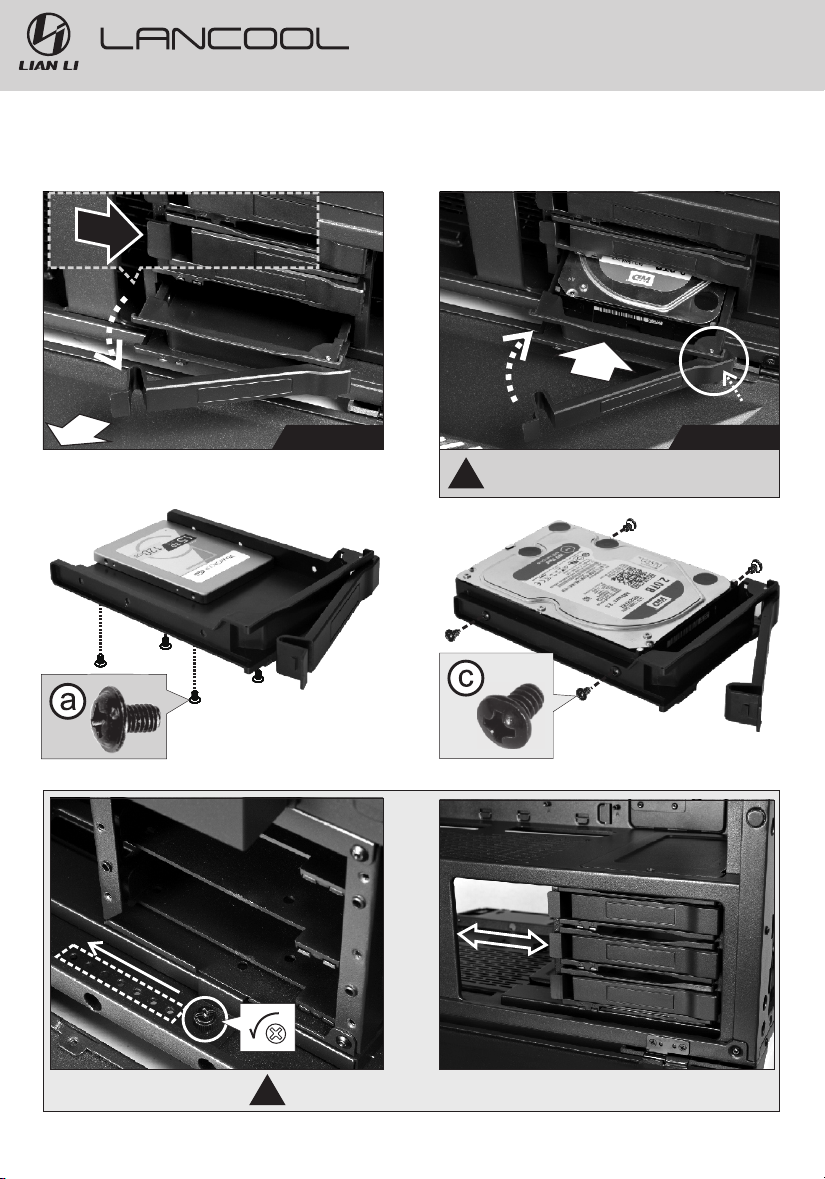

* 2.5"SSD / 3.5"HDD installation
* 2.5 SSD / 3.5 HDD安裝
* Installation de 2.5"SSD / 3.5"HDD
" "
* 2.5"SSD / 3.5"HDD - Installation
* Instalación de 2.5"SSD / 3.5"HDD
* 2.5"SSD / 3.5"HDDインストール
- 6 -
1
2
1
2
OPEN CLOSE
Note: HDD rack position can be adjusted
!
!The HDD tray needs to be pushed
in before closing the handle.
Warning:
2
Born To Perform
I I
Press
- 7 -
Born To Perform
I I

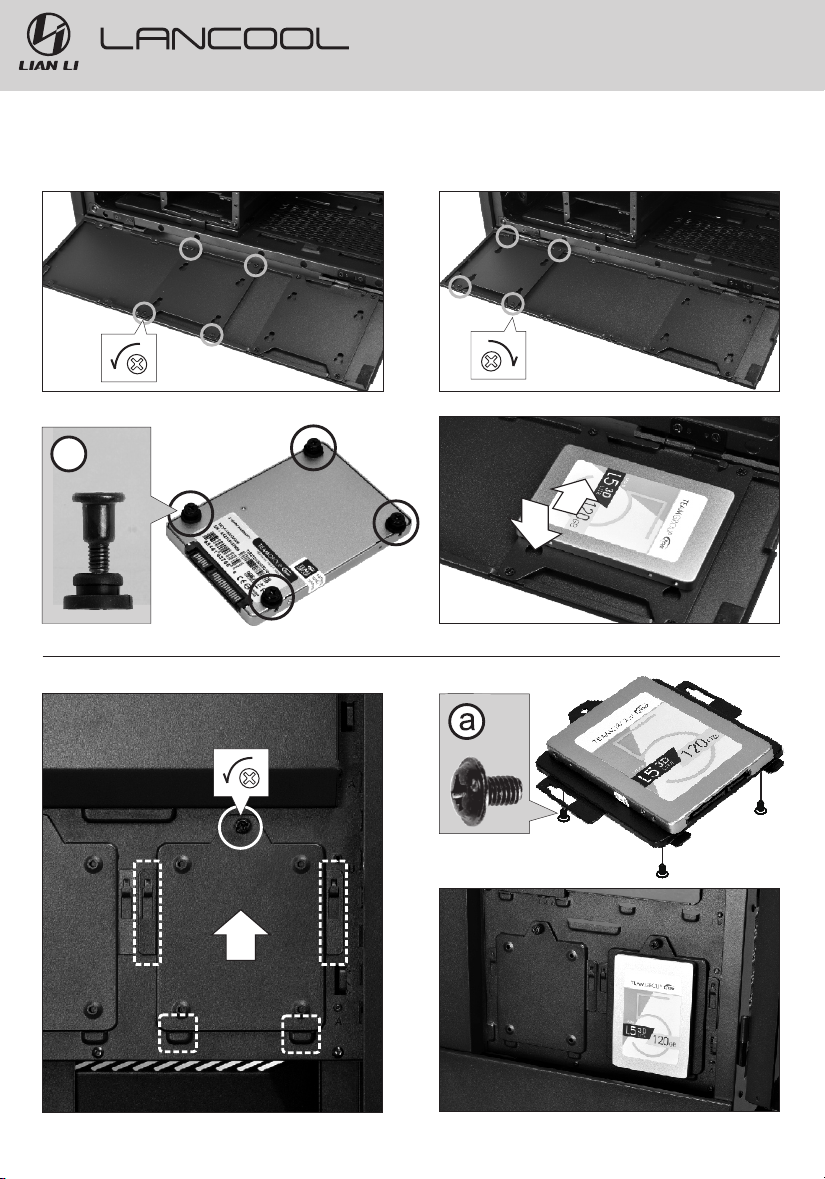

* 2.5"SSD installation
* 2.5 SSD安裝"
* Installation de 2.5"SSD
* 2.5"SSD - Installation
* Instalación de 2.5"SSD
* 2.5"SSDインストール
1
2
e
2
1
- 8 -

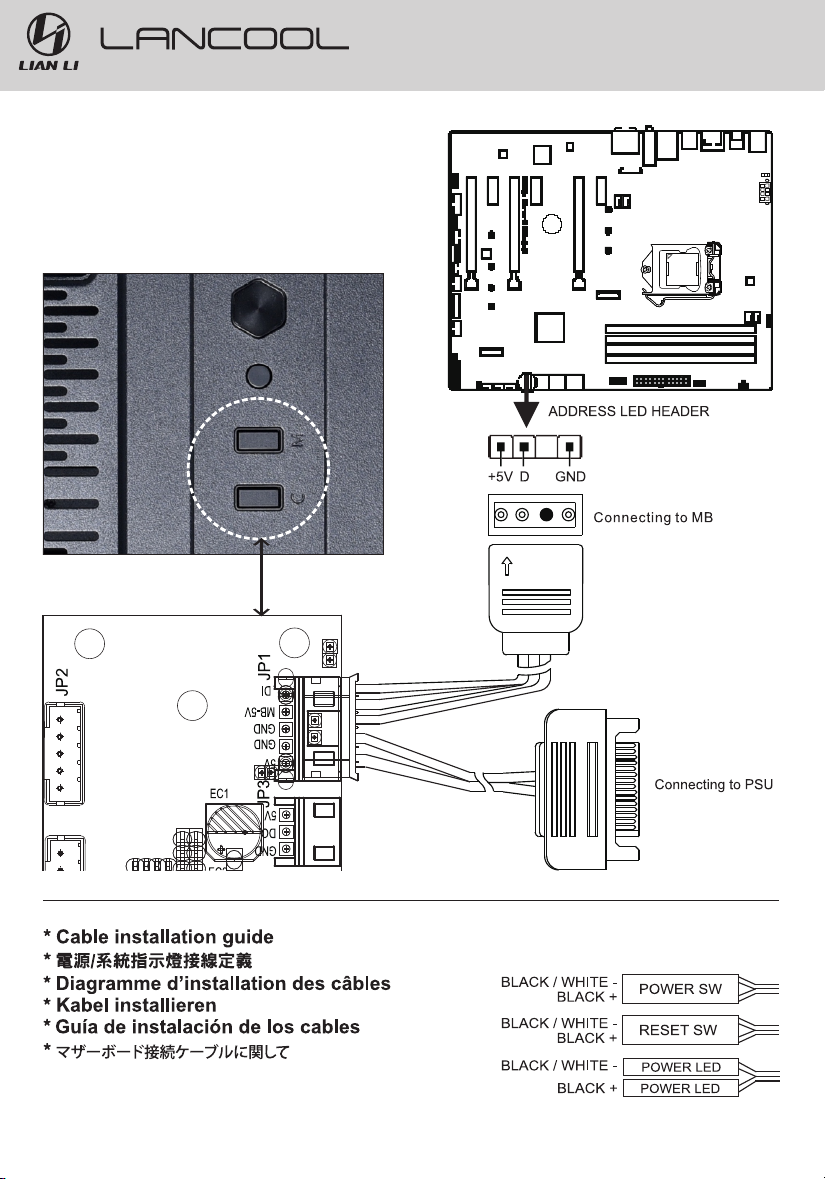

* LED control installation
* LED 控制安裝
* LED-Steuerung Installation
* Instalación de control LED
* LED制御のインストール
* Installation de contrôle à LED
Born To Perform
I I
- 9 -

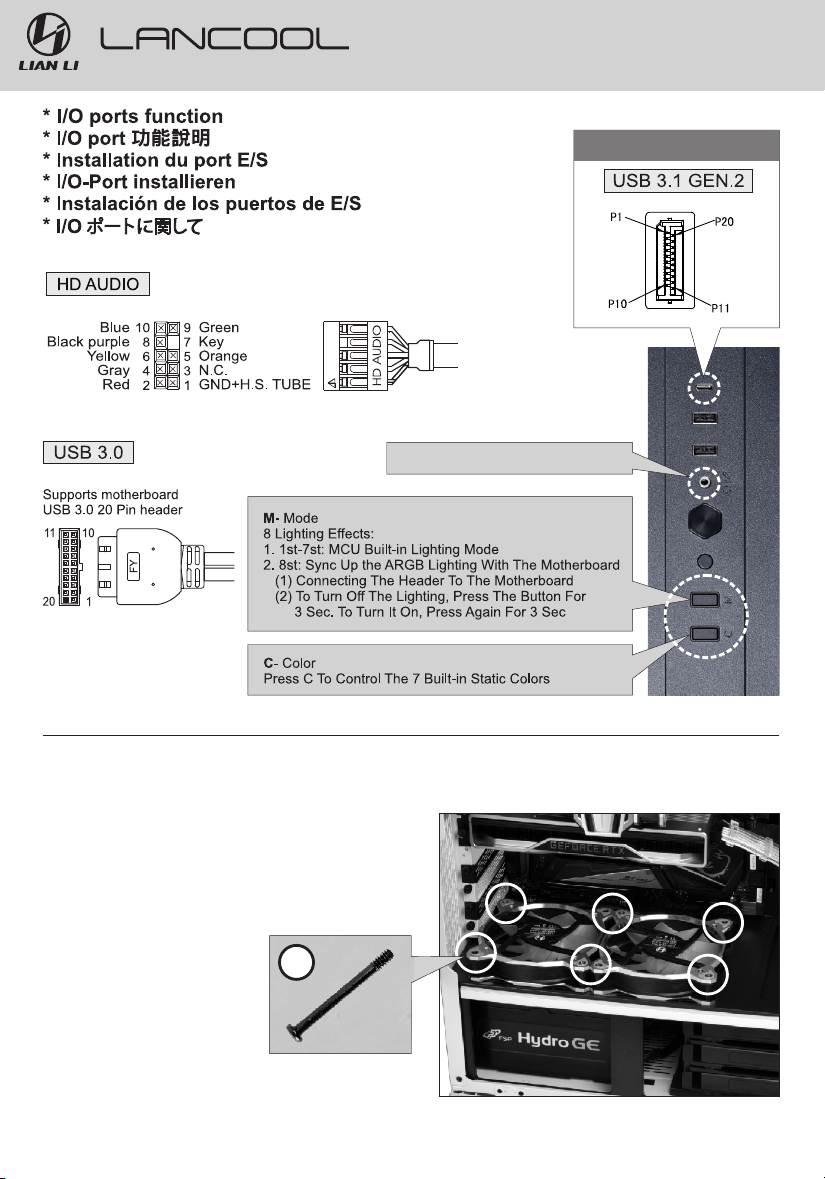

1x AUDIO / Microphone Combo Jack
Optional
Born To Perform
I I
* 120 mm fan installation
* 120 mm 風扇安裝
* Installation de ventilateur de 120 mm
* 120 mm Lüfterinstallation
* Instalación de ventilador de 120 mm
* 120ミリメートルのファンの取り付け
g
