Liesegang Ddv 1111 Bedienungsanleitung

Liesegang ddv 1111

Bediener-Handbuch - User Manual - Mode d'emploi

Guía del operador

Istruzioni per l'uso - Gebruiksaanwijzing

Table of contents

_______________________________________________________________

User Manual Data Video Projector 1

Before use 2

1. Scope of delivery, accessories 8

1.1 Disposal of packing material 8

2. Quick Setting Up

2.1 Setting up and Connecting the Projector 9

2.2 Projector Terminal Connections 9

2.3 Control Panel Keypad 10

2.4 Mouse Connection 11

2.5 Cable Connections 11

2.6 Image Size 12

3. Starting up the Projector

3.1 First Steps 12

3.2 Standby Mode 13

3.3 Projector Power Down 13

4. Using System Menu

4.1 Main Menu 14

4.2 Sub Menus 14

4.3 Menu Adjustments / Settings 15

5. Infrared Remote Control

5.1 How to use the Infrared Remote Control 19

5.2 Meaning of Icons 21

5.3 Battery Replacement 22

6. Replacing the Air Filter 23

7. Replacing Projection Lamp 24

7.1 Lamp Life Indicator 25

8. Cleaning the Projector 25

9. Troubleshooting Problems and Solutions 26

10. Service Hotline 27

11. Product Manufacturer 27

Projection Table 28

Resetting the Projector to Factory Default Settings 28

Table of predefined Resolutions for User Mode 1...3 28

Glossary of Terms 28

Technical Details 29

Supported Data Modes and Resolutions 31

Index 32

Before use

_______________________________________________________________

User Manual Data Video Projector 2

Before use

The following notes are intended to be a help for handling the product in accordance

with its designated purpose.

Warnung:

A person could be killed or injured if the wrong operation is done by ignoring this

indication.

_______________________________________________________________

Do not install this unit

in an unstable place.

Avoid placing it in an unstable place such as a weak base, an inclined floor, etc. This may cause

the projector to drop or fall over, resulting in injury.

Do not remodel

this unit.

Do not remodel this unit. It may cause a fire, an electric shock, etc.

Never use

the projector in a humid

environment.

Never use the projector in a humid environment, e.g. bathroom or close to cookers or

humidifiers. This could cause a fire, an electric shock, etc.

Only connect

to the specified mains voltage.

The projector must only be operated with the alternating current specified on the identification

plate. Please immediately check whether the supplied mains connection cable coincides with

wall outlets at the installation location.

Before use

_______________________________________________________________

3 Data Video Projector User Manual

Do not forget

the protective conductors.

Only use extension leads or cables with a minimum cross-section of 1.5 mm² and protective

conductors.

Do not apply any shock.

If you drop this unit or if the casing is broken, turn off the power switch, disconnect the power

plug and contact your dealer. If you use it as it is, it may cause a fire, an electric shock, etc.

If any abnormality occurs.

It there is abnormal smell or smoke, if you use this unit as it is, this could cause a fire or an

electric shock, etc. Immediately turn off the power switch and pull out the power plug. Contact

your dealer to repair the unit. Do not repair it yourself, as it is very dangerous.

Do not use this unit as it is after trouble has occurred. Immediately turn off the power switch and

pull out the power plug, then contact your dealer to have it repaired.

If water, etc., enters the unit, turn it off, pull out the power plug and contact your dealer to have

it repaired.

Be careful with the power cord.

Do not scratch, damage or modify the power cord. Do not bend it forcibly. Also do not put a

heavy object on it, do not heat it and do not pull it. If you do, the power cord may be damaged

and it may cause fire, electric shock, etc.

If the power cord is damaged (exposed or disconnected wire, etc.), replace it. It may otherwise

cause a fire, an electric shock, etc.

Make sure that no dirt adheres to the power plug and insert it until it stops. If dirt adheres or the

connection is incomplete it may cause a fire, an electric shock, etc.

Before use

_______________________________________________________________

User Manual Data Video Projector 4

Do not look directly into the lens

when the lamp is switched on.

Do not look directly into the lens when the lamp is switched on. Since a powerful lamp is used, it

could damage your vision, etc.

Do not put a container, etc,

with liquid on this unit.

Do not put a vase, flower pot, cosmetic container, medicine or water on this unit. If liquid spills

and enters the unit, it may cause fire, electric shock, etc.

Never leave the projector

switched on unsupervised.

Never leave the projector switched on unsupervised or let children play with it as unusual

conditions may occur which can cause a fire, an electric shock, etc.

Before use

_______________________________________________________________

5 Data Video Projector User Manual

Caution !

Non-observance can lead to injury or damage.

_______________________________________________________________

Caution

when carrying the unit.

When the unit is to be moved, be sure to disconnect the power plug and check that all external

connection cords are removed before moving it. If not, the cord may be damaged and it may

cause a fire, an electric shock, etc.

Do not place this unit

where it gets hot.

Be careful if you place the unit outdoors, in a place exposed to direct sunlight or near a heating

device, the casing and parts could be affected.

Cleaning the projector.

Handle the projector as you would do any other device with glass components. Avoid impact or

dropping. Before cleaning the device disconnect the mains plug.

The worktop is covered with a scratch-resistant glass plate. If necessary, the glass can be

cleaned with a soft cloth and a conventional glass cleaner.

The casing can be cleaned with a soft, slightly moistened cloth and mild detergent. Avoid the

ingress of moisture into the inside of the equipment. Never use solvents or abrasive cleaners.

Do not leave cleaners inside the projector.

Handle the power cord carefully.

Do not bring the power cord near a heating device. The cord’s shield may melt and it may cause

a fire, an electric shock, etc.

Do not insert / disconnect the power plug with wet hands. It may cause an electric shock.

Do not pull the power cord when the power plug is to be disconnected. The power cord may be

damaged and it may cause a fire, an electric shock, etc. Be sure to seize the power plug.

Before use

_______________________________________________________________

User Manual Data Video Projector 6

Do not step on this unit.

Do not put a heavy object on it.

Do not step on this unit or put a heavy object on it. Pay attention when children are present. If

you do, the unit may fall over or may be broken causing an injury.

Never block

the ventilation slots.

Never block the openings for the ventilation or place objects in the projector. Heat may

accumulate inside the projector and it may catch fire.

Set the caster stoppers.

When this unit is installed on a table with casters, set the caster stoppers. If the table moves, it

may fall over, causing an injury.

If you do not use

the unit for a long time.

If you do not use the unit for an extended period of time, be sure to pull out the power plug from

the power outlet.

Replacing the lamp.

Switch off the projector and disconnect the mains plug before replacing the lamp. Let the device

cool down, as the lamp and other components in the projector casing have heated up during

operation, which can cause injury when touched.

Do not place this unit

in a moist or dusty place.

Do not place this unit in a moist or dusty place. It may cause a fire, an electric shock, etc. Do not

place this unit where it would be exposed to soot or steam, near a cooking stove or humidifier,

etc. It may cause a fire, an electric shock, etc.

Before use

_______________________________________________________________

7 Data Video Projector User Manual

Volume.

Use a volume level that does not bother persons in the neighborhood. Especially, since the

sound is likely to carry well at nighttime even at a low volume, be careful to choose a suitable

level.

Clean the projector inside

at least once a year!

Ask your dealer to clean the unit inside once a year. If the unit is left with too much dust inside it

may cause fire.

Use of batteries.

Do not use batteries not specified for this unit. Do not use new batteries mixed with old ones.

This may cause a fire, injury due to burst of battery, liquid leakage.

When inserting batteries in this unit, pay attention to the direction of the + and - polarities and

insert the batteries correctly. If the polarities are confused, it may cause injury or damage near

the unit due to burst batteries, liquid leakage, etc.

Scope of delivery / Accessories / Packing

_______________________________________________________________

User Manual Data Video Projector 8

1. Scope of delivery, accessories

The packing contains the following parts:

1 projector

1 travel bag

1 infrared remote control with batteries

1 connecting cable for IBM compatible PC

1 mouse cable for serial Microsoft mouse

1 PS/2 mouse adapter

1 video / audio cable

1 S-VHS cable

1 Scart adapter

1 mains cable with Schuko plug

1 user manual

The following accessories are available:

Hard case, monitor splitterbox, connecting set for Macintosh (computer

cable, ADB and USB mouse adapter), separate USB mouse adapter,

connecting cables for workstations.

Important note

The projector features its own electronic multi-range power supply with

automatic switching. It must only be operated with 100 V - 240 V AC with a

frequency of 50 Hz to 60 Hz. The unit must only be connected to a properly

installed network with protective conductor. Please check immediately

whether the supplied mains cable is compatible with the mains sockets on-

site. Please contact your supplier if a different power supply cable is required

for use abroad.

1.1 Disposal of packing material

The transport packing consists of materials which may be disposed of as

paper and cardboard.

Remark: the transport packing offers perfect protection for the product and

should be kept for further transport etc.

Quick Setting Up: Setting up and connecting the projector

_______________________________________________________________

9 Data Video Projector User Manual

2. Quick Setting Up

2.1 Setting up and connecting the projector

These instructions are intended to get you going fast.

Attention: To avoid damage to the equipment, all power to projector and

input sources must be turned off during cable hook up.

1. Place the projector on a rigid, non-slip surface.

2. Connect the power cord.

3. Connect the audio and computer/video input cables to the projector input

terminals.

4. For mouse emulation, connect the mouse and, in case of PS/2 and USB,

the appropriate adapter. (Apple Macintosh computers require an additional

adapter or connecting cable.)

5. Power up the projector then the computer and the video sources.

6. Move the projector nearer or further away from the screen to obtain the

best image size or adjust the image size with the Zoom buttons of the remote

control.

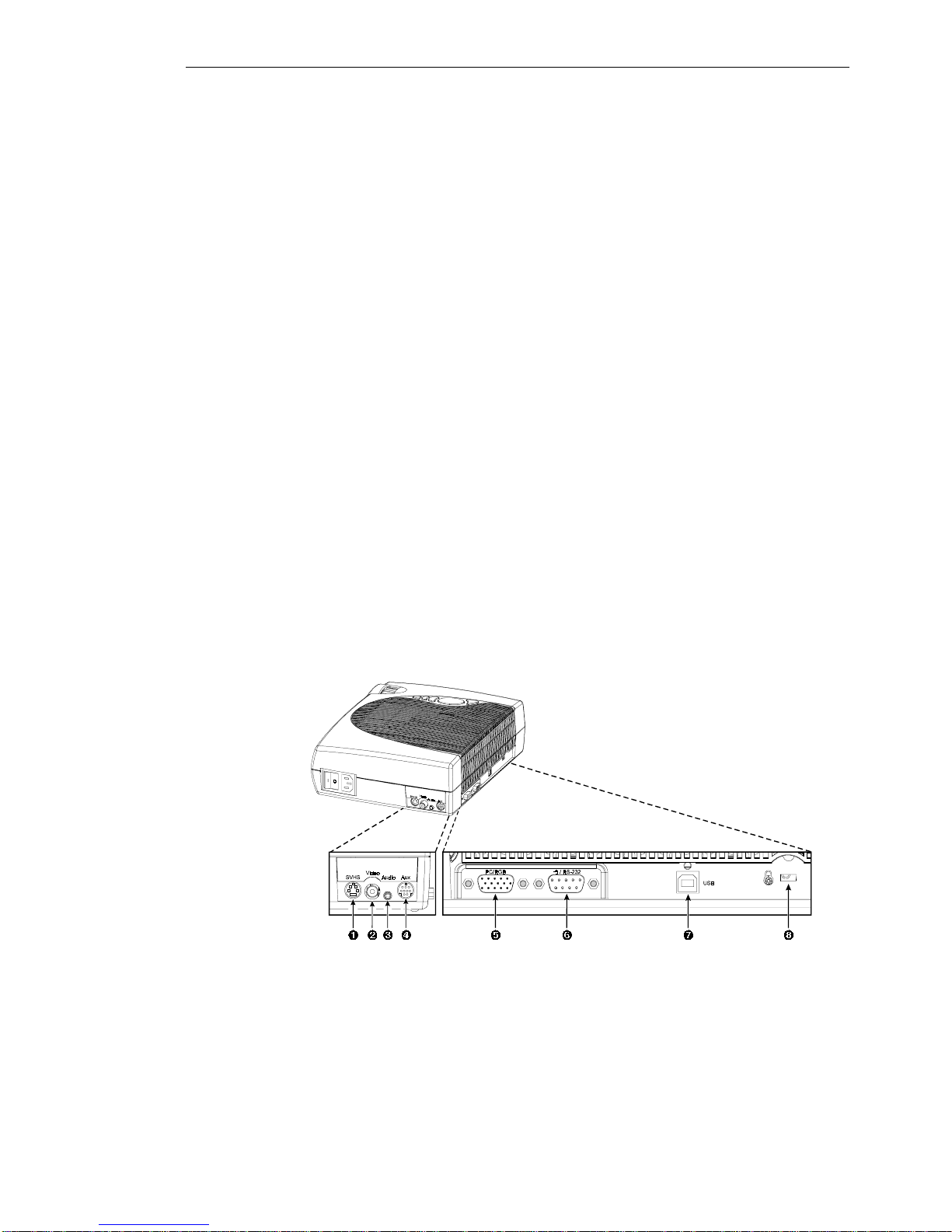

2.2 Projector Terminal Connections

Take a moment to look over the input terminals on the back of the projector.

Terminal connectors are SVHS, Video in, Audio in, Aux in (not yet in use),

PC/RGB in, RS232C, USB, Kensington Security.

Inhaltsverzeichnis

Andere Liesegang Projektor Handbücher

Liesegang

Liesegang dv335 Bedienungsanleitung

Liesegang

Liesegang dv370 Bedienungsanleitung

Liesegang

Liesegang Solid Ultra Technisches Dokument

Liesegang

Liesegang 294 Bedienungsanleitung

Liesegang

Liesegang e-motion4100 Bedienungsanleitung

Liesegang

Liesegang Mayfair Bedienungsanleitung

Liesegang

Liesegang dv 540 flex Gebrauchsanweisung

Liesegang

Liesegang 212 Bedienungsanleitung

Liesegang

Liesegang ddv 2100 Gebrauchsanweisung

Liesegang

Liesegang dv445 Bedienungsanleitung

Liesegang

Liesegang ddv 2300 Bedienungsanleitung

Liesegang

Liesegang ddv 1800 Bedienungsanleitung

Liesegang

Liesegang ZU0214 04 4010 Technisches Dokument

Liesegang

Liesegang dv350 Bedienungsanleitung

Liesegang

Liesegang dv 481 Handbuch

Liesegang

Liesegang ddv 1500 Bedienungsanleitung

Liesegang

Liesegang DV610 Bedienungsanleitung

Liesegang

Liesegang e-motion 4100 Gebrauchsanweisung

Liesegang

Liesegang dv-485 Handbuch

Liesegang

Liesegang dv410 Bedienungsanleitung

Liesegang

Liesegang ddv 2500 Bedienungsanleitung

Liesegang

Liesegang dv 465 Bedienungsanleitung

Liesegang

Liesegang 266 Bedienungsanleitung

Liesegang

Liesegang 278 Bedienungsanleitung

Beliebte Projektor Handbücher anderer Marken

iEmmet

iEmmet MP-312 Bedienungsanleitung

Epson

Epson VS400 Bedienungsanleitung

Sony

Sony VPL-HS10 Marketing Specifications & Features Bedienungsanleitung

Sony

Sony VPL-HW65ES Service-Handbuch

Toshiba

Toshiba TLP-791U Bedienungsanleitung

Philips

Philips LC1341 Referenzhandbuch

Panasonic

Panasonic PTL735NTU - LCD PROJECTOR-NETWORK IB Bedienungsanleitung

NEC

NEC NP600S EDU Bedienungsanleitung

BenQ

BenQ SH753P Bedienungsanleitung

Eiki

Eiki EK-623U series Bedienungsanleitung

Epson

Epson PowerLite Pro Cinema 6020UB Bedienungsanleitung

Epson

Epson PowerLite Home Cinema 705HD Bedienungsanleitung

Christie

Christie LHD700 Bedienungsanleitung

Navitar

Navitar FX Bedienungsanleitung

InFocus

InFocus LitePro 560 Bedienungsanleitung

Sony

Sony SRX-R815P Bedienungsanleitung

Vivitar

Vivitar DP1500 X Bedienungsanleitung

Acer

Acer C20 Series Bedienungsanleitung

Liesegang ddv 1111 Bedienungsanleitung

Beliebte Projektor Handbücher anderer Marken
