FORMULA
MAGNETIC RECUMBENT BIKE
ITEM NO.: 26582
OWNER’S MANUAL
IMPORTANT: Read all instructions carefully before using this product. Retain this
owner’s manual for future reference.
The specifications of this product may vary from this photo and are subject to change without
prior notice. 2020, Sept.
1
TABLE OF CONTENTS
WARRANTY ------------------------------------------------------------------------------- 2
IMPORTANT SAFETY INSTRUCTIONS ------------------------------------------- 3
PARTS LIST ------------------------------------------------------------------------------- 4
HARDWARE LIST ----------------------------------------------------------------------- 6
TOOLS -------------------------------------------------------------------------------------- 6
EXPLODED VIEW ----------------------------------------------------------------------- 7
ASSEMBLY INSTRUCTIONS --------------------------------------------------------- 8
HOW TO MOVE THE RECUMBENT BIKE ---------------------------------------- 23
OPERATING THE COMPUTER ------------------------------------------------------ 24
ADJUSTMENTS -------------------------------------------------------------------------- 25
MAINTENANCE -------------------------------------------------------------------------- 26
TROUBLESHOOTING ----------------------------------------------------------------- 26
WARM UP AND COOL DOWN ROUTINE ---------------------------------------- 27
2
ONE YEAR LIMITED WARRANTY
LifeGear Inc. warrants to the original purchaser that this product is free from defects in
material and workmanship when used for the purpose intended, under the conditions that it
has been installed and operated in accordance with LifeGear's Owner's Manual. LifeGear's
obligation under this warranty is limited to replacing or repairing free of charge, any parts
which may prove to be defective under normal home use. This warranty does not include
any damage caused by improper operation, misuse or commercial application.
From the date of purchase, the frame is warranted to be free from defects for 1 (one) year.
This warranty is offered only to the original owner and is not transferable. Proof of
purchase is required.
When ordering replacement parts please have the following information ready:
1. Owner's Manual
2. Model Number
3. Description of Parts
4. Part Number
5. Date of Purchase
3
IMPORTANT SAFETY INSTRUCTIONS
Basic precautions should always be followed, including the following important
safety instructions when using this equipment. Read all instructions before using
this equipment.
1. Read all instructions and follow it carefully before using this equipment. Make sure the
equipment is properly assembled and tightened before use.
2. Before exercise, in order to avoid injuring the muscle, warm-up exercises are
recommended.
3. Please make sure all parts are not damaged and fixed well before use. This
equipment should be placed on a flat surface when using. Using a mat or other
covering material on the ground is recommended.
4. Please wear proper clothes and shoes when using this equipment; do not wear clothes
that may catch any part of the equipment; remember to tighten the pedaling straps.
5. Do not attempt any maintenance or adjustments other than those described in this
manual. Should any problems arise, discontinue use and consult your local dealer.
6. Do not use the equipment outdoors.
7. This equipment is for household use only. It is not a commercial model.
8. Only one person at a time should use this equipment.
9. If you feel any chest pains, nausea, dizziness, or short of breath, you should stop
exercising immediately and consult your physician before continuing.
10. Care should be taken in mounting or dismounting the equipment.
11. Do not allow children to use or play on the equipment. Keep children and pets away
from the equipment while in use. This machine is designed for adults use only. The
minimum free space required for safe operation is not less than two meters.
12. The maximum weight capacity for this product is 110 kg.
WARNING: Before beginning any exercise program consult your
physician. This is especially important for people who are over 35 years old or who
have pre-existing health problems. Read all instructions before using any fitness
equipment. Do not operate this exercise equipment without properly fitted guards,
as the moving parts can present a risk of serious injury if exposed.
CAUTION: Read all instructions carefully before operating this product.
Retain this Owner’s Manual for future reference.
4
PARTS LIST
No. Description Qty No. Description Qty
001 Front Right Stabilizer End Cap 1 023 Triangle Knob M12x58 1
002 Front Stabilizer Ø60x1.5x330 1 024 Handlebar End Cap Ø25x1.5 4
003 Cap Nut M8 6 025 Front Handlebar Foam Grip
Ø24xØ30x160 2
004 Big Curve Washer Ø8xØ20x2 3 026 Extension Sensor Wire L=500 mm 1
005 Cross Recessed Pan Head
Tapping Screw ST4.2x25 9 027 Extension Hand Pulse Sensor
Wire II L=350 mm 2
006 Carriage Bolt M8x70 4 028 Computer 1
007 Front Left Stabilizer End Cap 1 029 Cross Recessed Pan Head Bolt
M5x12 4
008 Cover Cap Ø25xØ40x10 2 030 Tension Control Knob 1
009
Cross Recessed Pan Head Drilling
Screw with Tapping Screw Thread
ST4.2x25
6 031 Tension Cable L=1150 mm 1
010 Right Cover 1 032 Big Washer Ø5xØ18x1.5 1
011 Belt 360J6 1 033 Cross Recessed Pan Head Bolt
M5x15 1
012 Right Foot Pedal YH-30X 1 034 Front Handlebar Post 1
013 Belt Pulley with Crank Ø240 1 035 Hexagon Socket Pan Head Cap
Bolt M8x10 4
014 Washer Ø40xØ24x3 1 036 Washer Ø8 20
015 Bearing Nut I 15/16" 1 037 Cross Recessed Pan Head Bolt
M6x10 1
016 Bearing 2 038 Rear Left Stabilizer End Cap 1
017 Bearing Cup 2 039 Idle Wheel Bracket 1
018 Bearing Nut II 7/8" 1 040 Hexagon Socket Pan Head Cap
Bolt M8x20 1
019 Hexagon Nut 7/8" 1 041 Front Handlebar Post Cover 1
020 Flywheel Ø230 1 042 Hexagon Socket Pan Head Cap
Bolt M8x30 1
021 Front Main Frame 1 043 Bearing 6000Z 2
022 Left Cover 1 044 Extension Hand Pulse Sensor
Wire L=1000 mm 1
5
PARTS LIST
No. Description Qty No. Description Qty
045 Hexagon Socket Pan Head Cap
Bolt M8x30 2 063 Left Rear Main Frame Cover 1
046 Rear Main Frame 1 064 Rear Stabilizer 1
047 Seat Cushion 250x345x40 1 065 Rear Right Stabilizer End Cap 1
048 Backrest 420x360x45 1 066 Nut M10 2
049 Cross Recessed Pan Head Bolt
M6x15 8 067 Adjustable Leveler M10 2
050 Big Washer Ø6xØ18x1.5 9 068 Rear Handlebar 1
051 Back and Seat Support Bracket
End Cap 23x53x1.5 1 069 Left Foot Pedal YH-30X 1
052 Seat Sliding Tube 1 070 Extension Hand Pulse Sensor
Wire I L=1000 mm 1
053 Back and Seat Support Bracket 1 071 Sensor with Wire L=750 mm 1
054 Rear Handlebar Foam Grip
Ø24xØ30x510 2 072 Hexagon Socket Pan Head Cap
Bolt M8x15 13
055 Cross Recessed Pan Head
Tapping Screw ST4.2x20 4 073 Washer Ø34.5xØ23x25 1
056 Hand Pulse Sensor with Wire
L=750 mm 2 074 Nut M10x1x10 2
057 Hexagon Socket Pan Head Cap
Bolt M8x45 2 075 Eyebolt M6x36 2
058 Wire Grommet Ø12.1 2 076 Cross Recessed Pan Head
Tapping Screw ST2.9x12 1
059 Nut M6 2 077 Big Curve Washer Ø8xØ25x2 4
060 Round Knob M16x1.5 1 078 Spring Washer Ø6 2
061 Bushing 2 079 Tension Bracket 2
062 Right Rear Main Frame Cover 1
6
HARDWARE LIST
TOOLS
Allen Wrench
1 PC
Multi Hex Tool with Phillips Screwdriver
1 PC
(6) Carriage Bolt
4 PCS
(3) Cap Nut
4 PCS
(77) Big Curve Washer
4 PCS
(3) Cap Nut
2 PCS
(36) Washer
2 PCS
(57) Hexagon Socket
Pan Head Cap Bolt
2 PCS
(4) Big Curve Washer
2 PCS
7
6
2
55
55
6
44
33
15
14
10
9
11
13
69
21
30
34
32
25 24
26
28
27
29 47
48
24
68
57
58
55
24
54
4
56
51
53
71
70
41
18
8
9
9
66
67
38
64
23
58
61
65
5049
3
56
36
36
72
36
46
36
72
44
35
4
72
26
27
31
56
5
9
5
36
36
35
74
31
36
70
60
62
61
63
72
5
9
71
76
16
17
36
72
36
72
72
55
12
9
8
25
24
1
7
3
77
3
77
17
16
73
19
75
20
75 74
78 59
79
45
36
50
49 52
66
67
22
39
37
50
43
40
42
EXPLODED VIEW
8
ASSEMBLY INSTRUCTIONS
STEP 1
Remove six Washers (36), four Hexagon Socket Pan Head Cap Bolts (72), and two
Hexagon Socket Pan Head Cap Bolts (45) from the Rear Main Frame (46). Remove bolts
with the Allen Wrench provided.
STEP 2
Connect the Extension Hand Pulse Sensor Wires (44) from the Rear Main Frame (46) to the
Extension Hand Pulse Sensor Wires I (70) from the Front Main Frame (21).
46
44
46
36
72
36
72
45
36
21
70
46
44
44
70
21
70
46
44
46
21
9

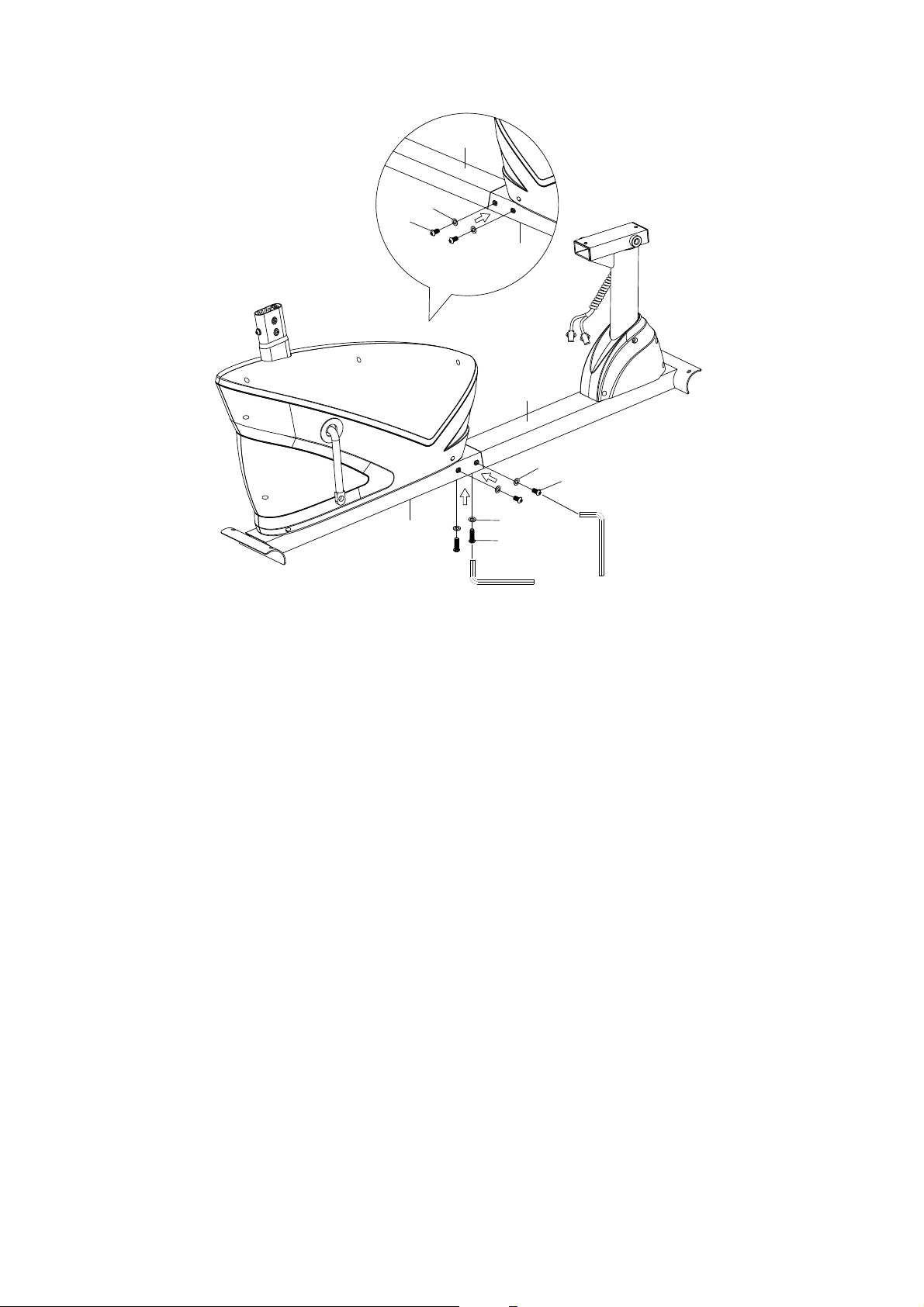

STEP 3
Attach the Rear Main Frame (46) into the Front Main Frame (21) with six Washers (36), four
Hexagon Socket Pan Head Cap Bolts (72), and two Hexagon Socket Pan Head Cap Bolts
(45) that were removed. Tighten bolts with the Allen Wrench provided.
36
72
45
36
21
36
72
46
46
21
