Life Span SPIRIT Bedienungsanleitung
NOTE: This manual may be subject to updates or changes. Up to date manuals are available through our website at www.lifespanonline.com.au
Product may vary slightly from the item pictured due to model upgrades
Read all instructions carefully before using this product. Retain this owner’s manual for
future reference.
SPIRIT OWNER’S MANUAL
2
SPIRIT
TABLE OF CONTENTS
1. IMPORTANT SAFETY INSTRUCTIONS 3
2. IMPORTANT ELECTRICAL INFORMATION 4
3. IMPORTANT OPERATING INSTRUCTIONS 5
4. ASSEMBLY INSTRUCTIONS 6
5. FOLDING INSTRUCTIONS 10
6. OPERATION GUIDE 11
7. EXERCISE GUIDE 21
8. MAINTENANCE INSTRUCTIONS 23
9. EXPLODED DIAGRAM 30
10. PARTS LIST 31
11. TROUBLE SHOOTING GUIDE 33
12. WARRANTY 35
3
SPIRIT
1. IMPORTANT SAFETY INSTRUCTIONS
WARNING - Read all instructions before using this treadmill.
It is important your treadmill receives regular maintenance to prolong its useful life. Failing to
regularly maintain your treadmill may void your warranty.
Danger –To reduce the risk of electric shock disconnect your treadmill from the electrical outlet prior to
cleaning and/or service work.
DO NOT USE AN EXTENSION CORD: DO NOT ATTEMPT TO DISABLE THE GROUNDED PLUG BY
USING IMPROPER ADAPTERS OR IN ANY WAY MODIFY THE CORD SET.
Install the treadmill on a flat level surface with access to a 220-240 volt (50/60Hz), grounded outlet.
Do not operate treadmill on deeply padded, plush or shag carpet. Damage to both carpet and
treadmill may result.
Do not block the rear of the treadmill. Provide a minimum of 1 metre clearance between the rear of
the treadmill and any fixed object.
Place your unit on a solid, level surface when in use
Never allow children on or near the treadmill.
When running, make sure the plastic clip is fastened on your clothing. It is for your safety, should
you fall or move too far back on the treadmill.
Keep hands away from all moving parts.
Never operate the treadmill if it has a damaged cord or plug.
Keep the cord away from heated surfaces.
Do not operate where aerosol spray products are being used or where oxygen is being administered.
Sparks from the motor may ignite a highly gaseous environment.
Never drop or insert any object into any openings.
The treadmill is intended for in-home use only and not suitable for long time running.
4
SPIRIT
To disconnect, turn all controls to the off position, remove the safety key, and then remove the plug
from the outlet.
The pulse sensors are not medical devices. Various factors, including the user’s movement, may
affect the accuracy of heart rate readings. The pulse sensors are intended only as exercise aids in
determining heart rate trends in general.
Use the handrails provided; they are for your safety.
Wear proper shoes. High heels, dress shoes, sandals or bare feet are not suitable for use on your
treadmill. Quality athletic shoes are recommended to avoid leg fatigue.
Allowed temperature: 5 to 40 degrees.
Remove the safety key after use to prevent unauthorized treadmill operation.
2. IMPORTANT ELECTRICAL INFORMATION
WARNING!
NEVER use a ground fault circuit interrupt (GFCI) wall outlet with this treadmill. Route the power
cord away from any moving part of the treadmill including the elevation mechanism and transport
wheels.
NEVER remove any cover without first disconnecting AC power.
NEVER expose this treadmill to rain or moisture. This treadmill is not designed for use outdoors,
near a pool, or in any other high humidity environment.
This is high-power item; please do not share the same outlet with other high power machines such
as, fridges, air conditioning etc. Please choose an outlet exclusively for the machine and make sure
the fuse is 10A.
5
SPIRIT
3. IMPORTANT OPERATING INSTRUCTIONS
Be sure to read the entire manual before operating your machine.
Understand that changes in speed and incline do not occur immediately. Set your desired speed on
the computer console and release the adjustment key. The computer will obey the command
gradually.
Use caution while participating in other activities while walking on your treadmill, such as watching
television, reading, etc. These distractions may cause you to lose balance or stray from walking in
the centre of the belt; which may result in serious injury.
In order to prevent losing balance and suffering unexpected injury, NEVER mount or dismount the
treadmill while the belt is moving. This unit starts with at a very low speed. Simply standing on the
belt during slow acceleration is proper after you have learned to operate this machine.
Always hold on to handrail while making control changes.
A safety key is provided with this machine. Remove the safety key will stop the walking belt
immediately; the treadmill will shut off automatically. Inserting the safety key will reset the display.
Do not use excessive pressure on console control keys. They are precision set to function properly
with little finger pressure.
6
SPIRIT
4. ASSEMBLY INSTRUCTIONS

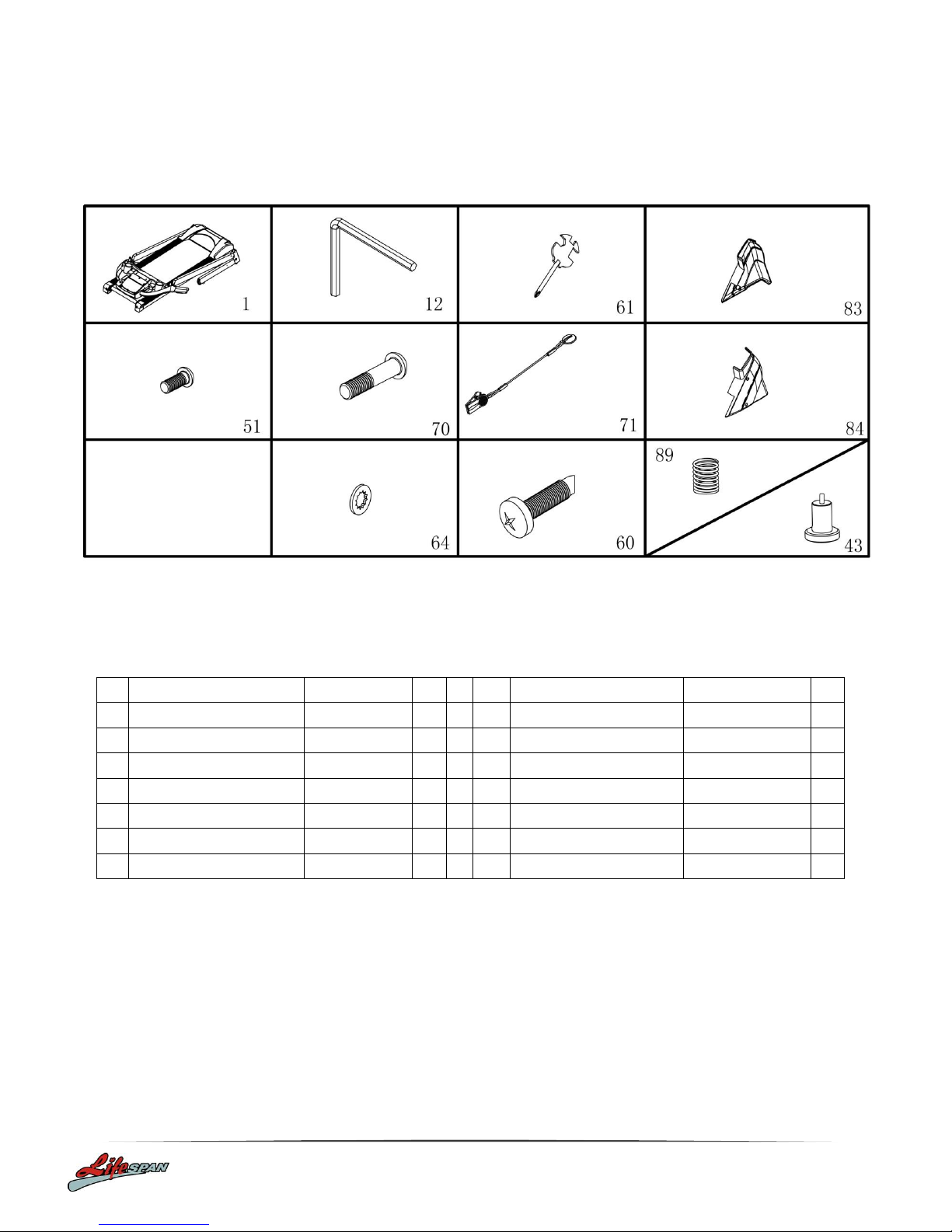

PARTS LIST
No
DES.
Specification
Qty
No
DES.
Specification
Qty
1
Main frame
1
61
wrench w/screw driver
S=13、14、15
12
#5 Allen wrench
5mm
1
64
Lock washer
8
5
70
Bolt
M8*45
2
60
Bolt
ST4.2*19
4
51
Bolt
M8*16
3
89
Spring
2
83
Left back cover
1
43
Rubber Pads
2
84
Right back cover
1
71
Safety key
1
ASSEMBLY TOOLS:
5#ALLEN WRENCH 5mm x 1pc
Wrench with screw driver S=13, 14, 15 x 1pc
Note: Do not connect power before completing assembly
7
SPIRIT
STEP 1:
STEP 2:
1. Open the carton
2. Extract the parts listed above
3. Place the Main Frame onto level
ground

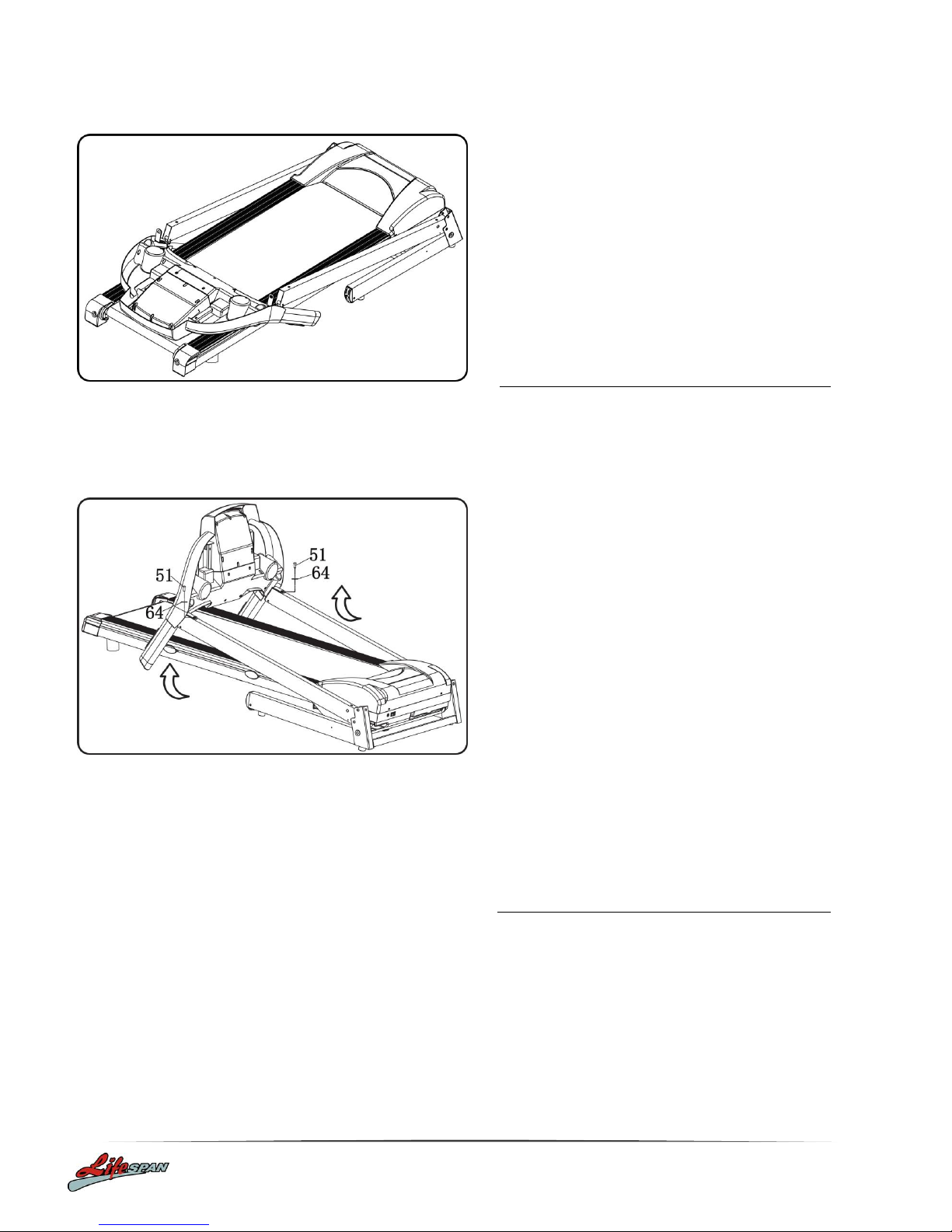

1. Move the display according to the
diagram. Insert Bolts M8*16(51) and
Lock washers (64) into Left and Right
Upright.
2. Attach the Computer frame to Left
Upright and Right Uprights by
tightening the bolts
Note: As you erect the display, make sure
that you do not damage the wires between
the tubes.
8
SPIRIT
STEP 3:
STEP 4:

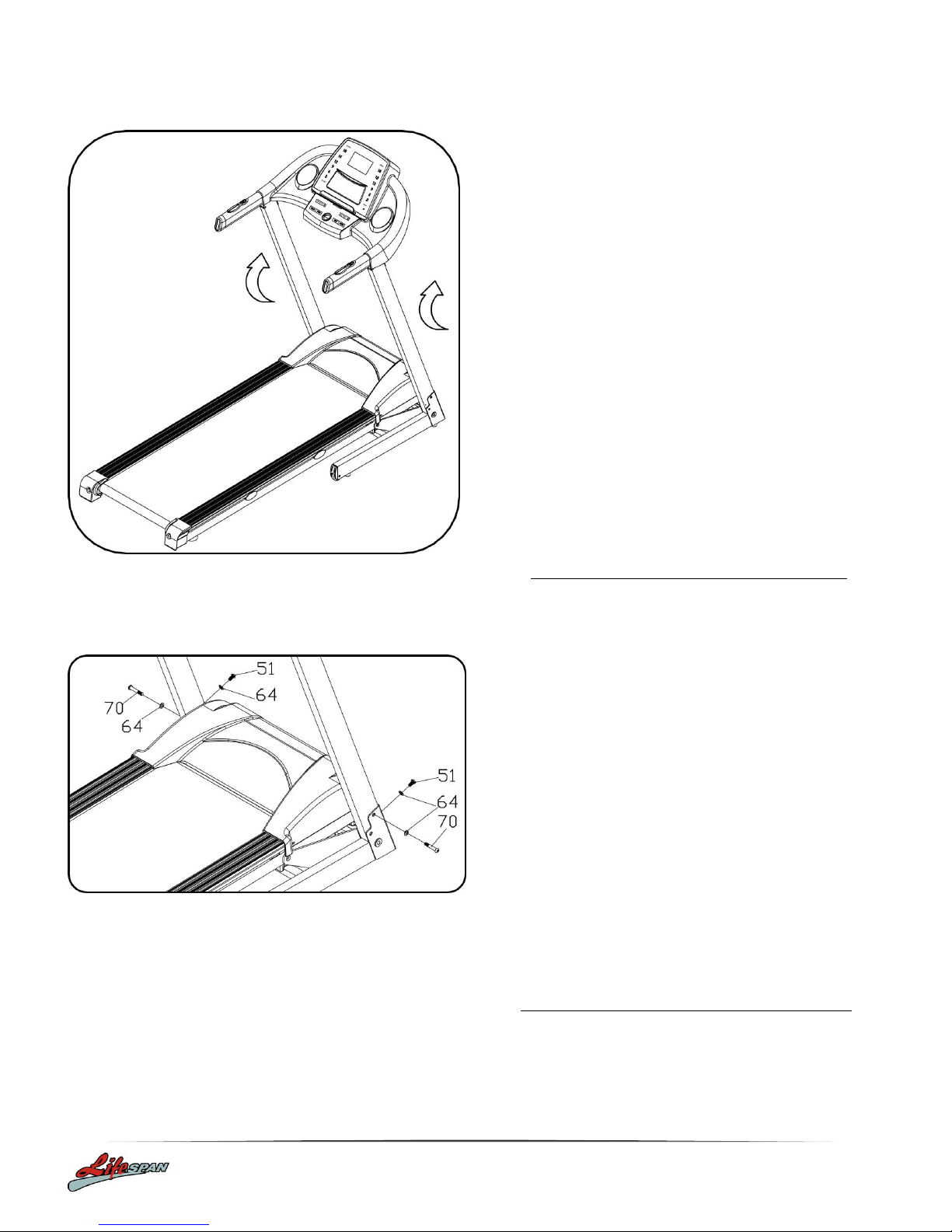

1. Erect the display according to the
diagram
Note: Support the upright tube with your
hands to prevent it from falling down.
1. Use the 5# Allen Wrench (12), m8*45 bolt
(70) and lock washer (64) to attach the
left and right upright tubes (3,4) to the
Main Frame (1) using the Bolt M8*16 (51)
and Lock washer (64).
9
SPIRIT
STEP 5:
STEP 6:
STEP 7:

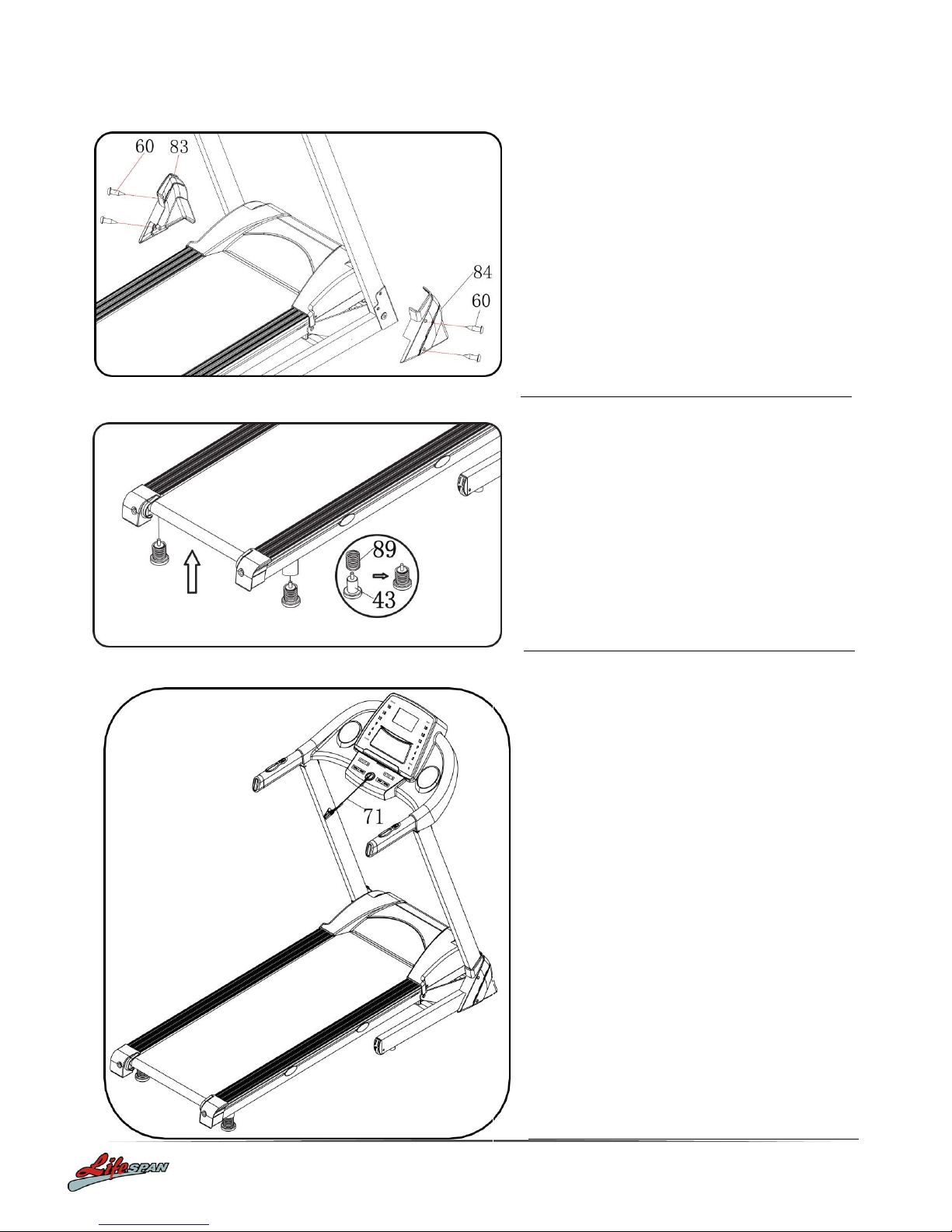

1. Use the wrench w/screw driver (61) to
attach the Left back cover(83) onto the
base frame with ST4.2*19(60).
1. Knock the spring(89) onto the rubber
pads(43)
2. Lift the frame up, and screw the rubber to
the frame.
1. Place the safety key (71) onto the
computer and start your exercise.
10
SPIRIT
5. FOLDING INSTRUCTIONS
Folding:
Unfolding:

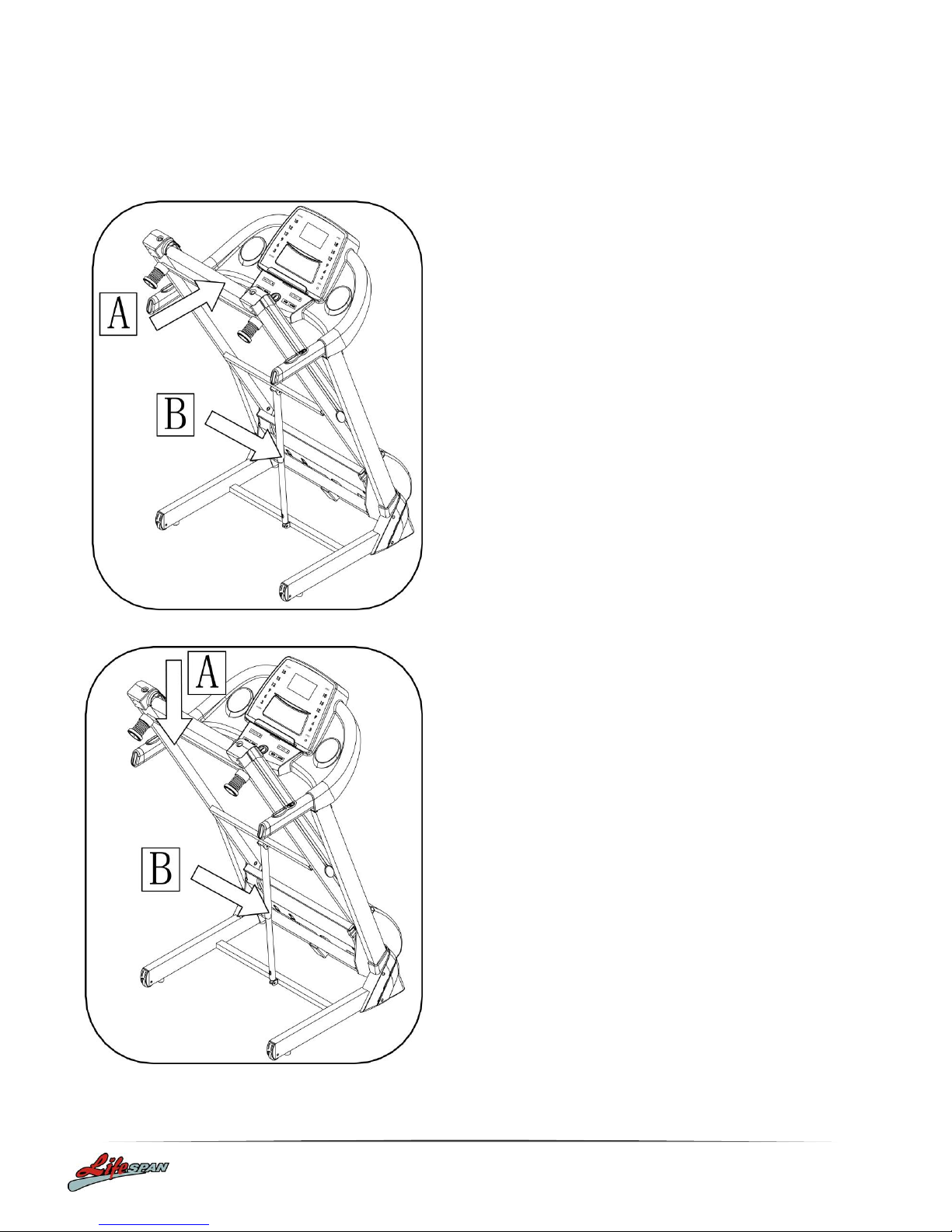

Place your hand on position (A), then pull
up the base frame until you hear the click
sound emitted when the air pressure bar
(B) is locked into the round tube.
Whilst supporting position A with our
hand, gently push the marked area on the
air pressure bar with your foot.
The base frame will descend gradually.
(Please keep people and any pets away
the machine during descent)
Video Tutorial Available at:
http://youtu.be/TcuPbJ7KuxQ
Lifespan Fitness YouTube Channel:
http://www.youtube.com/user/treadmillsvideos
