Lightolier Calculite Matrix 4X9 Bedienungsanleitung

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

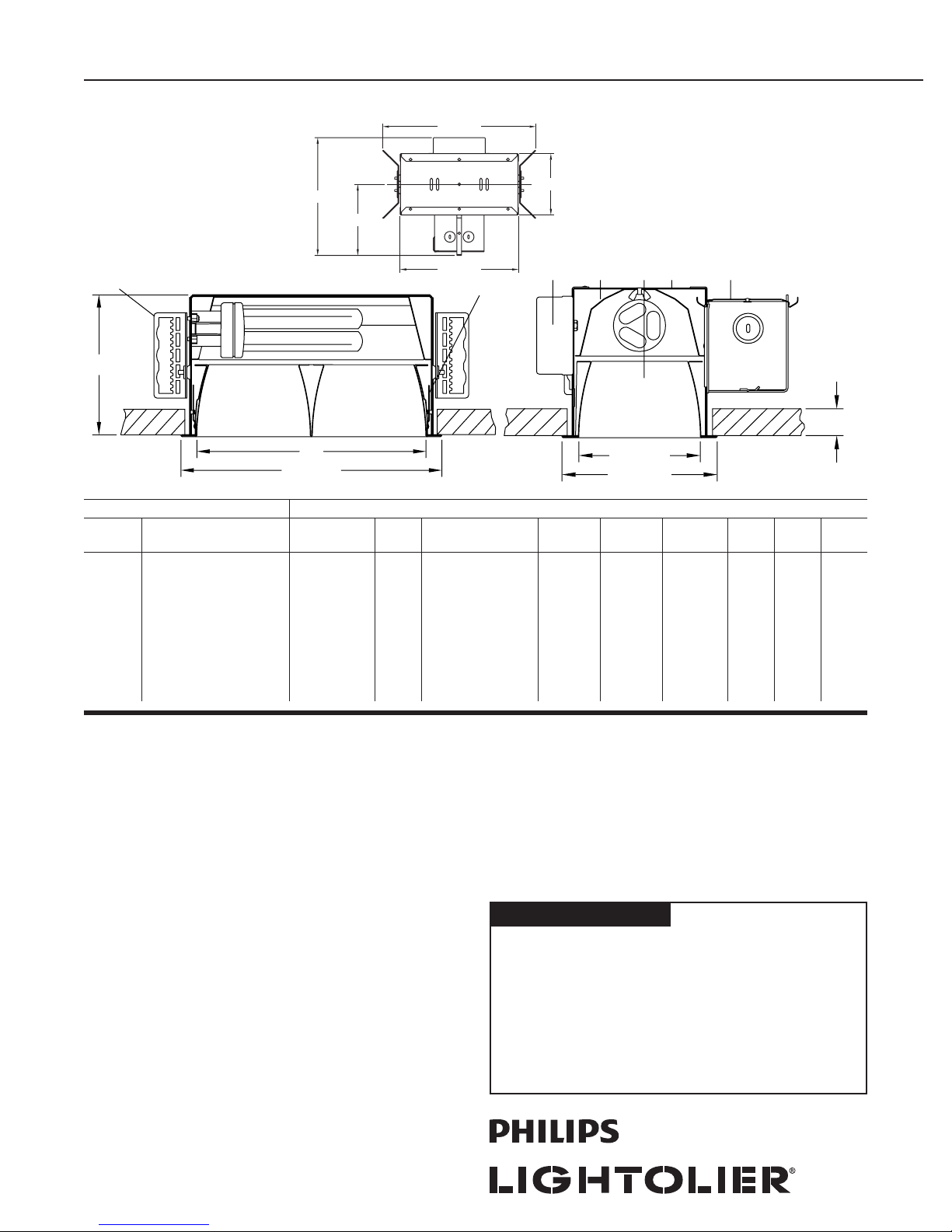

Calculite® Matrix®Open Downlight 4X9

Page 1 of 3 4 1/2" X 9" Rectangular Aperture (1) 26W Quad / 32/42 Triple 2-Cell Parabolic Louver

5 1/2"

10 1/4"

4 2 31 6

4 1/2"

5 3/4"

1 1/4" Max.

Ceiling Thickness

12 3/8"

9 5/8"

5 7/8"

9 9/16"

Top View

Features

1. Reﬂector Trim: Pre-finished aluminum with low iridescence clear finish. 55°

visual and reflected cutoff. Overlap flange accommodates different ceiling

types. Precision mitered flange corners.

2. Upper Reﬂector: High efficiency, 97%, Specular Clear.

3. Housing: 22 Ga. galvanized formed steel. Centerline notches and holes

for consistent alignment of multiple fixtures. Accommodates ceilings up to

1 1/4" thick.

4. Ballast Assembly: Door-mounted for easy service, allows replacement from

inside of fixture.

5. Torsiontite Springs: Precision-tooled steel springs secure reflector trim

to housing for quick tool-less installation. Positive tension holds flange tight

against ceiling.

6. J-Box: 14 Ga. galvanized steel. Accessible from inside and outside of the

fixture. Outside J-box door is hinged for easy access.

7. Mounting Brackets: 16 Ga. steel. Adjustable from inside fixture. Utilize

3/4" or 1 1/2" lathing channel, 1/2" EMT, or optional mounting bars.

Options & Accessories

Chicago Plenum with Fuse (slow blow): add LCF suffix to frame-in kit, con-

sult factory for specifications.

Emergency: add EM suffix to frame-in kit, consult factory for specifications.

Option not available in the 57W version.

Mounting Bars / T-Bar Anchor Clips: See specification sheet “MBA".

Electrical

UL Listed for through circuit wiring with max of (8) No. 12 AWG, 90° C supply

conductors.

Note: For complete ballast data and lamp/ballast compatibility refer to

“Ballast" specification sheet.

General

UL listed for damp locations. I.B.E.W. Union Made.

Specular Clear finish (CL) reflector trims meet IES RP-1 practice.

Ceiling Cutout: 5 1/8" L X 9 5/8" W

Trim Kits Frame-In Kits

Reﬂector

Trims Finish / Flange Frame-In Kits Type Ballast Input

Voltage

Quad Tube

Wattage

Triple Tube

Wattage Length Width Height

4X9CLW Specular Clear / White 4X9142HU Non-IC Electronic 120/277V 26W 32/42W 12 1/2" 9 1/2" 5 3/4"

4X9CLP Specular Clear / Polished 4X9142HUEM Non-IC Electronic - Emergency 120/277V 26W 32/42W 12 1/2" 11" 5 3/4"

4X9CCLW Comfort Clear / White 4X9142HJUM7 Non-IC Mark 7®Dimming 120/277V 26W 32/42W 12 1/2" 9 1/4" 5 3/4"

4X9CCLP Comfort Clear / Polished 4X9142HJ1MX Non-IC Mark 10®Dimming 120V 26W 32/42W 12 1/2" 9 1/4" 5 3/4"

4X9CCDW Comfort Clear Diff. / White 4X9142HJ2MX Non-IC Mark 10®Dimming 277V 26W 32/42W 12 1/2" 9 1/4" 5 3/4"

4X9CCDP Comfort Clear Diff. / Polished

4X9CCGP Clear Corrugated / Self Flange

4X9WHW White / White

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Calculite® Matrix®Open Downlight 4X9

Page 2 of 3 4 1/2" X 9" Rectangular Aperture (1) 26W Quad / 32/42 Triple 2-Cell Parabolic Louver

Job Information Type:

1 .76 .74 .72 .75 .73 .71 .72 .70 .69 .69 .68 .67 .67 .66 .65 .64

2 .70 .67 .64 .69 .66 .63 .66 .64 .62 .64 .62 .61 .62 .61 .59 .58

3 . 64 .60 .57 .63 .59 .56 .61 .58 .55 .59 .57 .54 .58 .56 .54 .52

4 .59 .54 .51 .58 .54 .50 .56 .53 .55 .55 .52 .49 .53 .51 .49 .47

5 .53 .49 .45 .53 .48 .45 .51 .47 .44 .50 .47 .44 .49 .46 .44 .42

6 .49 .44 .40 .48 .43 .40 .47 .43 .40 .46 .42 .39 .45 .41 .39 .38

7 .44 .39 .35 .43 .38 .35 .42 .38 .35 .41 .37 .34 .40 .37 .34 .33

8 .39 .34 .31 .39 .34 .31 .38 .34 .31 .37 .33 .30 .37 .33 .30 .29

9 .36 .30 .27 .35 .30 .27 .34 .30 .27 .34 .29 .26 .33 .29 .26 .25

10 .32 .27 .23 .31 .27 .23 .31 .26 .23 .30 .26 .23 .30 .26 .23 .22

32W Triple Tube, Specular Clear Reflector Trim

One Philips lamp, 2400 lumens

Test Report 1761FR Apr. 4, 2002

EFFICIENCY = 69.3% Spacing Criterion: Along = 1.7Across = 1.5

% Effective Ceiling Cavity Reectance

1 .61 .60 .58 .60 .59 .57 .58 .56 .56 .55 .55 .54 .54 .53 .52 .51

2 .56 .54 .52 .55 .53 .51 .54 .52 .50 .52 .51 .49 .50 .49 .48 .47

3 .52 .49 .46 .51 .48 .46 .50 .47 .45 .48 .46 .45 .47 .45 .44 .43

4 .48 .44 .42 .47 .44 .41 .46 .43 .41 .45 .42 .41 .44 .42 .40 .39

5 .44 .40 .38 .43 .40 .37 .42 .39 .37 .41 .39 .37 .40 .38 .36 .35

6 .40 .36 .34 .40 .36 .34 .39 .36 .33 .38 .35 .33 .37 .35 .33 .32

7 .37 .33 .30 .36 .32 .30 .35 .32 .30 .35 .32 .29 .34 .31 .29 .28

8 .33 .29 .27 .33 .29 .27 .32 .29 .26 .32 .29 .26 .31 .28 .26 .25

9 .30 .26 .24 .30 .26 .24 .29 .26 .23 .29 .26 .23 .28 .25 .23 .22

10 .27 .24 .21 .27 .24 .21 .27 .23 .21 .26 .23 .21 .26 .23 .21 .20

ROOM CAVITY RATIO

50 30 10 50 30 10 50 30 10 50 30 10 50 30 10 0

80 70 50 30 10 0

26W Quad Tube, Specular Clear Reflector Trim

One Sylvania lamp, 1800 lumens

ZONAL LUMENS AND PERCENTAGES

Zone Lumens % Lamp % Luminaire

0-30 406 22.58 10.72

0-40 680 37.81 68.17

0-60 995 55.31 99.71

0-90 998 55.47 100.00

0 439 439 439 439 439

5 457 450 435 437 429 42

10 466 448 443 462 459

15 477 455 477 510 510 136

20 495 472 513 524 492

25 485 478 532 489 467 228

30 475 474 488 503 450

35 432 478 443 414 356 274

40 349 450 424 350 397

45 256 350 361 344 296 243

50 144 203 248 182 119

55 38 60 106 43 27 72

60 3 5 19 3 2

65 1 1 1 1 1 3

70 1 1 0 0 1

75 0 0 0 0 0 0

80 0 0 0 0 0

85 0 0 0 0 0 0

90 0 0 0 0 0

Test Report 1762FR Apr. 4, 2002

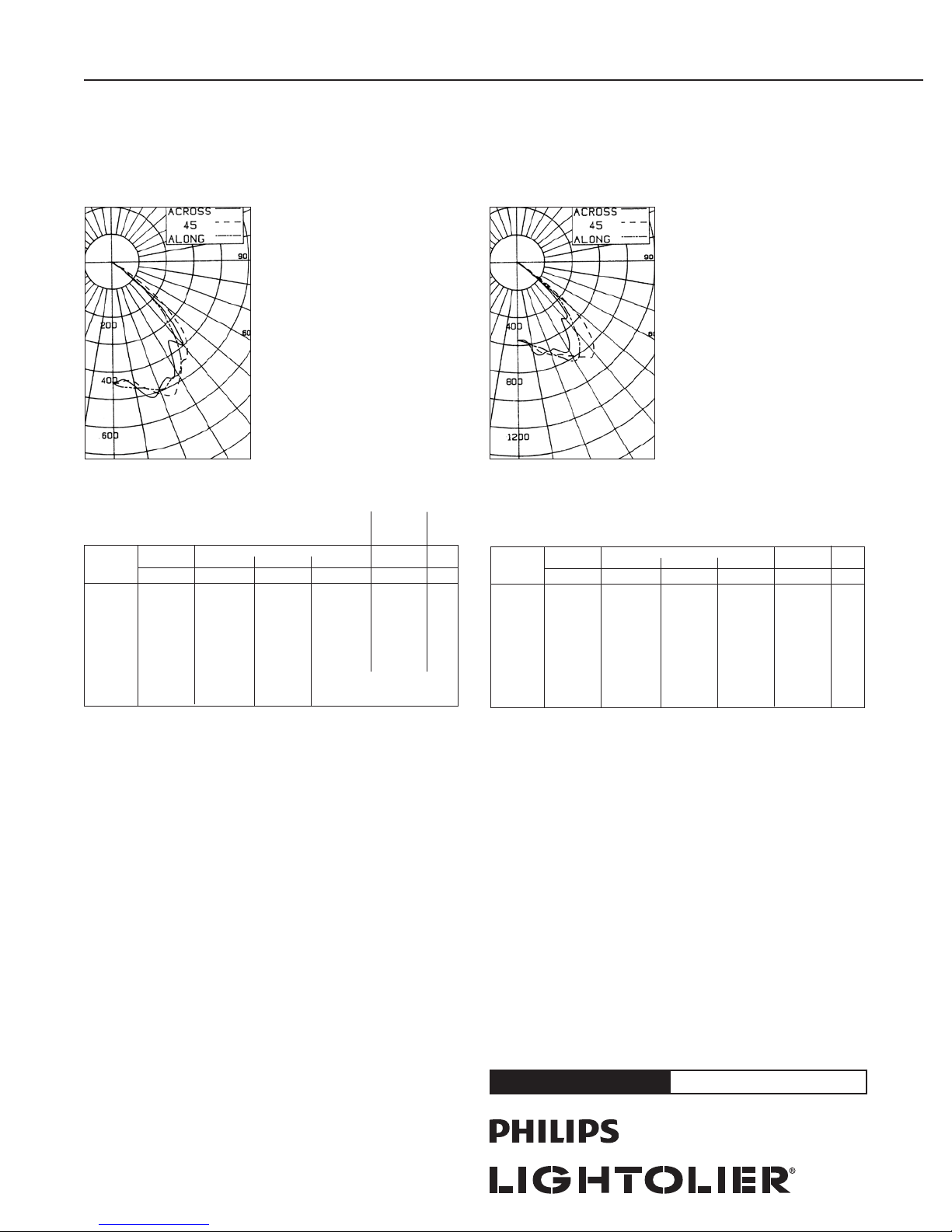

Angle Along 22.5 45 67.5 Across Lumens

CANDLEPOWER SUMMARY

EFFICIENCY = 55.5% Spacing Criterion: Along = 1.5Across = 1.3

% Effective Ceiling Cavity Reectance

ROOM CAVITY RATIO

50 30 10 50 30 10 50 30 10 50 30 10 50 30 10 0

80 70 50 30 10 0

20% Floor Cavity Reectance 20% Floor Cavity Reectance

ZONAL LUMENS AND PERCENTAGES

Zone Lumens % Lamp % Luminaire

0-30 586 24.43 35.24

0-40 1066 44.42 64.10

0-60 1658 69.09 99.70

0-90 1663 69.30 100.00

0 563 563 563 563 563

5 580 582 578 575 567 56

10 608 608 608 643 658

15 640 631 683 706 691 189

20 702 691 719 691 681

25 765 775 740 675 705 342

30 827 874 786 726 738

35 782 861 842 705 605 480

40 658 779 858 619 538

45 505 607 725 610 458 449

50 341 386 499 407 221

55 85 113 169 114 50 143

60 5 8 33 9 4

65 2 2 3 2 2 5

70 1 1 1 1 1

75 0 0 0 0 0 0

80 0 0 0 0 0

85 0 0 0 0 0 0

85 0 0 0 0 0

90 0 0 0 0 0

Angle Along 22.5 45 67.5 Across Lumens

CANDLEPOWER SUMMARY

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Calculite® Matrix®Open Downlight 4X9

Page C of 3 4 1/2" X 9" Rectangular Aperture (1) 26W Quad / 32/42 Triple 2-Cell Parabolic Louver

Job Information Type:

% Effective Ceiling Cavity Reectance

1 .72 .71 .69 .71 .69 .68 .68 .67 .66 .66 .65 .64 .64 .63 .62 .61

2 .67 .64 .61 .66 .63 .61 .63 .61 .59 .62 .60 .58 .60 .58 .57 .56

3 .61 .58 .55 .60 .57 .54 .59 .56 .53 .57 .55 .52 .55 .53 .52 .51

4 .56 .52 .49 .56 .52 .49 .54 .51 .48 .53 .50 .48 .51 .49 .47 .46

5 .52 .47 .44 .51 .47 .44 .50 .46 .43 .48 .45 .43 .47 .45 .42 .41

6 .47 .42 .39 .46 .42 .39 .45 .42 .39 .44 .41 .38 .43 .40 .38 .37

7 .43 .38 .35 .42 .38 .34 .41 .37 .34 .40 .37 .34 .39 .36 .34 .33

8 .39 .34 .30 .38 .34 .30 .37 .33 .30 .37 .33 .30 .36 .32 .30 .29

9 .35 .30 .27 .35 .30 .27 .34 .30 .27 .33 .29 .26 .32 .29 .26 .25

10 .32 .27 .24 .31 .27 .24 .31 .26 .23 .30 .26 .23 .29 .26 .23 .22

42W Triple Tube, Specular Clear Reflector Trim

One Philips lamp, 3200 lumens

ZONAL LUMENS AND PERCENTAGES

Zone Lumens % Lamp % Luminaire

0-30 803 25.10 38.00

0-40 1402 43.84 66.36

0-60 2107 65.87 99.70

0-90 2113 66.06 100.00

0 792 792 792 792 792

5 812 812 810 812 802 79

10 835 838 866 926 939

15 890 895 973 1010 982 266

20 922 959 1028 966 939

25 939 1019 1006 952 978 458

30 961 1054 1003 1043 1021

35 896 1060 1027 929 828 600

40 762 955 976 724 781

45 594 761 854 701 646 536

50 344 464 600 405 285

55 80 144 243 115 70 169

60 7 11 45 8 5

65 2 2 3 2 2 6

70 1 1 1 1 1

75 1 1 1 0 0 0

80 0 0 0 0 0

85 0 0 0 0 0 0

90 0 0 0 0 0

Test Report 1760FR Apr. 4, 2002

Angle Along 22.5 45 67.5 Across Lumens

CANDLEPOWER SUMMARY

EFFICIENCY = 66.1% Spacing Criterion: Along = 1.6Across = 1.5

57W Triple Tube, Specular Clear Reflector Trim

One Sylvania lamp, 4300 lumens

ZONAL LUMENS AND PERCENTAGES

Zone Lumens % Lamp % Luminaire

0-30 1277 29.72 41.07

0-40 2098 48.81 67.45

0-60 3105 72.21 99.79

0-90 3111 72.36 100.00

0 1474 1474 1474 1474 1474

5 1488 1497 1515 1532 1535 145

10 1490 1531 1597 1642 1651

15 1469 1522 1641 1588 1551 443

20 1409 1504 1523 1598 1587

25 1361 1469 1490 1603 1559 690

30 1324 1418 1465 1461 1365

35 1244 1329 1380 1267 1218 821

40 1100 1248 1183 1153 1339

45 887 1037 1038 1112 1069 761

50 554 649 749 654 508

55 145 219 333 176 105 246

60 7 13 61 10 6

65 1 1 3 2 1 6

70 0 0 0 0 0

75 0 0 0 0 0 0

80 0 0 0 0 0

85 0 0 0 0 0 0

90 0 0 0 0 0

Test Report 1759FR Apr. 4, 2002

Angle Along 22.5 45 67.5 Across Lumens

CANDLEPOWER SUMMARY

EFFICIENCY = 72.4% Spacing Criterion: Along = 1.3Across = 1.3

ROOM CAVITY RATIO

50 30 10 50 30 10 50 30 10 50 30 10 50 30 10 0

80 70 50 30 10 0

% Effective Ceiling Cavity Reectance

1 .79 .78 .76 .78 .76 .75 .75 .74 .72 .72 .71 .70 .70 .69 .68 .67

2 .73 .70 .68 .72 .69 .67 .70 .67 .65 .68 .66 .64 .66 .64 .63 .61

3 .67 .64 .60 .66 .63 .60 .65 .61 .59 .63 .60 .58 .61 .59 .57 .56

4 .62 .58 .54 .61 .57 .54 .60 .56 .53 .58 .55 .53 .57 .54 .52 .51

5 .57 .52 .49 .56 .52 .49 .55 .51 .48 .54 .50 .48 .53 .50 .47 .46

6 .52 .47 .44 .52 .47 .44 .51 .47 .43 .50 .46 .43 .49 .45 .43 .42

7 .48 .43 .39 .47 .42 .39 .46 .42 .39 .45 .41 .38 .44 .41 .38 .37

8 .43 .38 .35 .43 .38 .35 .42 .38 .35 .41 .37 .34 .40 .37 .34 .33

9 .40 .34 .31 .39 .34 .31 .38 .34 .31 .38 .33 .31 .37 .33 .30 .29

10 .36 .31 .27 .36 .31 .27 .35 .30 .27 .34 .30 .27 .34 .30 .27 .26

ROOM CAVITY RATIO

cu 50 30 10 50 30 10 50 30 10 50 30 10 50 30 10 0

80 70 50 30 10 0

20% Floor Cavity Reectance 20% Floor Cavity Reectance

Dieses Handbuch passt für folgende Modelle

Andere Lightolier Leuchte Handbücher

Lightolier

Lightolier LW6CLP Bedienungsanleitung

Lightolier

Lightolier QHE1GPFOP128 Bedienungsanleitung

Lightolier

Lightolier 9” PENDALYTE SERIES Bedienungsanleitung

Lightolier

Lightolier Brisa FB5114LEC Bedienungsanleitung

Lightolier

Lightolier QVS2GSDOS2FT Bedienungsanleitung

Lightolier

Lightolier QVW8SPFOS2FT Bedienungsanleitung

Lightolier

Lightolier P7006 Bedienungsanleitung

Lightolier

Lightolier LL4MF8LX254 Bedienungsanleitung

Lightolier

Lightolier 1101FIC Bedienungsanleitung

Lightolier

Lightolier Calculite C3MRGD Bedienungsanleitung

Lightolier

Lightolier Lytespan 9170 Bedienungsanleitung

Lightolier

Lightolier Coffaire II CFA2GPF217 Bedienungsanleitung

Lightolier

Lightolier Lytespan 8608 Bedienungsanleitung

Lightolier

Lightolier CALCULITE 8037TB SERIES Bedienungsanleitung

Lightolier

Lightolier Calculite 8068 Bedienungsanleitung

Lightolier

Lightolier RADIANCE PENDANT FIXTURES Leitfaden

Lightolier

Lightolier Calculite CLW7P56D Bedienungsanleitung

Lightolier

Lightolier Calculite ProSpec PB4H3870 Bedienungsanleitung

Lightolier

Lightolier Calculite ProSpec PB3A7050 Bedienungsanleitung

Lightolier

Lightolier Calculite C4X4MRA Bedienungsanleitung

Lightolier

Lightolier Lytecaster 1135 Bedienungsanleitung

Lightolier

Lightolier Lytecaster 2022 Bedienungsanleitung

Lightolier

Lightolier Calculite C6AIC Bedienungsanleitung

Lightolier

Lightolier PENDALYTE SERIES Gebrauchsanweisung

Beliebte Leuchte Handbücher anderer Marken

Emos

Emos CLASSIC ZY1431T Bedienungsanleitung

Westinghouse

Westinghouse Outdoor Lighting Fixture Bedienungsanleitung

Hedler

Hedler C 12 silent Bedienungsanleitung

Blizzard Lighting

Blizzard Lighting Puck: CSI Bedienungsanleitung

Energetic Lighting

Energetic Lighting ELYSL-5004 Series Bedienungsanleitung

Lightmaxx

Lightmaxx Shaft 5R Bedienungsanleitung

Triarch

Triarch 31083 Bedienungsanleitung

Philips

Philips 32614 Series Bedienungsanleitung

IKEA

IKEA TIVED Bedienungsanleitung

Chauvet Professional

Chauvet Professional ROGUE R1 BEAM WASH Bedienungsanleitung

Martin

Martin MAC 250 Krypton Bedienungsanleitung

Cooper Lighting

Cooper Lighting Halo L3232E Bedienungsanleitung

Stageline

Stageline ODW-2410RGBW Bedienungsanleitung

Light Sky

Light Sky Tornado Series Bedienungsanleitung

ArtFox

ArtFox Beam 15R extreme Bedienungsanleitung

GLG

GLG multispot 330 Bedienungsanleitung

Home Accents Holiday

Home Accents Holiday TY052-1924-1 Bedienungsanleitung

SELF Electronics

SELF Electronics FLEX Bedienungsanleitung
