ProSpec™Track Lighting 26038W

Page 1 of 2 Wall Wash Cylinder PAR38

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

Lightolier a Genlyte Thomas Company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

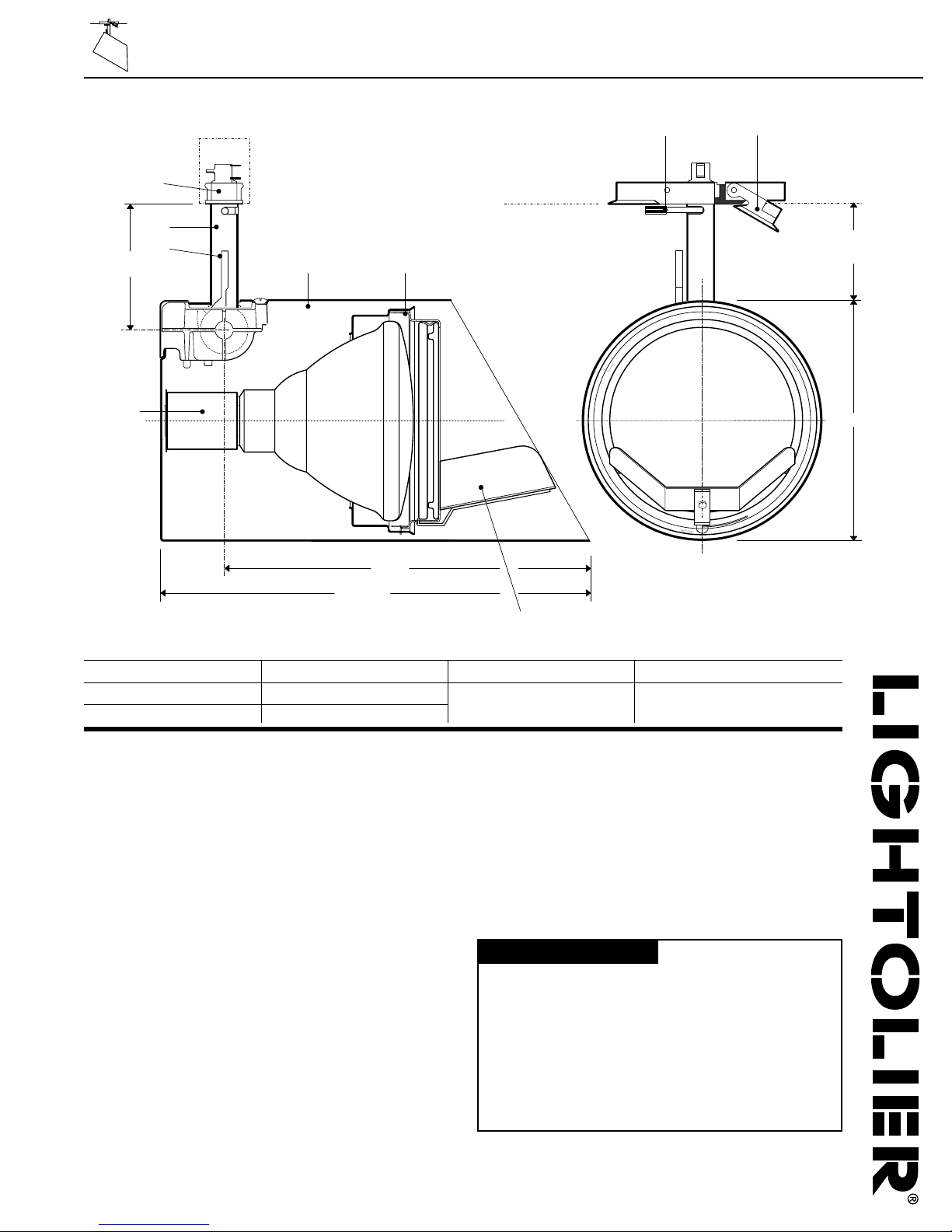

Features

1. Track attachment fitting: Die-cast aluminum with separate mechanical

and electrical functions. Fitting cannot be engaged or disengaged while fix-

ture is powered. Polarity is not a concern with ProSpec track because of its

symmetrical positioning of circuits within the track, adapters are reversed to

access one or the other circuits.

2. Stem: 5/8" O.D. .049" wall, stainless steel.

3. Locking feature: Die-cast aluminum mechanism permits the locking of the

horizontal and vertical positions simultaneously by clamping jaws. When the

stainless steel braking lever is released, the horizontal and vertical functions

remain fully tensioned to hold aiming positions. Adjustment range is:

Horizontal 0-340°; Vertical 0° (NADIR) - 90°.

4. Lampholder: Porcelain, medium base, nickel plated screw shell, #18 ga.

braided SF-1 leads.

5. Housing: 20 ga. (.036) steel.

6. Lamp and accessory support: .032 steel, flared for easy entry of accesso-

ry cartridge, matte black finish.

7. Kick reflector assembly: Holds one accessory behind the spread lens;

example: color filter, UV filter, Heat filter. Assembly is removable from front

using a twist and lock motion.

8. Reflector: Embossed texture anodized aluminum; reflects light towards

upper portion of wall and ceiling line.

9. Lever: Energizes fixture electrically by 90° rotation.

10. Clamping tabs: Expands or releases gripper springs from track ledge; grip-

per springs hold attachment fitting securely within track.

Finish

All painted finishes are powder coated baked enamel.

Ordering Information

Catalog No. Finishes Mountings Lamps

26038W WH Matte White ProSpec™Track System PAR38 250W Max.

26038W BK Matte Black

Options & Accessories

Accessories: 4 3/4" dia. series. Filters, lenses, screens and louvers.

150W max.when using accessories.

Electrical

Electrical components: Polycarbonate moldings.

Contacts: Heavy gauge 1/2 hard brass developed for Lightolier's "U"

shaped track conductors.

Labels

UL, I.B.E.W.

Fixture MOL = 13-1/2"

5 7/8" Dia.

910

2 1/4"

Stem

10 3/8"

ProSpec Track System

3 1/4"

8 7/8"

ProSpec™Track Lighting 26038W

Page 2 of 2 Wall Wash Cylinder PAR38

Lightolier a Genlyte Thomas Company www.lightolier.com

631 Airport Road, Fall River, MA 02720 •(508) 679-8131 •Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

DISTANCE TO SIDE OF UNIT

6" 12" 18" 24" 30" 36" 42" 48"

0 11.0 6.5 5.5 3.0 2.0 1.5 1.0 0.5 0.5 19.5 16.5 19.5 15.0 10.5 15.0

1 70.0 65.0 34.0 12.0 5.5 8.0 1.5 1.0 1.0 97.0 109.5 97.0 80.0 48.5 80.0

2 115.0 110.0 66.0 26.0 9.0 3.5 2.0 1.0 1.0 171.0 190.5 171.0 129.0 95.0 129.0

2.5 140.0 130.0 80.0 36.0 14.0 4.5 2.5 1.5 1.0 217.0 231.0 217.0 160.0 120.0 160.0

3 120.0 115.0 77.0 39.0 16.5 6.0 2.5 1.5 1.5 203.0 217.0 203.0 144.0 120.0 144.0

4 48.0 48.0 40.0 24.0 14.0 7.5 3.0 2.0 1.5 102.0 113.0 102.5 71.0 69.0 71.0

5 17.0 17.0 16.0 11.5 8.5 5.5 3.0 2.0 1.5 46.5 51.0 46.5 33.0 32.5 33.0

6 8.0 7.0 8.0 6.0 5.0 3.5 2.8 2.0 1.5 25.5 27.0 25.5 18.5 18.5 1 8.5

7 4.0 4.0 5.0 3.5 3.0 3.0 2.0 2.0 1.0 15.0 18.5 15.0 12.0 12.5 12.0

8 2.5 3.0 3.0 2.5 2.5 2.5 2.0 1.5 0.5 11.5 14.0 11.5 9.0 0.0 9.0

10'-0" Ceiling Height Track 40" from Wall*

DISTANCE TO SIDE OF UNIT

12' 24' 36' 48" 60' 72" 84'

0 6.0 5.0 2.5 2.5 2.0 1.0 0.5 0.0 12.0 9.5 12.0 7.5 6.0 7.5

1 13.0 11.0 9.0 3.5 2-0 1.0 0.5 0.5 21.5 24.0 21.5 17.0 13.5 17.0

2 23.0 18.0 12.0 4.5 3.0 1.0 0.5 0.5 82.5 83.0 82.5 26.0 18.0 26.0

3 25.0 28.0 14.5 5.0 8.0 1.0 0.5 0.5 86.5 40.5 36.5 28.0 21.0 28.0

4 33.0 27.0 15.0 6.0 2.5 1.0 0.5 0.5 48.0 45.0 48.0 36.0 22.5 36.0

4.5 34.0 28.0 16.0 6.0 2.5 1.0 1.0 0.5 48.0 47.0 48.0 37.0 23.5 37.0

5 28.0 25.0 15.0 6.0 2.5 1.5 1.0 0.5 41.0 43.0 41.0 31.5 22.0 81.5

6 20.0 18.0 13.0 5.5 2.0 1.5 1.0 0.5 82.0 34.0 32.0 28.5 20.0 23.5

7 15.0 18.0 9.0 4.0 1.5 1.5 1.0 1.0 25.0 25.0 25.0 18.0 14.5 18.0

8 10.0 8.5 6.0 3.0 1.5 1.5 1.0 1.0 18.0 18.0 18.0 18.0 10.5 13.0

9 8.0 7.0 4.5 2.0 1.5 1.5 1.0 1.0 14.0 14.0 14.0 11.0 8.5 11.0

10 5.0 4.0 8.5 1.5 1.5 1.5 1.0 1.0 9.0 10.5 9.0 7.5 6.5 7.5

12'-0" Ceiling Height Track 66" from Wall*

DISTANCE TO SIDE OF UNIT

12' 24' 36' 48' 60' 72' 84' 96'

0 3.5 3.0 2.5 2.0 1.0 1.0 0.5 0.5 0.5 5.0 5.0 5.0 4.0 3.0 42

1 5.5 5.0 4.0 3.0 1.5 1.0 0.5 0.5 0.5 7.5 7.5 7.5 6.0 3.5 6.2

2 8.0 7.5 5.5 3.5 2.0 1.5 1.0 0.5 0.5 10.5 10.0 10.5 8.5 5.0 8.8

3 9.0 8.5 7.0 4.5 2.5 1.5 1.0 4.0 0.5 12.0 12.0 12.0 9.5 5.5 9.8

4 10.0 10.0 8.0 5.5 8.0 2.0 1.0 1.0 0.5 18.5 14.5 18.5 10.5 6.5 10.6

5 12.5 12.0 10.0 6.5 3.5 2.0 1.0 1.0 0.5 17.0 17.5 17.0 13.5 8.0 13.4

6 15.0 14.0 11.0 7.5 4.5 2.5 1.5 1.0 1.0 20.0 20.0 20.0 16.5 9.5 16.4

6.5 15.0 14.0 11.0 8.0 4.5 3.0 1.5 1.0 0.5 21.5 20.5 21.5 16.5 10.0 16.4

7 14.0 12.5 10.5 7.5 4.5 8.0 1.5 1.0 0.5 20.0 19.5 20.0 15.0 9.5 15.6

8 12.5 11.5 10.0 7.0 4.0 3.0 1.5 1.5 0.5 18.5 18.0 18.5 13.5 9.0 15.6

9 10.0 9.0 8.0 6.0 4.0 8.0 1.5 1.5 0.5 16.0 15.0 16.0 11.0 8.5 11.2

10 8.5 8.0 7.0 5.0 4.0 3.0 1.5 1.5 0.5 14.0 18.5 14.0 19.5 8.5 19.6

11 7.0 6.5 6.0 4.5 8.0 8.0 1.5 1.5 0.5 12.5 11.0 12.5 7.5 7.0 7.6

12 5.5 5.0 4.2 3.0 3.0 2.0 1.5 1.5 0.5 9.5 8.5 9.5 6.0 6.5 6.2

Lighting Data: 150W PAR38 FL

FOOTCANDLES ON WALL: Single Units Multiple Units†

EXAMPLE: With track located 40" from wal and

multiple units spaced 38" on center and aimed

60°from horizontal, the illumination on wall

5' 6" from floor will be 48 f.c. beneath units and

47 f.c. between units.

38"40"

48 f.c.

47 f.c.

5'-6"

8'-0" Ceiling Height Track 22" from Wall*

Track Dist.

from Wall

Track Dist.

from Wall

*At recommended track distance from wall for

corresponding ceiling height, wall washer will

provide maximum Illumination at eye level

(5' 6' above floor) when aimed 60 from horizontal

(I.E.S. recommended practice).

† Footcandles shown In table for multiple units are

based on a minimum of 5 units when on 18", 27", or

38" centers and 8 units when on 57" 62", or 98"

centers.

Footcandle values are based on average room

conditions.

Track Dist.

from Wall
