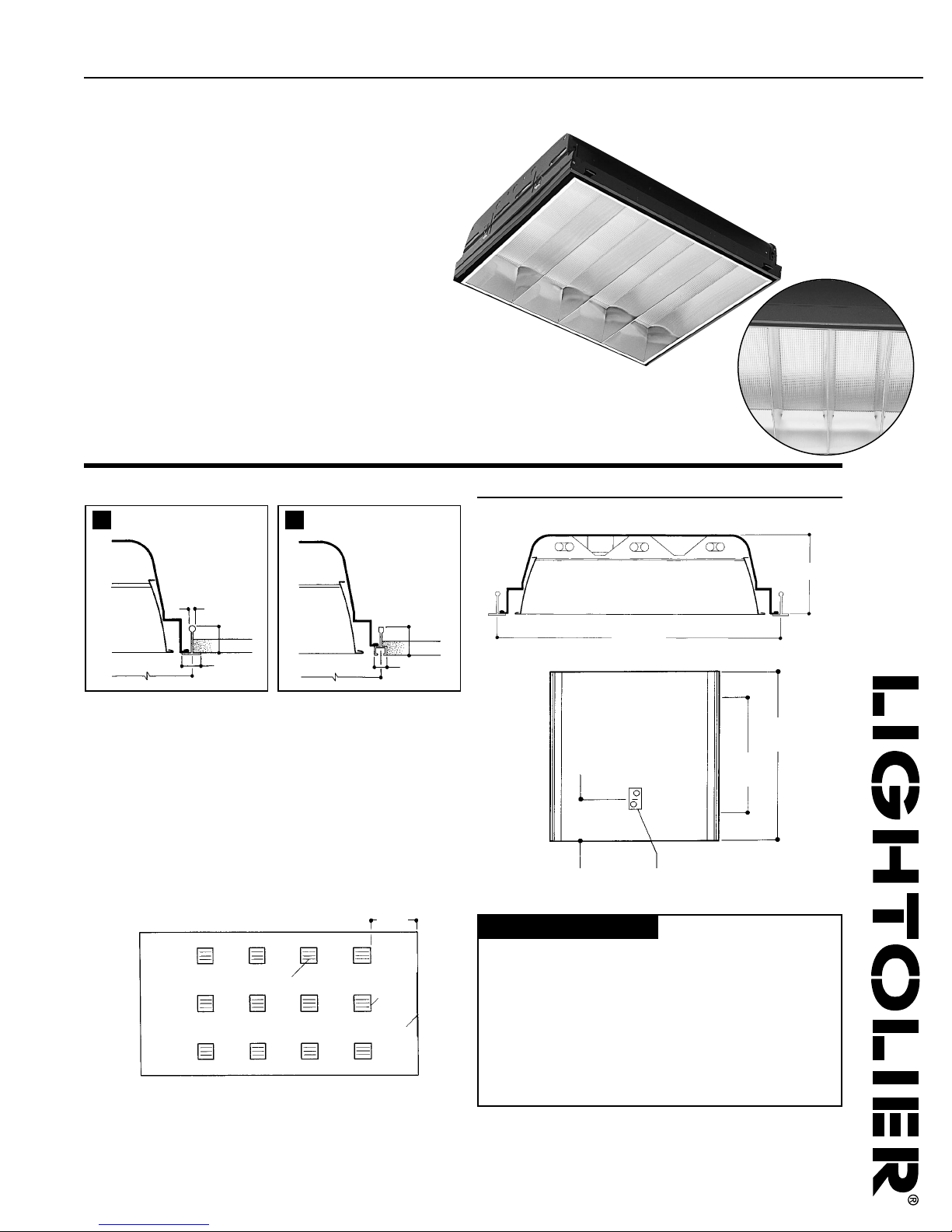

VIDEO TELECONFERENCE LUMINAIRE VTS2GPK3FT

Page 1 of 2 2'x2' RECESSED FLUORESCENT

MOUNTING METHODS DIMENSIONS

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Volts/Ballast:

Lightolier a Genlyte Thomas Company www.lightolier.com

Technical Information: (978) 657-7600 • Fax (978) 658-0595

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

A0902 SECTION 5/Folio K05-10

Features

• Provides soft vertical illumination for comfortable televising

of participants.

• Shields the camera from light sources and eliminates glare on the

projection screen.

• Integrated specular parabolic blades and prismatic acrylic lens

assembly for directional brightness control.

• 77 minimum VCP in rooms with less than 10' ceiling (3 lamp TT5).

• Spring-loaded latches.

• Concealed “T” hinges.

• Louver/lens assembly with positive light stop.

• Four earthquake clips standard.

• UL-Listed twin knockout access plate.

• Construction to meet NYC Code Requirements and Chicago Plenum

Code is available.

Gexposed T-grid ceiling. Texposed slot T-grid ceiling.

1/4" max.

1-1/2" max. 1-7/8" max.

24" 24"

15/16"

or 1" 9/16"

6" (152mm)

24" (610mm)

23-7/8"

(606mm)

15-11/16"

(398mm)

(127mm)

2"x2-1/2" access plate

with two K.O.s (7/8" dia.)

TELECONFERENCE LIGHTING RECOMMENDATIONS

1. I.E.S. recommends 50 maintained footcandles for teleconferencing.

2. 3000K lamps with C.R.I. of 82 suggested for better skin tone.

3. Teleconferencing luminaires are to be mounted in the ceiling with the lamps perpen-

dicular to the wall that the viewing screen is on.

4. The end of the first fixture must be a minimum of 6 feet from the viewing screen

(see diagram).

5. Side and back walls should be illuminated to reduce contrast vs. other vertical sur-

faces. Use wall lighting luminaires where necessary. 5:1 maximum luminance ratio

suggested.

NOTE: For wall lighting, request Folio K20-05.

Lamp

Direction End of

Fixture

Viewing

Screen

TELECONFERENCING ORIENTATION

VIDEO TELECONFERENCE LUMINAIRE VTS2GPK3FT

Page 2 of 2 2'x2' RECESSED FLUORESCENT

Lightolier a Genlyte Thomas Company www.lightolier.com

Technical Information: (978) 657-7600 • Fax (978) 658-0595

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

A0902 SECTION 5/Folio K05-10

Job Information Type:

OPTIONS & ACCESSORIES

RADIO INTERFERENCE FILTER 120 or 277 volt, 50 or 60 Hz. One per fixture.

SUFFIX: RF.

ELECTRICAL/WIRING OPTIONS Consult factory.

DRYWALL KIT: Order Catalog Number: FK92X2. (Request Folio OA30-10).

CHICAGO PLENUM: SUFFIX: CP.

SPECIFICATIONS

MATERIALS: Chassis parts are die formed code gauge cold rolled steel.

Housing side rails hemmed over and housing ends turned-in for safe handling.

Parabolic Blades–pre-anodized specular aluminum (Coilzak® or equal).

Lens–High quality glare control lens with square based male conical prisms.

FINISH: Chassis exterior–black baked polyester enamel. Cavity–white

baked polyester enamel minimum 86% reflectance. Phosphate undercoating.

ELECTRICAL: Thermally protected class “P” ballast C.B.M. approved, non PCB.

If K.O. is within 3" of ballast, use wire suitable for at least 90°.

LABELS: I.B.E.W./UL and ULc listed.

PHOTOMETRY MODEL NO. VTS2GPK3FT120X3

coefficients of utilization — zonal cavity method (effective floor cavity reflectance 0.20)

RF 20 20 20

RC 80 50 30

RW 70 50 30 50 30 10 50 30 10

1626059 575554 555453

2585552 525048 504947

3545047 484543 464442

4514642 444139 434038

5484238 403735 393734

6453935 373431 363331

7423632 353129 343129

8393329 322926 312826

9373127 302724 292624

10 35 29 25 28 25 22 27 24 22

visual comfort probability (rated lumens per lamp 3150.)

room size ceiling height ceiling height

W L 8.5 10.0 13.0 16.0 8.5 10.0 13.0 16.0

20 20 94 92 89 81 82 77 76 75

20 30 95 93 92 85 84 78 72 70

20 40 96 93 92 87 86 80 73 69

20 60 96 94 93 85 87 82 76 70

30 20 94 91 89 81 82 79 80 76

30 30 95 92 91 85 86 80 75 71

30 40 95 93 91 85 88 83 76 69

30 60 95 93 93 85 89 84 79 70

30 80 95 94 93 85 89 86 81 70

40 20 94 92 90 81 83 79 80 79

40 30 95 92 92 85 86 80 77 74

40 40 96 93 92 85 99 93 78 72

40 60 96 94 93 85 89 85 80 73

40 80 95 94 93 85 90 86 82 73

40 100 95 94 94 85 90 87 84 73

60 30 95 93 92 85 86 80 77 74

60 40 96 93 92 86 88 83 78 72

60 60 96 94 93 86 90 85 81 74

60 80 95 94 93 86 90 87 83 75

60 100 95 94 94 86 90 88 85 75

100 40 96 93 92 87 88 83 78 73

100 60 96 94 92 87 90 86 81 74

100 80 95 94 93 87 91 88 84 75

100 100 95 94 94 87 91 89 85 76

room cavity ratio

luminaries lengthwise

luminaries crosswise

ORDERING INFORMATION

Explanation of Catalog Number. Example: VTS2GPK3FT120X3GLR

Other dimming options. Consult factory.

LER = FP - 42.9 WATTS - 102.6 BF - 0.85

Comparative yearly lighting energy cost per 1000 lumens = $5.59

VT:

Video

Teleconference

Luminaire

BODY STYLE:

S=Static

FIXTURE

WIDTH

CEILING TYPE:

G= Grid

(lay-in T bar)

T= Slot Grid

INTEGRATED

SHIELDING

LAMP

QUANTITY

2=2 Lamp

3=3 Lamp LAMP TYPE/

FIXTURE

LENGTH:

6U=6"U Lamp T8

(2 Lamp Only)

FT=

Twin Tube T5

(Nominal 24")

VOLTAGE:

120 or 277 OPTIONS:

Add appropriate

suffix to catalog

no, ie: (GLR)

BALLAST TYPE:

<20THD <10THD

1 & 2 Lamp Elec. T8 SO* HI*

1 & 2 Lamp Elec. TT5 SB* IB*

(40 watt)

1-3 Lamp Elec. T8 O3* H3*

1-3 Lamp Elec. TT5 X3* I3*

(40 watt)

LOL T8 Dimming PS –

LOL TT5 Dimming PB –

*Instant Start Standard

Blank=Standard

N=NYC Code

G02032

VTS2GPK3FT120X3
