Lightolier Calculite ProSpec PB3M1675 Bedienungsanleitung

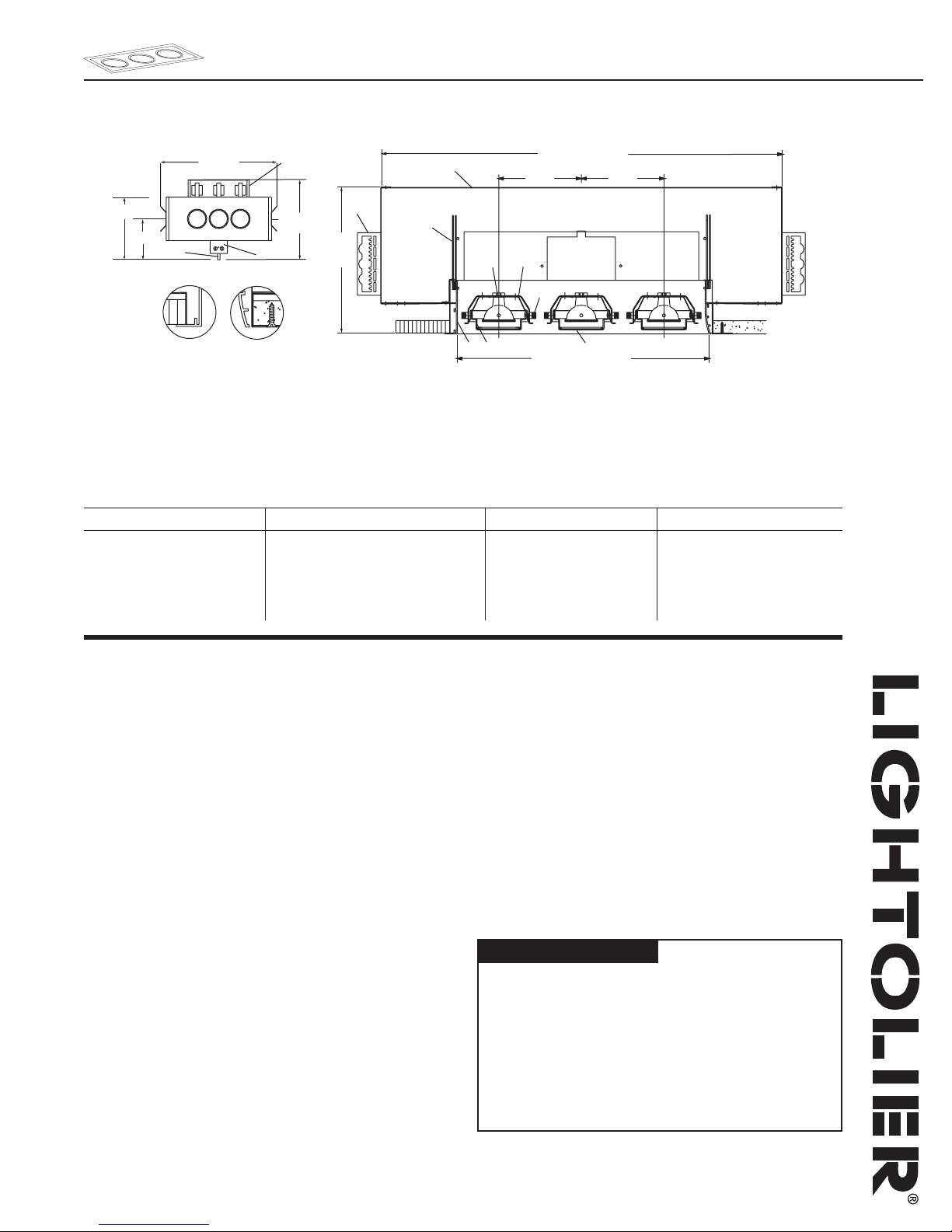

Flanged Trimless

Top View

8 3/4"

Depth

5" OC

24 3/8" L X 10" W

15" L x 5" W Opening

1 3/4"

18 3/8"

27 1/8"

5" OC

9 3/8"

14 3/8"

PB3M167EBL = (Flanged) Black/White

PB3M167EWL = (Flanged) White

PB3M167EBTL = (Trimless) Black

PB3M167EWTL = (Trimless) White

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

Features

1. Aperture Frame: Provides clean support for lamp holders and overlapping

flange or trimless installation. Extruded aluminum. Rigidly welded together

on all corners.

2. Media Cartridge: Allows convenient loading and removal of one accessory.

Easily installed and removed for lamping with a simple twisting motion.

Constructed of die-formed aluminum.

3. Adjustable Ring: Allows 360° horizontal and 45° (on width) and 45° (on

length) vertical adjustment.

4. Tortiontite Spring: For easy installation of aperture frame.

5. Housing: Die-formed 22 ga. steel. Finish: Black

6. Mounting Brackets: Adjustable vertically from outside of housing.

7. Thermal Protector: Meets NEC, UL, and CSA requirements.

8. Lampholder: Steatite for GX/GY 5.3 Bi-Pin lamps. 250°C Teflon®leads.

9. Junction Box: 14 ga. steel, 4” x 3 1/2” x 2" box. Allows inspection from

below.

10. Transformer Housing: Die-formed 18 ga. steel.

11. Lamp and Accessory Support: .032" steel, flared for easy entry of

Media Cartridge.

12. Lamp Guard: Heat resistant clear glass. Lamp manufacturers’ requirement

Electrical

Electronic Transformer: Individual for each lamp. Offers reliable operation

and is accessible from below for servicing. 12V Secondary 75VA ea. lamps.

Dimming Controls: Use only dimmers specifically designed for use with

electronic transformers. Low Voltage fixtures may produce audible sound when

used with dimmers, which may be objectionable in acoustically critical areas.

UL /cUL listed for through branch circuit wiring with maximum of

(8) no. 12 AWG, 90°C.

Ceiling Cutout: 16 1/16" L x 6 3/16" W

Ordering Information: MR 16 Series B

Cat. No. Lamp Ceiling Trim Aperture Finish

PB3M167EBL (3) 75W MR 16* Overlap Black with White Flange

PB3M167EWL (3) 75W MR 16* Overlap White with White Flange

PB3M167EBTL (3) 75W MR 16* Trimless Black

PB3M167EWTL (3) 75W MR 16* Trimless White

Add a “1” for 120v or “2” for 277v at the * 50W max. lamping when using accessories.

end of the catalog number for voltage

Finish

All painted finishes are powder coated baked enamel.

Options and Accessories

Accessories: 2 1/2” dia. series, filters, lenses, screens, and louver. (1)

accessory maximum, including lamp cover glass. Lamp cover glass may be

replaced with solid glass accessory

Label

UL/cUL (Suitable for Damp Locations), I.B.E.W.

Teflon®is a registered trademark of E.I. DuPont.

Calculite®ProSpec®Linear Downlight PB3M1675

Page 1 of 2 3 Light MR 16 Series B

Add a “1” for 120v or “2” for 277v at the end of the catalog number for voltage

Lightolier a Genlyte company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Data are based on bare lamp

photometrics. Dashed lines in beam

spreads indicate narrow axes of oval

shaped beams. FC is initial footcandles at

center of beam.

L and Ware to the point that the

candlepower drops 50% of maximum.

Calculite®ProSpec®Linear Downlight PB3M1675

Page 2 of 2 3 Light MR 16 Series B

Lightolier a Genlyte company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Job Information Type:

Lighting Performance Data
