Lytecaster®Recessed Downlighting 2002P1

Page 1 of 133/4" Aperture Incandescent Standard Frame-In Kit

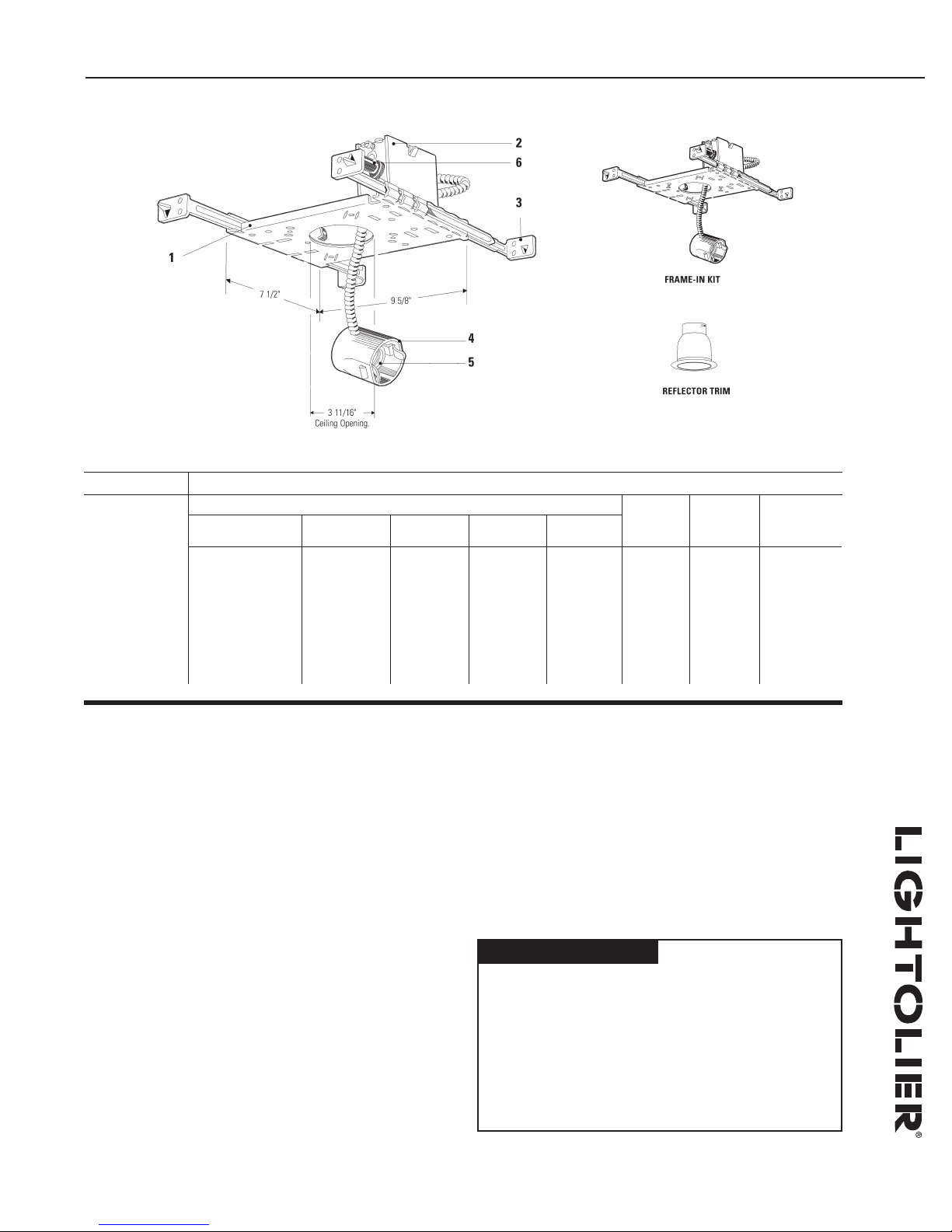

Features

1. Mounting Frame: .036" (#20 ga.) galvanized steel. Accommodates all

ceilings up to 1" thick. Push-in/twist-out rotoclips hold reflector flush to

ceiling.

2. Junction Box: 4" x 3 1/2”x 2", .063" (#14 ga.) galvanized steel. U.L. listed for

maximum of 8 No. 12 ga. 75° C through branch circuit conductors (60° C for

end of run). Integral cable clamps permit attachment of nonmetallic Romex®

or armored cable without need of additional connectors.

3. Mounting Bars: .059" (#16 ga.) galvanized steel. 13" long bars extend to 27"

with integral nailing tabs. Attaches to wood joist without need of

accessories.

4. Socket Housing: Aluminum or galvanized steel.

5. Socket: Porcelain medium base; nickel plated screw shell. Pre-wired with

#18 ga. SF1 leads to junction box.

6. Thermal Protector: Meets NEC and UL requirements. Insulation must be

kept 3" away from fixture sides and wiring compartments and must not be

placed above fixture in a manner which will entrap heat.

Options & Accessories

Mounting Bars: 1964 - 20" set of (2)

T-Bar Ceiling Clips: 1956 - set of (4)

Plaster Ceiling Ring: 1960 - 7/8" depth for wet plaster ceilings.

277V Remote Step-Down

Transformer: 7997 - 277V down to 120V, 300W maximum load

Extra Thick Ceiling Ring (2" max): 1967C

Labels

UL (Suitable for Damp Locations), I.B.E.W.

Complete Fixture consists of Reflector Trim & Frame-In Kit. Select each separately.

Frame-In KitReflector Trims — See Individual Reflector Trim Specification Sheets

Open Downlight

Specular Cone Satin Baffles Pinhole Wall Open WetEnclosed

Reflector Cone Washer Location Wet Location

2002P1 20452012 200820052011 20952084CD 2090

20462012NM 2010NM2005BNM 20962084WH

2046CD2013 20102005NM 2096CD

2013NM 2008NM2005WH

2013BKNM

2013BK

2013CD

2013CDNM

2013WH

Romex®is a registered trademark of General Cable Industies Inc.

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

Lightolier a Genlyte company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

© 2012 Genlyte Group LLC • H0212
