Features

1. Track attachment fitting: die-cast aluminum with separate mechanical and

electrical functions. Fitting cannot be engaged or disengaged while fixture is

powered. Polarity is not a concern with ProSpec track because of its sym-

metrical positioning of circuits within the track, adapters are reversed to

access one or the other circuits.

2. Stem: 5/8" O.D. .048" wall, stainless steel.

3. Locking feature: die-cast aluminum mechanism permits the locking of the

horizontal and vertical positions simultaneously by clamping jaws. When the

stainless steel braking lever is released, the horizontal and vertical functions

remain fully tensioned to hold aiming positions. Adjustment range is: hori-

zontal 0-340°; vertical 0° (NADIR) - 90°.

4. Housing: 20 ga. (.036") steel, hemmed front edge for stiffness, prevents

chipping and enhances appearance.

5. Lampholder: double contact bayonet base with 250°C #18 gauge Teflon®

leads.

6. Lamp and accessory support: .029 steel, flared for easy entry cartridge

matte black finish.

7. Lens retaining ring: .075" O.D. spring steel.

8. Accessory cartridge: .09 wall extruded aluminum, installs and removes

with a twist and lock action. Holds three accessories max. and cross blade

baffle.

9. Cross blade baffle: .070" extruded aluminum (removable).

10. Lever: energizes fixture electrically by 90° rotation.

11. Clamping tabs: expands or releases gripper springs from track ledge; grip-

per springs hold attachment fitting securely within track.

12. Transformer: 50W magnetic transformer, 120V primary, 12V secondary,

maximum.

13. Lamp Cover Glass: .09 tempered borosilicate.

Finish

All painted finishes are powder coated baked enamel.

Ordering Information

Catalog No. Finishes Mountings Lamps

26070MWH Matte White ProSpec™Track System AR70 50W Max.

26070MBK Matte Black

Options & Accessories

Accessories: 2 1/2" dia. series. Filters, lenses, screens and louvers. (3)

Accessories maximum, including lamp cover glass. Lamp cover glass may be

replaced with solid glass accessory.

Electrical

Electrical components: Polycarbonate moldings.

Contacts: Heavy gauge 1/2 hard brass developed for Lightolier's "U" shaped

track conductors.

Dimming

Dimming controls: use only dimmers specifically designed for use with magnetic

transformers, like Lightolier Onset®, Sunrise®series LV or VA dimmers, or any

Lightolier Controls dimming system. Low voltage fixtures may produce audible

sound when used with dimmers, which may be objectionable in acoustically

critical areas.

Labels

UL; I.B.E.W.

Teflon®is a registered trademark of E.I. Dupont.

ProSpec™Track Lighting 26070

Page 1 of 2 Low Voltage Cylinder AR70

ProSpec™Track Lighting 26070

Page 2 of 2 Low Voltage Cylinder AR70

Lightolier a Genlyte Thomas Company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

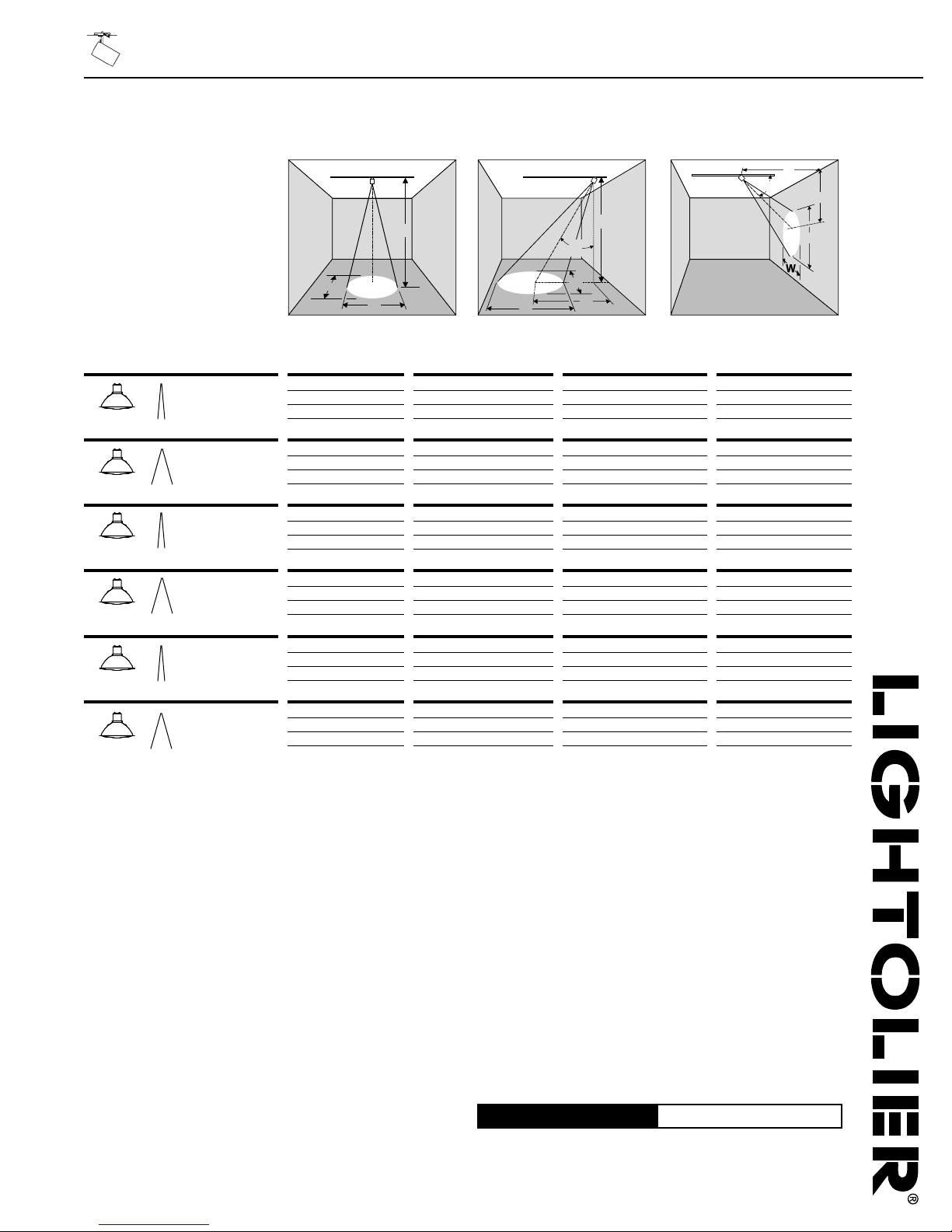

Lighting Data

LBeam length

WBeam width

CDistance to center of beam

DDistance

AAiming angle

FC Footcandles

Land W are the outer points where

the candlepower drops to 50% of the

maximum. FC are the initial

footcandles at the center of the beam.

FC L

Aiming Angle: 0°30°45°or 60°Horizontal 30°45°or 60°Vertical

2000 2000

50W AR70

FL (T-H) 30°

15000 2000

50W AR70

SP (T-H) 10°

1000 2000

20W AR70

FL (T-H) 30°

7000 2000

20W AR70

SP (T-H) 10°

LAMP 0°AIMING ANGLE A=30°AIMING ANGLE A=45°AIMING ANGLE A=60°AIMING ANGLE

7' 143 1.2' 1.2'

10' 70 1.7' 1.7'

13' 41 2.3' 2.3'

16' 27 2.8' 2.8'

DFCL W D C FCL W D CFCL W D CFCL W

Beam Spread

50% Max CP

Beam Center

C.P. Candelas

Rated

Life-Hrs

6' 3.5' 126 1.4' 1.2'

9' 5.2' 56 2.1' 1.8'

12' 6.9' 32 2.8' 2.4'

15' 8.7' 20 3.5' 3.0'

4' 4.0' 155 1.4' 1.0'

6' 6.0' 69 2.1' 1.5'

8' 8.0' 39 2.8' 2.0'

10' 10.0' 25 3.5' 2.5'

2' 3.5' 219 1.4' 0.7'

3' 5.2' 97 2.1' 1.0'

4' 6.9' 55 2.9' 1.4'

5' 8.7' 35 3.6' 1.7'

3' 111 1.6' 1.6'

5' 40 2.7' 2.7'

7' 20 3.8' 3.8'

9' 12 4.8' 4.8'

3' 1.7' 72 2.2' 1.9'

5' 2.9' 26 3.7' 3.1'

7' 4.0' 13 5.1' 4.3'

9' 5.2' 8 6.6' 5.6'

2' 2.0' 88 2.3' 1.5'

3' 3.0' 39 3.5' 2.3'

4' 4.0' 22 4.6' 3.0'

5' 5.0' 14 5.8' 3.8'

1' 1.7' 125 2.7' 1.1'

2' 3.5 31 5.5' 2.1'

3' 5.2' 14 8.2' 3.2'

4' 6.9' 8 10.9' 4.3'

8' 234 1.4' 1.4'

12' 104 2.1' 2.1'

16' 59 2.8' 2.8'

20' 38 3.5' 3.5'

7' 4.0' 199 1.6' 1.4'

10' 5.8' 97 2.3' 2.0'

13' 7.5' 58 3.0' 2.6'

16' 9.2' 38 3.7' 3.2

5' 5.0' 212 1.8' 1.2'

7' 7.0' 108 2.5' 1.7'

9' 9.0' 65 3.2' 2.2'

11' 11.0' 44 3.9' 2.7'

3' 5.2' 208 2.1' 1.0'

4' 6.9' 117 2.9' 1.4'

5' 8.7' 75 3.6' 1.7'

6' 10.4' 52 4.3' 2.1'

4' 125 2.1' 2.1'

6' 56 3.2' 3.2'

8' 31 4.3' 4.3'

10' 20 5.4' 5.4'

3' 1.7' 144 2.2' 1.9'

5' 2.9' 52 3.7' 3.1'

7' 4.0' 27 5.1' 4.3'

9' 5.2' 16 6.6' 5.6'

3' 3.0' 79 3.5' 2.3'

4' 4.0' 44 4.6' 3.0'

5' 5.0' 28 5.8' 3.8'

6' 6.0' 20 6.9' 4.5'

1' 1.7' 250 2.7' 1.1'

2' 3.5 63 5.5' 2.1'

3' 5.2' 28 8.2' 3.2'

4' 6.9' 16 10.9' 4.3'

13500 2000

50W AR70

SP GOLD (T-H) 10°

8' 211 1.4' 1.4'

12' 94 2.1' 2.1'

16' 53 2.8' 2.8'

20' 34 3.5' 3.5'

1800 2000

50W AR70

FL GOLD (T-H) 30°

4' 113 2.1' 2.1'

6' 50 3.2' 3.2'

8' 28 4.3' 4.3'

10' 18 5.4' 5.4'

3' 1.7' 130 2.2' 1.9'

5' 2.9' 47 3.7' 3.1'

7' 4.0' 25 5.1' 4.3'

9' 5.2' 18 6.6' 5.6'

3' 3.0' 71 3.5' 2.3'

4' 4.0' 40 4.6' 3.0'

5' 5.0' 25 5.8' 3.8'

6' 6.0' 18 6.9' 4.5'

1' 1.7' 225 2.7' 1.1'

2' 3.5 56 5.5' 2.1'

3' 5.2' 25 8.2' 3.2'

4' 6.9' 14 10.9' 4.3'

7' 4.0' 179 1.6' 1.4'

10' 5.8' 88 2.3' 2.0'

13' 7.5' 52 3.0' 2.6'

16' 9.2' 34 3.7' 3.2'

5' 5.0' 191 1.8' 1.2'

7' 7.0' 97 2.5' 1.7'

9' 9.0' 59 3.2' 2.2'

11' 11.0' 39 3.9' 2.7'

3' 5.2' 188 2.1' 1.0'

4' 6.9' 105 2.9' 1.4'

5' 8.7' 68 3.6' 1.7'

6' 10.4' 47 4.3' 2.1'
