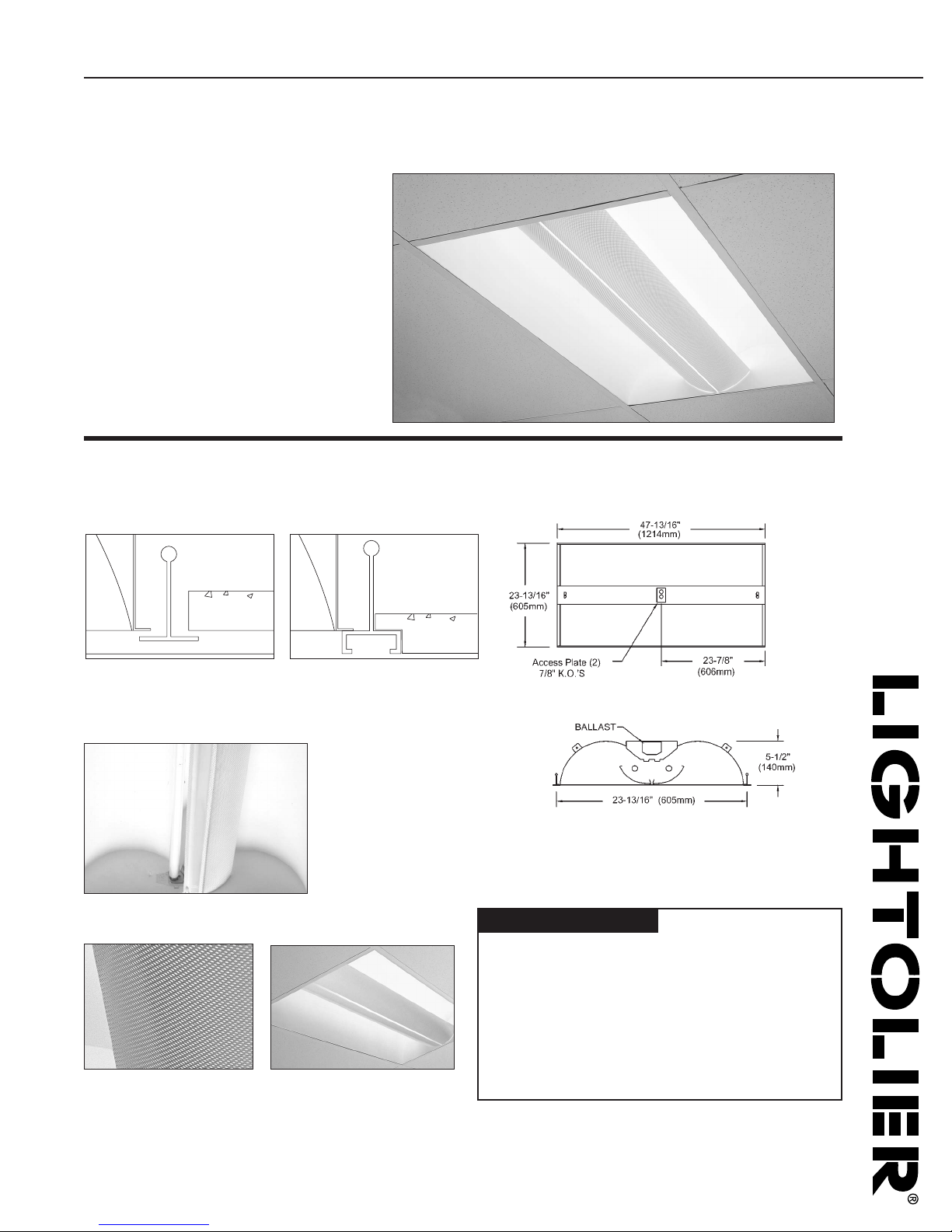

ALTER SOFT LIGHTS QVS2GPFOS232

Page 1 of 2 2’ X 4’ RECESSED DIRECT/INDIRECT FLUORESCENT 2 LAMP, T8,

5 1/2” DEEP MICROPERFORATED MESH LAMP SHIELD

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Volts/Ballast:

Lightolier a Genlyte Thomas Company www.lightolier.com

Technical Information: (978) 657-7600 • Fax (978) 658-0595

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

A0902 Section 5 / Folio L30-10

Features

•Efficiency 56.9%.

•Swing down microperforated lamp shield for easy

relamping and maintenance.

•Alter soft white film on inside of mesh conceals lamp

image providing balance between reflected and

direct light.

•Fully recessed luminaire and lamp compartment.

•95% Reflective Alter soft white paint finish.

•Specular interior reflector.

•One piece body for easy installation.

•Easy access to ballast through lamp compartment.

•Fits standard T-Grid ceilings.

•Optional acrylic drop-down visual element.

Ordering Information Explanation of Catalog Number Example: QVS2GPFOS232120SO

QUALITY

VISUAL

STATIC

Recessed direct

indirect soft

light

optical system FIXTURE

WIDTH:

2’

CEILING TYPE:

Standard

exposed

T-grid ceilings

LAMP SHIELD:

PF = Microperforated

SD = Solid

CLEAR POLISHED

ACRYLIC DROP

DOWN VISUAL

ELEMENT:

OS =Open slot (no acrylic)

OP = One Piece (no center slot)

GC = Clear acrylic

GG = Clear acrylic / Green projected color face

GB = Clear acrylic / Blue projected color face

GR = Clear acrylic / Red projected color face

LAMP

QUANTITY

LAMP/FIXTURE

LENGTH:

(NOMINAL 24”)

32 = 32W T8

VOLTAGE:

120V

277V

347V

BALLAST:

OC =Magnetic T8

SO =Electronic T8 instant start

SR =Electronic T8 rapid start

PS =PowerSpec

HDF Dimming T8 (Not available in 347V.)

OPTIONS:

R =Radio Interference Filter

O = Emergency Lighting System

(for Canada)

N= Emergency Lighting System

(for U.S.)

SPECIFICATIONS

MATERIALS: One piece chassis constructed from die formed 20 gauge cold

rolled steel. Reflectors - 95% reflectance baked white acrylic matte paint fin-

ish. Specular interior reflector. Soft white acrylic film on inside of lamp shield

conceals lamp image.

FINISH: Chassis exterior - phosphate undercoating, baked white acrylic matte

high reflectance paint finish.

ELECTRICAL: Rapid start HPF, thermally protected class “P” ballast. If K.Os are

within 3” of ballast use wire suitable for at least 90C.

Photometry

QVS 2 G 2 32

ALTER SOFT LIGHTS QVS2GPFOS232

Page 2 of 2 2’ X 4’ RECESSED DIRECT/INDIRECT FLUORESCENT 2 LAMP, T8,

5 1/2” DEEP MICROPERFORATED MESH LAMP SHIELD

Lightolier a Genlyte Thomas Company www.lightolier.com

Technical Information: (978) 657-7600 • Fax (978) 658-0595

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

A0902 Section 5 / Folio L30-10

Job Information Type:

LABELS: Listed by
