Spectral Architectural Lighting SL200A

Page 1 of 2 Circle in Square Pendant Round Forms 4-40W T5 Circular

Features

1. Form: The circle in square form emphasizes the lamp image on the glass.

There are 4 identical square glass assemblies held in place by 4 steel ballast

housings. The assembly is suspended by 4 steel cables to a square canopy

assembly

2. Optics: Direct / indirect light distribution. Lamp image seen on glass to cre-

ate the circle in square lamp optic. Etched glass supported by an aluminum

turning post and secured by a heavy aluminum plate.

3. Hardware: Exposed hardware adds high design element to the design form.

4. Suspension: Four 3/64” (1.2mm) steel cables with glider adjusting hard-

ware for leveling.

5. Lamp Screen: Round perforated steel around the lamps. (Medium Grey)

6. Ballast housing: Steel ballast housing contains ballast socket and glass

support.

7. Glass: Glass held in place by pins in ballast housing.

Mounting

Canopy: Single mount canopy. Must be held in place by additional hardware

(supplied). Additional structure support required to support heavy weight

luminaire.

Luminaire Weight: 48 lbs.

Adjustable Steel Cable: Four steel cable adjust for height level.

Mounting Height: Luminaire comes standard with 6.5 feet (2 meters) of mount-

ing steel cables and electrical wires.

Electrical

Ballast: Electronic Program Rapid Start T5 circular lamp ballasts. Universal volt-

age “U” ballast automatically detect 120 volts or 277 volts operation.

Lampholder: 2GX13 base, 4 Pin.

Cord: Lightolier cords 300 volts for 120/277 volts operation or 600 volts for 120/

277/347 volts operation. 18AWG AWM leads, 10 Amps maximum. Black color.

Options and Accessories

For wall and/or ceiling units, see Circle in Square Surface series SL201.

Dimming Ballast: Consult your Lightolier representative for more information.

Finish

All painted parts are with powder coat paint process.

Labels

UL “c/us” Listed. Suitable for damp locations.

Ordering Guide (complete unit only)

Cat. No. Lamp (circular) Volt Finish

SL200APZU 4-40W CT5 120/277V Textured Black Paint & Etched Glass

78"

(2000mm)

2 5/8"

(66.7mm)

33 5/8"

(854mm)

Lightolier a Genlyte company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Job Information Type:

Spectral Architectural Lighting SL200A

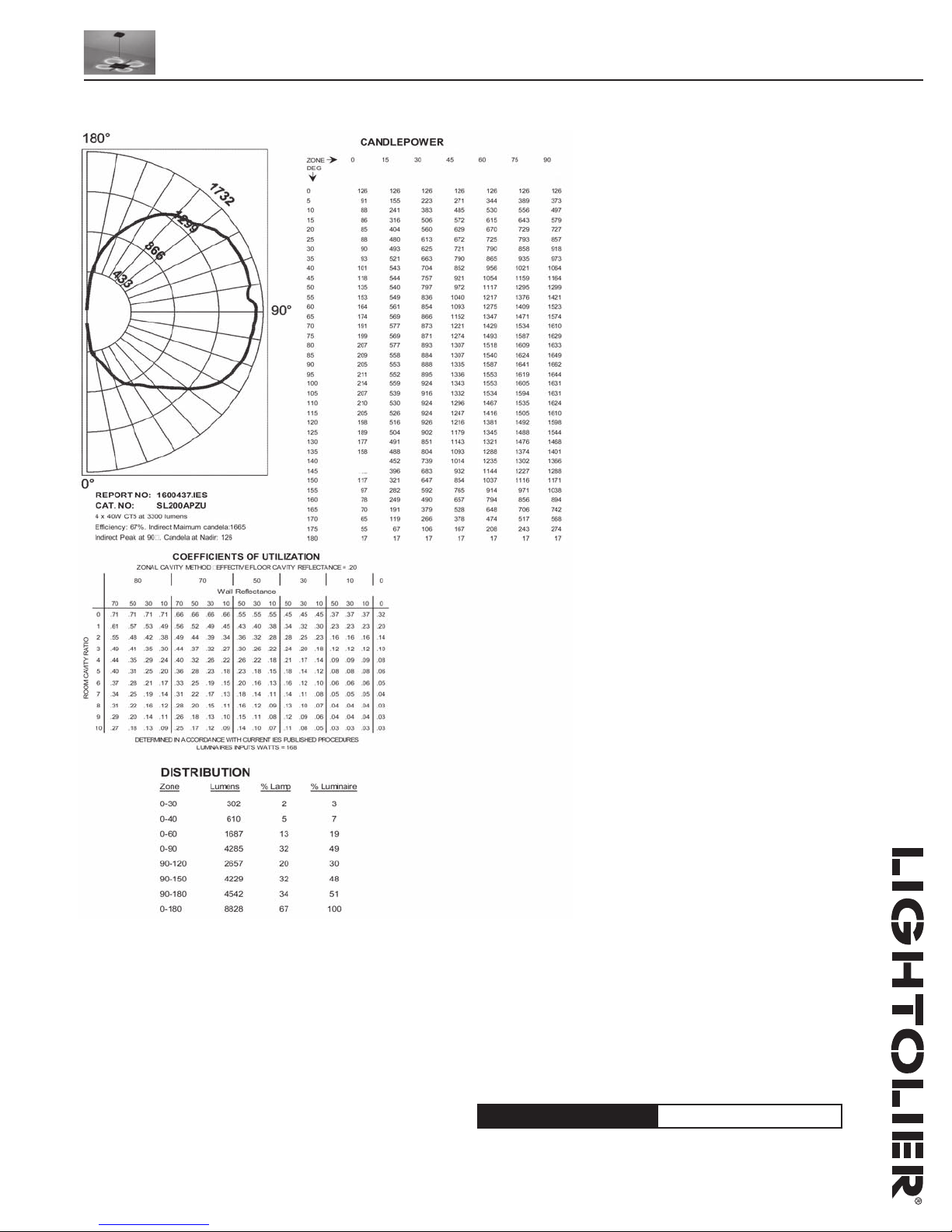

Page 2 of 2 Circle in Square Pendant Round Forms 4-40W T5 Circular
