Lightolier Lightolier SORA-5 Bedienungsanleitung

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

"JSQPSU3PBE'BMM3JWFS."tt'BY

We reserve the right to change details of design, materials and finish.

XXXMJHIUPMJFSDPN½1IJMJQT(SPVQt

Lighting Systems SORA-5

1BHFPG -JHIU51FS'PPU/PNJOBM4FDUJPO

#

Ordering Information

S 2 4

Body

Family Lamps Wattage Style Length Finish

2= 2 Lamps Per 28 = 28 Watt

54 = 54 Watt with Wings

CW= Suspended 4= 4 Foot

Nominal

SC = Platinum

WH = White

Complete Ordering Instructions below.

4-Foot Section

Features

1. Housing: Aluminumextruded upto 4-foot nominal lengths.

2. Lamp: T5 linear fluorescent, 28 or 54 watt. (by others).

3. Reflector: Die-formed high reflectance semi-specular aluminum.

4. Lens: Translucent matte white acrylic, 0.20” (0.51cm) thick.

Electrical

Ballast is electronic, low harmonic distortion, high power and ballast factor, uni-

versal voltage with two conductors and a ground. Mark X dimming (no extra control

wire required) is available. EM battery pack not available. Modules can be

continuously wired row mounted, but cannot exceed amperage limits of electrical

supply cords. Cable suspended fixtures have 18/3 SJT cord, stemproducts have

three 18 gauge wires provided in stem, and both versions must be hard wired.

Factory installed ballast disconnect allows the ballast to be disconnected fromand

reconnected to incoming power under load without turning the entire circuit off.

Mounting

Cable mounting utilize 1/16” (0.16cm) diameter SSTL aircraft cable, and are

continuously adjustable via a cable gripper. Stemmountings utilize 1/8 IP stems

(three wires only) with ball swivel mounting at ceiling line. Stems cannot be cut in

field and should be ordered to required length. 4-1/2” (11.43cm) diameter canopies

are used on both styles. 12-foot fixtures may have up to 1/4” (0.64) deflection in

luminaire housings.

Finish

Powder coated Steelcase Platinumor White baked enamel.

Customcolors available, consult factory.

Labels

UL (1598), cUL and I.B.E.W.

Continuos Rows:

1. Determine run length.

2. Order the appropriate number of Modules to complete the run.

3. Order one End Set per run.

4. Order one Intermediate suspension per Module minus one per run.

5. For runs that exceed amperage limits, order the appropriate number of

Intermediate suspension Power (for cable suspended units only).

Ordering Instructions

Individual fixtures:

1. Order number of Modules required.

2. Order one End Set per module.

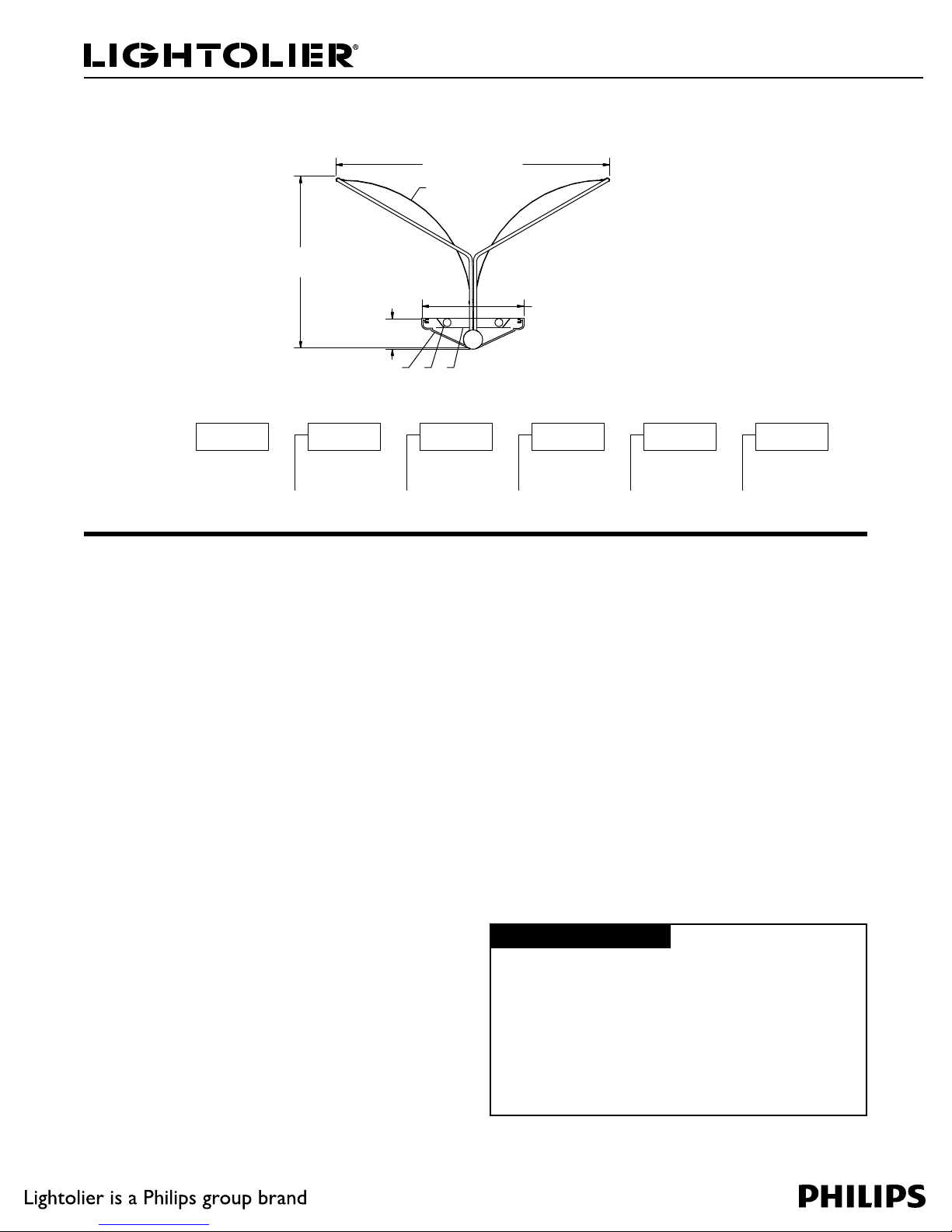

2.38”

(6.05cm)

13.28”

(33.73cm)

7.96” (20.22cm)

1 2 3

21.22” (53.90cm)

Job Information Type:

"JSQPSU3PBE'BMM3JWFS."tt'BY

We reserve the right to change details of design, materials and finish.

XXXMJHIUPMJFSDPN½1IJMJQT(SPVQt #

Lighting Systems SORA-5

1BHFPG -JHIU51FS'PPU/PNJOBM4FDUJPO

80% 70% 50%

70 50 30 70 50 30 50 30 10

0 808080 7171 71 545454

1 716663 6259 56 444240

2 635752 4550 46 383532

3 574943 5044 38 332926

4 524337 4638 33 292521

5 483832 4234 28 252118

6 443427 3830 24 231815

7 403024 3527 21 201613

8 372721 3324 19 181412

9 342519 3022 17 171310

10 32 23 17 28 20 15 15 12 9

CANDLEPOWER

ZONE 0 22 45 67 90

DEG. CANDELAS

180 563 563 563 563 563

175 564 564 563 561 560

165 548 549 552 554 553

155 537 538 527 511 506

145 554 546 503 448 442

135 556 535 480 1264 1299

125 546 519 1087 1754 1968

115 515 701 1546 1991 2106

105 438 852 1488 1770 1851

95 156 645 873 975 986

90 2 221 406 484 516

85 23 216 402 495 525

75 73 198 412 521 552

65 107 183 350 470 511

55 134 172 288 384 421

45 156 179 245 311 338

35 182 193 222 261 279

25 204 209 223 238 243

15 216 218 222 227 229

5 222 222 222 222 221

0 221 221 221 221 221

Performance

COEFFICIENTS OF UTILIZATION

% EFFECTIVE CEILING CAVITY REFLECTANCE

REPORT NO.: ITL54090

LAMPS: 2-F54T5

LUMENS: 5000

EFFICIENCY: 78.9%

CAT NO.: S254CW4WH

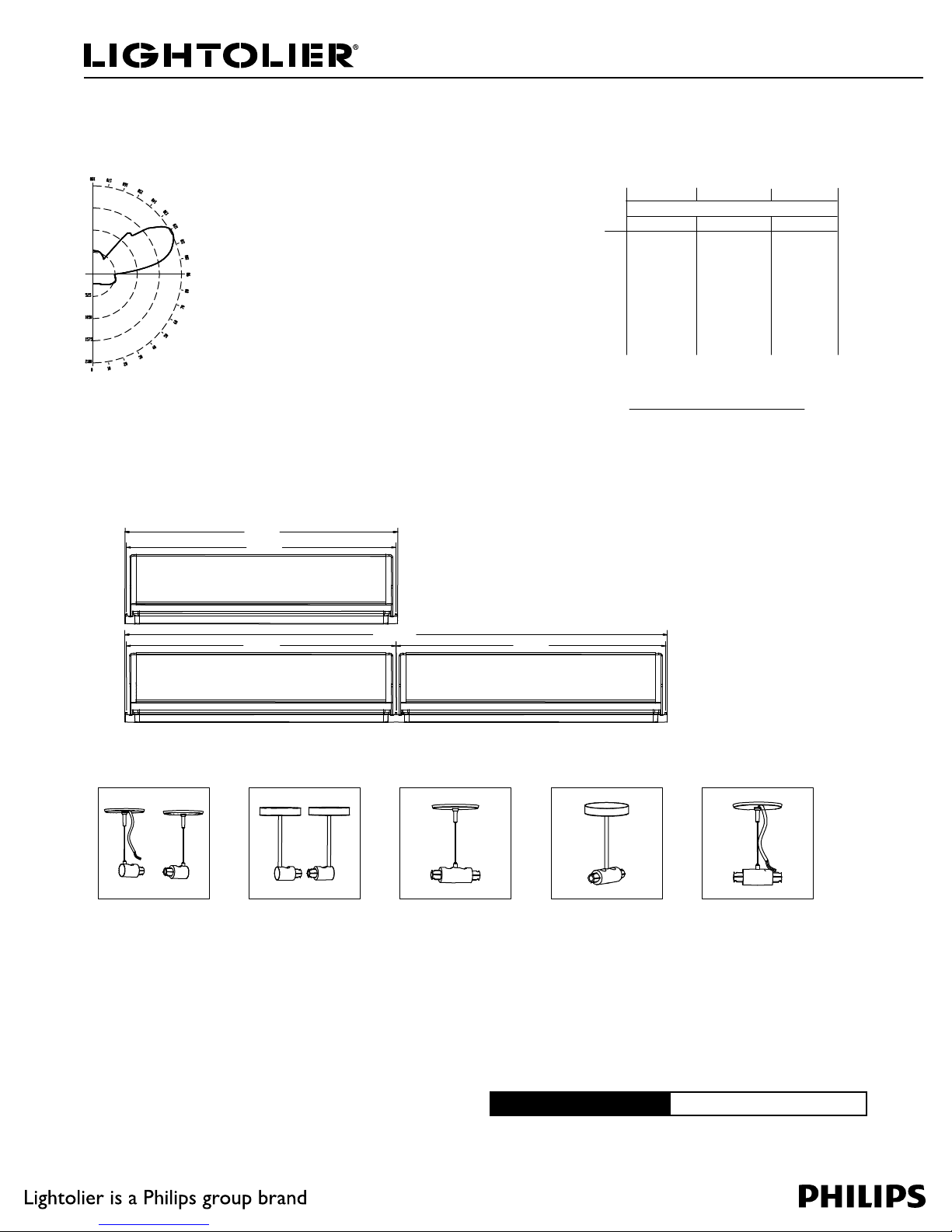

CANDLEPOWER CURVE

WALL REFLECTANCE

Fixture Lengths & Mounting Locations

51-5/8”

Mounting Accessories

Power Feed Cable End Set

Distance is fromthe ceiling

line to the top of the lumi-

naire housing.

36” Platinum: SECW36SC

36” White: SECW36WH

Stem End Set

Distance is fromthe ceiling

line to the top of the lumi-

naire housing.

30” Platinum: SESW3

30” White: SESW3

Intermediate Cable

Distance is fromthe ceiling

line to the top of the lumi-

naire housing.

36” Platinum:SICW36SC

36” White: SICW36WH

Notes:

1. Suspended wing luminaires can be continuously row mounted longer

than 8’ (243.84cm) (but all fixtures must be 4-foot nominal units).

2. The electrical capacity of power cords cannot be exceeded.

3. Non-wing luminaires can be added to the continuous rows if desired

Consult factory for details.

4. 30” (76.20cm) is the minimumrecommended mounting distance

when designing with Wing luminaires.

Intermediate Stem

Distance is fromthe ceiling

line to the top of the lumi-

naire housing.

30” Platinum: SISW3

30” White: SISW3

Intermediate Cable/Cord

Distance is fromthe ceiling

line to the top of the lumi-

naire housing.

36” Platinum: SIPW36SC

36” White: SIPW36WH

4-foot

8-foot

20% FLOOR CAVITY REFLECTANCE

DISTRIBUTION

Zone Lumens % Lamp%Luminaire

0-90 1855 18.5 23.5

90-180 6032 60.3 76.5

0-180 7887 78.9 100.0

52-1/4”

51-5/8”

103-3/4” 51-5/8”
