Lightolier LP-7 Bedienungsanleitung

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

"JSQPSU3PBE'BMM3JWFS."tt'BY

We reserve the right to change details of design, materials and finish.

XXXMJHIUPMJFSDPN½1IJMJQT(SPVQt

Lighting Systems LP-7

1BHFPG -JOFBS1FSG-ZUFÜDN'VMM1FSGPSBUFE-JHIU51FS'PPU/PNJOBM4FDUJPO

#

Bottom View

9” (22.86cm)

2.5”

(6.35cm)

98” (248.92cm)

2” (5.08cm) 2” (5.08cm)2” (5.08cm)

Perf

Complete ordering instructions below.

Ordering Information

Individual Fixtures:

1. Order number of MODULES required.

2. Order one POWER FEED END SET per MODULE.

Continuous Rows:

1. Determine run length.

2. Order the appropriate number of MODULES for the complete run.

3. Order one POWER FEED END SET per run.

4. Order one CABLE ASSEMBLY per MODULE minus one per run.

5. For runs that exceed amperage limits, order the appropriate number of SINGLE

Labels

UL, cUL and I.B.E.W.

Finish

Powder coated baked white enamel. Customcolors available, consult factory.

CABLE & CORD FEEDS.

Module Ordering Information

Style Series Type Lamps

2T8 = 2-F32T8

LP 1 C 2T8

Options

4= 4-Foot U= Universal Voltage Blank = No Options

8= 8-Foot

12 = 12-Foot

E= Emergency Pack DS = A-B Switch

D1 = Dimming 120v X4 = 4 Wire for Dimming &

Switched Emergency

D2 = Dimming 277v

Length Ballast

Features

1. Housing: 18 gauge perforated steel with 41% open hole pattern. Holes are

1/16” (0.16cm) diameter on 3/32” (0.24cm) centers. Die-formed steel end cap

with concealed access holes for through wiring. No exposed fasteners or

hardware.

provided by others.

2. Lamping: Two T8 32 watt fluorescent lamps per 4-foot section. Lamps

3. Reflector: Precision die-formed CRS painted high reflectance white.

4. Diffuser: Opal acrylic diffuser.

Electrical

Ballast is universal voltage, <10% THD, .88 ballast factor, instant start. 3 con-

ductor, 18 gauge wire. Color-coded quick connectors allow ease of connection for

joiner modules. For special circuiting consult factory. Cord is 18/3 SJT. Factory

installed ballast disconnect allows the ballast to be disconnected fromand

reconnected to incoming power under load without turning the entire circuit off.

Dimming: 120/277 VAC, 4 wire feed required.

Emergency Battery Pack: 32 watt: 450 lumens @ 90 minutes.

Options

Dual Switching: Order the DS option for separate row switching. DS option

automatically ships with the X4 option included.

Mountings

Cable Suspension (not shown) - 4-1/2” (11.43cm) diameter flat canopy finished

white enamel, 1/16” (0.16cm) diameter stainless steel aircraft cable adjustable up

to 36” (91.44cm) without cutting. Overlap connector to provided 46” (116.84cm) of

perforated and 2” (5.08cm) solid sections contiguously without the presence of

hairline connections (see BottomView drawing above).

4 Wire: Order X4 modules for remainder of the run when using dimming and/or

switched emergency battery pack modules. Also, order the 4 Wire Cord Power Feed

End Sets (LP1EC36X4) when using 4 Wire Modules.

Emergency Circuiting: Special circuiting - consult factory.

Job Information Type:

"JSQPSU3PBE'BMM3JWFS."tt'BY

We reserve the right to change details of design, materials and finish.

XXXMJHIUPMJFSDPN½1IJMJQT(SPVQt #

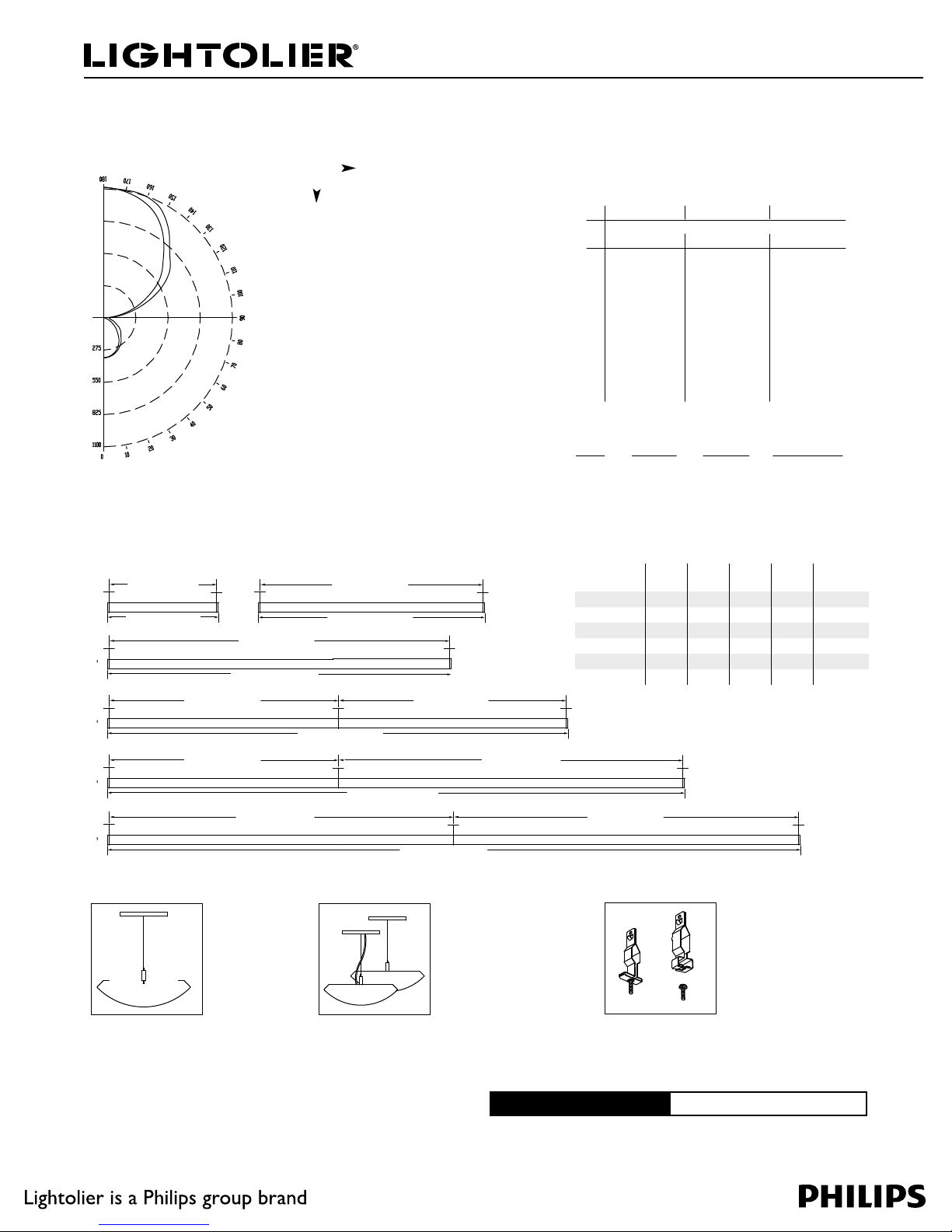

Lighting Systems LP-7

1BHFPG -JOFBS1FSG-ZUFÜDN'VMM1FSGPSBUFE-JHIU51FS'PPU/PNJOBM4FDUJPO

Mounting Accessories

Power Feed End Set

Standard Cable Length is 36” (91.44cm)

Straight Cord: LP1EC36 4 Wire Cord*: LP1EC36X4

Cable/Joiner Assembly

Standard Cable Length is 36” (91.44cm)

Single Cable: LP1C36

Single Cable & Cord: LP1CC36

Single Cable & 4 Wire Cord: LP1CC36X4

Fixture Lengths & Mounting Locations

Ceiling Grid Kit CGK

Includes both Standard 1” (2.54cm)

Tee Bar Clip & Slot Tee Clip

* use for dimming and/or emergency battery packs

4’ 8’

48” (121.92cm)

4’ 2” (127.00cm)

96” (243.84cm)

8’ 2” (248.92cm)

12’

16’

20’

24’

144” (366.62cm)

12’ 2” (370.84cm)

96” (243.84cm)

16’ 2” (492.76cm)

96” (243.84cm)

144” (366.62cm)

96” (243.84cm)

20’ 2” (614.68cm)

144” (366.62cm) 144” (366.62cm)

24’ 2” (736.60cm)

Performance

CANDLEPOWER

ZONE 0 22 45 67 90

DEG.

CANDELAS

180 1113 1113 1113 1113 1113

175 1105 1103 1107 1105 1108

165 1070 1075 1091 1106 1100

155 1004 1018 1054 1071 1072

145 879 912 944 955 959

135 720 762 777 796 800

125 586 607 638 686 660

115 404 421 478 502 504

105 225 251 284 280 284

95 52 82 95 98 104

90 0 22 39 52 60

85 7 23 36 48 56

75 31 39 61 79 88

65 52 65 96 114 124

55 108 119 151 173 175

45 160 167 189 207 215

35 226 230 243 257 264

25 282 283 289 295 298

15 317 318 321 324 321

5 338 338 340 338 339

0 341 341 341 341 341

REPORT NO: LRL 200-10F

CAT NO: LP1C2T84U

LAMPS: 2 F32T8

LUMENS: 2900

EFFICIENCY: 75.4%

COEFFICIENTS OF UTILIZATION

% EFFECTIVE CEILING CAVITY

REFLECTANCE

80 70 50

WALL REFLECTANCE

70 50 30 70 50 30 50 30 10

0757575676767505050

1696563615856444241

2635753555147393634

3575146504541343129

4524539464035302725

5484034423531272421

6443630393227242118

7413226362824221916

8382923332621201714

9352621312319181512

10 32 24 18 28 21 17 16 13 11

20% FLOOR CAVITY REFLECTANCE

ROOM CAVITY RATIO

CANDLEPOWER CURVE

DISTRIBUTION

Zone Lumens % Lamp % Luminaire

0-90 878 15.1 20.1

90-180 3495 60.3 79.9

0-180 4373 75.4 100.0

4-Foot

Module

8-Foot

Module

12-Foot

Module End Set Cable/

Joiner

4-Foot Run 11

8-Foot Run 11

12-Foot Run 11

16-Foot Run 211

20'-Foot Run 111 1

24'-Foot Run 21 1
