ProSpec™ Track Lighting System DRP35

Page 1 of 2 Director® Metal Halide 39W T6

Ordering Information

Catalog No. Finishes Track Mounting Lamp Reflectors

DR2PS35WH White Compatible with all ProSpec T6 Single Ended, G12 Base, Use one of:

DR2PS35BK Black Track Systems Ceramic Metal Halide 39W DRT6RS

DR2PS35SL Silver DRT6RM

DRT6RF

Description

Remote controlled spotlight that can be mounted anywhere along the track and

remotely aimed through the use of a hand-held controller. Can not be dimmed.

Can not turn on/off using hand-held controller.

Features

1. Full remote control of pan and tilt movement to aim at any object below the

luminaire.

2. Positions can be recorded for future use.

3. Continuous movement and sequencing option.

4. Interchangeable Click-On™ reflectors to achieve desired beam spread.

reflectors sold separately.

5. Die-cast aluminum housing.

Electrical

Electronic Ballast

Input Voltage: 120V, 60 Hz

Power Factor: >95%

Input Power: 44W

Max. Input Current: .37A

Total Harmonic Distortion: <10%

ANSI Code: M130

Do not use on a dimming circuit.

Labels

cULus Classified

6 1/2"

(165)

12 13/16"

(325)

5 1/4"

(133)

2 13/32"

(61)

(229)

( ) Denotes dimensions in mm

Requires Laser

Remote Control

for Operation

Lightolier is a Philips group brand

Job Information Type:

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

ProSpec™ Track Lighting System DRP35

Page 2 of 2 Director® Metal Halide 39W T6

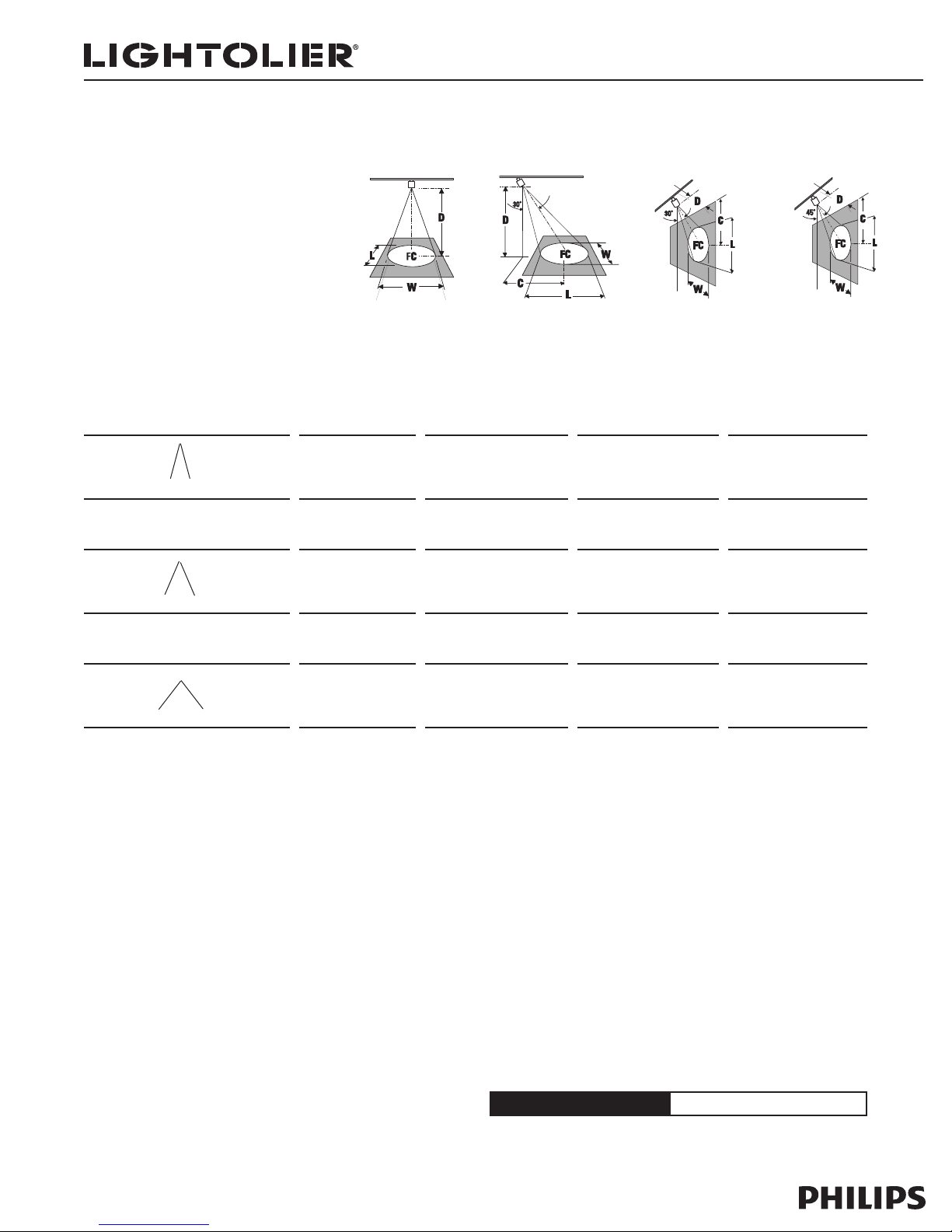

AIMING ANGLE

L Beam Length

W Beam Width

CDistance to center beam

D Distance

A Aiming Angle

FC Footcandles

Land Ware the outer points where the candle power

drops to 50% of the maximum. FC are the initial footcandles

at the center of the beam.

Lamp data shown is typical. Consult lamp manufacturers

for availability and performance.

Lamp Information:

39W T6 Clear Ceramic Metal Halide

Initial Lumens: 3300

CRI: 81

Rated Avg. Life: 9,000 to 12,000 hrs.

0˚ 30˚ Horizontal 30˚ Vertical

45˚ Vertical

8' 174 2.2' 2.2' 8' 4.6' 113 3.0' 2.6' 2' 3.5' 347 2.4' 1.1' 3' 3.0' 436 1.7' 1.2'

10' 111 2.8' 2.8' 10' 5.8' 72 3.8' 3.2' 3' 5.2' 154 3.6' 1.7' 4' 4.0' 245 2.3' 1.6'

12' 77 3.4' 3.4' 12' 6.9' 50 4.5' 3.9' 4' 6.9' 87 4.8' 2.2' 5' 5.0' 157 2.9' 2.0'

14' 57 3.9' 3.9' 14' 8.1' 37 5.3' 4.5' 5' 8.7' 56 6.0' 2.8' 6' 6.0' 109 3.4' 2.4'

AIMING ANGLE: 0˚ Horizontal Aiming 30˚ Horizontal Aiming 30˚ Vertical Aiming 45˚ Vertical Aiming

D FC L W D C FC L W D C FC L W D C FC L W

Beam Spread

(To 50% CBCP) CBCP

D FC L W D C FC L W D C FC L W D C FC L W

Beam Spread

(To 50% CBCP) CBCP

DRT6RS Spot

Reflector

11,108

6' 214 2.6' 2.6' 6' 3.5' 139 3.5' 2.9' 2' 3.5' 241 3.9' 1.7' 3' 3.0' 306 2.7' 1.8'

8' 121 3.4' 3.4' 8' 4.6' 78 4.6' 3.9' 3' 5.2' 107 5.9' 2.6' 4' 4.0' 172 3.6' 2.4'

10' 77 4.3' 4.3' 10' 5.8' 50 5.8' 4.9' 4' 6.9' 60 7.9' 3.4' 5' 5.0' 110 4.5' 3.0'

12' 54 5.1' 5.1' 12' 6.9' 35 6.9' 5.9' 5' 8.7' 39 9.8' 4.3' 6' 6.0' 76 5.3 3.6'

DRT6RM Med

Flood Reflector

7,712

16° x 16°

24° x 24°

D FC L W D C FC L W D C FC L W D C FC L W

Beam Spread

(To 50% CBCP) CBCP

6' 216 3.9' 3.9' 8' 4.6' 79 7.2' 6.0' 2' 3.5' 243 7.6' 2.6' 3' 3.0' 306 4.4' 2.8'

8' 122 5.2' 5.2' 10' 5.8' 51 9.0' 7.5' 3' 5.2' 108 11.4' 3.9' 4' 4.0' 172 5.8' 3.7'

10' 78 6.5' 6.5' 12' 6.9' 35 10.8' 9.0' 4' 6.9' 61 15.2' 5.2' 5' 5.0' 110 7.3' 4.6'

12' 54 7.8' 7.8' 14' 8.1' 26 12.6' 10.5' 5' 8.7' 39 19.0' 6.5' 6' 6.0' 76 8.7' 5.5'

DRT6RF Flood

Reflector

7,779

38° x 38°
