Lilin iMEGAPRO IPG1022ES Bedienungsanleitung
IPG1052ES
IPG1032ES/1032ESX
LB1022E/1022EX
D/N 5MP HD IP Camera
D/N 3MP HD IP Camera
D/N 1080P HD IP Camera
66-LB1022CSM
Quick Installation Guide
IPG1022ES/1022ESX
D/N 1080P HD IP Camera
CAUTION
Do not drop or strike this equipment
Do not install the equipment near any naked flames or heat
sources
Do not expose this unit to rain, moisture, smoke or dust
environment
Do not cover the opening of the cabinet with cloth and plastic
or to install this unit in poor ventilated places. Allow 10cm
between this unit and its surroundings
Do not continue to operate the unit under abnormal conditions
such as detection of smoke, strange smell or no display on
screen while power is turned on
Do not touch the power connection with wet hands
Do not damage the power cord or leave it under pressure
Do not operate this unit near magnet, speaker system, etc., to
avoid unnecessary magnetic interference
onnection cables should be grounded properly
Product Overview
English
Unit: mm
① Lens Mount ap
② Focal Length Adjustment Ring and Locking Screw
③ Microphone
④ Light Sensor
⑤ Auto Iris onnector (4-Pin Socket)
⑥ Power LED
⑦ Live Video BN Jack ( R A Jack for 5MP Model )
⑧ Reset Key
⑨ RJ-45 Network onnector and Indicator LEDs
Green(LINK): Network connection. This LED lit.
Orange(A T): Data communications. This LED flashes.
(This network camera support PoE)
⑩ Audio Input 3.5mm Phone Jack
⑪ Audio Output 3.5mm Phone Jack
⑫ D 12V Power Input Jack (D 12V ±10 %)
⑬ SD ard Slot
⑭ Alarm In/Out, Extin & RS-485 Terminal
●Extin: IR cut removable external control input.
English
Installation

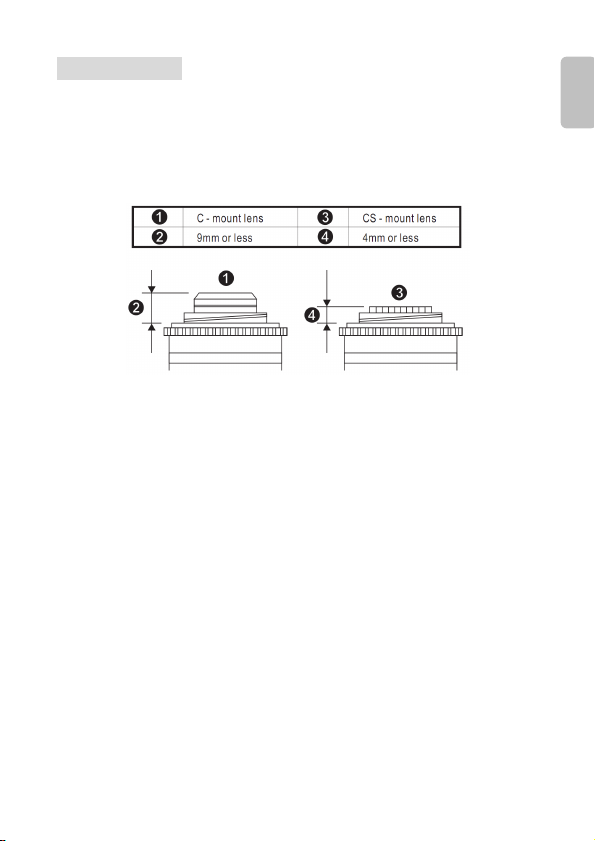

●SUITABLE LENSES
Lenses used must be either or S mount type. The protrusion
behind the mounting surface must fit within the following
requirements:
●FITTING THE LENS
1. Remove the lens mount cap.
2. Screw in the mount ring until it is secured. (When using a S
mount lens, skip this step.)
3. Screw in the lens until it is secure.
4. Insert the lens plug into the AUTO IRIS connector. (when fitting
a manual iris lens, skip this step.)
5. Adjust the focal length by turning the focal length adjustment
ring.
(Use hexagon screw driver to loose or tighten the screw.)
English
CAUTION
Keep the lens mount cap on the camera when not attaching to a
lens.
●FITTING THE CAMERA
1. The mounting hole is on the top or bottom of the camera.
2. Tighten the screw to the mounting hole. Please refer to the
following diagram.
English
System Architectures
For connecting HD IP cameras to the network, please follow one of
the system architectures:
(1). Use a D 12V power adapter and a network switch to connect to
the network.
(2). Use a PoE network switch to connect to the network.
(3). Use a PoE power injector and a network switch to connect to
the network.
English
Emergency Factory Default
To restore factory default settings by hardware, please follow these
steps:
1. Hold “RESET Key” for 10 seconds, then release.
2. After about 40 seconds, the network LED light should turn off,
and the back on again.
3. This camera has completed the factory default settings, and can
then reboot.
4. Search for the IP device using the IPScan software.
5. Start the IP device via Internet browser.
6. Enter the default username “admin” and password “pass” to
operate.
NOTE: For user convenience, restoring the factory default settings
will revert to the default IP address 192.168.0.200.
Before Accessing IP Cameras
Before accessing the IP camera, make sure that the camera’s RJ-45
network, audio, and power cables are properly connected. To set the
IP address, consult your network administrator for an available IP
address. The default IP address for each IP camera is 192.168.0.200.
Users can use the default IP address for verifying the camera’s
network connection.
Software Requirements
Merit LILIN Universal ActiveX software components are required for
web interface display of JPEG or H.264 Full HD video. When you
login to the IP camera by Internet Explorer, the security warning
dialog box will prompt the installation of the LILIN Universal ActiveX.
lick Install to download it.
English
Configuring IP Addresses by IPScan Software
To configure an IP address using the IP scan tool, you can copy the
IPScan software from the installation D, and paste to your
computer. Alternatively, you can execute the IPScan software from
the installation D, or download the software from the Merit LILIN
website (www.meritlilin.com). To change the settings of the IP
address, subnet mask, gateway, or HTTP port, you can follow the
steps below:
1. Run the IPScan software.
2. lick Refresh. All available devices should be listed in the device
list.
3. Select your device from the list provided.
4. hange the IP address, subnet mask, gateway, or HTTP port for
the IP camera.
5. lick Apply to submit the settings.
6. lick Refresh to verify the settings.
English
Configuring IP Addresses via Web Interface
To change an IP address via web interface, type the default IP
address (192.168.0.200) in the Internet browser and follow the steps
below:
1. Login to the H.264 Full HD IP camera by the default username
“admin” and default password “pass”
2. lick Basic M de configuration hyperlink.
3. lick Netw rk->General hyperlink.
4. hange the IP address, subnet mask, gateway, or HTTP port for
the IP camera.
5. lick Submit to verify the settings.
Internet Browser Settings & Application Required
Make sure your Internet browser allows the signed ActiveX plug-in
to work on your computer. Set “Download Signed ActiveX plug-in
controls” to “Prompt” and “Run ActiveX control and plug-in” to
“Enable”. You can set this option via Internet Explorer-> Tools->
Options-> Security Settings.
English
