Lilin PIH-0746XW Bedienungsanleitung
MERIT LI-LIN ENT. CO., LTD
http://www.meritlilin.com
INSTRUCTION MANUAL
D/N VANDAL RES. VARI-FOCAL IR DOME CAMERA
PIH-0746XW/0746XS
66-074CSE
IMPORTANT SAFEGUARDS
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION
TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK)
NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
GRAPHIC SYMBOL EXPLANATION
The lightning flash with arrowhead symbol, within an equilateral
triangle, is intended to alert the user to the presence of
uninsulated "dangerous voltage" within the product's enclosure
that may be of sufficient magnitude to constitute a risk of electric
The exclamation point within an equilateral triangle is intended
to alert the user to the presence of important operating and
maintenance (servicing) instructions in the literature
shock to persons.
accompanying the unit.
PART DESCRIPTION & DIMENSION
BASE
DOME COVER
Unit mm
136.0
55.0
99.5
HOLE PLUG
SIDE HOLE
INSTALLATION

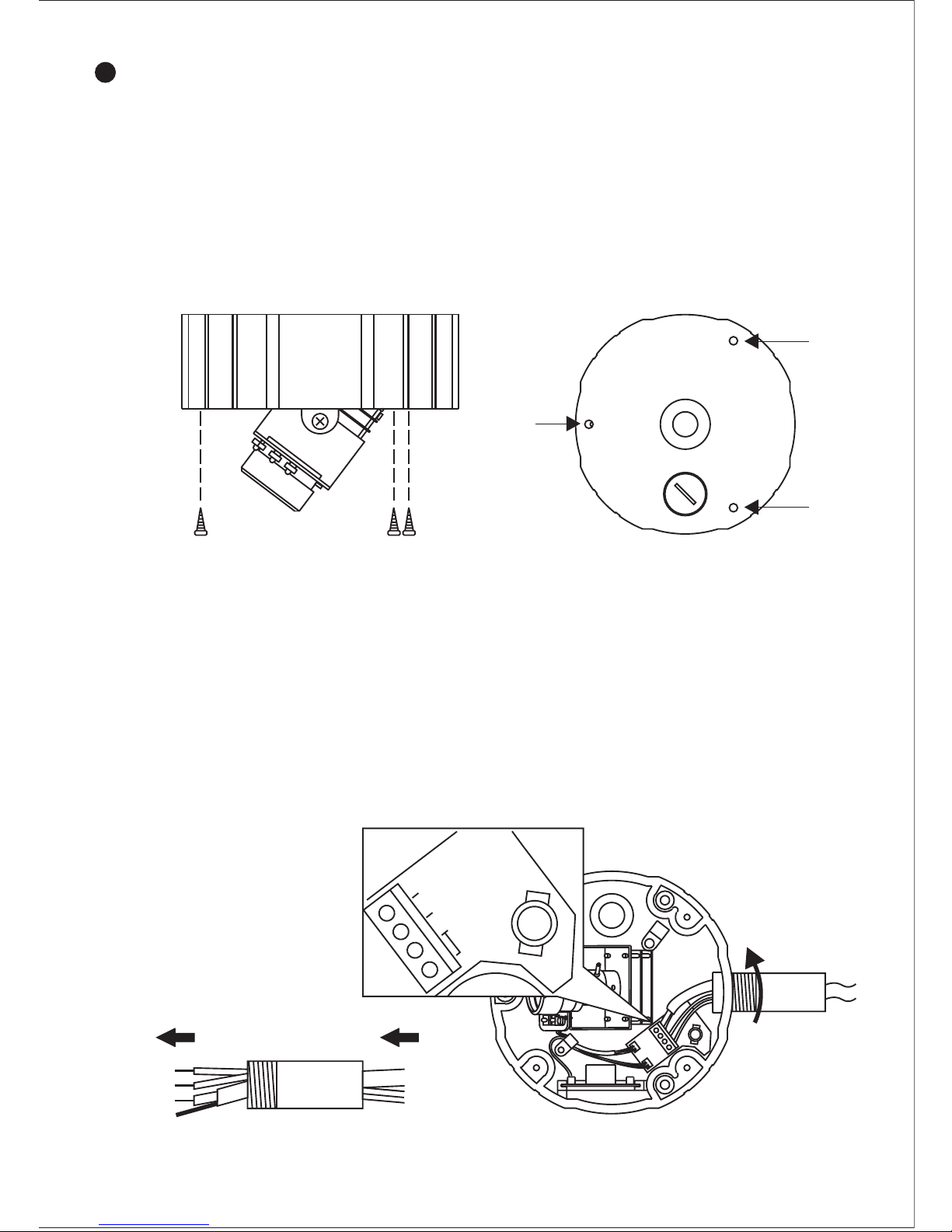

2. Put the provided screws (M3.0 x 25, wooden screw) through
the holes marked as "a", and fix the base in the desired area
(FIG.1).
1. Please use the enclosed screw driver to untighten the 4
tamper-proof screws on the dome cover.
FIG. 1
a
a
a
3. Firstly, put video cable and power cable through a pipe with
1/2" PT at one end (FIG.2), and connect the cables to the
terminal block on the PCB accordingly and then screw the
pipe to the side hole (FIG.3, please make sure the
connection between the pipe and the side hole is watertight.).
Pipe is not provided.NOTE :
FIG. 2 FIG. 3
VIDEO OUT
VIDEO GND
POWER
INPUT
4. The direction of the lens is adjustable through the adjustable
Pan/Tilt brackets and rotatable camera case. The lens can
be adjusted easily by hand without using screw driver.
Please refer to FIG.4.
5. An extra RCA jack for easy installation. Plug the video input
of monitor to the RCA jack and adjust focus and zoom.
After finished, unplug the RCA jack. Please refer to FIG.5.
FIG. 5
TILT
PAN
BRACKET
ZOOM ADJUSTMENT
FOCUS ADJUSTMENT
IRIS LEVER VR
SCREW DRIVER
FIG. 4
6. Adjust DC iris level by turning the iris level VR.
Please refer to FIG.4.
ATTENTION: Adjust this VR with care so as not to cause
damage to the unit.

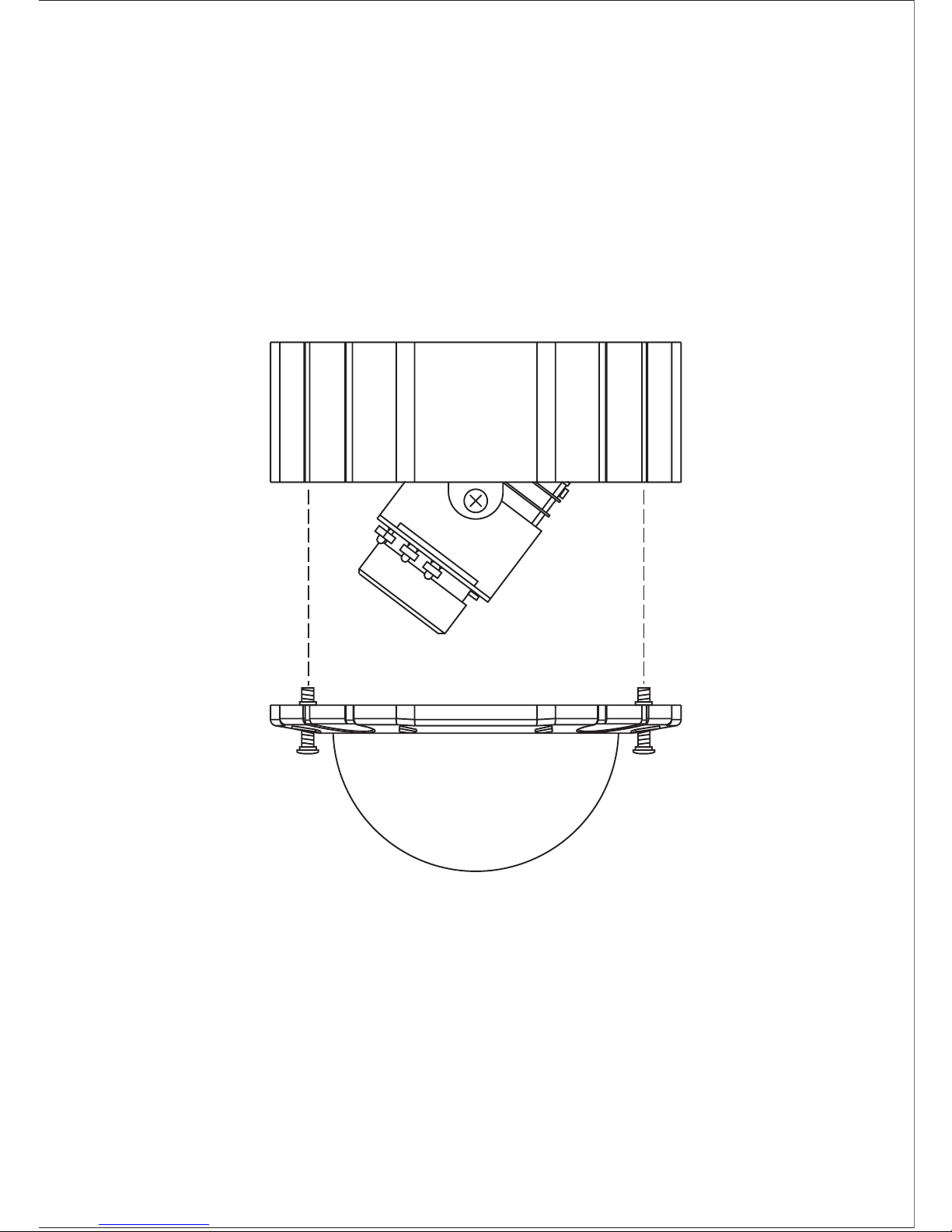

7. Put on the dome cover first. Then tighten the tamper-proof
screws (FIG.6).
FIG. 6
Alternative cabling positions
2. Put the video cable and power cable through the bottom
hole and connect them to the terminal block on the PCB
accordingly. Please refer to INSTALLATION Step3 for water-
resistant installation.
1. Untighten the hole plug on the bottom of the base and screw
it to the side hole.
3. Fix the cable with cable clamp.
VIDEO OUT
VIDEO GND
POWER
INPUT
Design and specifications are subject to change without notice.
D/N VANDAL RESISTANT VARI-FOCAL IR DOME CAMERA
Model No.
Power Input Voltage
System
Sync. Mode
Pick Up Element
Effective Pixels
Chip Size
Scanning System
Resolution
Minimum Illumination
S/N Ratio
Auto Gain Control
Aperture Correction
Power Consumption
Back Light Compensation
Video Output
Gamma Characteristic
Lens
Operating Temperature
Weight
Dimension
DC12V ( 10%) or AC24V ( )
10%
NTSC or PAL
Internal
1/3" Super HAD CCD Sensor
5.59mm (H) x 4.68mm (V)
2 1 Interlace
Color: 480TV Lines, Mono: 520TV Lines
Color: 0.1Lux at F1.2, 0Lux with IR
Mono: 0.02Lux at F1.2
More Than 50dB (AGC OFF)
36dB Variable Gain
Horizontal , Vertical
6.2W (DC12V) , 4.5W (AC24V)
Auto
CVBS 1.0Vp-p , 75ohm
=0.45
-10 ~ +50 (14 ~ 122 )
Base : 136 x 55mm , Dome : 91.8
768(H) x 494(V) [NTSC]
752(H) x 582(V) [PAL]
15.734KHz / 59.94Hz [NTSC]
15.625KHz / 50Hz [PAL]
Horizontal & Vertical
Sync. Frequency
Focal Length
Iris
Angle of view
White Balance ATW
1200g
H
V
D
2.9~10mm
F1.2
68.4 ~ 21.6
94.6 ~ 28.8
125 ~ 36
IP Rating
IP68
PIH-0746XWN/P
SPECIFICATIONS
Vandal Proof
Withstand a blow from a 10 lbs sledgehammer
Infrared Cut Filter
9~22mm
F1.5
22.6 ~ 9.8
30.6 ~ 13
39.2 ~ 16.4
PIH-0746XSN/P
Auto Selectable
Automatic Switch From Color Mode To Monochrome
66-074CSE-1
Infrared
LED
Peak Wavelength
Beam Spread
Radiant Distance
850 nm
30
21M
MERIT LI-LIN ENT. CO., LTD
http://www.meritlilin.com
INSTRUCTION MANUAL
D/N VANDAL RES. VARI-FOCAL IR DOME CAMERA
PIH-0746XW/0746XS
66-074CSE
