MT Tracker BBQ™
Operating Manual
Important Notice
This document has been prepared by BOC Limited ABN 95 000 029 729 (‘BOC’),
as operating instructions and has been prepared in good faith. Information in this
document has been derived from third parties, and though BOC believes it to be
reliable as at the time of printing, BOC makes no representation or warranty as to
the accuracy, reliability or completeness of information in this document and does
not assume any responsibility for updating any information or correcting any error
or omission which may become apparent after the document has been issued. The
information in this document is commercial in condence and is not to be reproduced.
The recipient acknowledges and agrees that it must make its own independent
investigation and should consider seeking appropriate professional advice in reviewing
the information. This document does not take into account the particular circumstances
of the recipient. Except insofar as liability under any statute cannot be excluded, BOC
and its aliates, directors, employees, contractors and consultants do not accept any
liability (whether arising in contract, tort or otherwise) for any error or omission in this
document or for any resulting loss or damage (whether direct, indirect, consequential
or otherwise) suered by the recipient of this document or any other person relying
on the information contained herein. The recipient agrees that it shall not seek to sue
or hold BOC or their respective agents liable in any such respect for the provision of
this document or any other information.
MT Tracker BBQ Operating Manual02
Description 3
Smart device setup 4
Cylinder setup 6
Using the app 7
Battery replacement 10
Warranty 14
Safety guidelines 15
Specications 16
Troubleshooting tips 17
Contents.
03MT Tracker BBQ Operating Manual
MT Tracker BBQ™ sensor accurately detects
LPG cylinder ll levels and sends the status
via Bluetooth®to our mobile app. You can also
rename sensors, set auto alerts or add multiple
sensors. Available for both iOS and Android
devices.
Outdoor use only.
Description
MT Tracker BBQ Operating Manual04
Smart device setup
Go to your app store. Search for the Mt Tracker
app and install.
Launch the app. When it starts it will
automatically start a search for sensors.
The first time you use your MT Tracker BBQ™
press the “Sync” button 5 times in a row to
initialise it. Press and hold SYNC button until
sensor appears on app. (up to 10 seconds).
No MT Tracker BBQ™ devices
have been added.
The first time you use your MT Tracker
BBQ™ press the “Sync” button 5 times in
a row to initialise it. To add new sensors
make sure the scanning icon is spinning
press and hold SYNC button on your
MT Tracker BBQ™ until it is found.
05MT Tracker BBQ Operating Manual
The sensor will then appear on your app as a
new device. Sensor is now Sync’d. You may now
proceed to installing the sensor on the cylinder.
MT Tracker BBQ Operating Manual06
Cylinder setup
The cylinder should be kept upright at all times
throughout the installation process. Clean the
bottom of the cylinder of any debris, excess paint,
and rust.
The sensor mounts to the bottom centre of the
cylinder using magnets. The rubber pad between
the magnets must make good contact with the
cylinder, with no contaminants in between and
must be aligned to the bottom centre of the
cylinder.
Check that the cylinder is on a level and at
surface or otherwise is level with ground. Even
a slight tilt can degrade the quality of the
measurement.
After a short period the LPG will settle and the
readings will stabilize.
Magnet
Magnet
Rubber pad
07MT Tracker BBQ Operating Manual
Using the app
Adding more sensors will keep adding to the sensor list. Up to 50 sensors can be added.

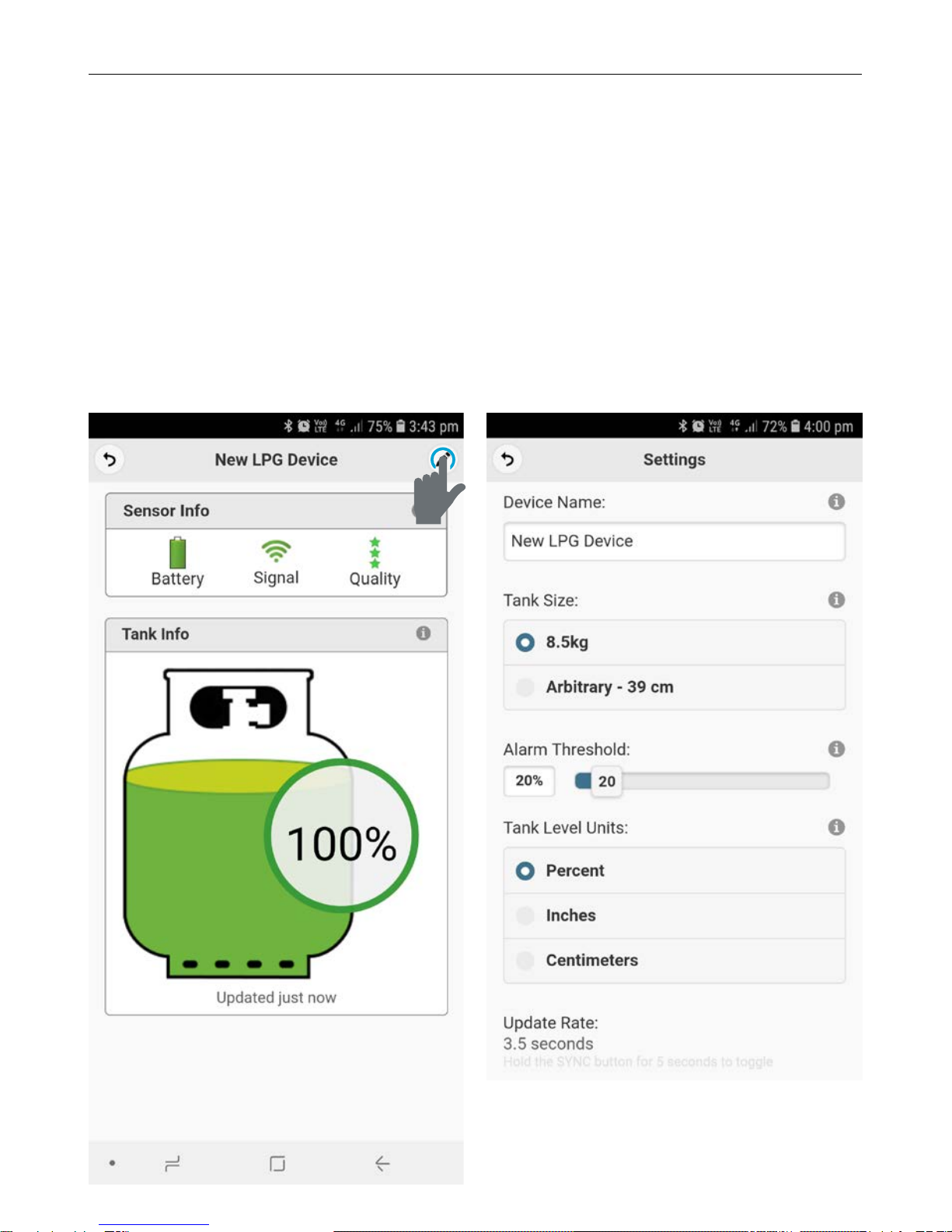

Selecting a sensor from the list takes you to the sensor’s info screen that shows the battery condition,
Bluetooth signal strength, and detection quality. A low quality level often indicates an installation
problem, such as poor placement, debris or excessive paint, etc. which can cause erraticreadings.
MT Tracker BBQ Operating Manual08
Selecting the pencil icon will bring up the settings page for the sensor, where you can edit the sensor
name, select your cylinder size or enter an arbitrary custom size, set LPG level alarm threshold and
level display units.
09MT Tracker BBQ Operating Manual

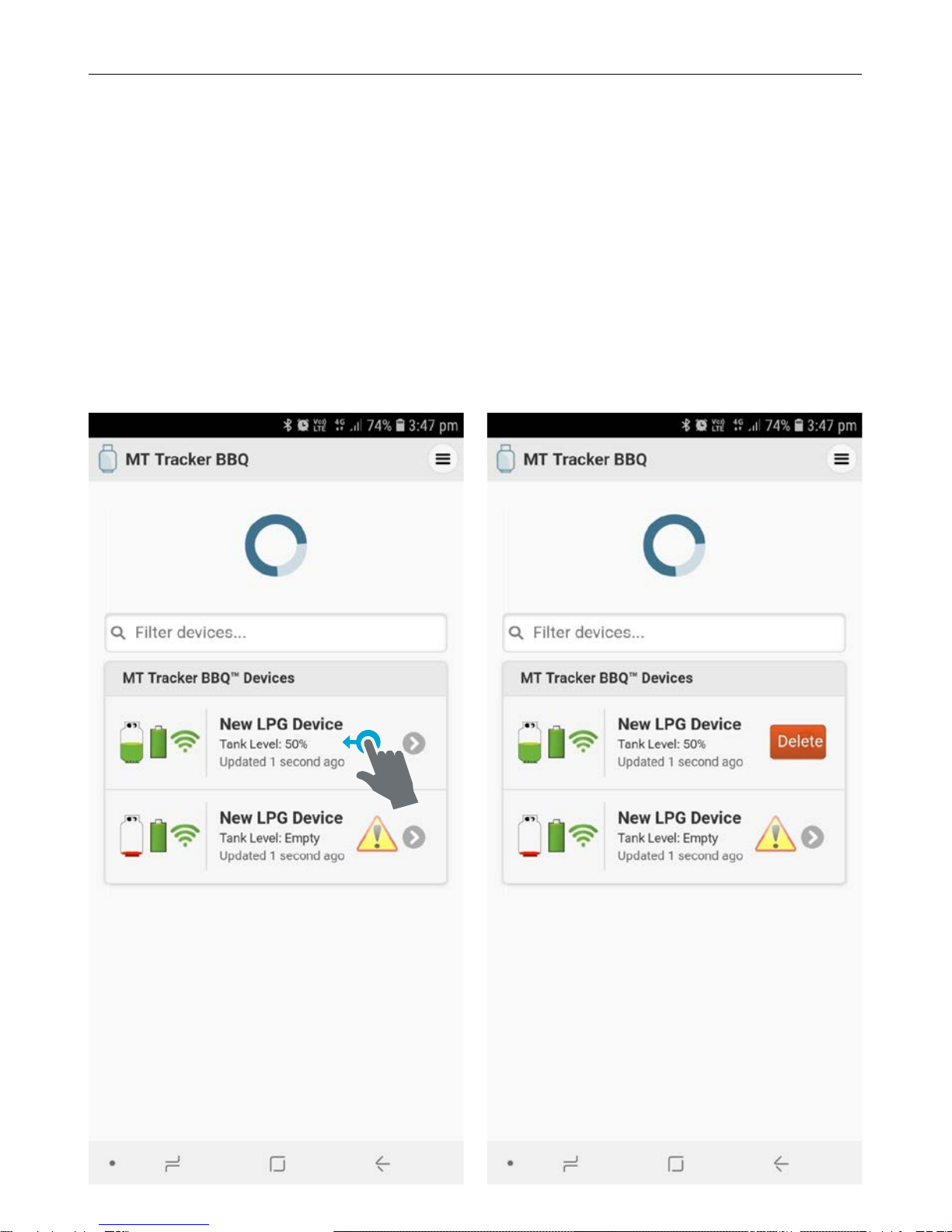

To remove a sensor from the app list, swipe left on the sensor in the list. A delete button will appear.
Select delete to confirm removal of the sensor from the app.
MT Tracker BBQ Operating Manual010
Battery replacement
WARNING: EXPLOSION HAZARD-BATTERIES MUST
ONLY BE CHANGED IN AN AREA FREE OF IGNITABLE
CONCENTRATIONS.
The enclosure lid is held in place by a snap t,
in 4 places. In the approximate locations shown,
insert small screwdriver between lid and base
and pry outward to release snap t. Lid can then
be lifted out of assembly. (Note: Sync button will
sometimes be slightly stuck to electronics board.
Detach sync button and board if necessary to
completely remove lid and leave electronics in
the base piece.)
Gently lift board from base such that battery
can be removed from battery holder. Insert new
battery in same orientation. (Note: Wires that
connect sensor base and electronics board remain
attached during battery change. Use care not pull
too hard on wires thus damaging the sensor.)
1
3
2
4
