MVP Quik-Code Transmitter

Installation Instructions for

Garage Door and Gate Operators

Your new radio controls are designed to remotely operate garage door and gate

openers. The transmitter permits the user to select one of 19683 possible codes

for each one of the three buttons. The radio frequency of the remote controls is

Þxed and tuned at the factory; adjustments are not required and should not be

attempted by the end user.

The MVP Quik-Code transmitter is based on the latest technology and provides

maximum performance and maximum ßexibility. Since each button of the

Quik-Code transmitter may be programmed with a unique code, it is possible to

control a single operator or a group of operators at one location or at multiple

locations.

The Quik-Code transmitter may be mounted on a visor using the metal visor clip

(included) or attached to a key-chain with the built-in attachment.

Proper installation of your radio controls will assure years of

trouble-free operation

READ THE FOLLOWING INSTRUCTIONS THOROUGHLY

BEFORE STARTING INSTALLATION

Keep transmitters and remote controls out of the reach of children.

Do no let children play with or use the transmitter or remote controls.

Unexpected door operations can cause personal injury or property damage.

Do not place transmitter where the buttons can be accidentally or unintentionally activated.

Radio Control Compatibility

In addition to the Linear MVP and Challenger E-Series Residential Garage Door

Operator, the MVP Quick-Code transmitter is designed to be compatible with all

Linear MVP series receivers.

Linear Radio Controls are compatible with HomeLink®.

Homelink® is a registered trade mark of Johnson

Controls, Inc.

WARNING

Programming Quik-Code Transmitters

Programming the Linear MVP Quik-Code

transmitter is done as follows:

1. Put the transmitter in program mode.

2. Select the button you wish to use.

3. Enter your 9-digit code.

After your code is conÞrmed, repeat the procedure

for the remaining buttons.

NOTE: The table below has a row for each one of

the three buttons on the Quik-Code transmitter since

it is possible to set a unique code for each button.

123456789

Put the Transmitter in Program Mode

Step 1: First, press and hold the !+" button. The

Red LED will turn on. Next, while continuing to

hold the !+" button, press and hold the !-" button.

Continue to hold both buttons until the LED starts

to blink (approximately 5 seconds). Release both

buttons while the LED is blinking. The LED will

blink two times and then remain on to conÞrm you

are in programming mode.

Select the Button You Wish to Use

Step 2: While the LED is on, press the button you

wish to use. The LED will blink off once and then

remain on.

Enter Your 9-Digit Code

Step 3: Enter the 9-digit code from the table by

pressing the buttons that correspond with the entries

in the table.

Conﬁrm Entry

After the 9-digit code is entered, the LED will blink

twice to conÞrm a valid code and remain off.

Program Remaining Buttons

Repeat the procedure for the remaining buttons.

Express Coding

Express coding will program all 3 buttons at one time.

To use Express Code to program all the buttons at

the same time select the !+" button in Step 2 and

end the 9-digit code entry in Step 3 with a !+". This

will code all three buttons in one programming step.

*If the LED goes out the programming mode has

timed out and you will need to start over.

Radio Controls are prohibited from providing constant contact closure

when installed on the push button inputs of residential garage door openers

that are provided with monitored safety systems.

This device complies with Part 15 of the FCC Rules and with RSS-210 of

Industry Canada. Operation is subject to the following two conditions: (1)

This device may not cause harmful interference, and (2) this device must

accept any interference received, including interference that may cause

undesired operation.

WARNING

Learning Transmitter Codes

The MVP and Challenger door operators and MVP

receivers are capable of learning up to 8 different

transmitter codes. Multiple transmitters with the

same code may be used and only requires the code

from a single transmitter to be learned.

Programming the MVP Door Operator

Step 1: Momentarily press and release the

Program button on the deluxe wall station. The

RED LED and worklight

on the operator will turn

on.

Step 2: Using a

programmed transmitter,

press the desired

transmitter button. When

the receiver learns the

transmitter code, the LED

and worklight will turn

off.

Step 3: Repeat to add

additional transmitters with different codes.

Note: If the LED and worklight blink press and

hold program button for 5 seconds to clear memory

and start over. If the LED and worklight remain on

when you transmit press and hold program button

for 5 seconds to clear memory and start over.

Programming MVP Receivers

Step 1: Momentarily press and release the

Program button. The LED will turn on.

Step 2: Using a programmed transmitter, press

the desired transmitter button. When the receiver

learns the transmitter code, the LED will turn off.

Step 3: Repeat to add additional transmitters with

different codes.

Erasing the Receiver’s Memory

Step 1: Press and HOLD the Program button. The

indicator LED will turn on.

Step 2: When the LED turns off (after

approximately 5 seconds), release the Learn

button. All transmitters and keypad codes have

been erased.

Programming the Challenger

Door Operator

Step 1: Momentarily press and release the

Program button on the back panel of the operator.

The RED LED and worklight on the operator will

turn on.

Step 2: Using a programmed transmitter, press

the desired transmitter button. When the receiver

learns the transmitter code, the LED and worklight

will turn off.

Step 3: Repeat to add additional transmitters with

different codes.

Note: If the LED and worklight blink press and

hold program button for 5 seconds to clear memory

and start over. If the LED and worklight remain on

when you transmit press and hold program button

for 5 seconds to clear memory and start over.

Installing the Transmitter

The transmitter is supplied with a metal clip which

may be used to attach the unit to a sun visor. If

the clip is used, slide it into the recess provided

on the back of the transmitter case until the snaps

on the case Þt around the clip. If the transmitter

is installed in a pocket in your car, follow all the

manufacturer!s instructions. Improper installation

may cause intermittent transmitter operation

which can result in unexpected door operations.

WARNING

Program

Button

Program Button

Indicator LED

Disconnect power to operator before any

installation or repair. Follow all

instructions provided by the

manufacturer of your operator.

Andere Linear Sender Handbücher

Linear

Linear 2 GIG 2GIG-Z-BRDG-433 Konfigurationshandbuch

Linear

Linear D-22B Administratorhandbuch

Linear

Linear Multi-Code 3022 Bedienungsanleitung

Linear

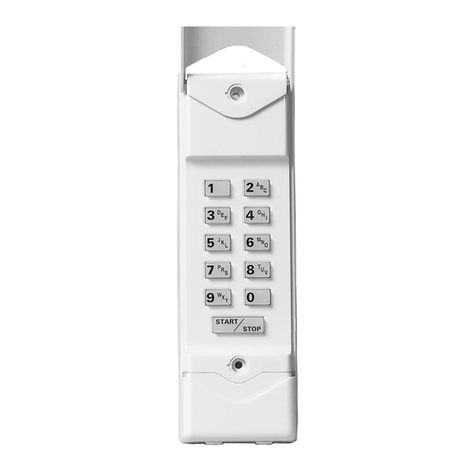

Linear MDTK Bedienungsanleitung

Linear

Linear Multi-Code 3089 Bedienungsanleitung

Linear

Linear Multi-Code MCS307010 Bedienungsanleitung

Linear

Linear XT-4 Bedienungsanleitung

Linear

Linear WT00Z-1 Bedienungsanleitung

Linear

Linear MULTI-CODE 1051 Bedienungsanleitung

Linear

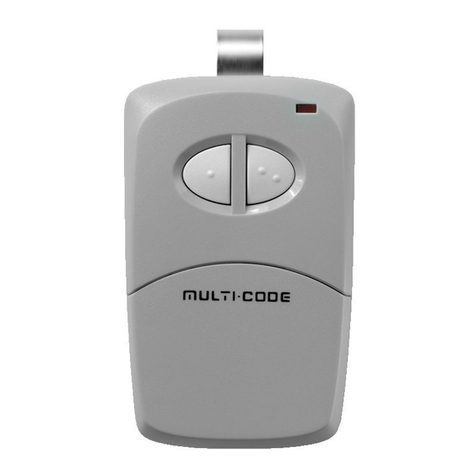

Linear Multi-Code 4120 Bedienungsanleitung
