Linksys Cisco FXO adapter SPA 3102 Configuration guide

Cable connection

Step 1: connect your p one cable to t e “PHONE” port. Leave the “LINE” port disconnected.

Step 2: connect your LAN cable to t e “INTERNET” port. We assume a DHCP server is already running on

your LAN. If not, after step 3 jump to “Static IP configuration”

Step 3: power up t e adapter

IP address detection and web management

On your p one

–press **** (star key 4 time)

–press 110# and take note of t e annouced IP address. Let's call it “ip_address”

–press 7932# 1# 1 (it's needed to enable web management on t e internet port)

–open a web browser to t e URL: ttp://ip_address/admin/advanced

Adapter configuration

Let's assume t e followings:

Your PBX company domain is m compan .com (provided by Cluana).

Your PBX ostname is m server.cluana.com (provided by Cluana)

Your analog adapter User ID / Aut ID is fxo_1 (your c oice)

Your analog adapter password is : password (your c oice)

Your p one line PSTN number is YOUR_NUMBER (0733784374 in t e picture below)

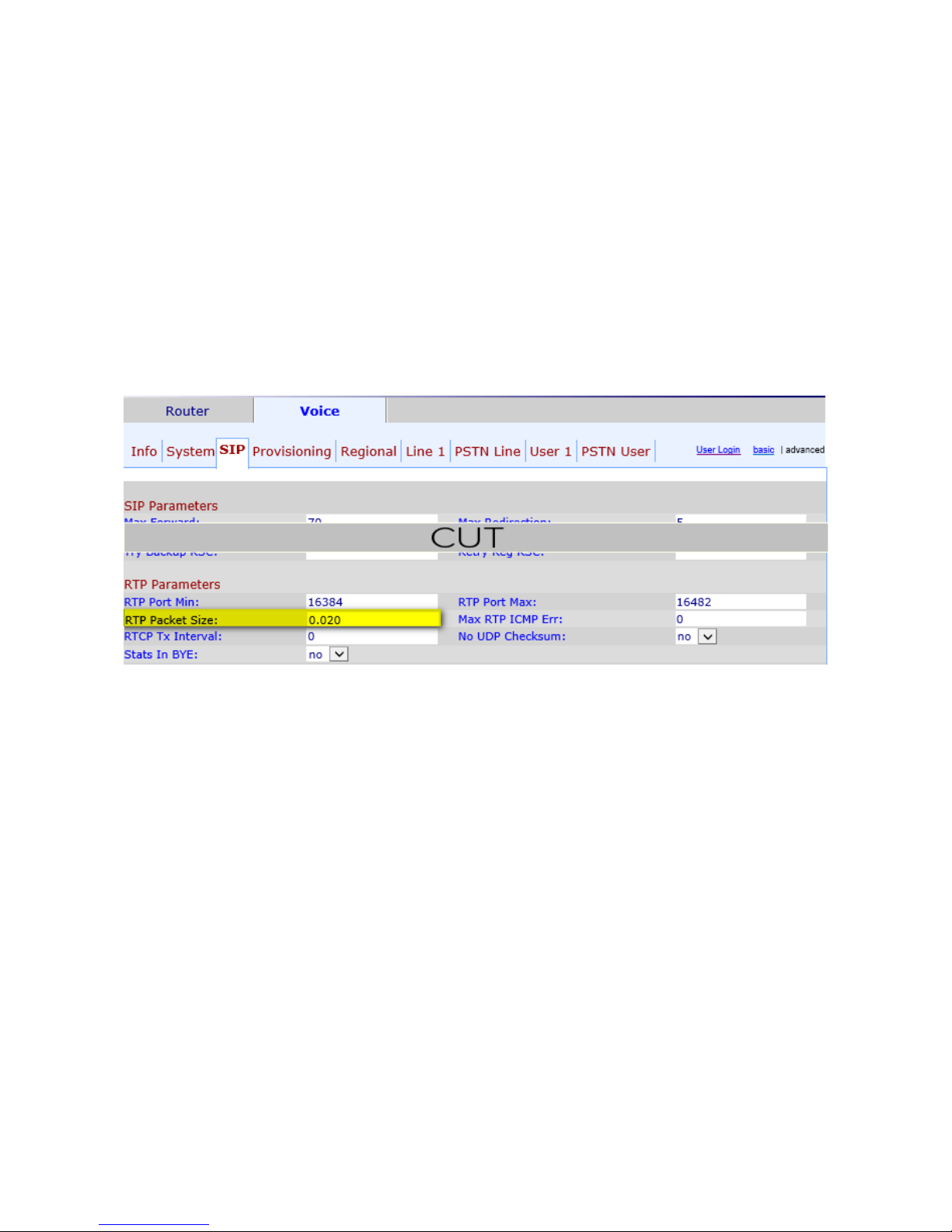

Open SIP tab

RTP Parameters section

RTP Packet Size: 0.020

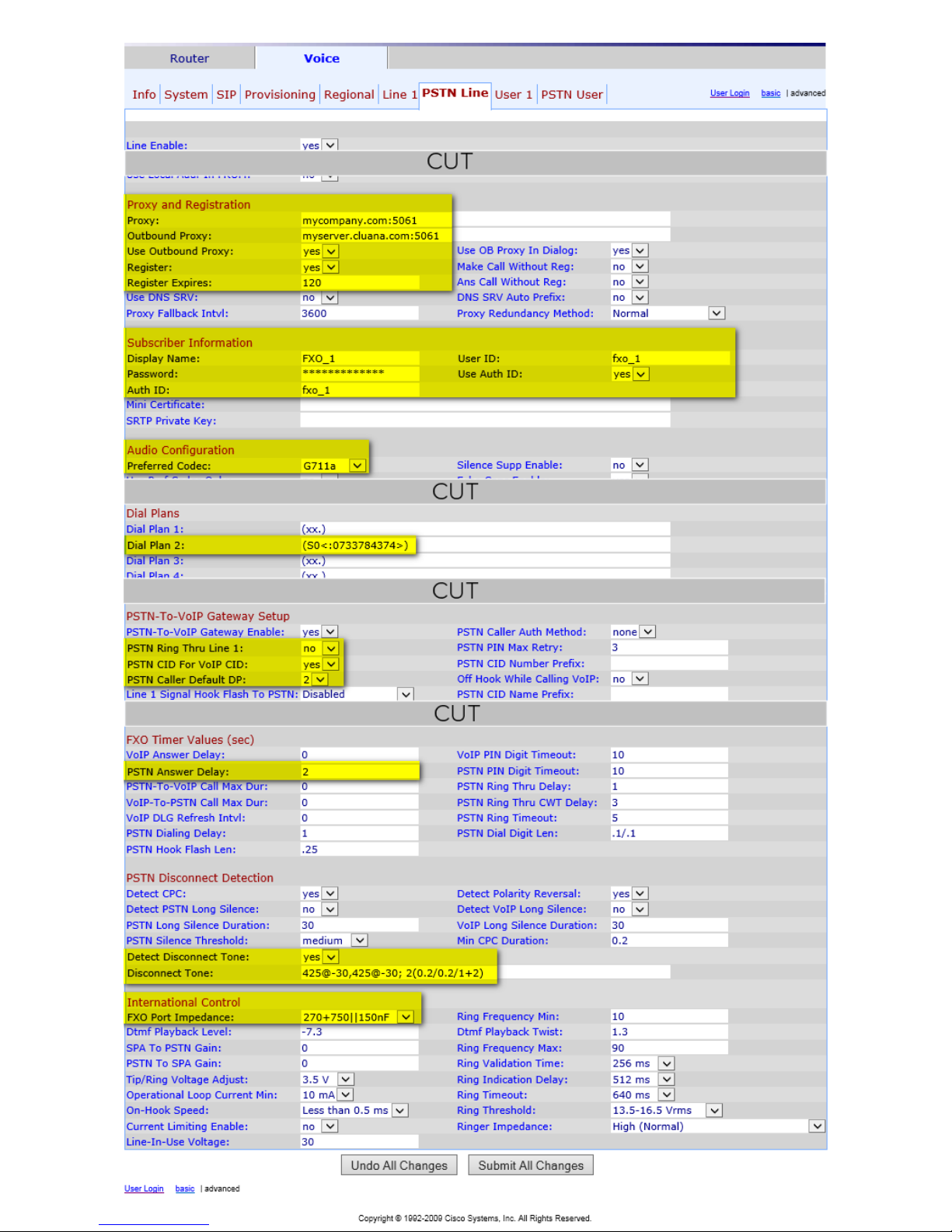

Open PSTN Line tab

Proxy and Registration

Proxy: m compan .com:5061

Outbound Proxy: m server.cluana.com:5061

Use Outbound Proxy: Yes

Subscriber Information

Display name: FXO_1

User ID: fxo_1

Password: password

Use aut ID: Yes

Aut ID: fxo_1

Audio Configuration

Preferred Codec: G711a (G711u for USA)

Dial Plans

Dial Plan 2: (S0<:YOUR_NUMBER>)

PSTN-To-VoIP Gateway Setup

PSTN Ring T ru Line 1: no

PSTN CID For VoIP CID: yes

PSTN Caller Default DP: 2

FXO Timer Values (sec)

PSTN Answer Delay: 2

PSTN Disconnect Detection

Disconnect Tone:

US: 480@-30,620@-30;4(.25/.25/1+2)

UK: 400@-30,400@-30; 2(3/0/1+2)

France: 440@-30,440@-30; 2(0.5/0.5/1+2)

Germany: 440@-30,440@-30; 2(0.5/0.5/1+2)

Net erlands: 425@-30,425@-30; 2(0.5/0.5/1+2)

Sweden: 425@-10; 10(0.25/0.25/1)

Norway: 425@-10; 10(0.5/0.5/1)

Italy: 425@-30,425@-30; 2(0.2/0.2/1+2)

Spain: 425@-10; 10(0.2/0.2/1,0.2/0.2/1,0.2/0.6/1)

Portugal: 425@-10; 10(0.5/0.5/1)

Poland: 425@-10; 10(0.5/0.5/1)

Denmark: 425@-10; 10(0.25/0.25/1)

New Zealand: 400@-15; 10(0.25/0.25/1)

Australia: 425@-13; 10(0.375/0.375/1)

International Control

FXO Port Impedance:

US: 600

EU (UK, Germany, Net erlands, Sweden, Norway, Italy,

Spain, Portugal, Poland, and Denmark): 270+750||150nF

France: 270+750||150nF

Australia: 220+820||120nF

New Zealand: 370+620||310nF

Press "Submit all c anges"

Now you can connect your p one line cable to t e “LINE” port.

Firmware Upgrade

Configuration parameters above were tested wit firmware release 5.2.13 . If your adapter is using an older

release (c eck Voice menu, Info->Product Information->Software Version) maybe a software upgrade is

needed.

•Download t e latest firmware from t e adapter manufacturer support site

•Extract t e Zip file, and t en run t e executable file to upgrade t e firmware.

•W en t e Firmware Upgrade Warning window appears, click Continue.

•In t e next window t at appears, enter t e IP address of t e ATA device, and t en click OK.

•In t e Confirm Upgrade window, verify t at t e correct device information and product number

appear. T en click Upgrade.

•A progress message appears w ile t e upgrade is in progress.

•T e success window appears w en t e upgrade is completed. T e device reboots. Click OK to close

t e confirmation message.

•To verify t e upgrade, point t e web browser to t e IP address of t e ATA device

Static IP configuration

We recommend to use a DHCP server on your Local Area Network in order to allow your adapter to

automatically configure its network parameters. S ould you need to assign a static IP address, please follow

t e Quick Install guide provided wit your adapter. Remember t at you need to find a free IP address

compatible wit your network and assign via IVR commands suc IP address and its netmask (eg.

192.168.1.100 and 255.255.255.0) . Suc parameters s ould be enoug to access t e device via web

browser and allow you to configure any ot er value.

Factor Reset

You can restore factory default settings wit t e following steps:

on your p one

–press **** (star key 4 time)

–press 73738#

–press 1

–angup
