Linksys HPES03 Bedienungsanleitung

HomeLink™Series

Broadband

Network Bridge

Model No.: HPES03

User Guide

HPES03 User Guide.qxd 3/9/00 4:48 PM Page 1

is a registered trademark of Linksys. Microsoft, Windows, and the Windows logo are

registered trademarks of Microsoft Corporation. All other trademarks and brand names

are the property of their respective proprietors.

LIMITED WARRANTY

Linksys guarantees that every HomeLink Broadband Network Bridge is free from physi-

cal defects in material and workmanship under normal use for one (1) year from the

date of purchase. If the product proves defective during this warranty period, call

Linksys Customer Support in order to obtain a Return Authorization number. BE SURE

TO HAVE YOUR PROOF OF PURCHASE ON HAND WHEN CALLING. RETURN

REQUESTS CANNOT BE PROCESSED WITHOUT PROOF OF PURCHASE. When

returning a product, mark the Return Authorization number clearly on the outside of the

package and include your original proof of purchase.

IN NO EVENT SHALL LINKSYS’ LIABILITY EXCEED THE PRICE PAID FOR THE PROD-

UCT FROM DIRECT, INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAM-

AGES RESULTING FROM THE USE OF THE PRODUCT, ITS ACCOMPANYING SOFT-

WARE, OR ITS DOCUMENTATION. Linksys makes no warranty or representation,

expressed, implied, or statutory, with respect to its products or the contents or use of

this documentation and all accompanying software, and specifically disclaims its quali-

ty, performance, merchantability, or fitness for any particular purpose. Linksys reserves

the right to revise or update its products, software, or documentation without obligation

to notify any individual or entity. Please direct all inquiries to:

Linksys P.O. Box 18558, Irvine, CA 92623.

FCC STATEMENT

The HomeLink Broadband Network Bridge has been tested and found to comply with

the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These lim-

its are designed to provide reasonable protection against harmful interference in a resi-

dential installation. This equipment generates, uses, and can radiate radio frequency

energy and, if not installed and used according to the instructions, may cause harmful

interference to radio communications. However, there is no guarantee that interference

will not occur in a particular installation. If this equipment does cause harmful interfer-

ence to radio or television reception, which is found by turning the equipment off and

on, the user is encouraged to try to correct the interference by one or more of the fol-

lowing measures:

• Reorient or relocate the receiving antenna

• Increase the separation between the equipment or device

• Connect the equipment to an outlet other than the receiver’s

• Consult a dealer or an experienced radio/TV technician for assistance

003

HPES03 User Guide.qxd 3/9/00 4:48 PM Page 3

Linksys HomeLink™ Series

Table of Contents

Introduction 1

The Linksys HomeLink Broadband Network Bridge 1

Features 1

Package Contents 2

Getting to Know the Broadband Network Bridge 3

Rear Panel Ports 3

Front Panel LEDs 4

Using the Broadband Network Bridge 5

Installation Overview 5

Connecting Your Devices to the Bridge 6

Daisy-chaining to a HomeLink Network 7

Resetting the Broadband Network Bridge 8

Troubleshooting 9

Appendix 10

Twisted Pair Cabling 10

Telephone Cabling 11

Specifications 12

Environmental 12

Customer Support 13

HPES03 User Guide.qxd 3/9/00 4:48 PM Page 4

Broadband Network Bridge

Introduction

The Linksys HomeLink Broadband Network Bridge

Congratulations on the purchase of a Linksys HomeLink Broadband Network

Bridge, the complete Internet connection solution for your Home Phoneline

network. This unique new device features two HomeLink RJ-11 standard tele-

phone ports (configured as one pass-through port), and two 10BaseT Ethernet

ports with one shared uplink port. Plug in your cable modem or DSL

modem’s 10BaseT connection, then attach the bridge to the nearest telephone

jack using standard phone cables, and any computer on your Home Phoneline

network can access the Internet.*

Do you want to share your cable or DSL modem on your 10BaseT network?

You can add a PC at any time by connecting it to the open Ethernet port—or

you can uplink a 10BaseT or 10/100 hub or switch for instant networking.

The groundbreaking technology inside every HomeLink Broadband Network

Bridge delivers intercommunication between home networks of 10Mbps and

1Mbps speeds. With your HomeLink Broadband Network Bridge, that means

instant Internet sharing across both networks at blazing broadband speeds.

High-speed Internet sharing for your home or small office network has never

been easier.*

Features

• Connects Your 10Mbps Ethernet Connection toYour 1Mbps Home

Phoneline Network for Seamless Integration

• Share a Cable or DSL Modem Without Interrupting Normal Telephone

Service*

• Share Internet Access Across Your Entire HomeLink Network—Up to 25

PCs and Even More on an Ethernet Network*

• Stand-alone Unit with Two 10BaseT RJ-45 Ports, one Shared RJ-45 Uplink

Port, and One RJ-11 Modular Telephone Port With Pass-through.

• Fully HomePNA Compliant

• Easy Installation—No Software Required

• Free 24-Hour Technical Support and Limited 1-Year Warranty

**Contact your Internet Service Provider for details.

HPES03 User Guide.qxd 3/9/00 4:48 PM Page 1

Linksys HomeLink™ Series

Package Contents

• One HomeLink Broadband Network Bridge (Model No.: HPES03)

• One AC Adapter & Power Cord

• One User Guide and Registration Card

HPES03 User Guide.qxd 3/9/00 4:48 PM Page 2

Broadband Network Bridge

Getting to Know the Broadband

Network Bridge

Rear Panel Ports

Uplink Share your Internet access over your entire phoneline network

by connecting to your DSL or Cable modem through the

Broadband Bridge's uplink port. The uplink port can also con-

nect to Ethernet devices such as hubs, routers, and switches.

If the uplink port is occupied, the port to its direct right (Port

3) will be inoperable. Any connections made through Port 3

will be lost.

10BaseT Connect an Ethernet PC (or any other Ethernet device) to

your HomeLink phoneline network through one of the

10BaseT ports. If you plan on using Port 3, the Uplink port

will become unavailable.

HomeLink Use the HomeLink port to daisy-chain your Broadband

Bridge to your HomeLink network. This port is configured as

a pass-through port, meaning that the network data travels

into the Bridge through one side of the HomeLink port, then

continues out the other. Connect one HomeLink telephone

cable into one side of Port 1, then continue (with another

cable) to your next HomeLink device through the port's other

side. See page 7 of this User Guide for further information.

Power Connect your power adapter to your Broadband Bridge

through the Power port.

HPES03 User Guide.qxd 3/9/00 4:48 PM Page 3

Linksys HomeLink™ Series

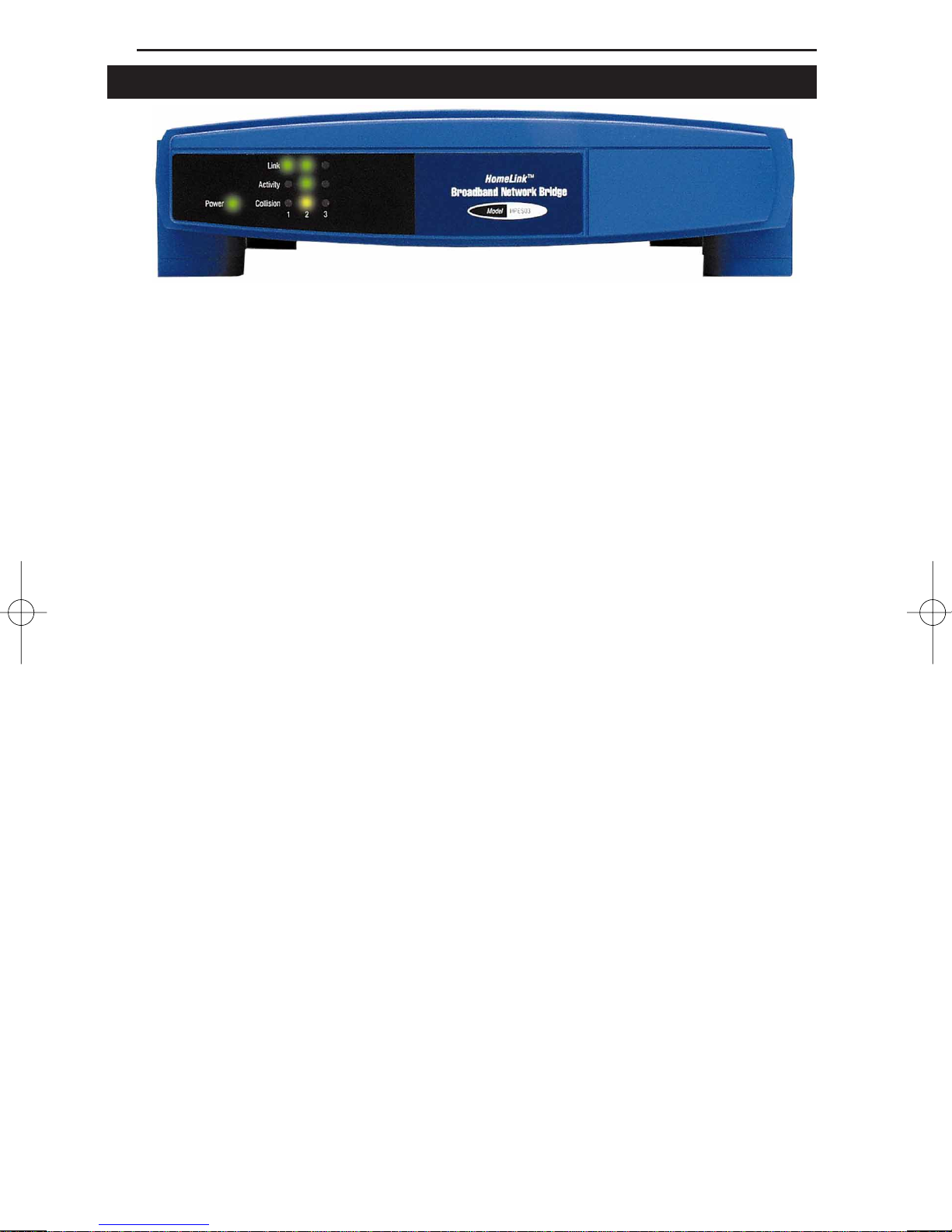

Front Panel LEDs

Power The Power LED is illuminated when the Broadband Bridge is

powered on.

Link A Link LED will illuminate above a specific port number (1, 2

or 3) if the corresponding port is successfully connected to a

network device.

Activity An Activity LED will illuminate above a specific port number if

the corresponding port is currently sending or receiving data

over the network.

Collision A Collision LED will illuminate above a specific port number if

the corresponding port is currently experiencing network colli-

sions. Small amounts of collisions are normal. If you are experi-

encing excessive collisions, verify that your cabling is undam-

aged and properly connected.

HPES03 User Guide.qxd 3/9/00 4:48 PM Page 4

Broadband Network Bridge

Using the Broadband Network

Bridge

Installation Overview

Because the Broadband Network Bridge is a

stand-alone device that requires no software or

system configuration, setup involves nothing but

plugging everything in and turning everything

on. There are, however, a few limitations to the

amount of physical space your network will be

able to cover without running the risk of data

corruption. These restrictions are due to HomePNA and Ethernet standard

limits on the recommended length of your networking cables. (See below.)

Ethernet Cabling

Although there are different grades of Ethernet network cabling, you should

use Category 5 unshielded twisted-pair (UTP) for each Ethernet connection

you make, and no Ethernet cable should exceed 100 meters (328 feet) in

length. Category 5 cabling can be obtained at most computer stores, or you

can crimp your own. (See page 10 for more details.)

Phoneline Cabling

Because of the limitations of standard telephone cables, HomeLink

HomePNA devices require that no network of HomeLink cabling exceeds a

total length of 150 meters (500 feet). In other words, if you have more than

500 feet of telephone wires connecting your network, you will likely experi-

ence data loss.

Beside that, any standard telephone cable will do.

NNoottee: Power

everything off

before connect-

ing a PC to the

Broadband

Network Bridge. If both the

computer and bridge are

powered on when the initial

connection is made, the net-

work will act erratically and

you will have to reset the

bridge.

HPES03 User Guide.qxd 3/9/00 4:48 PM Page 5

Linksys HomeLink™ Series

Connecting Your Devices to the Bridge

The following steps will have your Broadband Network Bridge up and run-

ning in minutes.

Basic Installation

1. Ensure that every component of your network (including your

Broadband Network Bridge) is powered off.

2. If you are uplinking to a DSL modem, cable modem, Ethernet hub, or

Ethernet switch, connect it to the bridge through the bridge's uplink port

with a network cable. Keep in mind that using the uplink port deactivates

10BaseT Port 3.

3. Connect your Ethernet-equipped devices to the bridge through the

Bridge's 10BaseT ports. If you are not uplinking the Broadband Bridge to

an Ethernet device, both 10BaseT ports 2 and 3 will be available. If you

are using the bridge's uplink port, only port 2 will be active. Ethernet

devices should be connected to the Bridge with a network cable. Each

cable should be less than 100 meters (328 feet) in length.

4. Daisy-chain the Broadband Bridge into the HomeLink network by

running HomeLinked telephone lines through the Bridge's HomeLink

port. The entire length of telephone cable used in a HomeLink network

should never exceed 150 meters (500 feet). For more detailed information

on daisy chaining, see the next page.

5. Power everything on. Connect the supplied power cord to the Power port

on the rear of the bridge, then plug the power cord into an electrical out-

let.

The Broadband Bridge installation is complete.

HPES03 User Guide.qxd 3/9/00 4:48 PM Page 6

Broadband Network Bridge

Daisy-chaining to a HomeLink Network

By daisy-chaining your HomeLinked PC's and peripherals, you can create a

simple network that will act in the same way an Ethernet network acts on

your PC's desktop.

While Ethernet networks usually revolve in a star topology around a hub or

switch, phoneline networks link together like a string of Christmas lights. In a

HomeLink network, data passes into on one side of a port, and a new tele-

phone cable continues out from the port’s other side. You can string up to 25

PCs on a single HomeLink network, provided that the entire length of cable

doesn't exceed 150 meters (500 feet).

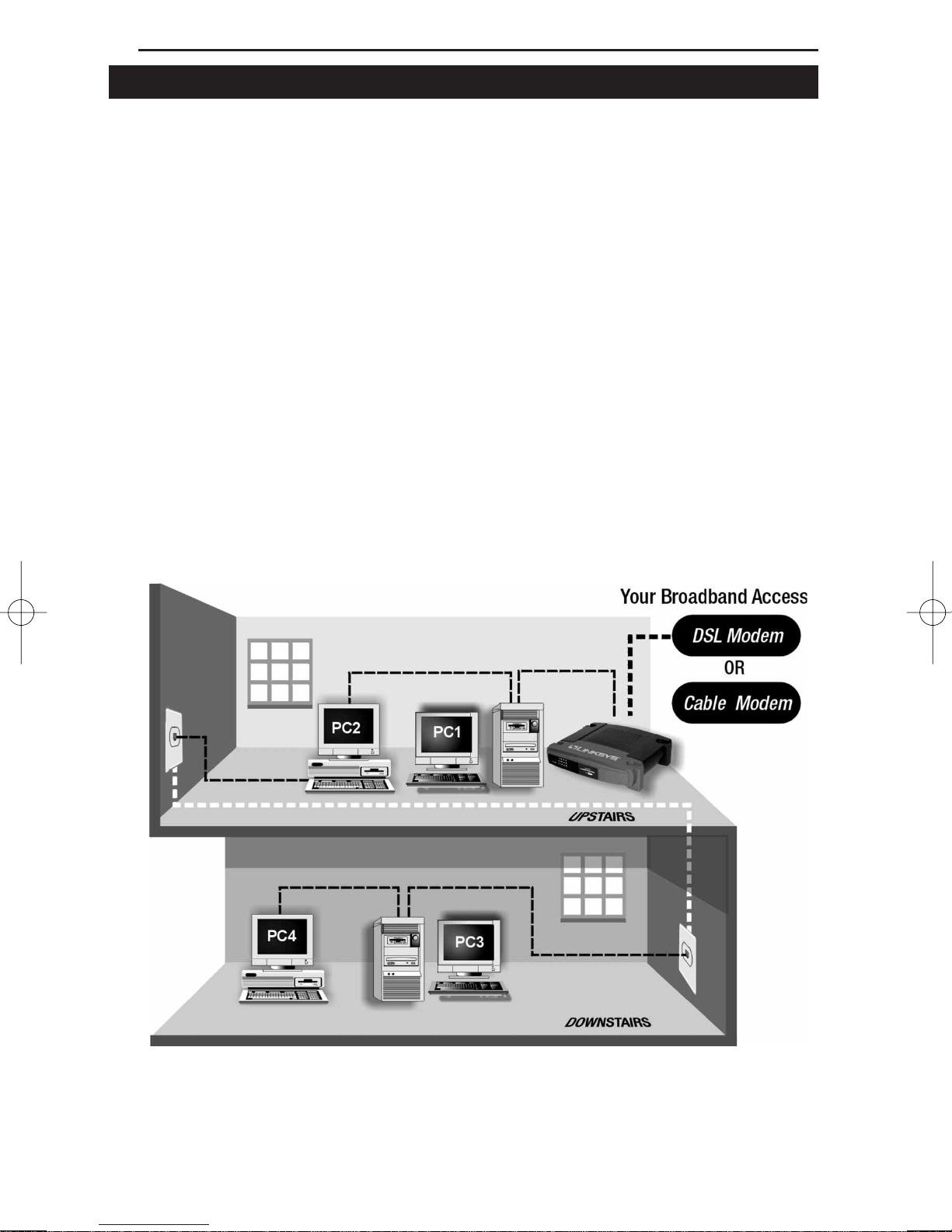

HomeLink networks are able to send data through existing telephone lines

without interrupting your telephone service, connecting over your existing

telephone jacks. If you have computers on two different floors of your house,

plug one of the downstairs PCs into the phone jack in the wall, and you're

able to network your upstairs computers without running excessive amounts

of extra cable.

HPES03 User Guide.qxd 3/9/00 4:48 PM Page 7

Andere Handbücher für HPES03

Inhaltsverzeichnis

Andere Linksys Netzwerk-Hardware Handbücher

Linksys

Linksys WMB54G - Wireless-G Music Bridge Network Audio... Bedienungsanleitung

Linksys

Linksys WMB54G - Wireless-G Music Bridge Network Audio... Bedienungsanleitung

Linksys

Linksys EFR240 Bedienungsanleitung

Linksys

Linksys EF31SC Bedienungsanleitung

Linksys

Linksys EFG20 Bedienungsanleitung

Linksys

Linksys BEFN2PE Bedienungsanleitung

Linksys

Linksys MX4300 Bedienungsanleitung

Linksys

Linksys EFG80 - EtherFast Instant GigaDrive NAS... Original Betriebsanleitung

Linksys

Linksys NMH305 - Media Hub Home Entertainment Storage NAS... Bedienungsanleitung

Linksys

Linksys SVR3000 - One Services Router Bedienungsanleitung

Linksys

Linksys WET11 - Instant Wireless EN Bridge Network... Bedienungsanleitung

Linksys

Linksys WET54G - Wireless-G EN Bridge Original Betriebsanleitung

Linksys

Linksys WET54G V3 Original Betriebsanleitung

Linksys

Linksys EFG120 - EtherFast Network Attached Storage NAS... Bedienungsanleitung

Linksys

Linksys MX5300 Bedienungsanleitung

Linksys

Linksys EFG120 - EtherFast Network Attached Storage NAS... Bedienungsanleitung

Linksys

Linksys EFPC2SC Bedienungsanleitung

Linksys

Linksys EFG120 - EtherFast Network Attached Storage NAS... Bedienungsanleitung

Linksys

Linksys BEFN2PE Original Betriebsanleitung

Linksys

Linksys EFG120 - EtherFast Network Attached Storage NAS... Original Betriebsanleitung

Linksys

Linksys VGA2100 - One Analog Voice Gateway 3 Line Bedienungsanleitung

Linksys

Linksys EFG120 - EtherFast Network Attached Storage NAS... Original Betriebsanleitung

Linksys

Linksys HPES03 Bedienungsanleitung

Linksys

Linksys WMB54G - Wireless-G Music Bridge Network Audio... Bedienungsanleitung

Beliebte Netzwerk-Hardware Handbücher anderer Marken

Matrix Switch Corporation

Matrix Switch Corporation MSC-HD161DEL Bedienungsanleitung

B&B Electronics

B&B Electronics ZXT9-IO-222R2 Bedienungsanleitung

Yudor

Yudor YDS-16 Bedienungsanleitung

D-Link

D-Link ShareCenter DNS-320L Bedienungsanleitung

Samsung

Samsung ES1642dc Gebrauchsanweisung

Honeywell Home

Honeywell Home LTEM-PV Montageanleitung

evertz

evertz 7700 Series Bedienungsanleitung

D-Link

D-Link ShareCenter DNS-343 Bedienungsanleitung

Asante

Asante AsanteBridge 1012 Bedienungsanleitung

FireBrick

FireBrick FB2700 Bedienungsanleitung

Audiovox Electronics

Audiovox Electronics ARWH2T Bedienungsanleitung

ADC

ADC DSX-1 Handbuch

NetComm

NetComm NF2 Bedienungsanleitung

Alcatel-Lucent

Alcatel-Lucent 5620 Bedienungsanleitung

Dell EMC

Dell EMC XC6420 Series Bedienungsanleitung

Lanner

Lanner NCA-1020A Bedienungsanleitung

Allied Telesis

Allied Telesis AT-TN121-A Bedienungsanleitung

Arista

Arista CCA-ETM-Q12 Bedienungsanleitung
