Linksys SPA400

Trixbox Integration Guide

Access Point – Connecting You & Your Customers.

Contact : [email protected]

Overview:

The Linksys SPA400 is a 4 Line FXO gateway capable of connecting 4

PSTN lines to your asterisk system to make and receive calls. This

guide is a step by step on how to configure Trixbox to utilize the

features of the SPA400. Limitations:

* The voicemail function of the SPA400 cannot be used.

* You cannot select which line of the SPA400 to use. They are

treated as a single group of 1-4 lines. The SPA400 will know

which lines are available by the line voltage when plugged in.

Configure the SPA400:

Step 1 – Obtain the IP address if the SPA400

Option 1(Easiest): You will need to check your DHCP server to see

what IP address has been allocated to the SPA400 (Will usually be in

the Status area of your Modem/Router).

Option 2(Harder): If you only have a few devices on your network

you can use angry IP scanner (http://www.angryziber.com) which will

search your network for devices. You should be able to work out the

SPA400 address. Try searching for port 5060 also to help identify.

Option 3: You can download the SPA9000 setup utility from

http://www.linksys.com it will scan the network for SPA400s and show

the IP address.

Note the IP Address: ___________________________________

Step 2 – Access the SPA400

In your favourite web browser type the IP address of the SPA400, it

should ask for a username and password.

The default username is Admin (Note capital A)

The default password is blank

Step 3 – Set the SPA400 to a Fixed IP address

Asterisk needs to access your SPA400, so it needs to be set to a

fixed ip address. To do this: -

Under Setup -> Basic Setup

•Select Fixed IP address and enter a valid fixed IP address for

your network.

•Be sure to enter a DNS server, if you do not know enter the

Telstra DNS server 139.130.4.5 – You can leave the secondary

blank

•Set your time zone.

•Click Save Settings

•Restart System

Sample Config – Use Address Valid For Your Network

Check with the network administrator if unsure.

Note the IP address in the Notes Section.

Step 4 – Setup the SPA400 Voice Configuration.

Open the SPA400 in your web browser using the new IP address.

Select Setup->SPA9000 Interface.

•Enter SPA400 in the User ID:

•Leave SPA9000 on discover automatically

•No other changes should need to be made

•Click Save Settings (You Do Not Need To Restart)

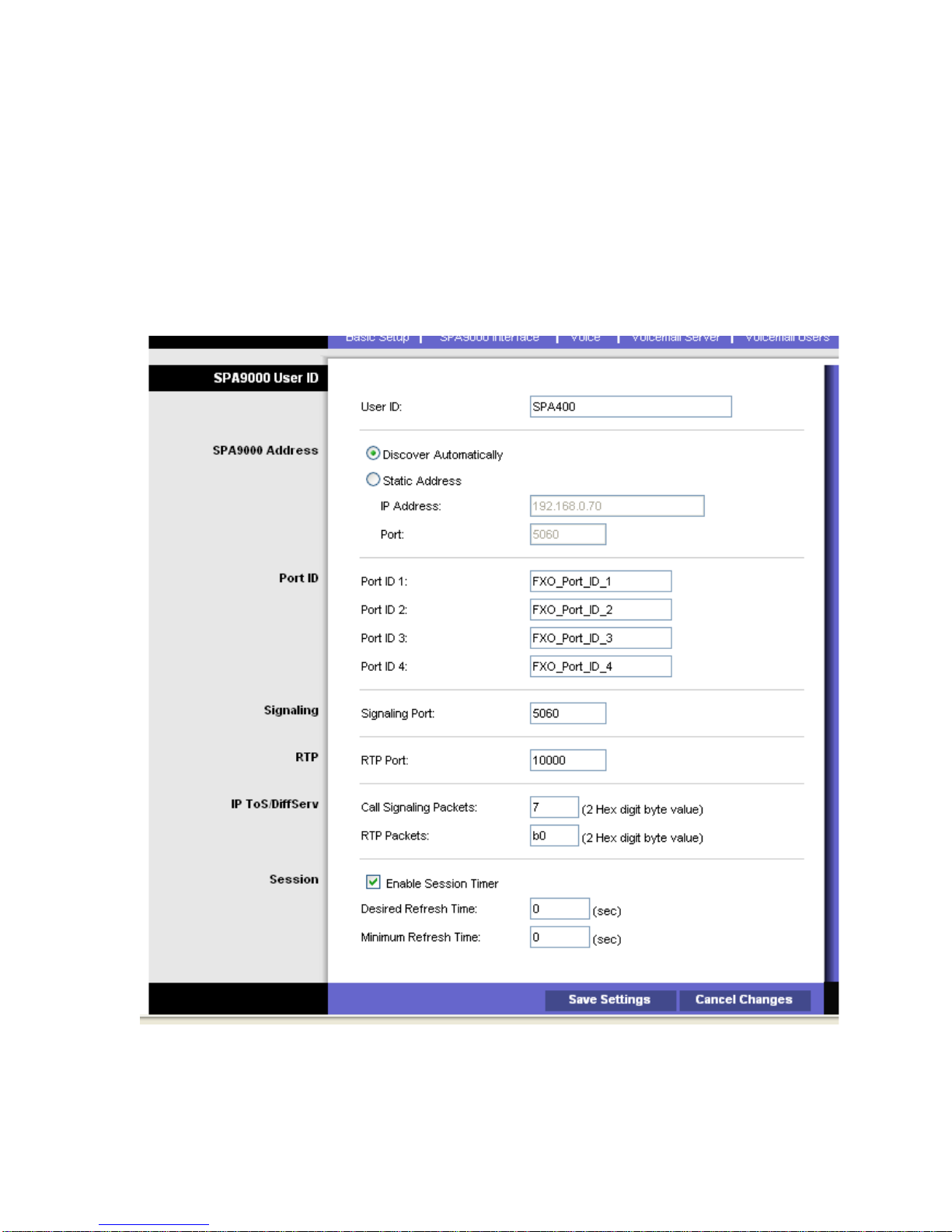

Screenshot of Setup -> SPA9000 Interface

Select Setup -> Voice

For Australia you need to change:-

•Impedance : 220 Ohms + (820 Ohms || 120nF)

•On-Hook speed : 26ms

Step 5 – Configure Trixbox Trunk.

Open your FreePBX interface: http://trixbox.ip/admin/

Select Trunks -> Add SIP trunk

Complete the form with the details below:

----------------------------------------------------------------------

Outbound Caller ID: Blank

Never Override CallerID : Unticked

Maximum Channels: (the number of pstn lines plugged into the

SPA400)

Dial Rules: Leave Empty

Outbound Dial Prefix: Empty

Trunk Name: SPA400 (Can be anything you wish)

Peer Details: allow=ulaw

canreinvite=no

context=from-trunk

dtmfmode=rfc2833

host=x.x.x.x

insecure=very

type=friend

user=SPA400

USER Context: Leave Blank

USER Details: Blank (Delete the default information)

SPA400@x.x.x.x/SPA400

-----------------------------------------------------------------------

Note : x.x.x.x should be where you enter the IP address of the

SPA400

Click Submit Changes.

Step 6 – Configure Outbound Route.

You can now treat the SPA400 like any other trunk. To add an

outbound router (eg, dial 9 to dial out the SPA400)

Outbound Routes -> Add Route

Route Name: SPA400PSTN (this can be anything)

Route Password: Blank

Emergency Dialing: Unticked

Intra Company Route: Unticked

Dial Patterns: 9|.

Trunk Sequence: SPA400

Click Submit Changes

Step 7 – Configure Inbound Route.

This will setup an inbound route for people who call the PSTN lines

plugged into the SPA400.

Setup -> Inbound Routes -> Add Incoming Route

DID Number: SPA400 (case sensitive)

Caller ID Number: Blank

Zaptel Channel: Blank

Fax Handling

Leave as is

Select the Destination

Click Submit

Click the Red “Apply Configuration Changes” to reload asterisk

Complete:

You should now be able to make and receive calls via your SPA400.

Email [email protected] for further support if required.

Congratulations

Notes:

SPA400 IP Address: _____________________________

SPA400 Username: ______________________________

SPA400 Password: ______________________________

Number of Lines: _____

Installed By: _______________________________

Date: ______________________________
