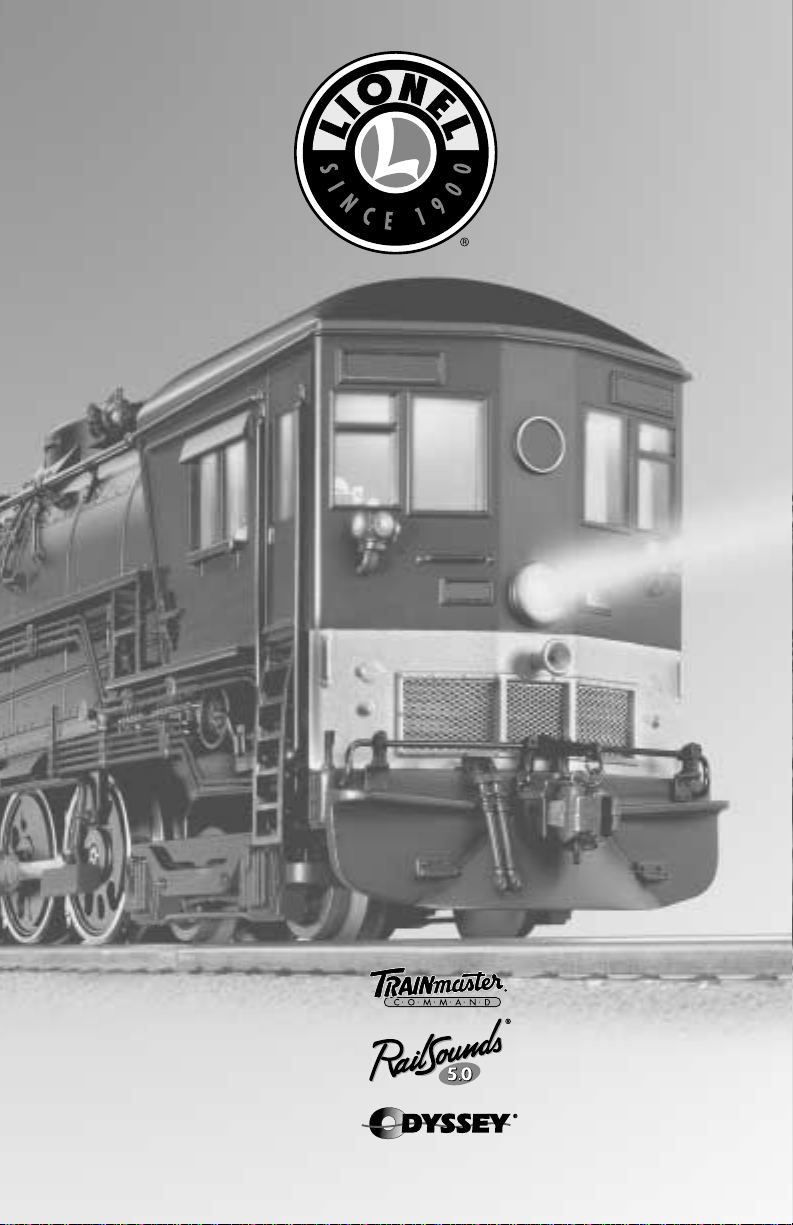

Lionel

Cab Forward AC-12

Steam Locomotive

Owner’s Manual

73-8071-250

4/05

SYSTEM

featuring

and

Congratulations!

Congratulations on your purchase of the Lionel Cab Forward AC-12 steam locomotive and

tender! On the outside, this locomotive features numerous prototypical details and expert

decoration in your favorite livery. Inside the body, this locomotive is equipped with some of the

most advanced sounds and controls in model railroading. This powerful locomotive is ready for

duty on your layout.

Features of this locomotive

• TrainMaster Command Control equipped—able to run in the TrainMaster

Command Control environment or in the conventional environment with

only a standard transformer

• Odyssey System for speed control with ON/OFF switch

• Refined Conventional Transformer Control Mode with lower starting

speeds, improved smoke output, and simplified Odyssey System controls

• RailSounds 5.0 sound system with intelligible CrewTalk dialog and

TowerCom announcements

• High-torque Pittman®motor

• Wireless Tether connection between locomotive and tender

• Directional lighting with operating headlight and back-up light on rear of

tender

• ElectroCoupler on rear of tender

• Illuminated classification lights, marker lights, and number boards

• Synchronized fan-driven smoke unit

• Illuminated cab interior

• Minimum radius: O-72

The following Lionel marks may be used throughout this instruction manual and are protected under law.

Lionel®, TrainMaster®, Odyssey®, RailSounds®, CrewTalk™, TowerCom™, DynaChuff™,

StationSounds™, Pullmor®, ElectroCoupler™, Magne-Traction®, CAB-1®Remote Controller,

PowerMaster®, Lionel ZW®, ZW®, PowerHouse®, TMCC®, Lionelville™, Lockon®, Wireless Tether™,

LionMaster®, FatBoy™, American Flyer®, TrainSounds™

The name FasTrack®is used with permission from Pitsco, Inc.

Pittman®is a registered tracdmark of Pittman, a PennEngineering company

Table of contents

Quick Start

Transformer operations 4

TrainMaster Command Control operations 4

Conventional transformer operations

Conventional transformer operations 5

Operating your locomotive in the conventional environment 6

Locking your locomotive into a single direction 7

Coupling your locomotive in the conventional environment 8

RailSounds 5.0 sound system operations

RailSounds 5.0 sound system operations 9

Installing the battery 10-11

Using the RailSounds 5.0 sound system in the conventional environment 12

Installing a Lionel Sound Activation Button for conventional operation 13

Activating the CrewTalk dialog and TowerCom announcements

in the Command Control environment 14

Using the RailSounds 5.0 sound system in the TrainMaster Command Control environment 15

Activating the CrewTalk dialog and TowerCom announcements

in the conventional environment 16

RailSounds 5.0 sound system dialog on a round trip 17

Odyssey System operations

Odyssey System operations 18

Odyssey System conventional transformer operation 18

Odyssey System Command Control operation 19

TrainMaster Command Control operations

TrainMaster Command Control operations 20

Operating your locomotive in the Command Control environment 20

CAB-1 Remote Controller commands 21

CAB-1 Remote Controller numeric keypad commands 22

Tuning your locomotive’s performance 23-24

Assigning your locomotive a new ID# 25

Reprogramming your locomotive to restore features 26

Maintaining and servicing your locomotive

Adding fluid to your locomotive’s smoke generator 27

Lubricating your locomotive 28

Maintaining your locomotive’s handrail antennas 29

Servicing your locomotive’s lamps 29

Replacing your tender’s lamps 30

Replacing the traction tires 31

Installing the O gauge coupler 31

Limited Warranty/Lionel Service 32

Quick Start

Transformer operations

1. Place your locomotive on Lionel or Lionel-compatible O-72 or larger

track.

2. Power your locomotive at 8-18 volts with your alternating-current (AC)

transformer.

Do not power your locomotive with a direct-current (DC) transformer. Damage to

sensitive electronic components may occur.

3. Wait three to eight seconds as your locomotive determines whether it is in

a conventional environment or a TrainMaster Command Control

environment. The headlight will stop flashing.

4. Move ‘em out! Press the DIRECTION button on your transformer, then

throttle up.

TrainMaster Command Control operations

To operate your locomotive in the Command Control environment, you need a Command

Base (available separately, 6-12911) and a CAB-1 Remote Controller (available separately,

6-12868). Both products are offered together in the TrainMaster Command Set (6-12969).

1. Turn off track power and plug-in the Command Base.

2. Place your locomotive on Lionel or Lionel-compatible O-72 or larger

track.

3. Increase track voltage to full power (no more than 19 volts AC).

Do not power your locomotive with a direct-current (DC) transformer. Damage to

sensitive electronic components may occur.

4. Press ENG and 1 to address your locomotive with your CAB-1 Remote

Controller.

5. Throttle up and move ‘em out.

Caution!

Conventional transformer operations

Your locomotive is capable of operating in the conventional environment, controlled by

nothing more than a standard Lionel alternating-current (AC) transformer.

In the conventional environment, your locomotive cycles through a repeating pattern of

operations: forward, neutral, reverse, neutral, and so on. To advance to the next operation, press

the DIRECTION button on your transformer. Alternately, you could use the throttle to briefly

turn off track power so that the locomotive advances to the next operation when power is

restored.

Once you cycle the locomotive into forward or reverse, you control your locomotive’s speed

by varying track voltage with the transformer’s throttle. To increase the speed of the locomotive,

you increase track voltage. To decrease the speed, you decrease track voltage. To stop the

locomotive and to change directions (or to enter neutral), track voltage is turned off or

interrupted.

Use the WHISTLE and BELL buttons on your transformer (or separate buttons if your

transformer is not equipped with these controls) to activate these features.

To experience all of your locomotive’s features, we recommend operating in the TrainMaster

Command Control environment. With a simple one-wire connection, you can use the CAB-1

Remote Controller to access all of the functions of your locomotive. Refer to pages 20-26 to see

how to operate your locomotive in the TrainMaster Command Control environment.

Conventional transformer operations

Operating your locomotive in the conventional environment

1. With your transformer turned off, place your locomotive on Lionel or

Lionel-compatible O-72 or larger track.

2. Connect the drawbar between the locomotive and tender as illustrated in

Figure 1.

Figure 1. Drawbar connection

3. Power your locomotive at 8-18 volts with your alternating-current

transformer.

Power your locomotive with an alternating-current (AC) transformer only.

Powering your locomotive with a direct-current (DC) transformer may result in

damage to sensitive electronic components.

4. Wait three to eight seconds as your locomotive determines whether it is in

a conventional environment or a TrainMaster Command Control

environment. The headlight flickers as the locomotive searches for a signal from the

Command Base. When the locomotive has determined that a Command Base is not

connected to the track, the flickering will stop and the headlight will remain illuminated.

You are ready for operation in the conventional environment.

5. Move ‘em out! Press the DIRECTION button on your transformer to sequence your

locomotive through the repeating pattern of operations: forward, neutral, reverse, neutral,

and so on. You may also briefly turn off track power to advance the locomotive to the next

operating state. Adjust the throttle until your locomotive moves at your desired speed.

When placing your locomotive on your layout for the first time, it will start out in

neutral. Thereafter, it will start in forward after every power interruption lasting five

seconds or longer.

Use the WHISTLE and BELL buttons on your transformer to activate those features. Refer

to page 13 if your transformer is not equipped with those buttons.

Caution!

Note!

OFF ON

ODYSSEY

Smoke Unit

(see page 27 for details)

Command reverse

unit switch

Odyssey switch

Figure 2. Switch locations

Conventional transformer operations

Locking your locomotive into a single direction

When the Command reverse unit switch is in the RUN position, your locomotive sequences

through a repeating pattern of operations: forward, neutral, reverse, neutral, and so on.

To “lock” your locomotive into a single direction (for example, to operate in forward only),

you can deactivate the Command reverse unit’s sequencing function. Refer to Figure 2 for the

location of the Command reverse unit switch.

1. Use your transformer’s DIRECTION button or interruptions in track power to get your

locomotive moving in the desired direction.

2. Slow the locomotive down without stopping (reduce the throttle without turning off track

power).

3. Slide the Command reverse unit switch to the PROG position. At this point, the locomotive is

“locked” into your chosen direction. To restore the forward-neutral-reverse sequence, just

slide the Command reverse unit switch back to the RUN position.

Your locomotive will “reset” to forward after any power interruption lasting five

seconds or longer, regardless of the direction you set.

Note!

FRONT

REAR

Conventional transformer operations

Coupling your locomotive in the conventional environment

The locomotive’s tender features one ElectroCoupler that is released by remote control at any

point around your layout in the TrainMaster Command Control environment.

In the conventional environment, the ElectroCouplers will not open manually or by using a

Remote-Control Track section. To couple your locomotive in the conventional environment, you

must rely on a piece of rolling stock equipped with a magnetic coupler. Simply release the

magnetic coupler and couple the rolling stock to the locomotive, even if the ElectroCoupler is

closed.

Keep in mind that you may still make use of Lionel Remote-Control Track sections (6-65530

for O gauge; 6-12746 and 6-65149 for O-27 gauge; and 6-12020 or 6-12054 for FasTrack

layouts) with the magnetic couplers on the rolling stock. Place the trigger disc on the magnetic

coupler over the central coil on the Remote-Control Track section, then press UNCOUPLE on the

track section’s controller. As illustrated in Figure 3, the magnetic field pulls the disc downward,

releasing the coupler.

Figure 3. Magnetic coupler operation

Remote-Control

Track Section

RailSounds 5.0 sound system operations

Your locomotive is equipped with the Lionel RailSounds 5.0 sound system, the most realistic

model railroad sound system in the world. The RailSounds 5.0 sound system brings the

sounds of the railroad to your layout through high quality digital samples of real locomotives.

When you operate your locomotive in the conventional environment, you get realistic

chuffing sounds, which automatically increase through 15 levels as the speed of the locomotive

increases. You can sound the locomotive’s whistle or activate the ringing of the bell. When you

are through with operations and power down the track, your locomotive’s RailSounds 5.0 sound

system starts a realistic steam shutdown sequence. (A nine-volt battery is required for the

operation of the RailSounds 5.0 sound system when the track is powered down, see pages 10-11.)

When you operate your locomotive in the TrainMaster Command Control environment, you

get full control of the RailSounds 5.0 sound system, including the whistle, air horn, and bell

sounds. The locomotive’s chuffing sounds automatically increase, but you can also set a

particular chuff intensity level using your CAB-1 Remote Controller. In the Command Control

environment, the release of the ElectroCoupler is accompanied by a coupler release sound. Use

the BRAKE button, and listen for the sound of squealing metal. You can also trigger CrewTalk

dialog and TowerCom announcements, which simulate the interaction between the locomotive

crew and the yardmaster. Whenever you choose to shutdown your locomotive, the realistic

shutdown sequence commences.(A nine-volt battery is required for the operation of the

RailSounds 5.0 sound system when the track is powered down, see pages 10-11.)

RailSounds 5.0 sound system operations

Installing the battery

While the RailSounds 5.0 sound system is powered through the track, we recommend that

you install a nine-volt alkaline battery in the tender to prevent the sound system from

shutting down during track power interruptions (for example, at a switch or a dirty section of

track). Follow these steps and refer to Figure 4 as you install the battery.

If the RailSounds sound system turns off during interruptions in track power, you

may need to replace the battery.

1. Remove the body screws from the underside of the tender. Refer to Figure 4 for the location

of the screws.

2. Lift the body off the frame. Be careful to avoid pulling on the wires that connect the body to

the frame.

3. Remove the protective cover from the battery harness.

4. Snap the battery harness onto the nine-volt alkaline battery’s terminals.

5. Slide the battery into the battery holder.

6. Replace the body on the frame and secure it with the body mounting screws. Be careful to

avoid pinching wires between the body and the frame.

Note!

Inhaltsverzeichnis

Andere Lionel Spielzeug Handbücher

Lionel

Lionel Ready-to-Play Series Bedienungsanleitung

Lionel

Lionel SD-9 Diesel Locomotive Bedienungsanleitung

Lionel

Lionel Ready-to-Play Series Bedienungsanleitung

Lionel

Lionel Early-Era Inspection Vehicle Bedienungsanleitung

Lionel

Lionel Missile Launch Set Bedienungsanleitung

Lionel

Lionel CA-4 Caboose Bedienungsanleitung

Lionel

Lionel 193 Water Tower Bedienungsanleitung

Lionel

Lionel SD-80 Diesel Locomotive Bedienungsanleitung

Lionel

Lionel U.S. ARMY SWITCHER 41 Bedienungsanleitung

Lionel

Lionel TMCC Tie-Jector Bedienungsanleitung

Lionel

Lionel AC6000 Bedienungsanleitung

Lionel

Lionel Holiday Tradition Express Calliope Wagon Bedienungsanleitung

Lionel

Lionel 264E O Gauge Passenger Train Bedienungsanleitung

Lionel

Lionel C&NW WINDY CITY GP-38 Bedienungsanleitung

Lionel

Lionel Best Friend of Charleston Bedienungsanleitung

Lionel

Lionel Whirlpool 0-27 Bedienungsanleitung

Lionel

Lionel Non-Powered LEGACY RailSounds Super Bass F3... Bedienungsanleitung

Lionel

Lionel 4-6-9 Camelback Bedienungsanleitung

Lionel

Lionel LionChief Plus 2.0 AC-12 Bedienungsanleitung

Lionel

Lionel VISION 4-6-6-4 Challenger Bedienungsanleitung

Lionel

Lionel F3 Non-powered B Unit Diesel Locomotive Bedienungsanleitung

Lionel

Lionel New York Central Flyer Bedienungsanleitung

Lionel

Lionel F7 A-B-A Bedienungsanleitung

Lionel

Lionel Wild West Set Bedienungsanleitung

Beliebte Spielzeug Handbücher anderer Marken

marklin

marklin 37321 Bedienungsanleitung

Canon

Canon PAPER CRAFT Bedienungsanleitung

GREAT PLANES

GREAT PLANES Pitts M-12S Bedienungsanleitung

NOCH

NOCH 14261 Bedienungsanleitung

Hausler

Hausler 450 SE V2 Bedienungsanleitung

Dynaflite

Dynaflite Daydream Bedienungsanleitung

MiniacRC

MiniacRC MIGHTY MINI P40 WARHAWK Handbuch

Kenner

Kenner Batman 63651 Bedienungsanleitung

LEGO

LEGO 8527 Bedienungsanleitung

iKarus

iKarus ECO 8 Bedienungsanleitung

Multiplex

Multiplex EasyStar II Bedienungsanleitung

Walkera

Walkera 38 Bedienungsanleitung

Hasbro

Hasbro TRANSFORMERS BUMBLEBEE Bedienungsanleitung

MD MXION SWD Bedienungsanleitung

Mattel

Mattel Disney Pixar Cars Cozy Cone Spiral Rampway Bedienungsanleitung

marklin

marklin 39671 Bedienungsanleitung

Meccano

Meccano 15103 Bedienungsanleitung

LEGO

LEGO TECHNIC 8735 Bedienungsanleitung
