Lionel

F7/F9 AA set,

Powered B, and

Superbass B units

Owner’s Manual

Lionel

F7/F9 AA set,

Powered B, and

Superbass B units

Owner’s Manual

Thank You!

Thank you for your purchase of this Lionel LEGACY diesel locomotive set! On the outside, this

locomotive set features numerous details and expert decoration in your favorite livery. Inside the

body, this locomotive set is equipped with some of the most advanced sounds and controls in model

railroading. This powerful locomotive set is ready for duty on your layout.

LEGACY®Control System

This revolutionary control system allows you to run your LEGACY®Control System-

equipped locomotive just like a real engineer runs his trains. With its enhanced sounds

and 200 speed steps, this system allows properly equipped engines to function with

unparalleled options. The CAB-2 Remote Controller has an LCD screen display, vibration

that simulates the effort of the locomotive, and other exciting operating features. The

new CAB-IL Remote Controller is a simpliﬁed alternative to unlock many LEGACY®

features.

ODYSSEY II®Speed Control

Slow speed and start-up operation are smooth and steady with ODYSSEY II®Speed

Control. Watch your locomotive as it creeps through the yard or ﬁghts up a grade

without hesitation.

LEGACY®RailSounds®

Widely regarded as the industry standard, the impressive RailSounds®sound system

brings the real sounds of the railroad to your layout. From the mechanical symphony of

the locomotives, to the commotion of the station, you will be impressed by the digitally

recorded samples of these special and authentic sounds.

LionChief®Bluetooth®

Incorporating Bluetooth technology into Lionel model trains opens a new world,

integrating the tradition of model railroading with the latest smart-device technol-

ogy. With Lionel’s new LionChief app, you can control full operation and sounds

directly from your Bluetooth-enabled smart phone or tablet and operate multiple

locomotives from the same device. LionChief is available to smartphone users and

is compatible with all new 2017 LionChief, LionChief Plus, S-Gauge, and HO Trains.

This device complies with Part 15 of the FCC Rules and with Industry Canada license-exempt

RSS standard(s). Operation is subject to the following two conditions: (1) This device may

not cause harmful interference, and (2) This device must accept any interference received,

including interference that may cause undesired operation.

Contains

FCC ID: 2AH7AKW2541A

IC: 21416-KW2541A

FCC Statement

Running your locomotive set

LEGACY Control operations 5

TrainMaster Command Control (TMCC) operations 6

Conventional transformer operations 7

Locomotive set basics

Adding smoke fluid to your locomotive set's smoke generators 8

Locomotive set switch locations 9-11

Assigning your locomotive set a new ID# (LEGACY and TMCC) 12

Lash-ups (for LEGACY operation only) 13

LEGACY Control System operations

The LEGACY CAB-2 Remote Controller 14

The Velocity Throttle 15

The Multi-Controller 15

The Train Brake Slider 15

The Warning Sound Controller 16

The Speed Bar 16

EFX Trim and EFX Bar Graph 17

Leaving the Preset Speed Screen 17

LEGACY RailSounds Sound System operations

LEGACY RailSounds sound system 18

LEGACY RailSounds Sequence Control 19

CrewTalk dialog and TowerCom announcements in the LEGACY environment 20

LEGACY RailSounds sound system dialog on a round trip 21

Using the Bluetooth LionChief App

Connecting to your LionChief, LionChief Plus, FlyerChief, or Legacy locomotive 22

What if my Bluetooth enabled engine didn’t automatically connect? 22

Connecting to your LionChief, LionChief Plus, or FlyerChief locomotive on Android devices 23

Running Your Locomotive 24

Settings 25

Volume Control 25

Switching Connection Between Multiple Bluetooth®Locomotives 26

Troubleshooting 26

Using the LionChief Universal Remote

The LionChief Universal Remote (6-83071) 27-28

Adjusting the locomotive volume using the Universal Remote 29

Pairing locomotives to the Universal Remote 29

Operating locomotives with the Universal Remote 30-31

TrainMaster Command Control operations

CAB-1 Remote Controller commands 32

CAB-1 Remote Controller numeric keypad commands 33-34

Setting the smoke level 34

Conventional transformer operations

Using the LEGACY RailSounds sound system in the conventional environment 35

Activating CrewTalk dialog and TowerCom announcements 36

Locking your powered locomotive into a single direction 36

Table of Contents

The Bluetooth® word mark and logos are registered trademarks owned by the

Bluetooth SIG, Inc. and any use of such marks by Lionel is under license. Other

trademarks and trade names are those of their respective owners.

Apple and the Apple logo are trademarks of Apple Inc., registered in the U.S. and

other countries. Mac App Store is a service mark of Apple Inc.

Google Play and the Google Play logo are trademarks of Google Inc.

The following Lionel marks are used throughout this Owner’s Manual and are protected under law.

Lionel®, LionChief®, LionChief Plus®, FlyerChief®, TMCC®, LEGACY®, FasTrack®,TrainMaster®,

Odyssey®, RailSounds®, CrewTalk™, TowerCom™, ElectroCoupler™, CAB-1®Remote Controller,

TMCC®, Wireless Tether™, SensorTrack™

B Unit operations

Using Your Legacy F7/F9 AA Set with Optional B-unit Locomotives 37

Sound and Coupler Switch Settings 37

Operating Mode: Conventional/Transformer Control 38

Operating Mode: Bluetooth (Universal Remote or LionChief App) 38

Operating Mode: Command Control, Same-Engine-ID Addressing 38

Operating Mode: Command Control, Train-ID Addressing 39

Maintaining and servicing your locomotive

Reprogramming your locomotive to restore features 40

Lubricating your locomotive 41

Servicing your locomotive’s LEDs 42

Replacing the traction tires 42

Locomotive diagnostics 43

Lionel Warranty 44

Table of Contents continued

Power your locomotive set with an alternating-current (50-60Hz AC) transformer only.

Powering your locomotive set with a direct-current (DC) transformer, or in excess of

19 volts AC, may result in damage to sensitive electronic components.

Your locomotive set requires Lionel or Lionel-compatible 0-31 or larger track curves.

All Legacy locomotives are factory programmed as ENG 1.

1. Turn off track power, and then plug in the

LEGACY Base and connect it to the track.

2. Place your locomotive set on the track.

3. Increase track power voltage to full power (no

more than 19 volts AC). If a circuit breaker trips

when you turn on the Lionel power supply, check the

wheels of your locomotive set to make sure they are all

securely on the track. Check to make sure the track is free

of all metals that may cause a short circuit.

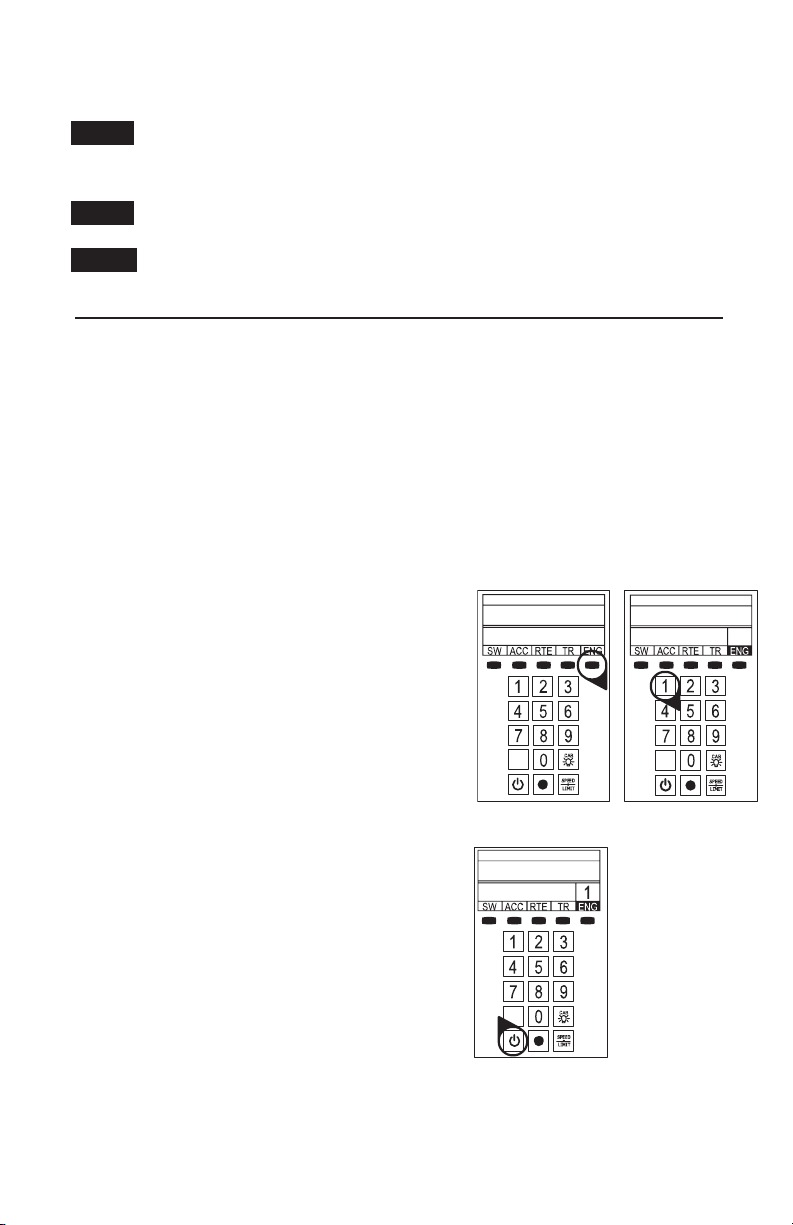

4. As illustrated in Figure 1, press ENG and 1

(or your selected ENG ID#) to address the

locomotive set with your LEGACY CAB-2 Remote

Controller.

5. Press the Start Up button on your LEGACY

CAB-2 Remote, shown in Figure 2. Then,

throttle up and move 'em out! Your engine sound

will start up, and the locomotive set-specific touch screen

buttons will populate the remote. For more information

on operating your locomotive set with the LEGACY

system, please refer to the LEGACY section of this manual.

Additional information is also found in the LEGACY

System Manual, available online at www.lionel.com.

Note!

Running your locomotive set

Figure 1. LEGACY engine selection

Figure 2. LEGACY start-up

LEGACY Control operations

For the finest operating experience, your locomotive set is fully compatible with the LEGACY

Control System. To operate in LEGACY mode, you need a LEGACY Command Base and LEGACY

CAB-2 Remote Controller (6-14295). It will also operate on the original Lionel Trainmaster System

(TMCC1) with limited features and also on the the LEGACY Cab-1L / Base-1L operating system

(again with reduced features.) Using a Lionel LEGACY set will allow you to access ALL the features

this locomotive set has to offer.

Your commands are sent by the CAB-2 Remote Controller to the Command Base, which

broadcasts a radio frequency that is distributed through the outer rails of the track to your

locomotive set. Your locomotive set will not respond until it recognizes its unique ID#, so you can

operate multiple Command-equipped locomotive sets on the same track at the same time.

Note!

Running your locomotive set

Power your locomotive set with an alternating-current (50-60Hz AC) transformer only.

Powering your locomotive set with a direct-current (DC) transformer, or in excess of

19 volts AC, may result in damage to sensitive electronic components.

Your locomotive set requires Lionel or Lionel-compatible 0-31 or larger track curves.

All Legacy locomotives are factory programmed as ENG 1.

TrainMaster Command Control (TMCC) operations

For operation in the TrainMaster Command Control environment, you need a TrainMaster

Command Base (6-12911) and a CAB-1 Remote Controller (6-12868). Refer to your TMCC

System Manual for complete information. To access all the locomotive's features, you

must operate in the LEGACY environment, as discussed on the previous page.

Your commands are sent by the CAB-1 Remote Controller to the Command Base, which

translates the command into digital code. That code is sent through the outside rails to your

locomotive set, which will not respond until it recognizes its unique ID#. TrainMaster Command

Control gives you the power to operate multiple Command-equipped locomotive sets on the same

track at the same time.

1. Turn off track power, and then plug in the Command Base and connect it to the

track.

2. Place your locomotive set on the track.

3. Increase track voltage to full power (no more than 19 volts AC). If a circuit

breaker trips when you turn on the Lionel power supply, check the wheels of your locomotive set

to make sure they are all securely on the track. Check to make sure the track is free of all metals

that may cause a short circuit.

4. Press ENG and 1 (or the ENG ID# you set) to address your locomotive set with

your CAB-1 Remote Controller.

5. Throttle up and move ‘em out.

For more information, please refer to the TrainMaster Command Control operations section of

this manual or the TMCC System Manual, available online at www.lionel.com.

Note!

Running your locomotive set

Conventional transformer operations

For Conventional operation, a Command Base must not be powered up anywhere

in the area, even if it is not connected to the track. If a base is detected, your

locomotive set will default to Command mode.

Power your locomotive set with an alternating-current (50-60Hz AC) transformer

only. Powering your locomotive set with a direct-current (DC) transformer, or in

excess of 19 volts AC, may result in damage to sensitive electronic components.

Your locomotive set requires Lionel or Lionel-compatible 0-31 or larger track

curves.

1. With track power off, place your locomotive set on the track.

2. Power up the track. If a circuit breaker trips when you turn on the Lionel power supply,

check the wheels of your locomotive set to make sure they are all securely on the track. Check to

make sure the track is free of all metals that may cause a short circuit.

3. Move ‘em out! When the locomotive set’s headlight illuminates and the LEGACY RailSounds

sound system starts, press the DIRECTION button on your transformer to sequence your

locomotive set through the repeating pattern of operations: neutral, forward, neutral, reverse,

neutral, and so on. You may also briefly turn off track power to advance the locomotive set to

the next operating state. Adjust the throttle until your locomotive set moves at your desired

speed.

When placing your locomotive set on your layout for the first time and after power

interruptions lasting longer than five seconds, it will start out in neutral.

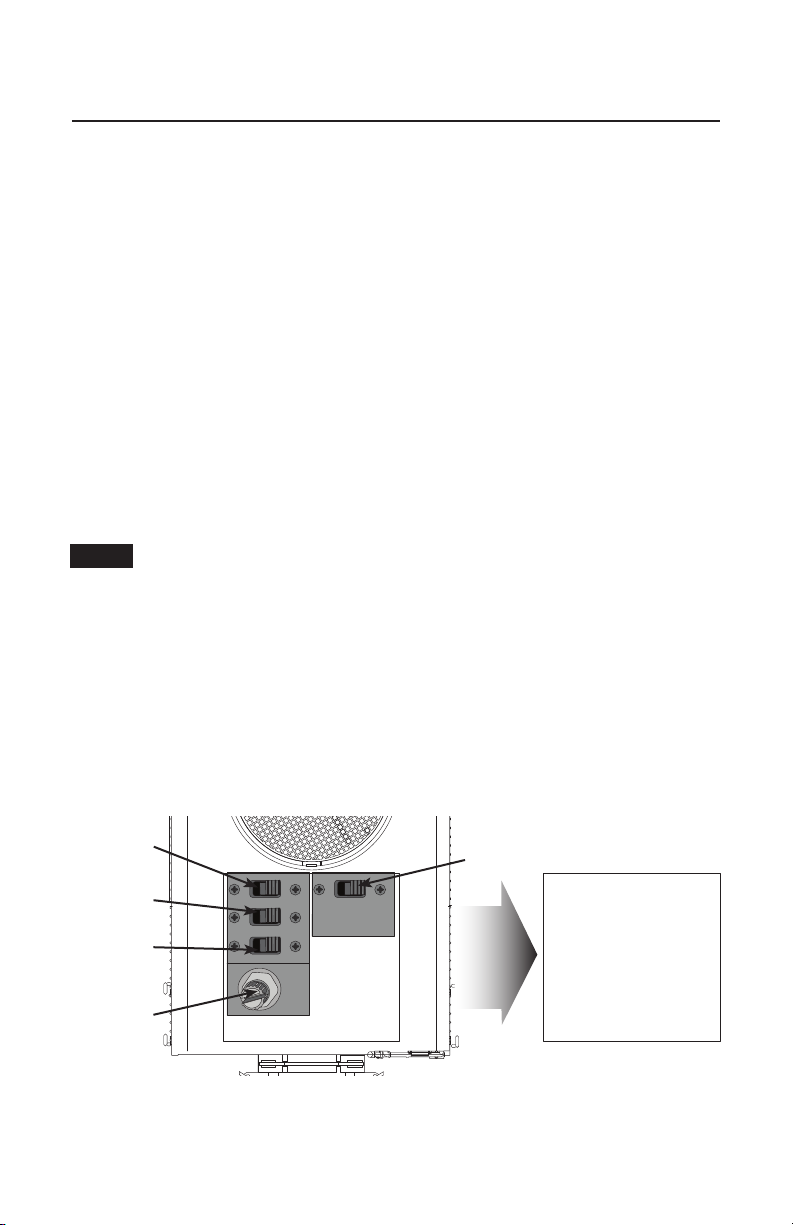

Use the HORN and BELL buttons on your transformer to activate those features. Adjust the

volume using the volume control knob, which is located under the rear rooftop hatch on the

powered unit. Refer to Figure 4a on page 9. For more information, please refer to the Conventional

transformer operations section of this manual.

Note!

Locomotive set basics

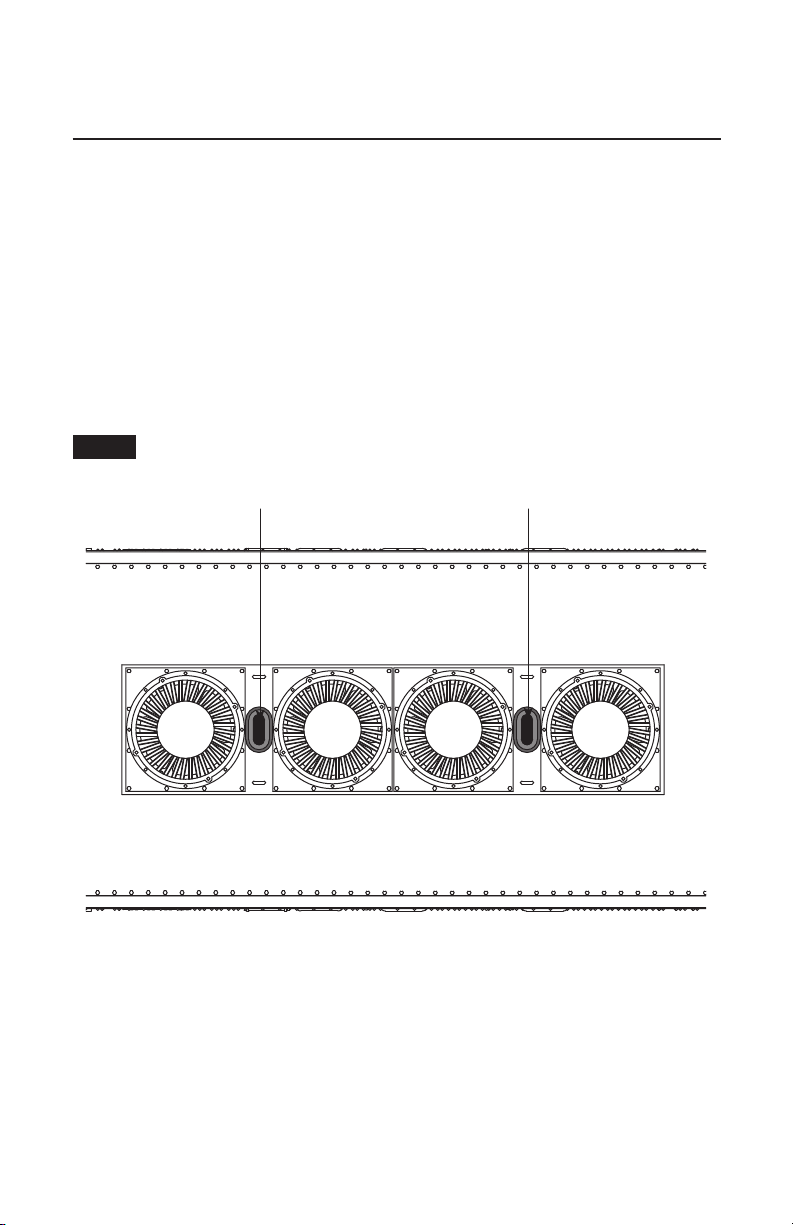

Each locomotive is equipped with a smoke generator that produces safe, clean, white smoke dur-

ing operation. A reservoir beneath the stack contains the fluid and a wick which, once saturated,

supplies the heating element with the right amount of fluid. Add 10-20 drops to the duct (shown

in Figure 3) to prime the units the first time you run the locomotive set or after being stored for an

extended period of time, and then add 10 to 20 drops to refill when smoke production decreases.

When refilling, DO NOT EXCEED 20 DROPS as this can cause your smoke units to become over-

saturated allowing leakage onto the electronics. Note that operating your locomotives’ smoke units

without smoke fluid will cause damage to the heating element.

If you prefer to operate your locomotive set without smoke, locate the smoke unit switch on

each locomotive and slide it to the NO SMK position. Refer to Figures 4a, 4b, 4c, and 4d on pages 9

through 11 for the location of these switches.

For best performance, we recommend using only Lionel Premium Smoke Fluid.

Adding smoke fluid to your locomotive set’s smoke generators

Note!

Add smoke fluid here Add smoke fluid here

Figure 3. Smoke fluid fill location

PGM

NO SMK

OFF COUPLER ON

OFF BLUETOOTH ON

SMK

RUN

The functions of your locomotive set's switches are outlined below. Refer below for the location of

the switches. The instructions below are specific to this particular locomotive

set; note that available features (and switches) may differ from other loco-

motives and sets.

Smoke Unit Switch (SMK/NO SMK)

Used to turn the smoke unit function on and off.

Program-Run Switch (RUN/PGM)

Used to assign an ID# and to reprogram each locomotive in this set for LEGACY and Command

operation when the switch is in the PGM position. Also used to “lock” your powered locomotive

in a single direction, or neutral, in conventional operation when the switch is placed in the PGM

position.

Coupler Switch

Manually turns off the engine's electrocoupler. Useful when running as a consist.

Bluetooth Switch (BLE)

Manually turns on/off the Bluetooth radio module in the unit.

When running in Bluetooth mode with either the LionChief Universal Remote or the

LionChief App, the lead A-unit must be controlled for the trailing A-unit or any B-units to

also be controlled. A trailing A-Unit or any B-unit will not run by themselves via

Bluetooth control.

Crew Switch (B-units only)

On/Off switch for B-units with sounds. Turns off CrewTalk/TowerCom so you can decide which

unit does the talking. Switch is ignored when running in Train mode.

Signals Switch (B-units only)

On/Off switch for B-units with sounds. Turns off Horn/Bell. Have the signals come from just one

unit or from a few! Customize to your liking. Switch is ignored when running in Train mode.

Locomotive set basics

Locomotive set switch locations

Figure 4a. Powered A Unit Switch locations

(under roof hatch)

Powered A-unit

REAR

Program-

Run switch Bluetooth

switch

Remove

Cover

Smoke unit

switch

Coupler

switch

Volume

Note!

PGM

NO SMK

OFF COUPLER ON

OFF BLUETOOTH ON

SMK

RUN

Locomotive set basics

Locomotive set switch locations continued

Helper Powered A-unit

Powered B-unit

REAR

Figure 4b. Helper Powered A Unit Switch locations (under roof hatch)

Figure 4c. Powered B Unit switches (under roof hatch)

Program-

Run switch Bluetooth

switch

Remove

Cover

Smoke unit

switch

Coupler

switch

PGM

NO SMK

OFF COUPLER ON

OFF BLUETOOTH ON

SMK

RUN

Program-

Run switch Bluetooth

switch

Remove

Cover

Smoke unit

switch

Coupler

switch

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Lionel Spielzeug Handbücher

Lionel

Lionel Southern Pacific Overnight Freight Bedienungsanleitung

Lionel

Lionel Jet Snow Blower Bedienungsanleitung

Lionel

Lionel VisionLine 3GS21B Bedienungsanleitung

Lionel

Lionel Norfolk & Western A Class Bedienungsanleitung

Lionel

Lionel GP-38 diesel locomotive Bedienungsanleitung

Lionel

Lionel Allegheny Steam Locomotive Bedienungsanleitung

Lionel

Lionel Wild West Set Bedienungsanleitung

Lionel

Lionel O-27 Santa Fe FT Passenger set Bedienungsanleitung

Lionel

Lionel Aluminum Passenger Car Bedienungsanleitung

Lionel

Lionel Ready-to-Play 2006132 Bedienungsanleitung

Lionel

Lionel 726 Berkshire 2-8-4 steam locomotive Bedienungsanleitung

Lionel

Lionel Burning Hobo Depot Bedienungsanleitung

Lionel

Lionel Ford Auto Dealership Bedienungsanleitung

Lionel

Lionel Frisco 0-27 Bedienungsanleitung

Lionel

Lionel Powered F3 B-Unit Diesel Locomotive Bedienungsanleitung

Lionel

Lionel 2269W B & O Diesel Freight Bedienungsanleitung

Lionel

Lionel RS-11 Bedienungsanleitung

Lionel

Lionel 4-6-4 Dreyfuss Hudson Bedienungsanleitung

Lionel

Lionel F3 Non-powered B Unit Diesel Locomotive Bedienungsanleitung

Lionel

Lionel Hogwarts Express Bedienungsanleitung

Lionel

Lionel Lackawanna Pocono Berkshire Bedienungsanleitung

Lionel

Lionel F3ABA Bedienungsanleitung

Lionel

Lionel FT A-Unit Diesel Locomotiv Bedienungsanleitung

Lionel

Lionel 71-4156-250 Bedienungsanleitung

Beliebte Spielzeug Handbücher anderer Marken

marklin

marklin 37321 Bedienungsanleitung

Canon

Canon PAPER CRAFT Bedienungsanleitung

GREAT PLANES

GREAT PLANES Pitts M-12S Bedienungsanleitung

NOCH

NOCH 14261 Bedienungsanleitung

Hausler

Hausler 450 SE V2 Bedienungsanleitung

Dynaflite

Dynaflite Daydream Bedienungsanleitung

MiniacRC

MiniacRC MIGHTY MINI P40 WARHAWK Handbuch

Kenner

Kenner Batman 63651 Bedienungsanleitung

LEGO

LEGO 8527 Bedienungsanleitung

iKarus

iKarus ECO 8 Bedienungsanleitung

Multiplex

Multiplex EasyStar II Bedienungsanleitung

Walkera

Walkera 38 Bedienungsanleitung

Hasbro

Hasbro TRANSFORMERS BUMBLEBEE Bedienungsanleitung

MD MXION SWD Bedienungsanleitung

Mattel

Mattel Disney Pixar Cars Cozy Cone Spiral Rampway Bedienungsanleitung

marklin

marklin 39671 Bedienungsanleitung

Meccano

Meccano 15103 Bedienungsanleitung

LEGO

LEGO TECHNIC 8735 Bedienungsanleitung
