Lionel Fastrack O-36 Bedienungsanleitung

78-1946-250

5/15

Lionel

O-36 Remote / Command

Control Switch

Owner’s Manual

Lionel

O-36 Remote / Command

Control Switch

Owner’s Manual

Congratulations on your purchase of the Lionel FasTrack Command Control Remote

Switch! This switch operates and is programmable by your LEGACY remote, the included

hard-wired remote controller, or the manual switch stand. You may choose to remove the

installed manual controllers and forgo that wiring all together. The switch connects easily

to other FasTrack track sections. Use the switch to join two track loops, create a switching

yard, or add a siding. Run your trains around your layout with the freedom only these Lionel

Command Control Switches will give you!

Table of contents

Joining the FasTrack track sections 3

Operating the switch in conventional mode 4

Changing the switch stand location 5

Operating your switches in command control environment 6

Programming your switches 7

Train Route information 8

Routing the controller cable 9

Mounting the controllers 10

Numbering your switch controllers 10

Powering the switch through a separate power supply 11

Servicing the lamps 11

Limited Warranty/Lionel Service 12

The following Lionel marks are used throughout this Owner’s Manual and are protected under

Lionel®, LionChief™, LionChief Plus™, LEGACY™, FasTrack®,TrainMaster®, Odyssey®, RailSounds®,

CrewTalk™, TowerCom™, DynaChuff™, StationSounds™, Pullmor®, ElectroCoupler™, Magne-

Traction®, CAB-1®Remote Controller, American Flyer®, Lionel ZW®, ZW®, MagniVision®, TMCC®,

Lionelville®, Wireless Tether™, Powerhouse™, LionMaster®, Conventional Classics™, Postwar

Celebration Series™, TruRail™, PH-1 Powerhouse®, Powermaster®, Powerstation-Powerhouse®,

Accessory Motor Controller™, AMC™, Accessory Switch Controller™, ASC™, Action Recorder

Controller™, ARC™, Track Power Controller 300™, TPC 300™, Track Power Controller 400™, TPC

400™, Block Power Controller™, BPC™, Operating Track Controller™, OTC™, FatBoy™, Lionel

Lines®, Joshua Lionel Cowen Series™, Lockon®, TrainSounds™, MultiHorn™, MultiWhistle™,

Choo-Choo™, SensorTrack™, Plug-n-Play™

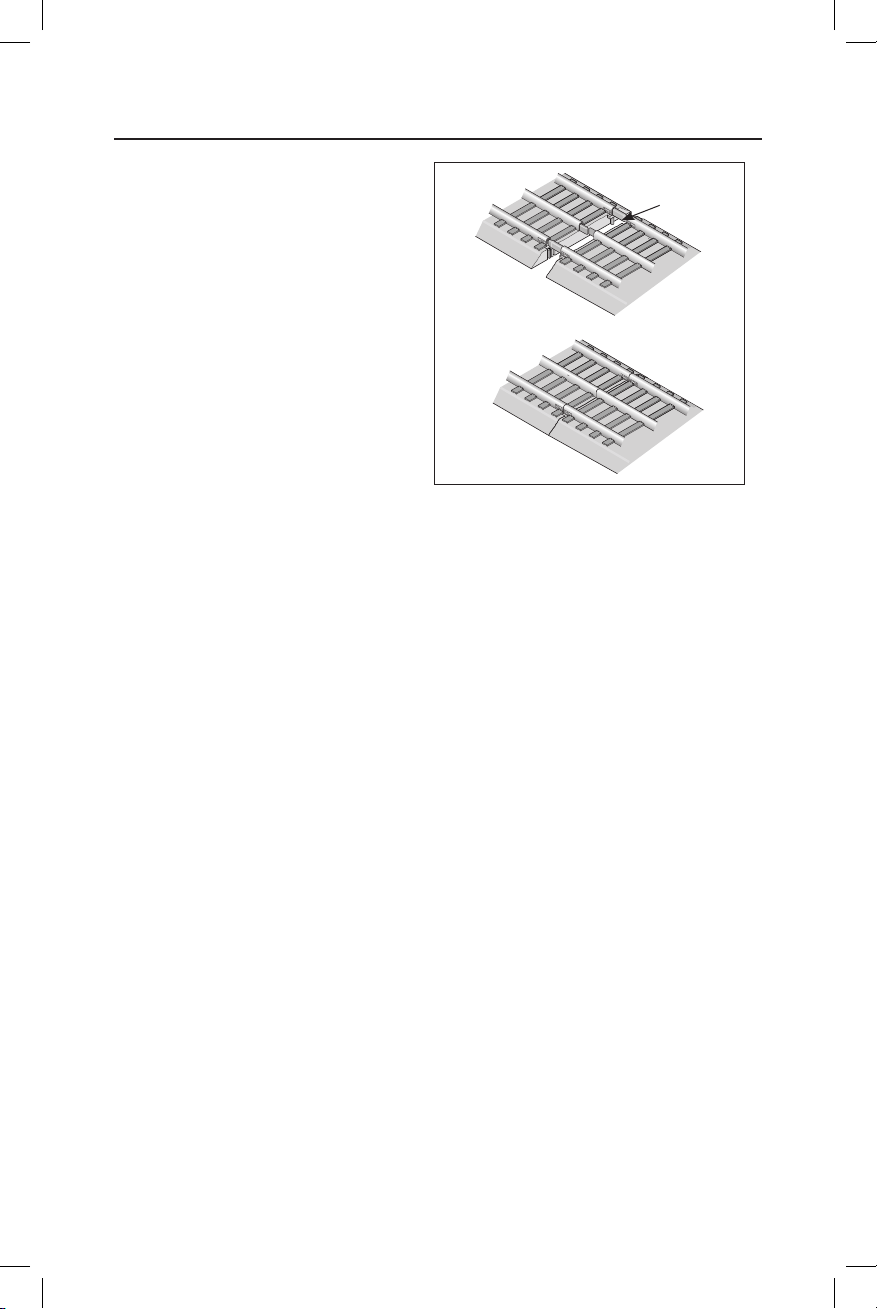

Joining the FasTrack track sections

FasTrack track sections join together

easily. With interlocking roadbed

sections and large rail tabs, the track fits

together securely so you always get good

electrical contact. Refer to Figure 1 to see

how to join the track sections.

1. Line up your two sections of track.

2. Insert the rail tabs into the openings at

the ends of the corresponding rails.

3. Press the sections together until the

interlocking roadbed snaps into place.

Figure 1. Joining the track sections

Rail tab

Operating the switch in conventional mode

You may operate the switch using the controller or the illuminated switch lamp on the

roadbed. Refer to Figure 2.

To operate the switch using the controller, power up the track, then pull the lever to

the opposite position. Gently press the lever past the end of its path. The lights inside the

controller will change colors to designate the change in switch positions. The red lights

designate the curved path. The green lights designate the straight path.

Track power must be on to operate the switch using the controller.

To operate the switch using the switch lamp, simply rotate the switch lamp. The new

position of the colored lenses on the lamp designate the change in switch positions.

This switch is equipped with a non-derailing feature. The train’s wheels

automatically throw the blades to the proper position when the train travels toward

the converging track. If you experience difficulties, simply use the controller or

switch lamp to throw the switch into the correct position for the train to travel.

Figure 2. Switch operation

Note!

Controller

Switch lamp

Changing the switch stand location

You may choose to position the switch stand either inside or outside the loop of track.

Follow these steps and refer to Figure 3 to change the location of the switch stand.

1. Remove the two screws that secure the small roadbed section to the switch and lift away the

roadbed section.

2. Place the “blades,” or moving rails, in the proper position to make removing the switch

stand roadbed section easier.

• If the switch stand is being removed from the curved side, the blades should be set to

the through/straight position.

• If the switch stand is being removed from the straight side, the blades should be set to

the out/curve position.

3. Remove the two screws that secure the switch stand roadbed section to the switch. Please

note that these screws are located towards the inside edge of the switch stand roadbed

section. Lift away the switch stand roadbed section.

4. Install the switch stand roadbed section at its new location. The posts on the switch should

be inserted into the holes on the switch stand roadbed section. The pin on the switch stand

mechanism should be inserted into the slot on the switch control arm. Insert the two

screws to secure the switch stand.

5. Install the small roadbed section, securing it in place with the two screws.

Figure 3. Switch stand installation

Remove these screws

Small roadbed section

Slot

Switch stand

roadbed section

Operating your switches in the Command Control environment

Pressing AUX2

Sets the switch for the curve.

Pressing SET

Used to finalize programming switches

Pressing AUX1

Sets the switch for straight through.

Pressing SW

Activates the switch protocols in the command base.

Pressing RTE

Activates the route protocols in the command base.

Pressing Number keys (1-99)

Identifies which switch/route will be addressed

Your Command-equipped switch

comes factory-programmed with

a switch ID# of “1.” To get your switch

in action, set PowerMasters to CMD

or set all power supplies on full (no

more than 19 volts). Press SW and

“1” on your CAB. Press AUX1, AUX2;

your switch is ready for Command

operations.

Address Switch #1

Set PowerMaster to CMD or traditional

power supplies to full throttle (no more

than 19 volts)

Press SW

Press 1 (the ID#)

Press AUX1 Pass trough

Press AUX2 Turn out

Example

CAB commands for controlling your switches

Command Control operations

The switches LED’s will change color to follow the switch’s throw route.

For a more in-depth description of the functions of your Cab buttons

please see the manual that was included with your command system.

Note!

Programming your switches

Command Control operations continued

We recommend that any Command switches to be placed on your layout in a hard to

reach location be programmed with a new ID# before installation.

Note!

Programming:

1. Make sure that the command base is on and properly installed.

2. Power up the track.

3. Press and hold the program button for 1 to 2 seconds. The lantern will start to blink.

4. On your CAB remote, press SW, (the new switch ID# number)followed by the SET

button. The switch accepts numbers 1 through 99.

5. The lantern will cease to blink and will be on steady.

6. Verify the switch took the new number by pressing SW, (the new ID# number) and

alternating the AUX1 and AUX2 buttons to see the switch activate.

Program button

Figure 4. Switch program button

Programming your switches

Train route information

Command Control operations continued

In an environment where more than one Command switch is intalled, be sure that

you program each switch with it’s own switch ID # initially so other switches are not

addressed when doing a “soft set”.

Note!

Soft Set Programming

The TMCC switch incorperates “Soft Set Technology” which allows the operator to change the

ID# (1-99) without physically activating the program button. This is great for switches that

are not easily accessable.

1. Activate the desired switch by pressing SW, (the new switch ID# number) then

alternate the AUX1 and AUX2 buttons to verify the command system is communicating with

the switch.

2. On the Cab remote, press the SET button five times slowly. After the fifth press, the lantern

will start to blink.

3. Press the SW, (the new switch ID# number) SET.

4. The lantern will flicker when the SET button is pressed and then will continue to blink for

approx. 5 seconds.

5. When the lantern stops blinking, press SW, (the new switch ID# number) and

alternate AUX1 and AUX2 to verify that it is reprogrammed to the new number.

In TMCC1 operation, Routes 1 to 9 are supported and are stored in the switch. Routes 1-9

are assigned by the Cab-1 controller. Each switch saves the route number assigned, and the

“through” or “out” selection. After a route is selected and activated, the switch is fired with

a randomized time. The reason for this is when a route is activated, all of the switches

operating together would add undesired load on the track power transformer. Allow up to 2

seconds for all switches to throw when part of a route and the route is selected and activated.

Please refer to page 13 in your TMCC1 owners manual for instruction on creating routes

In TMCC2 operation, Routes 1-99 are supported and are stored in the Legacy command

base. No route assignment is stored in the switch, please refer to the route builder in the

Legacy manual page 69 for how to create a route.

Routing the controller cable

The controller cable has been routed through the notch on the curved side of the roadbed at

the factory. You may choose to route the controller cable through the notch on the straight

side of the roadbed. As illustrated in Figure 5, remove the notch section from the straight side

of the roadbed and bend the metal tabs to free the controller cable. Reroute the cable through

the notch on the straight side of the roadbed. With the controller cable in place, bend down

the metal tabs to hold the controller cable in the channel. Snap the notch section of roadbed

provided separately with your switch to the curved side of the roadbed to hide the notch.

Save the notch section from the straight side of the roadbed for future use.

TRACK

JUMPER

AUX

AUXILIARYPOWER

AUX

GND

RSC

LIGHTS

REMOTESWITCHCONTROLLER

OUT GND THRU DATA

WIRECOLORCODES

RSCLIGHTS=Yellow

OUT=Red

GND=Black

THRU=Green

Figure 5. Controller cable

Notch section - Curved side of Roadbed

(provide separately with your switch)

Notch section - Straight side of Roadbed

Metal tab

Cable

Note!

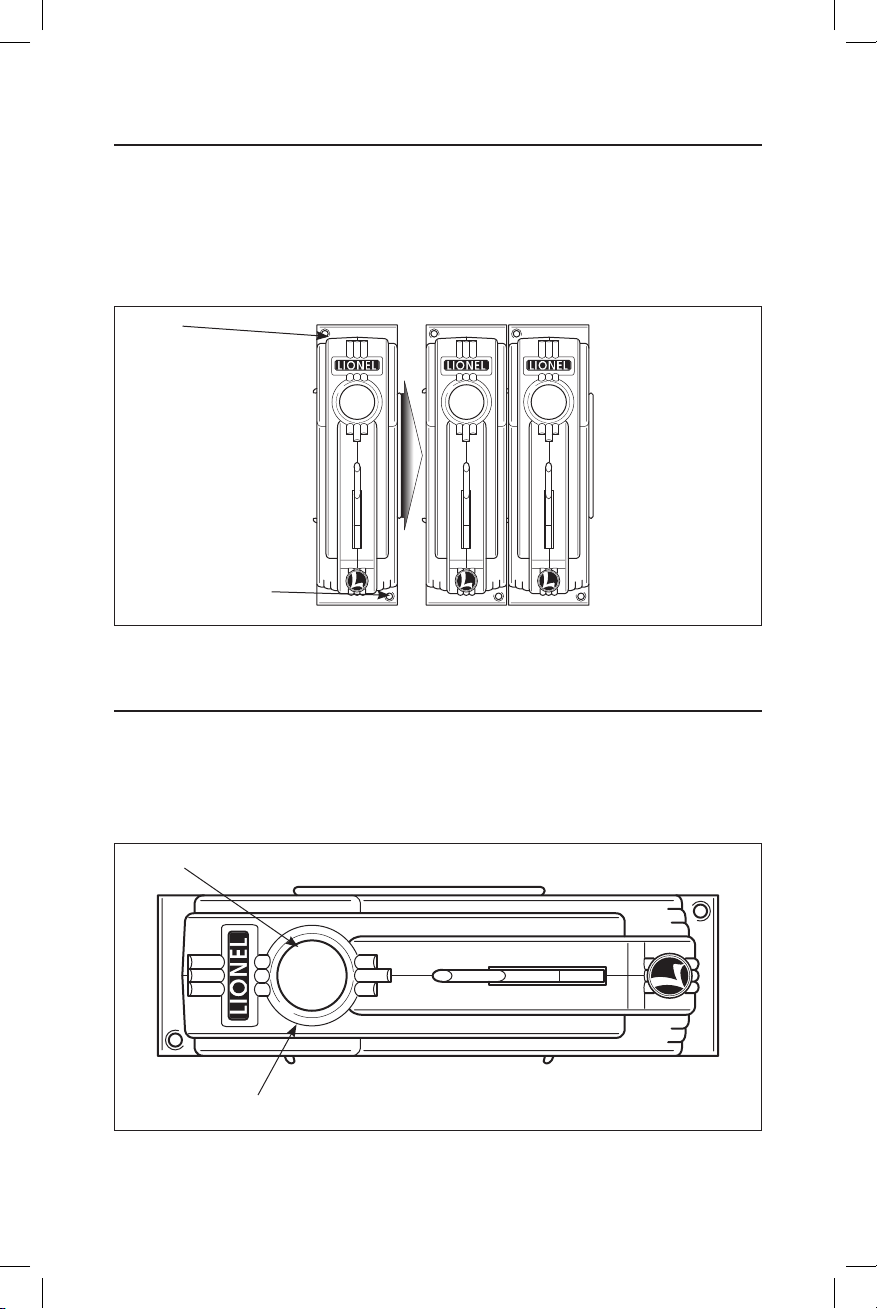

Mounting the controllers

If you have multiple switches and controllers, you may choose to snap the interlocking

controller bases together and mount them to your control panel using screws. To join the

controller bases, snap the bases together on a flat surface as illustrated in Figure 6. Drive

screws through the holes in the controller bases to secure the controllers to your layout. We

recommend using No. 4 sheet metal screws.

Figure 6. Joining the controllers

Hole

Numbering your switch controllers

You may choose to number your switch controllers to help you identify the switches on

your layout. Six numbered lenses are included with your switch.

To number a switch, slide the logo lens out from under the left side of the frame, then

insert the numbered lens. Refer to Figure 7.

Figure 7. Inserting a numbered lens

Frame

Insert the lens under the frame

Inhaltsverzeichnis

Andere Lionel Spielzeug Handbücher

Lionel

Lionel FireCarwith Training/Support car Bedienungsanleitung

Lionel

Lionel Greendale Bedienungsanleitung

Lionel

Lionel FA Diesel Locomotive Bedienungsanleitung

Lionel

Lionel Empire State Express Hudson Bedienungsanleitung

Lionel

Lionel Holiday Tradition Express Calliope Wagon Bedienungsanleitung

Lionel

Lionel LionChief Plus 2.0 0-6-0T Bedienungsanleitung

Lionel

Lionel 73-0020-250 Bedienungsanleitung

Lionel

Lionel Dash 9 Diesel Locomotive Bedienungsanleitung

Lionel

Lionel Pennsylvania 4-6-2 K4 Bedienungsanleitung

Lionel

Lionel 101 Bedienungsanleitung

Lionel

Lionel 6-24112 Bedienungsanleitung

Lionel

Lionel Extension Searchlight Car Bedienungsanleitung

Lionel

Lionel 6-36824 Bedienungsanleitung

Lionel

Lionel AEC - 57 Switcher Bedienungsanleitung

Lionel

Lionel Kraft/Nabisco Holiday 2002 Bedienungsanleitung

Lionel

Lionel MTA R27 Subway Bedienungsanleitung

Lionel

Lionel American Flyer 2-8-8-2 Steam Locomotive Bedienungsanleitung

Lionel

Lionel SD 60/70 Bedienungsanleitung

Lionel

Lionel LionChief Plus 2.0 ET44 Bedienungsanleitung

Lionel

Lionel 2-8-4 Berkshire Locomotive and Tender Bedienungsanleitung

Lionel

Lionel Junction Dinosaur Diesel LionChief Ready-To-Run... Bedienungsanleitung

Lionel

Lionel Scout Set Bedienungsanleitung

Lionel

Lionel FT A-Unit Diesel Locomotiv Bedienungsanleitung

Lionel

Lionel Arch Under Bridge 71-2770-250 Bedienungsanleitung

Beliebte Spielzeug Handbücher anderer Marken

marklin

marklin 37321 Bedienungsanleitung

Canon

Canon PAPER CRAFT Bedienungsanleitung

GREAT PLANES

GREAT PLANES Pitts M-12S Bedienungsanleitung

NOCH

NOCH 14261 Bedienungsanleitung

Hausler

Hausler 450 SE V2 Bedienungsanleitung

Dynaflite

Dynaflite Daydream Bedienungsanleitung

MiniacRC

MiniacRC MIGHTY MINI P40 WARHAWK Handbuch

Kenner

Kenner Batman 63651 Bedienungsanleitung

LEGO

LEGO 8527 Bedienungsanleitung

iKarus

iKarus ECO 8 Bedienungsanleitung

Multiplex

Multiplex EasyStar II Bedienungsanleitung

Walkera

Walkera 38 Bedienungsanleitung

Hasbro

Hasbro TRANSFORMERS BUMBLEBEE Bedienungsanleitung

MD MXION SWD Bedienungsanleitung

Mattel

Mattel Disney Pixar Cars Cozy Cone Spiral Rampway Bedienungsanleitung

marklin

marklin 39671 Bedienungsanleitung

Meccano

Meccano 15103 Bedienungsanleitung

LEGO

LEGO TECHNIC 8735 Bedienungsanleitung
