Lionel Missile Bedienungsanleitung

Lionel

Missile Launcher Locomotive

Owner’s Manual

®®

featurin

72-8411-250

1/06

CAUTION: Use only the projectiles included with this product.

Do not aim the projectile and launching mechanism

at any person. Adult supervision is recommended.

Congratulations on your purchase of the Lionel Missile Launcher Locomotive! This

Locomotive is capable of firing one missile at a time in the conventional environment and

with TrainMaster Command Control.

Con ratulations!

Missile Launcher Locomotive features

•TrainMaster Command Control equipped

•Powerful Pullmor motor

•ElectroCoupler at the rear of the locomotive

•Magne-Traction track gripping system

•Operating headlights

•Operating red light on roof

•Four firing missiles

The following Lionel marks may be used throughout this instruction manual and are protected under

Lione ®, TrainMaster®, Odyssey®, Rai Sounds®, CrewTa k™, TowerCom™, DynaChuff™,

StationSounds™, Pu mor®, E ectroCoup er™, Magne-Traction®, CAB-1®Remote Contro er,

PowerMaster®, Lione ZW®, ZW®, PowerHouse®, TMCC®, Lione vi e™, Lockon®, Wire ess Tether™,

LionMaster®, FatBoy™, American F yer®, TrainSounds™

The name FasTrack®is used with permission from Pitsco, Inc.

Use only the projectiles included with this product. Do not aim the projectile

and launching mechanism at any person. Adult supervision is recommended.

Caution!

Table of contents

Transformer operations

Running your Missile Launcher Locomotive with a Lionel transformer 4

Locking your Missile Launcher Locomotive into a single operational state 5

Using your Missile Launcher Locomotive’s ElectroCoupler in the

non-Command environment 6

Firing your locomotive’s missiles in the non-Command environment 7

TrainMaster Command operations

The CommandControl environment 8

Running your Missile Launcher Locomotive in the TrainMaster Command environment 9

CAB-1 commands for your Missile Launcher Locomotive 9

CAB-1 numeric keypad commands for your Missile Launcher Locomotive 10

Tuning your Missile Launcher Locomotive’s performance 11

Assigning your Missile Launcher Locomotive a new ID# 12

Reprogramming the Command reverse unit to restore features 13

Maintainin and servicin your Missile Launcher Locomotive

Lubricating your Missile Launcher Locomotive 14

Replacing your Missile Launcher Locomotive’s lamp and LEDs 15

Lionel Warranty/Lionel Service 16

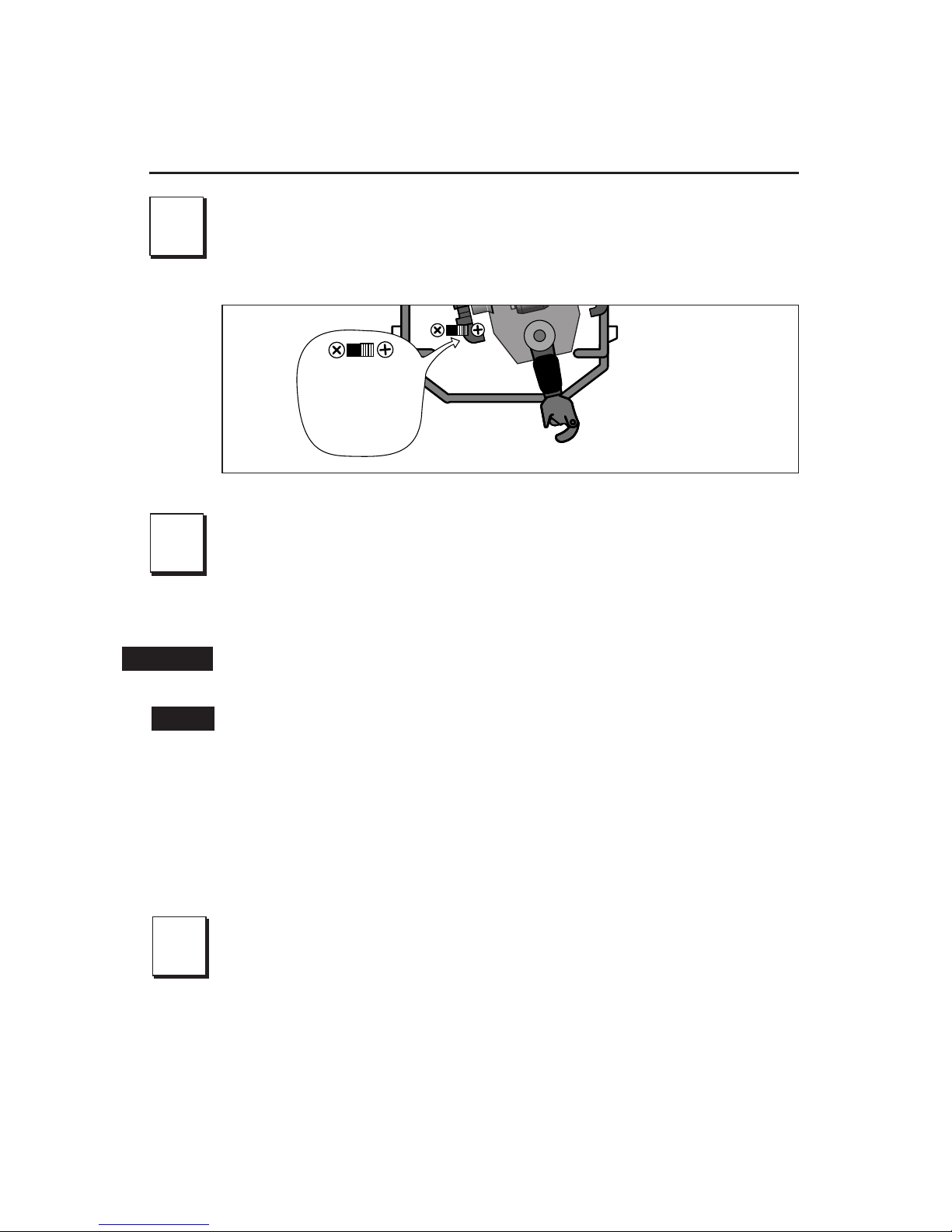

Figure 1. COMMAND/CONVENTIONAL switch

3Move ‘em ou !

•Get your Missile Launcher Locomotive moving. Press the DIRECTION

button on your Lionel transformer. This sequences the Lionel reverse unit to the

next operating state.

•Adjust track voltage until your Missile Launcher Locomotive moves at your

desired speed. To increase speed, increase track voltage. To decrease speed, reduce

voltage. To stop the locomotive, turn off track power.

•ee page 5 for information on locking your Missile Launcher

Locomotive in a single operational state.

Place your Missile Launcher Locomo ive on Lionel or

Lionel-compa ible O gauge rack.

• Set the COMMAND/CONVENTIONAL switch to the CONVENTIONAL position.

Refer to Figure 1 below.

2Power up your Missile Launcher Locomo ive wi h your

ransformer.

•Your Missile Launcher Locomotive is designed to operate on 8-18

volts alternating current. Virtually all Lionel and Lionel-compatible

alternating-current transformers are suitable.

Do not power your Missile Launcher Locomotive with direct current

(DC). Damage to sensitive electronic components may occur.

When you first power up your track, the Missile Launcher

Locomotive will wait between 3 and 8 seconds as it “listens” for digital

language from the TrainMaster Command Base (available separately). When the

locomotive has determined that it’s on a conventional (non-Command) railroad,

the Missile Launcher Locomotive’s headlights will illuminate. At this point, the

Missile Launcher Locomotive is in neutral. (This occurs when placing the Missile

Launcher Locomotive on your railroad for the first time. Thereafter, it will start in

forward following every five-second power interruption.)

unning your Missile Launcher Locomotive with a Lionel

transformer

Transformer operations

Caution!

Note!

Conventional

Command

To select a single operational state for your Lionel Missile Launcher Locomotive (for example,

forward only), you can deactivate the Command reverse unit’s sequencing function with the

Command reverse unit switch.

Get your locomotive moving in the desired direction, then s ow it down without stopping.

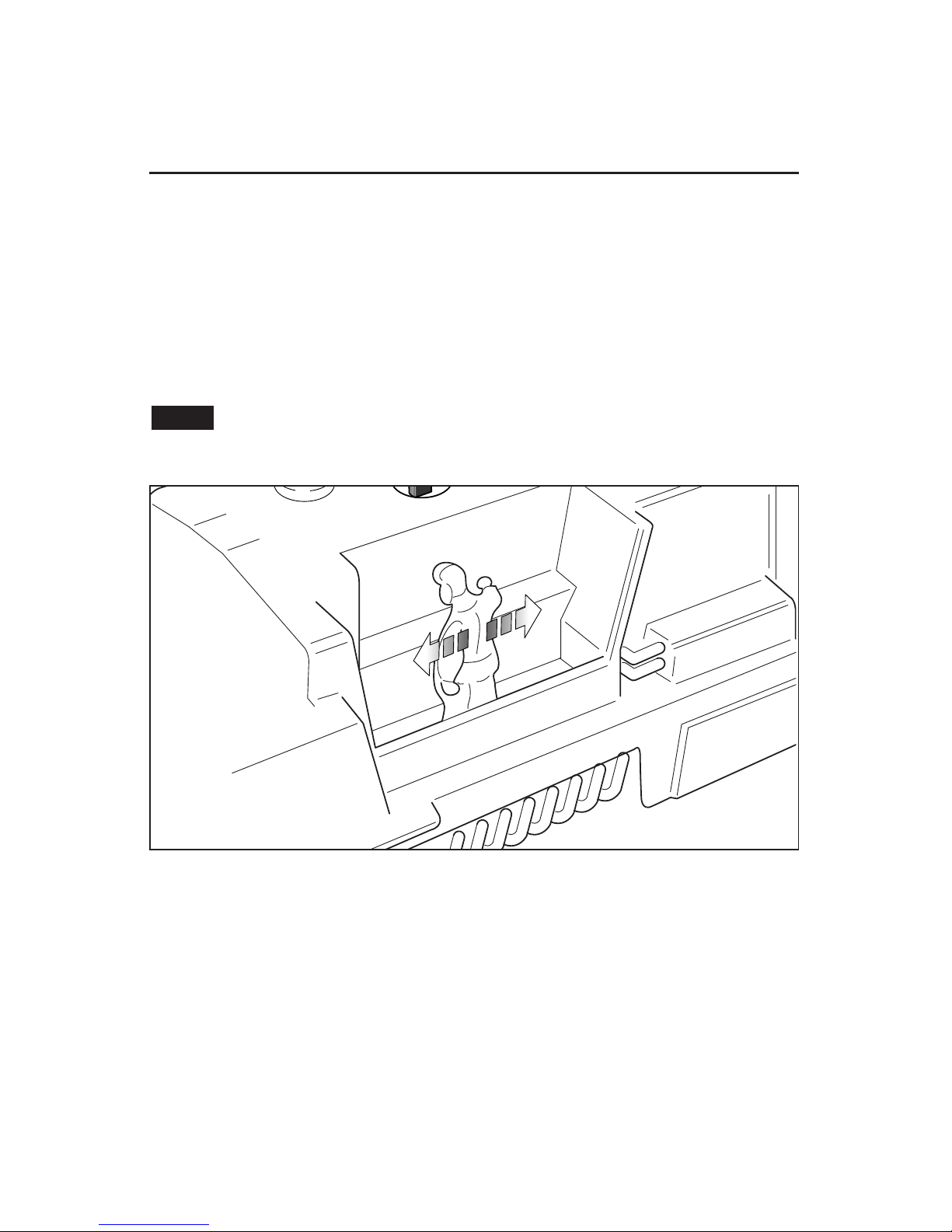

Slide the figure toward the rear of the locomotive as illustrated in Figure 2. The Missile

Launcher Locomotive is now “locked” into your chosen direction.

When you no longer want single-direction operation, just slide the figure toward the front of

the locomotive.

Your locomotive’s reverse unit will “reset” to forward after any interruption lasting

five seconds or longer, regardless of the original locked-out direction.

Locking your Missile Launcher Locomotive into a single

operational state

Transformer operations

Figure 2. Command reverse unit switch

F ONT

PROGRAM RUN

Note!

Transformer operations

Using your Missile Launcher Locomotive’s ElectroCoupler in the

non-Command environment

Your Missile Launcher Locomotive is equipped with one ElectroCoupler. To uncouple rolling

stock from your Missile Launcher Locomotive’s ElectroCoupler in the non-Command

environment, you must rely on a piece of rolling stock equipped with Lionel magnetic couplers

coupled directly to your Missile Launcher Locomotive’s ElectroCoupler. As illustrated in Figure 3,

the magnetic coupler on the rolling stock will then react to the magnetic field generated by a

Lionel Remote-Control Track section (available separately, 6-65530 for O gauge; 6-65149 or

6-12746 for O-27 gauge; and 6-12020 or 6-12054 for FasTrack layouts). Place your rolling

stock’s coupler “trigger disc” over the central coil of a Remote-Control Track section and press

UNCOUPLE on the controller. The magnetic field pulls the disc downward, and the coupler

opens.

Your Missile Launcher Locomotive’s ElectroCoupler will NOT open manually or by

using a Remote-Control Track section.

Magnetic coupler on t e rolling stock coupled

to your Missile Launc er Locomotive

Remote-Control Track

section

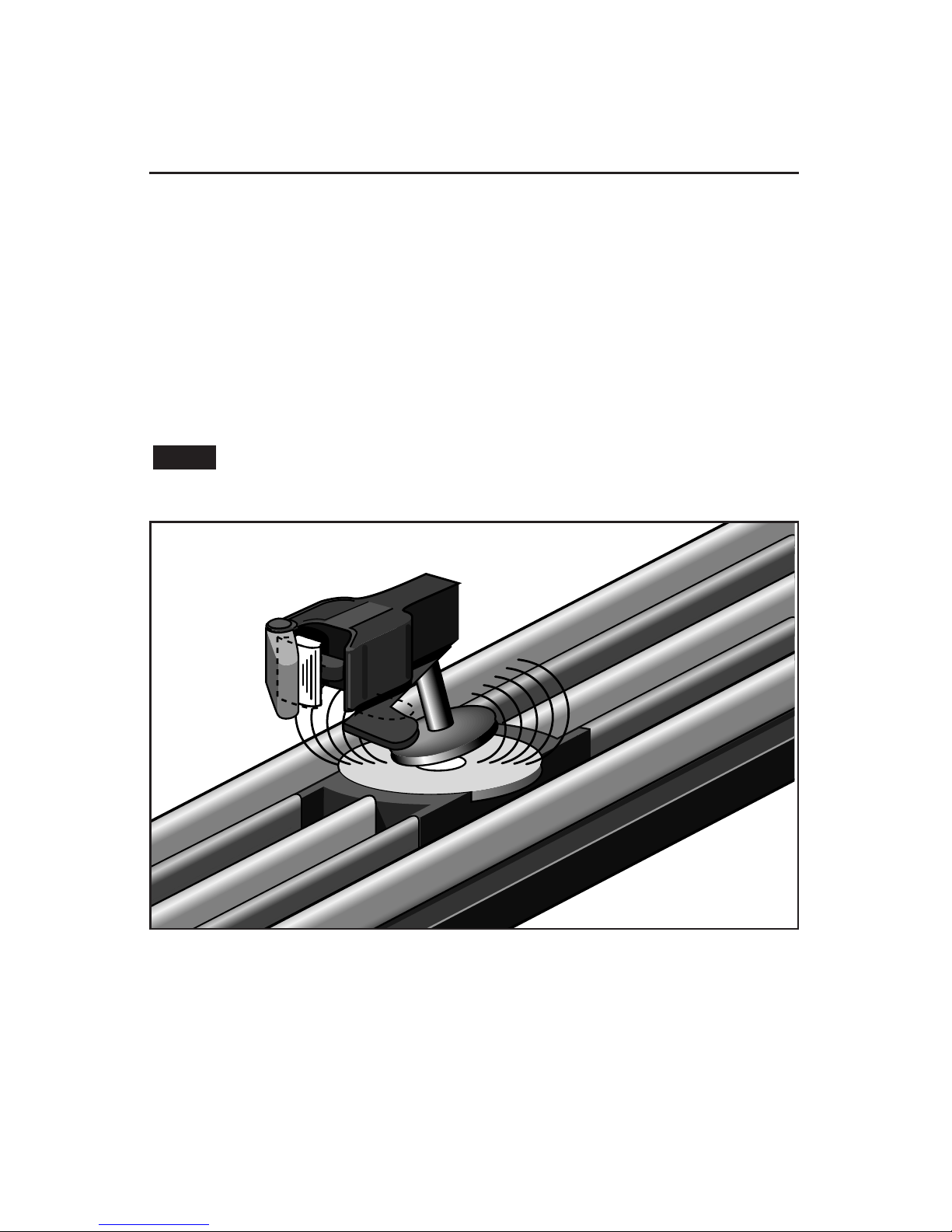

Figure 3. Trigger disc operation

Note!

Transformer operations

Firing your locomotive’s missiles in the non-Command environment

Your locomotive is armed with four plastic missiles. In the non-Command environment,

the missiles are fired one at a time using a Remote-Control Track section (available

separately, 6-65530 for O gauge; 6-12746 for O-27 gauge; and 6-12054 for FasTrack layouts).

The O-27 Uncoupling Track section (6-65149) and the FasTrack Uncoupling Track

section (6-12020) will not operate the missile launching function.

1. Pull back the metal firing arms and place the four missiles on the locomotive’s launching

platform. Be sure that the missiles lie flat on the platform. Refer to Figure 4.

2. Position the rear truck on the Remote-Control Track section so that the contact shoe rests

on the extra control rails.

3. Press UNLOAD on the Remote-Control Track section controller. One missile will launch

each time the button is pressed.

You can also launch the missiles with the lever at the rear of the locomotive. Each

time you push the lever to the left, a missile will launch.

Note!

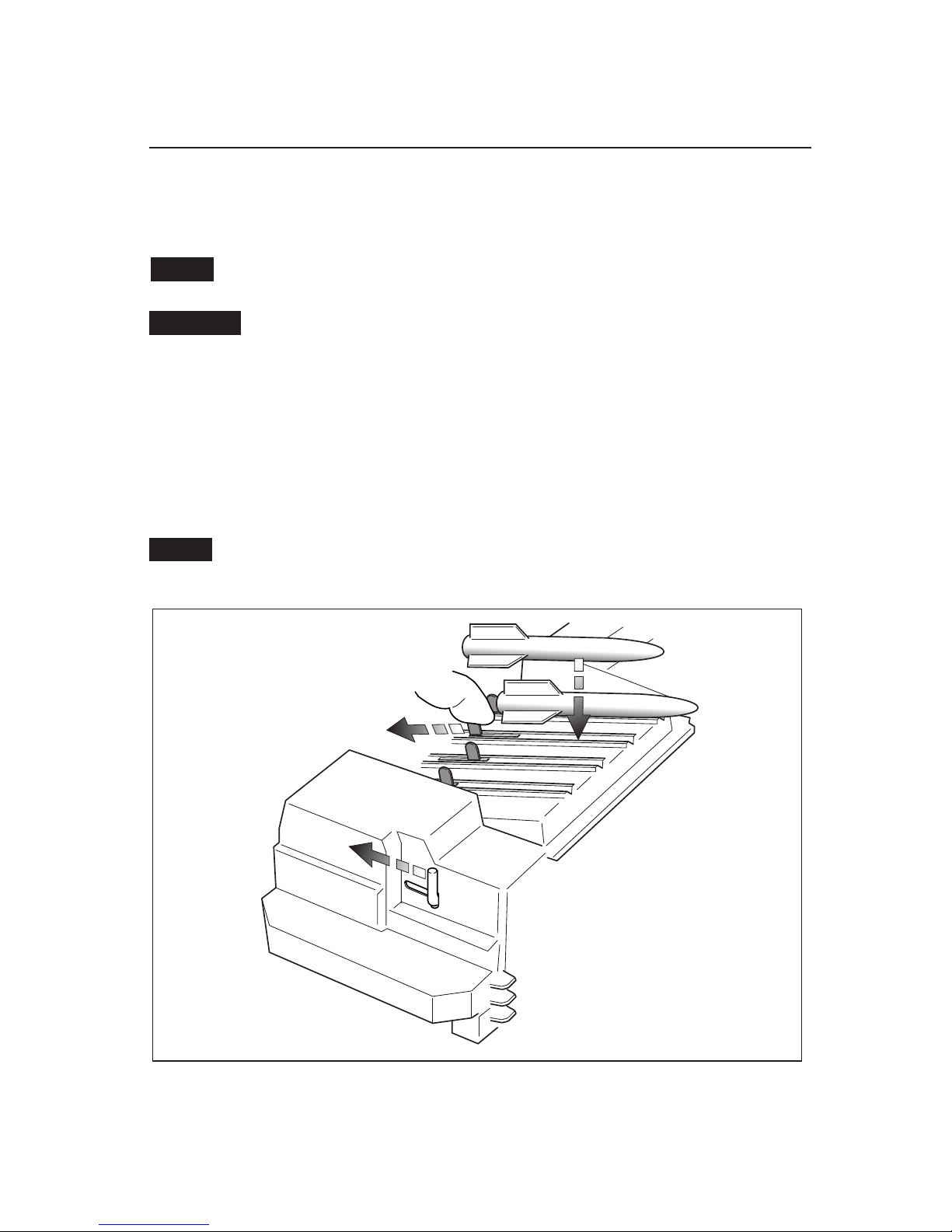

Figure 4. Arming the Missile Launcher Locomotive

Use only the projectiles included with this product. Do not aim the projectile

and launching mechanism at any person. Adult supervision is recommended.

Caution!

TrainMaster Command operations

The Command Control environment

TrainMaster Command Control is the advanced model railroad control system from Lionel.

TrainMaster Command Control gives you the power to operate multiple Command-

equipped locomotives on the same track, at the same time.

To operate in Command mode, you need a Command Base (6-12868) and a

CAB-1 Remote Controller (6-12911). Find them both at your authorized Lionel retailer.

Place your Missile Launcher Locomo ive on Lionel or

Lionel-compa ible O gauge rack.

2Address your Missile Launcher Locomo ive using your

CAB-1 Remo e Con roller.

•Press ENG and 1 on the numeric keypad of your CAB-1 Remote Controller.

This command is sent by the CAB-1 Remote Controller to the Command Base,

which then translates your command into digital code. That code is sent around

your railroad’s outside rails in the form of a digital “halo.” All Command-

equipped Lionel locomotives listen to this digital communication, but they do

not respond until they hear their individual ID number—in this case, “1.”

•The digital language of TrainMaster Command—and not track

power—controls the actions of Command-equipped Lionel

engines. Track power is simply like gasoline in the tank of your car—it gives

you the power to go places, but it doesn’t tell you where to go or how fast to get

there.

•All Command locomotives come factory-programmed with an ID#

of “1.” To change the ID# of your Missile Launcher Locomotive, see page 12.

3Move ‘em ou !

•Throttle up or press any command button on the CAB-1 Remote

Controller. Your Missile Launcher Locomotive will respond to your every

command.

•et the COMMAND/CONVENTIONAL switch to the COMMAND

position. Refer to Figure 1 on page 4.

•Make sure track power is off before placing the locomotive on the

track.

•Make sure your Lionel Command Base is plugged-in and its

communications wire is connected to the COMMON post on your Lionel

transformer or the U terminal on any of your installed PowerMasters.

• Once positioned on the track, increase track voltage to FULL (no more

than 19 volts). On PowerMasters, slide the CMD/CONV switch to CMD.

Press AUX2 to

turn your Missile

Launcher

Locomotive’s

headlights on and

off.

Activates the

numeric keypad.

Press HALT to shut

down a PowerMaster

electrical outputs on

your railroad. Stops a

Command-equipped

locomotives in

operation.

Turn the

THROTTLE

to the right to

accelerate, left to

decelerate.

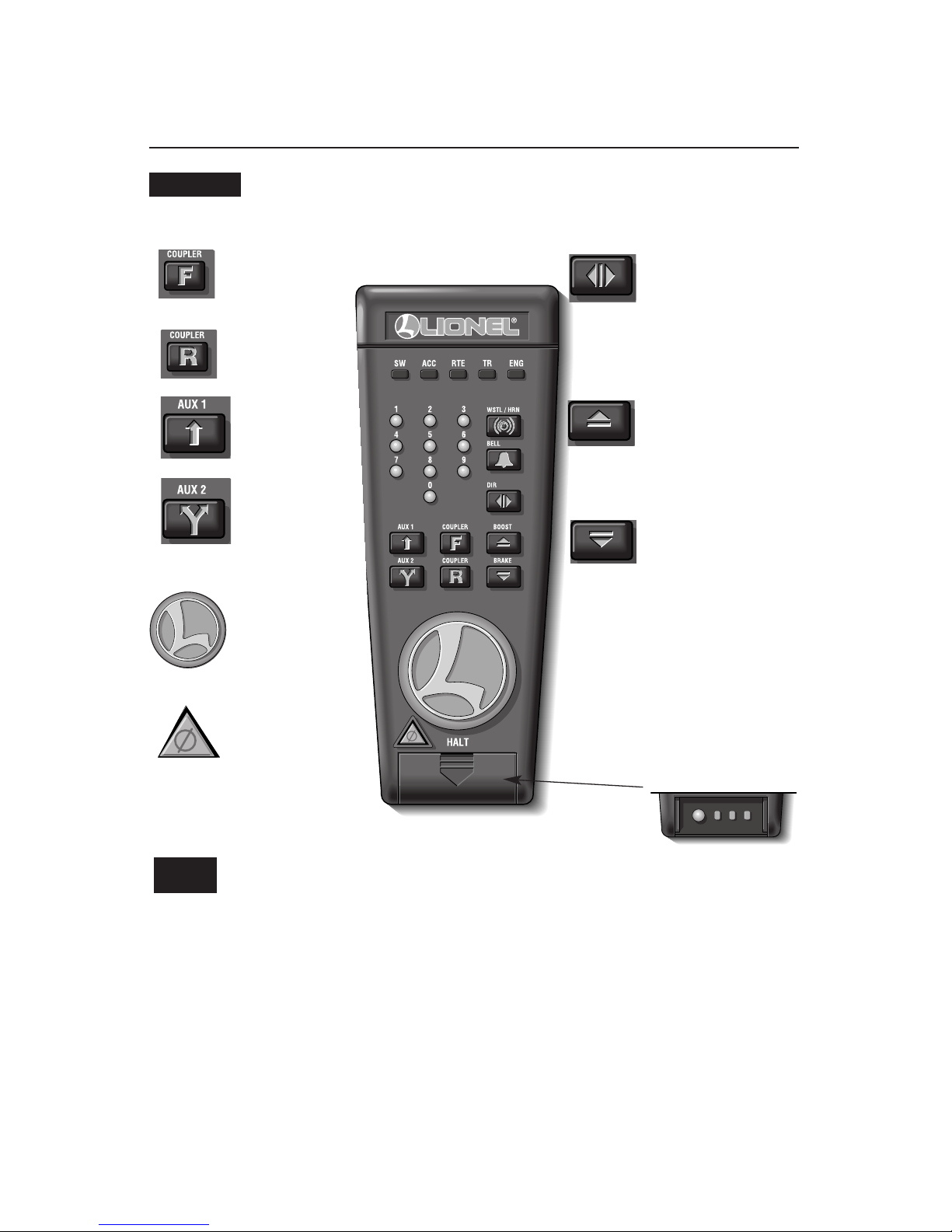

CAB-1 commands for your Missile Launcher Locomotive

Press DIRECTION—

the locomotive

decelerates to a complete

stop; turn the throttle up, and the

locomotive will accelerate in the

new, opposite direction. There is no

neutral state.

Press and hold BOO T

for extra power. Release

BOO T and return to the

Missile Launcher Locomotive’s

previous speed.

Press and hold BRAKE

to slow down or stop.

Release BRAKE and

return to the previous speed.

Press and hold to fire

the missiles.

Rear coupler

releases.

TrainMaster Command operations

SET L M H

Beneat t is panel

Use HALT only in emergency situations.

Note!

Use only the projectiles included with this product. Do not aim the projectile

and launching mechanism at any person. Adult supervision is recommended.

Caution!

When you press AUX1 on your CAB-1 Remote Controller, you turn the numeric keypad

into ten command buttons. The keypad lets you control extra command features (until

you press any top-row button like W,ACC,RTE,TR, or ENG).

Be sure to press AUX1 before entering a number on the keypad.

0Stops and resets the Missile Launcher Locomotive. Resets the Missile Launcher

Locomotive’s direction to FORWARD.

8Turns off the roof light.

9Turns on the roof light.

CAB-1 numeric keypad commands for your Missile Launcher

Locomotive

TrainMaster Command operations

Note!

Inhaltsverzeichnis

Andere Lionel Spielzeug Handbücher

Lionel

Lionel FA Diesel Locomotive Bedienungsanleitung

Lionel

Lionel Ready-to-Play Series Bedienungsanleitung

Lionel

Lionel FlyerChief GP7 Bedienungsanleitung

Lionel

Lionel Aquarium Car Bedienungsanleitung

Lionel

Lionel 73-0211-250 BNSF GP38 Bedienungsanleitung

Lionel

Lionel 777 Bedienungsanleitung

Lionel

Lionel Heritage Series Lincoln Funeral Train Bedienungsanleitung

Lionel

Lionel Powered F7 B-Unit Diesel Locomotive Bedienungsanleitung

Lionel

Lionel Area 51 RS-3 Bedienungsanleitung

Lionel

Lionel Smoking Boxcar Bedienungsanleitung

Lionel

Lionel Santa Fe Super Freight Bedienungsanleitung

Lionel

Lionel Early-Era Inspection Vehicle Bedienungsanleitung

Lionel

Lionel VISION ATSF 3000 2-10-10-2 Bedienungsanleitung

Lionel

Lionel Alco PA-1 Bedienungsanleitung

Lionel

Lionel F3 A-A DIESEL LOCOMOTIVE SET Stücklistenhandbuch

Lionel

Lionel Hudson 4-6-4 Steam Locomotive Bedienungsanleitung

Lionel

Lionel GP-38-2 Bedienungsanleitung

Lionel

Lionel AMERICAN FLYER EP-5 Bedienungsanleitung

Lionel

Lionel Oil Pump Bedienungsanleitung

Lionel

Lionel Helicopter Launch Car 72-9313-250 Bedienungsanleitung

Lionel

Lionel GP-7 diesel locomotive Bedienungsanleitung

Lionel

Lionel New York Central FlyerReady-To-Run O-27 Set Bedienungsanleitung

Lionel

Lionel Lionel Bedienungsanleitung

Lionel

Lionel NW2 Bedienungsanleitung

Beliebte Spielzeug Handbücher anderer Marken

marklin

marklin 37321 Bedienungsanleitung

Canon

Canon PAPER CRAFT Bedienungsanleitung

GREAT PLANES

GREAT PLANES Pitts M-12S Bedienungsanleitung

NOCH

NOCH 14261 Bedienungsanleitung

Hausler

Hausler 450 SE V2 Bedienungsanleitung

Dynaflite

Dynaflite Daydream Bedienungsanleitung

MiniacRC

MiniacRC MIGHTY MINI P40 WARHAWK Handbuch

Kenner

Kenner Batman 63651 Bedienungsanleitung

LEGO

LEGO 8527 Bedienungsanleitung

iKarus

iKarus ECO 8 Bedienungsanleitung

Multiplex

Multiplex EasyStar II Bedienungsanleitung

Walkera

Walkera 38 Bedienungsanleitung

Hasbro

Hasbro TRANSFORMERS BUMBLEBEE Bedienungsanleitung

MD MXION SWD Bedienungsanleitung

Mattel

Mattel Disney Pixar Cars Cozy Cone Spiral Rampway Bedienungsanleitung

marklin

marklin 39671 Bedienungsanleitung

Meccano

Meccano 15103 Bedienungsanleitung

LEGO

LEGO TECHNIC 8735 Bedienungsanleitung
