Lionel MUNICIPAL BUILDING KIT Bedienungsanleitung

72-2915-250

1/98

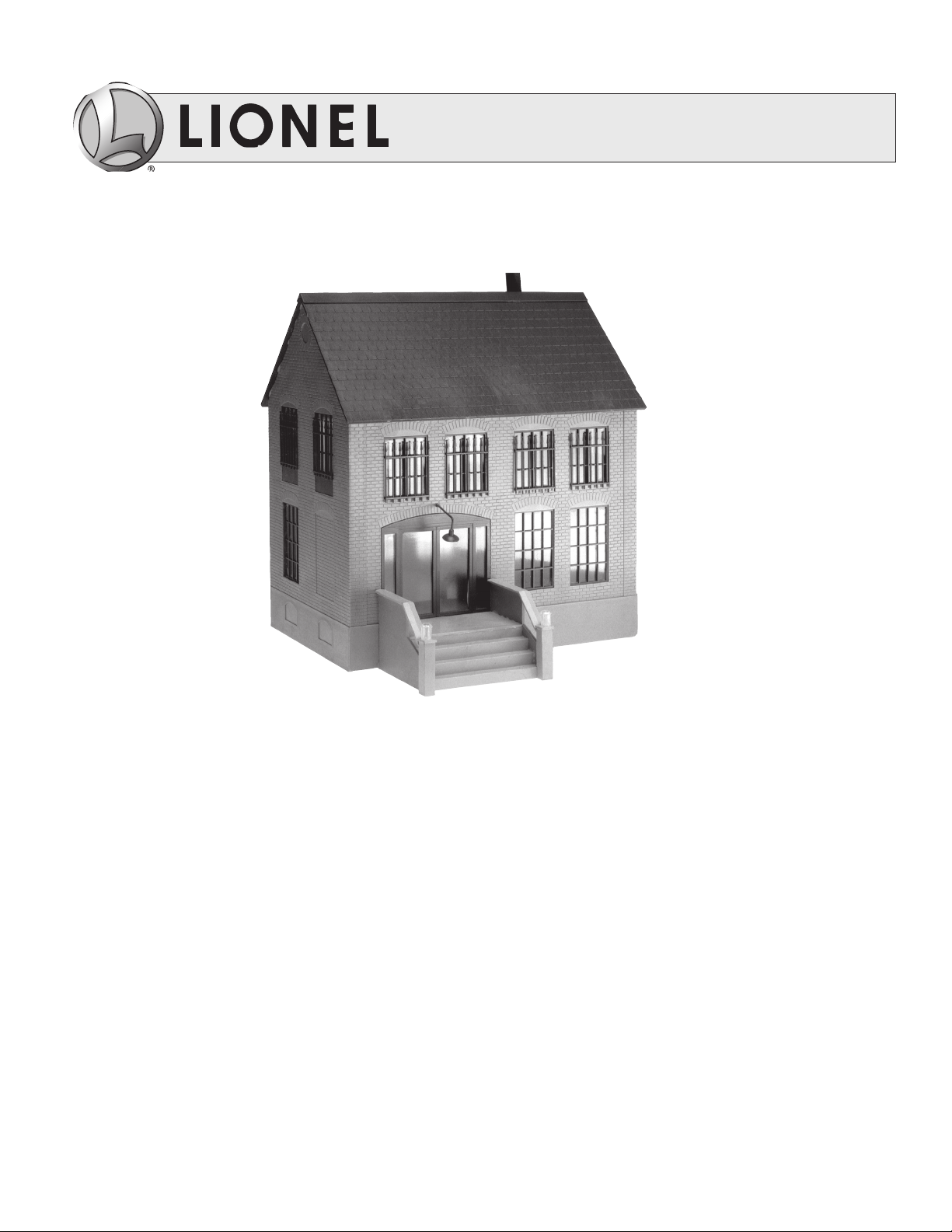

MUNICIPAL BUILDING KIT

If you want to paint parts of the kit, it is advisable to do so

before removing the parts from the sprues.

As the number identifications are on the runners in

many instances, do not remove the parts until needed in

the construction sequence.

Use a sharp hobby knife or a pair of side cutters to

remove the parts from the sprue, and smooth the edge of

the part carefully.

Before gluing the parts in place, try assembling them

without glue. If the fit is not right, check that the part has

the right number and that it is right way up. (Glue not

included).

Glue the parts using either a viscous plastic cement or

a plastic solvent applied with a fine paintbrush. Use glue

sparingly, but if you do get glue on a visible surface, wait

until the affected part is entirely dry, then smooth the sur-

face with a file, and finally polish with brass polish- this

should help reduce the damage.

The mortar effect between the bricks can be high-

lighted by flooding the brick parts on a level surface with

a water paint mixture. This is made using water color

from a tube, water and a few drops of liquid detergent.

Once the mixture has the right consistency, it will flow

from a loaded paintbrush along the furrows on the sur-

face. When dry, any paint on the surface can be wiped off.

We hope that you enjoy making this kit - should you

have any problems or comments, please let us know.

9

10

6

4

216

15

7

6

16

9

10

11

8

1

4

5

14

16

6

6

10

10

3

14

16

6

10

10

Start construction of this kit by gluing the window frames into

the wall into the wall openings from behind, then add the glaz-

ing. Note: Door #7 is glued into the wall #2 from the front.

Glue plates #14 onto the second floor windows on walls

#3 & #5 and then add all window bars on the outside of

the second floor windows as shown.

5

2

7

3

26

25

22

24

27

18

17

23

21

19

20

41

45

43

46

44

28

35

40

39

29

37

40

39

34

35

36

38

38

30

31

32

Assemble walls #2, #3, & #5 around floor #18, then add floor #17

and the stair parts #19 thru #21. When this is done, wall #1

can be glued in place, making sure that the floors rest

on the location bars on wall #1. Glue roof parts in

place as shown in number sequence.

Assemble ramp parts #41 thru #46 and glue in place on the rear of the building. Assemble stair parts as shown and

glue this sub-structure to the building. Assemble lamps #30, #31, & #32 as shown and glue in place over the front

and rear doors.

16

16

814 7

35

45

19

46

34

44

20

21 33 41

40

40

36 37

38

25 5 3

43

42

4 4

1312

1817

6

1

11

10 10

9 9

9

15

39

32

9

10

2

29

28

6

X2

31

30

27

22

26

23

24

This is a parts labeling diagram. This will help locate parts you need and help in

identifying parts that may be loose or removed from the trees.

© 1998 LioneL LLC, ChesterfieLd Mi 48051-2493

United states of aMeriCa
