Lionel Scout

Ready-to-Run Train Set

Owner’s Manual

73-0127-250

4/10

CAUTION—ELECTRIC TOY

NOT RECOMMENDED FOR CHILDREN UNDER EIGHT YEARS OF AGE. AS WITH

ALL ELECTRIC PRODUCTS, PRECAUTIONS SHOULD BE OBSERVED DURING

HANDLING AND USE TO PREVENT ELECTRIC SHOCK.

TRANSFORMER RATINGS—INPUT: 120 VAC; 60 HZ ONLY.

AC OUTPUT: 18 V; 40 VA

Lionel Scout

Ready-to-Run Train Set

Owner’s Manual

Congratulations!

Congratulations on your purchase of the Lionel Scout Ready-To-Run Train Set! This set features

everything you need to get started—a PowerMax Plus Transformer, a huge loop of easy-to-

assemble FasTrack track, a string of detailed cars, and a powerful Lionel locomotive.

Have fun growing with this complete train set! Start with the set components, then follow your

imagination into your own miniature world. Expand your railroad empire with additional FasTrack

track sections, enhance your layout with accessories, lengthen your consist with extra cars, or oper-

ate a new locomotive at the head end of your train! Explore the possibilities at your authorized

Lionel dealer.

Use this Owner’s Manual to learn how to set up, operate, and maintain your train set for years of

reliable operation.

The transformer included with this set should be periodically

examined for conditions that may result in the risk of fire,

electric shock, or injury to persons (such as damage to the

output cord, blades, housing, or other parts). In the event that

such conditions exist, the transformer should not be used until

properly repaired.

Parents!

Train Set Features

• Bright headlight

• Puffing smoke

• Air whistle

• Forward-Neutral-Reverse operation

• Operating couplers

The following Lionel marks are used throughout this catalog and are protected under law. All

rights reserved.

Lionel®, LEGACY™, TrainMaster®, Odyssey®, RailSounds®, CrewTalk™, TowerCom™,

DynaChuff™, StationSounds™, Pullmor®, ElectroCoupler™, Magne-Traction®, CAB-1®

Remote Controller, American Flyer®, Lionel ZW®, ZW®, MagniVision®, TMCC®, Lionelville®,

Wireless Tether™, Powerhouse™, LionMaster®, Conventional Classics™, Postwar Celebration

Series™, TruRail™, PH-1 Powerhouse®, Powermaster®, Powerstation-Powerhouse®, Accessory

Motor Controller™, AMC™, Accessory Switch Controller™, ASC™, Action Recorder Controller™,

ARC™, Track Power Controller 300™, TPC 300™, Track Power Controller 400™, TPC 400™,

Block Power Controller™, BPC™, Operating Track Controller™, OTC™, FatBoy™, Lionel

Lines®, Joshua Lionel Cowen Series™, Lockon®, TrainSounds™, MultiHorn™, MultiWhistle™,

Choo-Choo™

Train Set Inventory

• 2-4-2 Locomotive

• Tender

• Gondola with two canisters

• Hopper

• Square window caboose

• PowerMax Plus Transformer with accessory wire

• One straight FasTrack track sections

• Eight curved FasTrack track sections

• One straight FasTrack terminal track section

• Smoke fluid

• Replacement traction tire

• Owner’s Manual

• BONUS Lionelville DVD included

Table of contents

Creating your layout

Operating your PowerMax Plus Transformer safely 4

Building your Lionel layout 5

Joining the FasTrack track sections 6

Wiring your PowerMax Plus Transformer 7

Running your train

Running your train set 8

Adding smoke fluid to your locomotive’s smoke generator 9

Coupling 10

Operating your train with the PowerMax Plus Transformer 10

Experiencing the features of the PowerMax Plus Transformer 11-12

Reverse unit procedure 13

PowerMax Plus Transformer operation

Powering your layout with the PowerMax Plus Transformer 14

Maintaining and servicing your set

Lubricating your locomotive 15

Replacing your locomotive’s traction tire 15

Replacing your locomotive’s headlamp 16

Advanced connections: powering two isolated blocks with two transformers 17

Troubleshooting 18

Notes 19

Lionel Limited Warranty Policy & Service 20

Operating your PowerMax Plus Transformer safely

Your Lionel PowerMax Plus Transformer is listed by Underwriter’s Laboratory Inc. and

has been carefully designed to ensure peak performance. When using electrical products,

basic safety precautions should be maintained.

Be sure to observe the following guidelines:

• Read the manual thoroughly before using this device.

• This device is not recommended for children under eight years of age.

• Parents should periodically inspect this product for potential hazards and, if necessary,

have them repaired by an authorized Lionel Service Center. In the event that such a condi-

tion exists, the transformer should not be used until it has been properly repaired.

• The PowerMax Plus Transformer is intended to be used indoors. Do not use this device if

water is present. Serious or fatal injuries may result.

• Use the PowerMax Plus Transformer only for its intended purpose.

• The PowerMax Plus Transformer was meant to operate on 120-volt, 60-Hertz power. Do not

connect this product to any other power supply.

• Do not operate the PowerMax Plus Transformer with a damaged cord, plug, or case.

• To avoid the risk of electrical shock, do not disassemble the unit. There are no user service-

able parts inside. If damaged, take this product to an authorized Lionel Service Center.

• Do not operate the PowerMax Plus Transformer on your layout unattended. Obstructed

accessories or stalled trains may overheat, resulting in damage to your layout.

• Always unplug the PowerMax Plus Transformer from the power source when not in use.

• Never insert objects into the ventilation slots on this product. Damage to sensitive

electronic components can result.

Creating your layout

Building your Lionel layout

Your set comes with eight curved, three straight, and one terminal section of track. Figure

1 provides some examples of layouts that you can build with these track sections.

By adding more FasTrack track sections, you can create an endless number of exciting

track arrangements for more fun, action, and variety. The railroad empire of your dreams can

quickly become a reality!

Creating your layout

Figure 1. Track layout ideas

Joining the FasTrack track sections

FasTrack track sections join together easily. With interlocking roadbed sections and large

rail tabs, the track fits together securely so you always get good electrical contact. Take a

look at Figure 2 to see how to join the track sections.

1. Line up your two sections of track.

2. Insert the rail tabs into the openings at the ends of the corresponding

rails.

3. Press the sections together until the interlocking roadbed snaps into

place.

Figure 2. Joining the track sections

Creating your layout

Rail tab

Wiring your PowerMax Plus Transformer

Creating your layout

Connect your FasTrack terminal section to the PowerMax Plus Transformer. Use the wires

that are already attached to the terminal section. Make sure that all connections are

secure. Loose connections can produce extremely high temperatures. For this reason, do not

touch the terminals or track connections during use. Also, do not locate scenery materials

such as lichen or ground foam near the terminals.

1. Feed the wires through the notch in the FasTrack terminal section. Refer to

Figure 3.

2. Loosen the red TRACK thumbscrew terminal, then slide the spade-

shaped connector on the red wire into position. The thumbscrew post should

be positioned between the “blades” of the spade connector. Be sure that the blades are

touching the metal post. Tighten the thumbscrew to secure the connection.

3. Loosen the black TRACK thumbscrew terminal, then slide the spade-

shaped connector on the black wire into position. Tighten the thumbscrew to

secure the connection. Be sure that the blades are touching the metal post. Tighten the

thumbscrew to secure the connection.

4. Plug the PowerMax Plus Transformer into your wall outlet (120 volts).

As your layout expands, you may also make power connections with the stripped ends

of wires, placing no more than two wires on each terminal. For best performance on large

layouts, it is recommended that you use 16-gauge wire to connect your PowerMax Plus

Transformer to the track. On larger layouts where several track connections are required,

the use of separate junctions/terminal strips (available at your local electronics store) is

recommended to prevent voltage drops.

To prevent the excessive build up of heat, be sure to select the proper wire gauge

for your layout. Track connections must be made with 18-gauge wire or heavier.

Larger layouts require a minimum of 16-gauge wire.

Caution!

120/60z

0~18VAC

TRACK

Figure 3. Controller connections

FasTrack terminal section

Notch

Spade-shaped

connector

Running your trains

Running your train set

With track power off, place your train set on the track.

Refer to page 10 for information on coupling the cars.

Power up your locomotive with your transformer.

Your locomotive is designed to operate on 7-15 volts alternating cur-

rent. Virtually all Lionel and Lionel-compatible alternating-current transformers

are suitable.

Do not power your locomotive with direct-current (DC) transformers.

The locomotive was designed for use with alternating-current (AC)

transformers only.

Move ‘em out!

Get your locomotive moving. Your locomotive goes through a repeating pattern

of operations: forward, neutral, reverse, neutral, and so on. To sequence the reverse

unit, press the DIRECTION button on your transformer, or briefly bring the throttle

all the way back to the OFF position and then forward. Each press of the DIRECTION

button or interruption in track power causes the locomotive to advance to the next

operational state.

Adjust track voltage until your locomotive moves at your desired speed.

Connect the drawbar between the locomotive and tender.

See Figure 4.

If the smoke unit switch is in the ON position, add smoke fluid to your

locomotive’s stack to prevent damage to the smoke unit. Refer to

page 10 for additional information.

Caution!

Note!

Figure 4. Drawbar connection

Running your train

Adding smoke ﬂuid to your locomotive’s smoke generator

our locomotive is equipped with a smoke generator that produces safe, clean white smoke

during operation if the smoke unit switch is in the ON position. Refer to Figure 8 on

page 13 for the location of the switch.

The smoke generator requires the periodic addition of Lionel smoke ﬂuid in order to function.

A small bottle of smoke ﬂuid is included with this set. Press down and unscrew the cap. Pierce the

tip on the nozzle. Add about four drops of ﬂuid directly into the locomotive’s stack. Smoke pro-

duction commences momentarily. It will start faster if you run your locomotive at higher speeds.

When smoke production decreases, add more ﬂuid (about four drops). An idle locomotive will

not smoke.

Smoke production is greater at higher voltages and when the locomotive is pulling a heavy

load or a long consist.

Caution! When the smoke unit switch is in the ON position, always keep a small amount

of smoke fluid in the locomotive’s smoke generator; the generator’s element

can become damaged if operated without smoke fluid. This is particularly true

if your locomotive sits in neutral for an extended period of time without smoke

fluid in the generator.

If you prefer to operate the locomotive without smoke or you do not want to add

smoke fluid, slide the smoke unit switch to the OFF position.

Note!

Operating your trains with the PowerMax Plus Transformer

You’re clear for departure! Move the throttle control handle forward to increase power to

the track. The farther forward you push the handle, the faster your train will go.

Quickly shutting off or throwing the throttle all the way forward will not result in

an instant change in track voltage.

When operating in the conventional (non-Command) environment, remember that the great-

er the load on the engine (adding more cars for the engine to pull, for example), the farther

forward the handle must be pushed before it will operate the locomotive.

Note!

Running your train

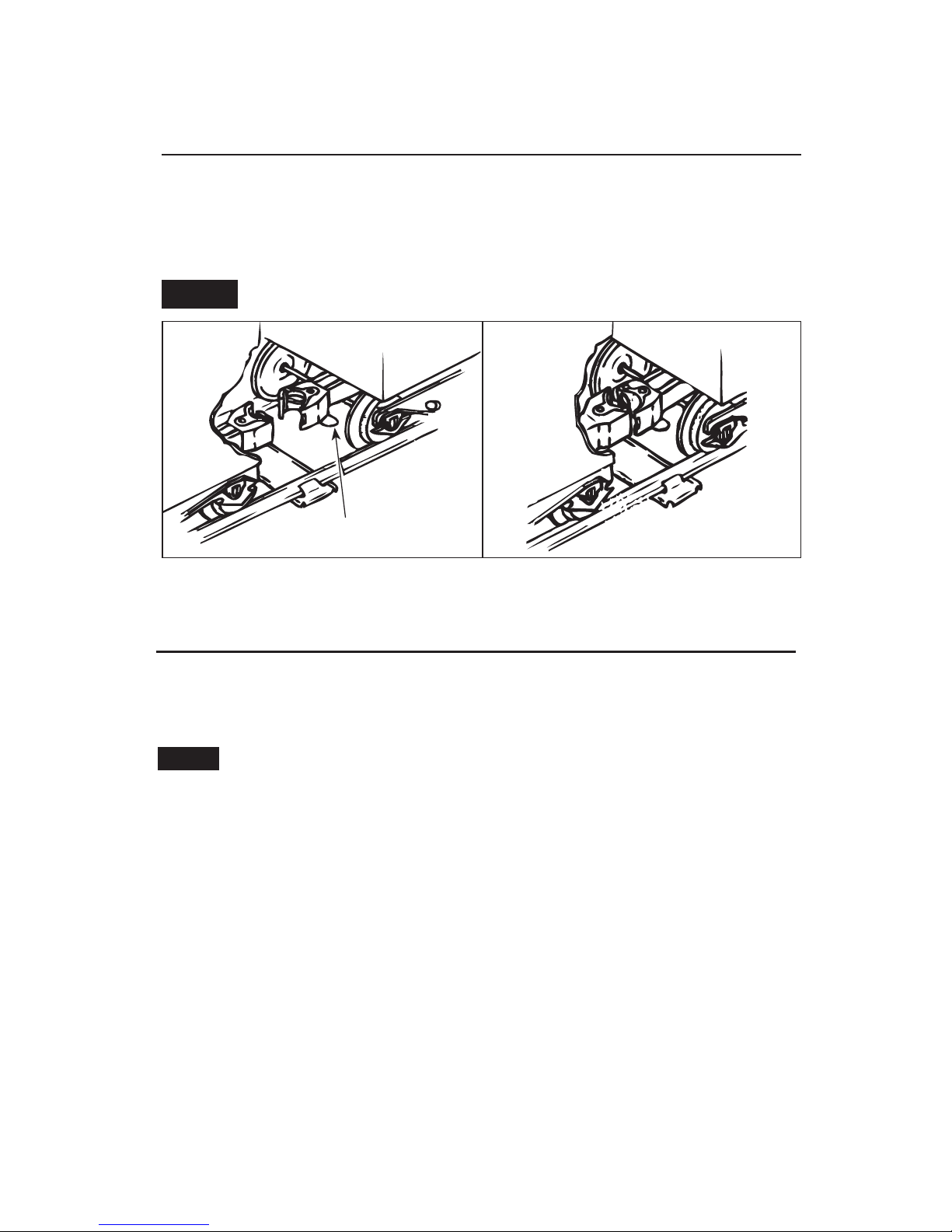

Coupling

When coupling your cars, at least one of the mating couplers must be open as shown at the left

in Figure 5. Press down on the lock release to open the coupler, then push the cars toward

each other until they lock together.

Keep in mind that it’s easier to couple cars on a straight stretch of track.

Lock release

Figure 5. Coupler operation

Note!

Andere Handbücher für Scout Set

Inhaltsverzeichnis

Andere Lionel Spielzeug Handbücher

Lionel

Lionel Dash 9 Diesel Locomotive Bedienungsanleitung

Lionel

Lionel Cowen's CornerHobby Shop Bedienungsanleitung

Lionel

Lionel GG1 Bedienungsanleitung

Lionel

Lionel Gang Car Bedienungsanleitung

Lionel

Lionel O-27 Santa Fe FT Passenger set Bedienungsanleitung

Lionel

Lionel Percy Bedienungsanleitung

Lionel

Lionel Burning Hobo Depot Bedienungsanleitung

Lionel

Lionel SD-90 Bedienungsanleitung

Lionel

Lionel 264 Bedienungsanleitung

Lionel

Lionel Conventional 2-6-0 Mogul Steam Locomotive Bedienungsanleitung

Lionel

Lionel Hot Rod GP-9 Bedienungsanleitung

Lionel

Lionel New York Central Flyer Bedienungsanleitung

Lionel

Lionel Century Club II Niagara Milk Bedienungsanleitung

Lionel

Lionel 73-1988-250 Bedienungsanleitung

Lionel

Lionel SD60-M Bedienungsanleitung

Lionel

Lionel Pioneer Zephyr Bedienungsanleitung

Lionel

Lionel Playground Swings Bedienungsanleitung

Lionel

Lionel Christmas Hudson Jr.Steam Locomotive Bedienungsanleitung

Lionel

Lionel North Pole Pylon Bedienungsanleitung

Lionel

Lionel New York Central Flyer Bedienungsanleitung

Lionel

Lionel New Haven Command Ready-To-Run O Gauge Set Bedienungsanleitung

Lionel

Lionel DS-40T-2 Bedienungsanleitung

Lionel

Lionel BNSF Bedienungsanleitung

Lionel

Lionel Interurban (M.U.) Car Bedienungsanleitung

Beliebte Spielzeug Handbücher anderer Marken

marklin

marklin 37321 Bedienungsanleitung

Canon

Canon PAPER CRAFT Bedienungsanleitung

GREAT PLANES

GREAT PLANES Pitts M-12S Bedienungsanleitung

NOCH

NOCH 14261 Bedienungsanleitung

Hausler

Hausler 450 SE V2 Bedienungsanleitung

Dynaflite

Dynaflite Daydream Bedienungsanleitung

MiniacRC

MiniacRC MIGHTY MINI P40 WARHAWK Handbuch

Kenner

Kenner Batman 63651 Bedienungsanleitung

LEGO

LEGO 8527 Bedienungsanleitung

iKarus

iKarus ECO 8 Bedienungsanleitung

Multiplex

Multiplex EasyStar II Bedienungsanleitung

Walkera

Walkera 38 Bedienungsanleitung

Hasbro

Hasbro TRANSFORMERS BUMBLEBEE Bedienungsanleitung

MD MXION SWD Bedienungsanleitung

Mattel

Mattel Disney Pixar Cars Cozy Cone Spiral Rampway Bedienungsanleitung

marklin

marklin 39671 Bedienungsanleitung

Meccano

Meccano 15103 Bedienungsanleitung

LEGO

LEGO TECHNIC 8735 Bedienungsanleitung
