Lionel Thomas & Friends Bedienungsanleitung
73-0190-250
6/12
CAUTION—ELECTRIC TOY
NOT RECOMMENDED FOR CHILDREN UNDER EIGHT YEARS OF AGE. AS WITH ALL
ELECTRIC PRODUCTS, PRECAUTIONS SHOULD BE OBSERVED DURING HANDLING AND
USE TO PREVENT ELECTRIC SHOCK.
TRANSFORMER RATINGS—INPUT: 120-240 VAC 50/60 HZ.
OUTPUT: 18 VDC; 2000 MA.
Lionel
Remote Operating System
Thomas & Friends™Set
Owner’s Manual
Lionel
Remote Operating System
Thomas & Friends™Set
Owner’s Manual
©2012 Gullane (Thomas ) Limited
73-0190-250 Thomas Remote Set.indd 1 6/1/12 9:57 AM
Train Set Inventory
Congratulations!
2
Congratulations on your purchase of the Lionel Operating Remote System Thomas & Friends™
Ready-To-Run Train Set!
This set includes everything you need to run your train, including a generous FasTrack loop that
assembles in a flash. The power adapter plugs into the wall, and then connects directly to a special track
section. Thomas is controlled using his very own blue Lionel remote. Go forward, reverse, or stop. Sound
the whistle or bell - or have Sir Topham Hatt announce “All aboard!” at the press of a button. Thomas’
moving eyes ensure that your journey on everyone’s #1 engine is a safe one, and the removable roofs of
Annie and Clarabel allow you to load and unload your passengers.
Use this Owner’s anual to learn how to set up, operate, and maintain your train set for years of reliable
operation.
The transformer included with this set should be periodically
examined for conditions that may result in the risk of fire, electric
shock, or injury to persons (such as damage to the output cord,
blades, housing, or other parts). In the event that such conditions
exist, the transformer should not be used until properly repaired.
Parents!
• ThomastheTankEngine™withthreeinterchangeablefaces
• Annie
• Clarabel
• OnestraightFasTracktracksection
• EightcurvedFasTracktracksections
• OneFasTrackterminalsection
• LionelRemoteControl
• Wallpackpowersupply
Train Set Features
• Electriclocomotivecontrolledbyremote
• Remotecontrollerwithforwardandreversespeedcontrolknob,whistlesound,bellsound,and
“All aboard!” announcement (requires three AAA alkaline batteries, not included)
• Steambackgroundsounds
• MovingeyesonThomastheTankEngine™
• Powerfulmaintenance-freemotor
• Tractiontire
• Operatingcoupleronrearoflocomotive
• Dualoperatingcouplersoncoaches
• SetLength:21”
• LayoutDimensions:40”x50”
73-0190-250 Thomas Remote Set.indd 2 6/1/12 9:57 AM
3
Table of contents
Creating your layout
Operatingyourwall-packpowersupplysafely 4
BuildingyourLionellayout 5
Joining the FasTrack track sections 6
Powering your layout
Connecting your wall-pack power supply 7
Installing AAA batteries into the Remote Control 8
Running your train
Running your train set 9
Coupling 10
Attaching the three Thomas faces 11
OperatingyourtrainwiththeLionelRemote 12
Silencing the steam background sounds 13
Maintaining and servicing your set
Lubricatingyourlocomotive 14
FCCStatement 15
LionelLimitedWarrantyPolicy&Service 16
The following Lionel marks are used throughout this Owner’s Manual and are protected under
law. All rights reserved.
Lionel®, LEGACY™, FasTrack™,TrainMaster®, Odyssey®, RailSounds®, CrewTalk™, TowerCom™,
DynaChuff™, StationSounds™, Pullmor®, ElectroCoupler™, Magne-Traction®, CAB-1®Remote
Controller, American Flyer®, Lionel ZW®, ZW®, MagniVision®, TMCC®, Lionelville®, Wireless
Tether™, Powerhouse™, LionMaster®, Conventional Classics™, Postwar Celebration Series™,
TruRail™, PH-1 Powerhouse®, Powermaster®, Powerstation-Powerhouse®, Accessory Motor
Controller™, AMC™, Accessory Switch Controller™, ASC™, Action Recorder Controller™, ARC™, Track
Power Controller 300™, TPC 300™, Track Power Controller 400™, TPC 400™, Block Power
Controller™, BPC™, Operating Track Controller™, OTC™, FatBoy™, Lionel Lines®, Joshua Lionel
Cowen Series™, Lockon®, TrainSounds™, MultiHorn™, MultiWhistle™, Choo-Choo™
73-0190-250 Thomas Remote Set.indd 3 6/1/12 9:57 AM
Operating your wall-pack power supply safely
4
Your Lionel wall-pack power supply is listed by Underwriter’s Laboratory Inc. and has been
carefullydesignedtoensurepeakperformance.Whenusingelectricalproducts,basicsafety
precautions should be maintained.
Besuretoobservethefollowingguidelines:
• Readthemanualthoroughlybeforeusingthisdevice.
• Thisdeviceisnotrecommendedforchildrenundereightyearsofage.
• Parentsshouldperiodicallyinspectthisproductforpotentialhazardsand,ifnecessary,havethem
repairedbyanauthorizedLionelServiceCenter.Intheeventthatsuchaconditionexists,the
transformer should not be used until it has been properly repaired.
• Thewall-packpowersupplyisintendedtobeusedindoors.Donotusethisdeviceifwaterispres-
ent. Serious or fatal injuries may result.
• Usethewall-packpowersupplyonlyforitsintendedpurpose.
• Thewall-packpowersupplywasmeanttooperateon120-240voltAC,50/60-Hertzpower.Donot
connect this product to any other power supply.
• Donotoperatethewall-packpowersupplywithadamagedcord,plug,orcase.
• Toavoidtheriskofelectricalshock,donotdisassembletheunit.Therearenouserservice-
ablepartsinside.Ifdamaged,takethisproducttoanauthorizedLionelServiceCenter.Visit
www.lionel.comforalistofauthorizedServiceCenters.
• Donotoperatethewall-packpowersupplyonyourlayoutunattended.Obstructedaccessoriesor
stalled trains may overheat, resulting in damage to your layout.
• Alwaysunplugthewall-packpowersupplyfromthepowersourcewhennotinuse.
• Neverinsertobjectsintotheventilationslotsonthisproduct.Damagetosensitive
electronic components can result.
Creating your layout
73-0190-250 Thomas Remote Set.indd 4 6/1/12 9:57 AM
5
Building your Lionel layout
Yoursetcomeswitheightcurvedsections,one10"straightsection,andonewall-packterminal
section of track. Figure 1 shows the oval layout that you can build with these track sections.
YoumaychoosetoaddmoreFasTracktracksectionstocreateanendlessnumberofexcitingtrack
arrangements for more fun, action, and variety.
Creating your layout

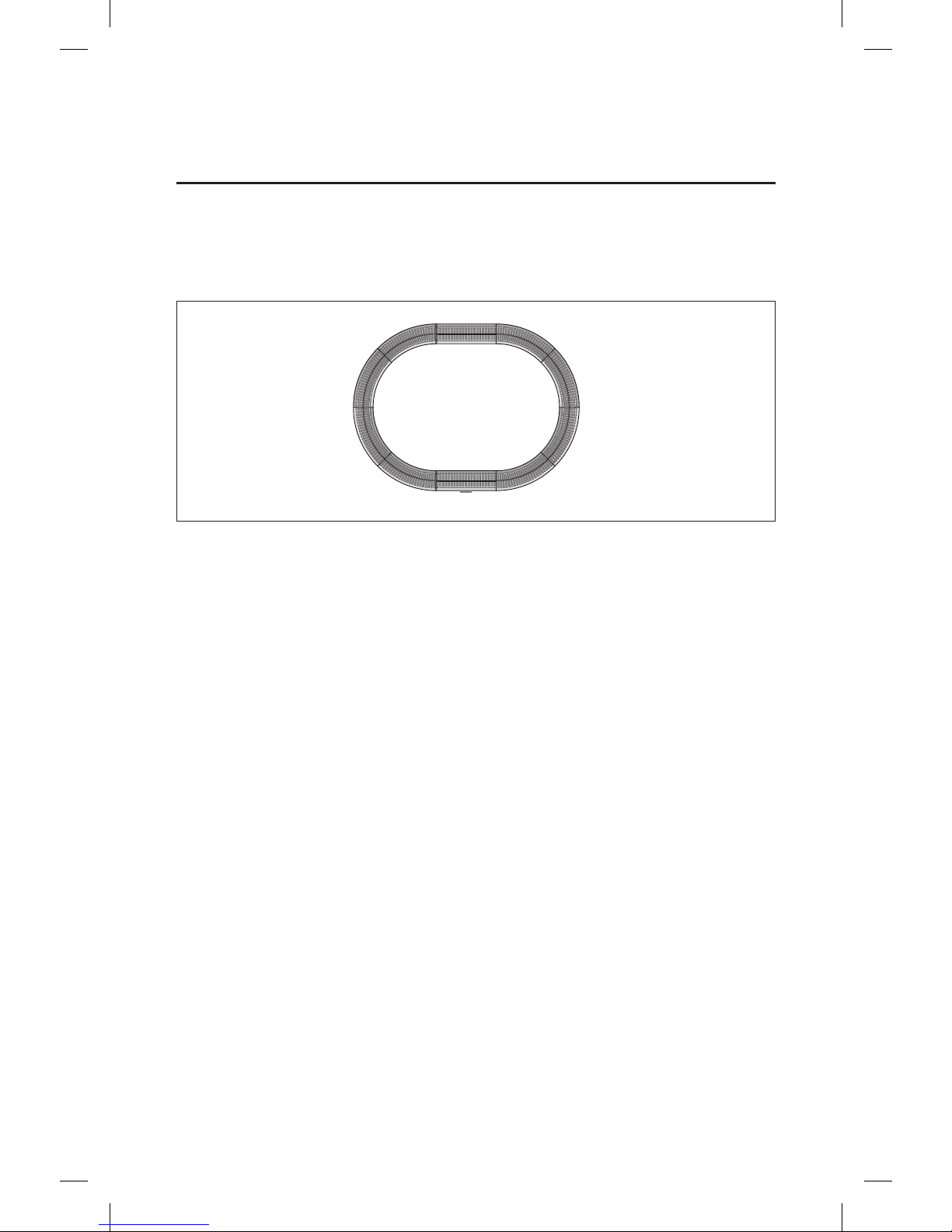

Figure 1. Track layout
73-0190-250 Thomas Remote Set.indd 5 6/1/12 9:57 AM
Joining the FasTrack track sections
FasTracktracksectionsjointogethereasily.Withinterlockingroadbedsectionsandlargerailtabs,
thetracktstogethersecurelysoyoualwayshavegoodelectricalcontact.TakealookatFigure2
to see how to join the track sections.
1. Line up your two sections of track.
2. Insert the rail tabs into the openings at the ends of the corresponding rails.
3. Press the sections together until the interlocking roadbed snaps into place.
Figure2.Joiningthetracksections
Creating your layout
6
Rail tab
73-0190-250 Thomas Remote Set.indd 6 6/1/12 9:57 AM
7
Connecting your wall-pack power supply
Your trains are powered by a wall-pack power supply. To power the track, simply plug the wall-
pack into an outlet and plug the jack into the terminal section as shown in Figure 3.
Figure3.Wall-packpowersupplyconnection
Jack on wall-pack
power supply
Terminal track section
Powering your layout
73-0190-250 Thomas Remote Set.indd 7 6/1/12 9:57 AM
8
Installing AAA batteries into the Remote Control
Pushthetabtowardthedoorandlifttoopenbatterycompartment(asshowninFigure4).Insert
threeAAAbatteriesorientatingthe+/-asshowninthebottomofthebatterycompartment.
Replace the battery door by first inserting the two tabs at the top of the door into the notches in the
top of the battery compartment. Then close the door being sure the tab lock closes securely. See
Figure4.
UseonlyAlkaline‘AAA’batteries.Useonlynewbatteries.Nevermixnewandusedbatteriesoruse
different types together.

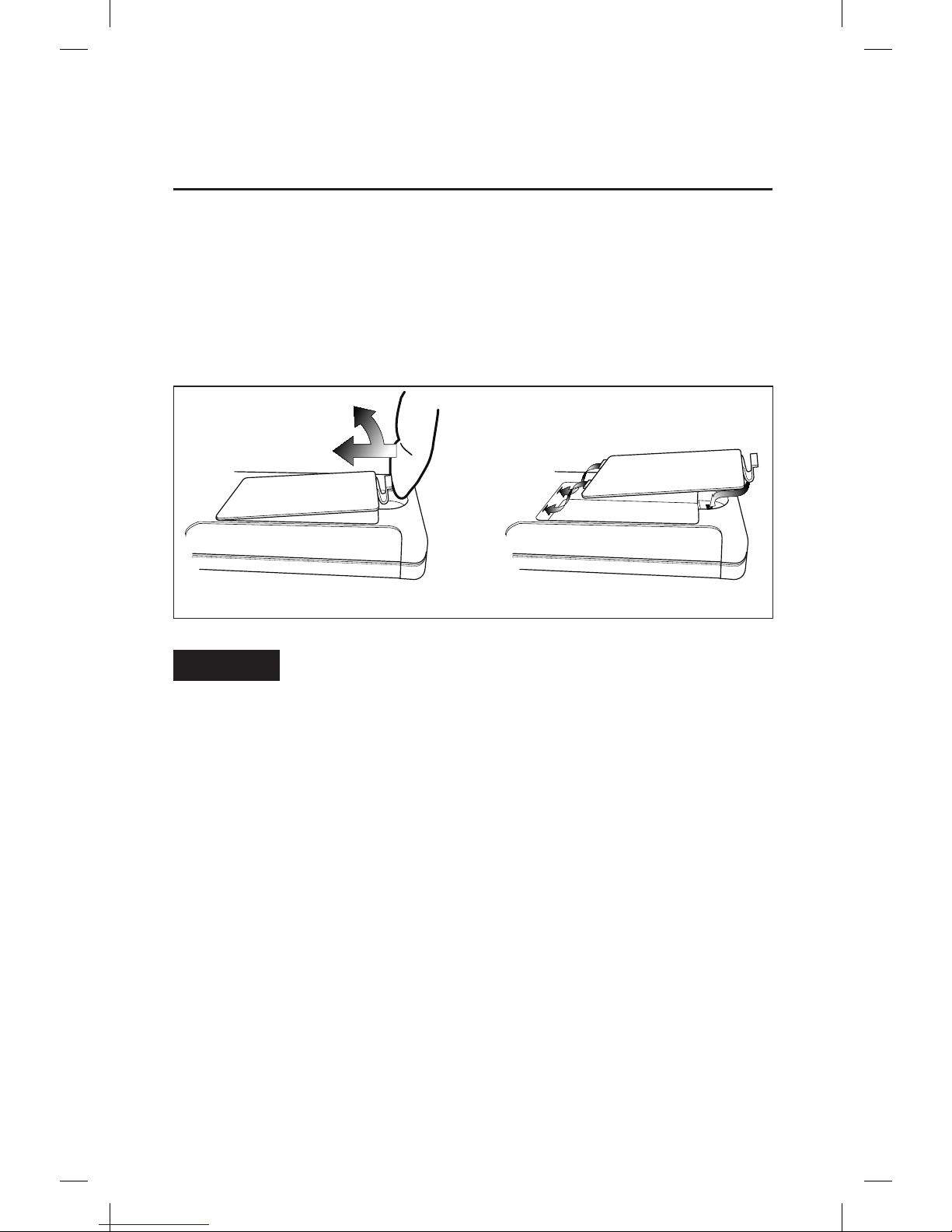

Figure4.Openingandclosingthebatterycompartment
REMOVE ALL BATTERIES WHEN THE TRAIN WILL NOT BE USED FOR AN
EXTENDED PERIOD OF TIME.
Important!
Powering your layout
73-0190-250 Thomas Remote Set.indd 8 6/1/12 9:57 AM
9
Running your train
Running your train set
With track power unplugged, place your train set on the track.
Refer to the following section for information on coupling the cars.
2
3
Plug in your wall-pack power supply and switch on the remote.
Your locomotive is designed to operate on 18 VDC. You may choose to operate
the train set using the wall-pack power supply, or you may run the locomotive on a layout
powered by virtually any Lionel and Lionel-compatible alternating-current transformer.
Yourlocomotiveiscompatiblewithmostdirect-current(DC)andalternating-
current (AC) transformers.
Move ‘em out!
Use your remote to run your train. You can adjust the speed in forward or reverse,
blowthewhistle,soundthebell,ortriggeranannouncement.Refertopage12forcomplete
details.
1
Note!
73-0190-250 Thomas Remote Set.indd 9 6/1/12 9:57 AM
10
Coupling
When coupling your cars, at least one of the mating couplers must be open as shown at the left
inFigure5.Pressdownonthelockreleasetoopenthecoupler,thenpushthecarstoward
each other until they lock together.
Keep in mind that it’s easier to couple cars on a straight stretch of track.
Lock release

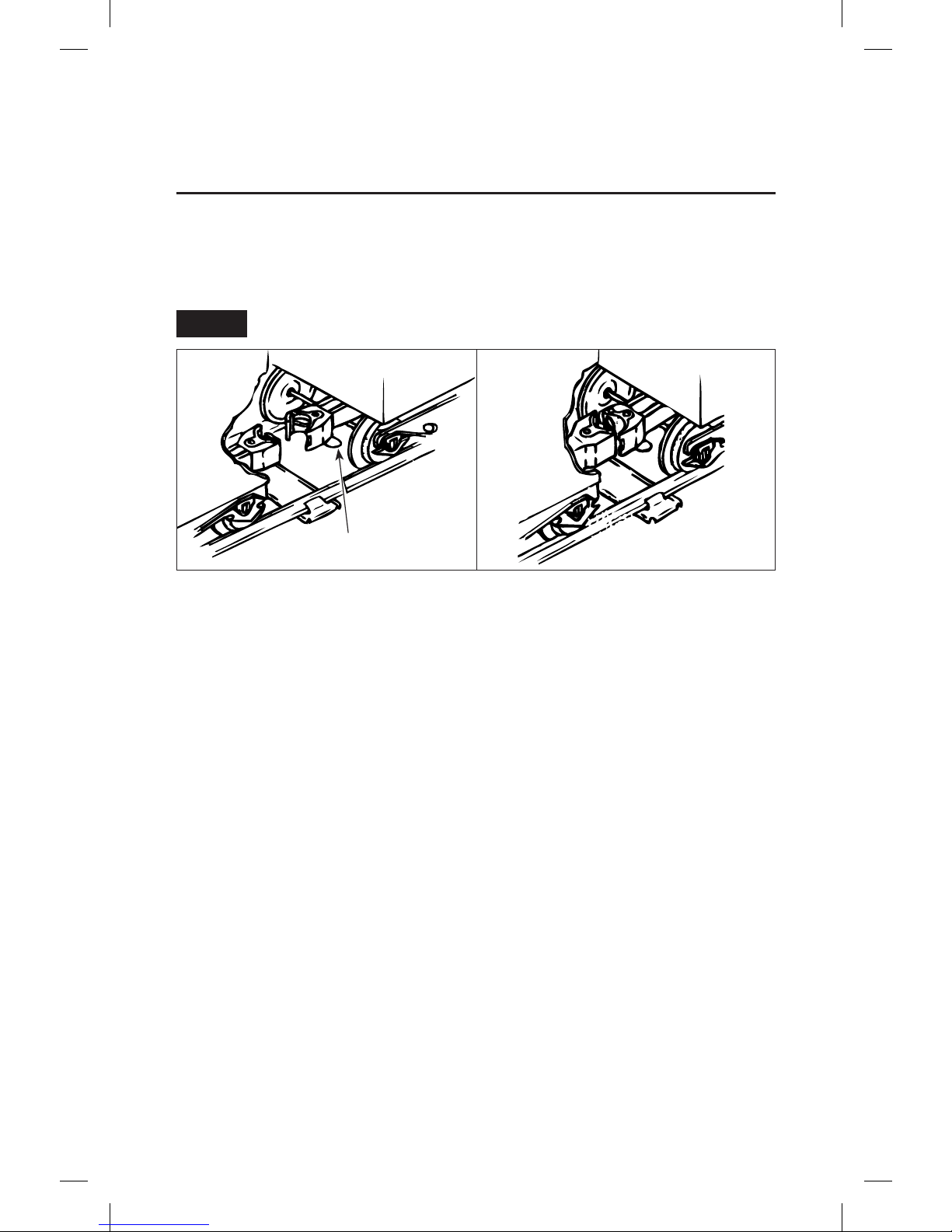

Figure5.Coupleroperation
Note!
Running your train
73-0190-250 Thomas Remote Set.indd 10 6/1/12 9:57 AM
