Installation Instructions

1 | P a g e v 1 . 1 ( 0 8 / 2 0 1 8 )

SENTINEL LED DIY POND LIGHT

SKU# 230319

Rated Voltage 12V AC/DC

Thank you for purchasing this quality Lucci product. To ensure correct function and safety, please read and follow all

instructions carefully before assembly, installation and use of this product. Please keep instructions for future reference.

NOTE: This installation instruction applies to the 12V side of the luminaire only.

This luminaire is 12V extra-low voltage and can be DIY.

Do not plug this luminaire directly into 240V.

When working with 240V, a licensed electrician is required.

The Lucci wiring kit (SKU# 220826, 220827) and Lucci transformer (SKU# 220818, 220819, 220829) are

sold separately.

Warranty

•This luminaire is covered by a 3 year warranty. The warranty is from date of purchase, not the date of installation.

•Please retain proof of purchase for any warranty enquiries.

•Warranty will be void if there is any damage due to improper usage or modification to the luminaire.

•Failure to comply with the instructions in this manual may increase the risk of damage or injury and will void warranty.

Installation requirements

•All wiring and installation of the light luminaire must adhere to local and national wiring rules.

e.g. AS/NZS 3000:2007/Amendment 2:2012 Electrical installations.

•Replace any cracked protective lamp shade to maintain IP rating when using this luminaire.

•Select a suitable location for installation:

- The luminaire is rated IP68, which is protected against the effects of continuous immersion in water.

It is suitable for immersing in the water with a maximum 2-metre depth.

- The quick connectors are rated IP65, which is protection against jets of water in every direction.

- The quick connectors are not designed to be immersed in water. Do not immerse in the water with the luminaire.

Ensure the quick connectors are located in an area with adequate drainage so water does not pool around them.

- The luminaire is suitable to be attached to concrete, pavers, brickwork, or rocks within a pond.

•Take care not to pull any electrical wires during unpacking as this may damage the connection.

•

Lay out all the components on a smooth surface and make sure there are no components missing before assembling.

If parts are missing, return the complete product to the place of purchase for inspection or replacement.

•Check whether the luminaire has been damaged during transport. Do not operate/install any product which appears

damaged in any way. Return the complete product to the place of purchase for inspection, repair or replacement.

•Ensure power to the circuit you are working on has been switched OFF, before commencing any electrical work.

Installation Instructions

2 | P a g e v 1 . 1 ( 0 8 / 2 0 1 8 )

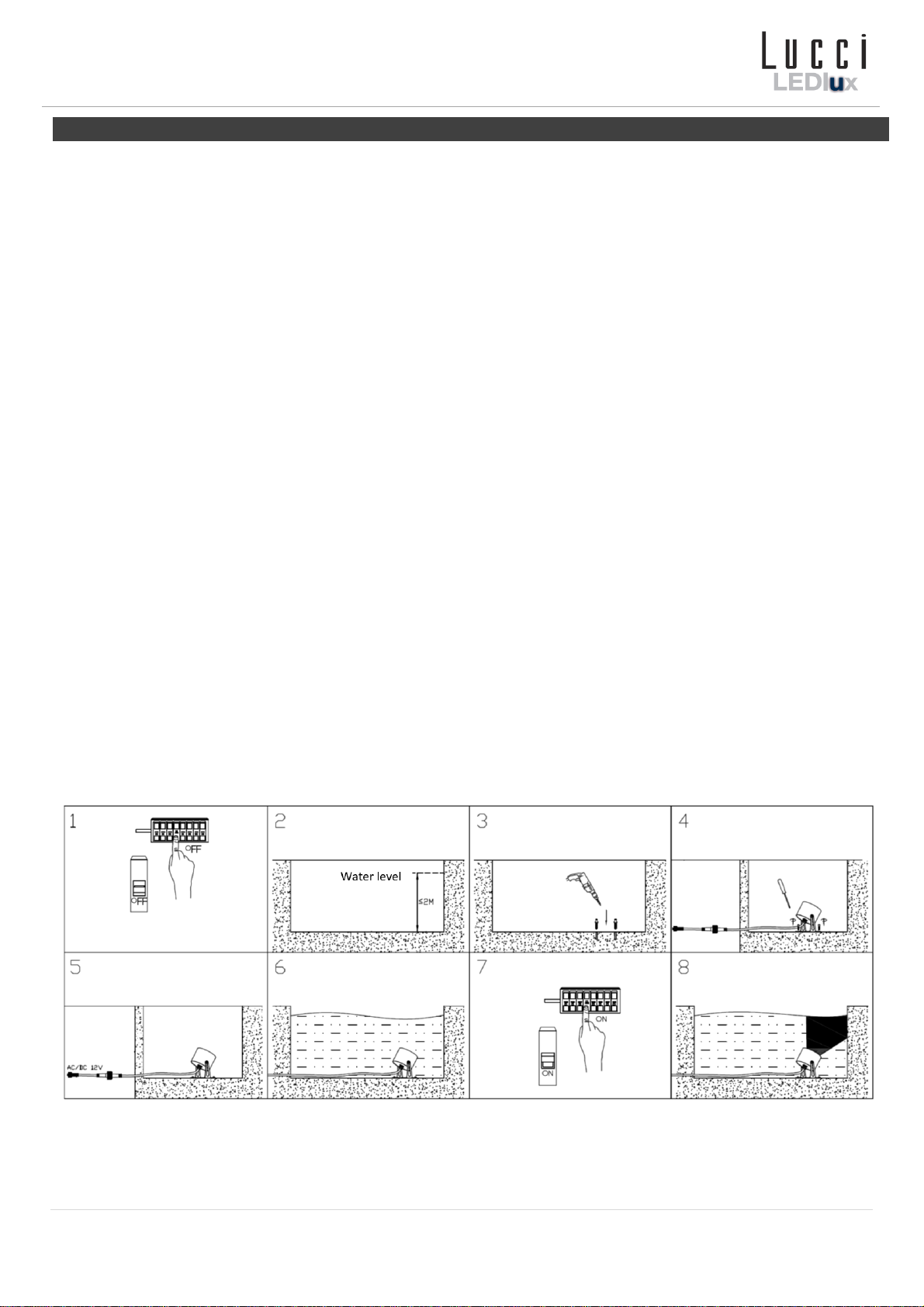

Installation directions

1. Remove all packaging material from the product and be careful not to throw away accessories that may be hidden

within the packaging material.

2. Turn the power off before commencing the installation. (Fig.1)

3. Mark the water level of the pond. The maximum depth must not be over 2 metres. (Fig. 2)

4. Use the mounting bracket as a template to mark the screw positions on the mounting surface then drill holes for

the screws (Fig.3)

NOTE: If the pond is made from fibre glass, drill into the base of the pond can cause leaks. Paver, brick or

rock can be used as mounting surface in this case. Ensure they are heavy enough to weight down the

luminaire.

Ensure the screws and anchors used are suitable for the mounting surface and the surrounding environment.

5. Install the luminaire to the mounting surface by tightening the 2 screws. (Fig.4)

USING LUCCI WIRING KIT AND/OR LUCCI TRANSFORMER (both sold separately)

6. Use the quick connector to connect the luminaire to the wiring kit and/or the transformer (SKU# 220818, 220819,

220829 – sold separately).

NOTE: The transformers are rated for 80VA, 28VA and 10VA load respectively. (Fig.5)

NOTE: The quick connectors are rated IP65, both must not be immersed in the water. Proceed to step 7.

USING OTHER WIRING AND TRANSFORMER (not included)

6. Remove the 12V bi-pin quick connector for hard wiring or alternative wiring method and power supply system if

necessary.

Ensure that the wires are secure and no bare wires are exposed. Ensure all wiring and the transformer used are

appropriately rated and suitable for the location used. If unsure, please contact a licensed electrician.

7. Fill the pond with water. The water level must not be over the maximum rated depth of 2 metres. (Fig.6)

8. Turn the power on and test the luminaire is operating correctly. (Fig.7 and 8)

Installation Instructions

3 | P a g e v 1 . 1 ( 0 8 / 2 0 1 8 )

Safety tips

•Always ensure the power is OFF and the luminaire has cooled down before performing any maintenance, cleaning,

or making any adjustment to the luminaire.

•The external flexible cable or cord of this luminaire cannot be replaced; if the cable or cord is damaged, the luminaire

shall be destroyed.

•The luminaire must not be used if the protective shield has been cracked or damaged.

•Replace any cracked protective shield.

•To avoid injury or damage to the luminaire

, ensure that power leads and screws are secure before connecting the

power.

•To clean, wipe with a damp clean cloth.

•Ensure that the luminaire does not come in contact with corrosive chemicals/solvents or abrasive cleaners, etc.

Specifications

SKU # 230319

Color 316 Marine Grade Stainless Steel

Rated Voltage 12V AC/DC

Rated Wattage 6W

LED Specs 350 Lumens, 3000K

IP Rating IP68 (luminaire only)

IP65 (quick connectors)

Rated Depth 2M Max

Cable Length 4M cable

Weight 0.4kg

Dimensions H: 77mm W: 72mm E: 81mm Max
