Luxul XGS-1024 Bedienungsanleitung
luxul.com
Simply Connected
Quick Install Guide
XGS-1024
Luxul Xen™
24-Port Gigabit Ethernet Switch
SWITCH
Use the XGS-1024 to:
Expand Your Home or Office Network with 24-Ports
(10/100/1000)
Future Proof Your Network with Gigabit Speeds (10X
Performance of Fast Ethernet)
Create a VLAN for Optimizing VoIP, Video, Security, or Gaming
Applications (requires XMS-1024)
Quick Install Guide
2© Copyright 2012 Luxul. All rights reserved. Trademarks & Registered Trademarks are property of respective holders.
24-PORT GIGABIT ETHERNET SWITCH
MODEL NUMBER: XGS-1024
Quick Install Guide
© 2012 Luxul. All Rights Reserved.
No part of this publication may be modified or adapted in any way, for any
purposes without permission in writing from Luxul. The material in this manual
is subject to change without notice. Luxul reserves the right to make changes to
any product to improve reliability, function, or design. No license is granted, either
expressly or by implication or otherwise under any Luxul intellectual property rights.
An implied license only exists for equipment, circuits and subsystems contained in
this or any Luxul product.
DOCUMENT CONVENTIONS
The following graphical alerts are used in this document to indicate notable situations:
NOTE: Tips, hints, or special requirements that you should take note of.
CAUTION: Care is required. Disregarding a caution can result in data
loss or equipment malfunction.
WARNING!: Indicates a condition or procedure that could result in
personal injury or equipment damage.
CONTACT LUXUL
For sales questions
please contact our
Sales Department
P: (801) 822-5450
If you experience any
problems, please contact
Technical Support
P: (801) 822-5450
E: suppor[email protected]
luxul.com | a: 14203 Minuteman Drive, Suite 201, Draper, UT 84020-1685 | p: 801-822-5450 | f: 801-822-5460
Quick Install Guide
3
PACKAGE CONTENTS
Please check the contents carefully after you open the packing:
One XGS-1024 24-Port Gigabit Ethernet switch
Power Cord
Two L-shaped rack mounting brackets and screws
Four rubber pads
Quick Installation Guide
If any of the listed items are missing or damaged, please contact the reseller from
whom you purchased the XGS-1024 for return/replacement.
HARDWARE DESCRIPTION
Front Panel
The front panel of the XGS-1024 includes 24 10/100/1000Mbps RJ45 ports on the
right side and LED indicators on the left side. Each port has one Link/Activity LED
and one 1000Mbps LED. There is also a power LED for indicating whether or not
power is being applied to the XGS-1024.
XGS-1024 Front Panel View
LED Indicators
The LED indicators of the XGS-1024 include 1 Power indicator, 24 numbered Link/
Activity indicators, and 24 1000Mbps indicators. These LED indicators show the
operating status of the XGS-1024 and each switch connection.
Quick Install Guide
4© Copyright 2012 Luxul. All rights reserved. Trademarks & Registered Trademarks are property of respective holders.
LED Indicators
The following chart shows the LED indicators of the XGS-1024 along with an
explanation of the indicator’s properties:
LED Status Description
Power ON This indicator lights up when the XGS-1024
is properly powered.
OFF If this indicator is not lit, please check the
AC power cord to ensure proper connection
to the outlet and the XGS-1024.
Link/ Activity ON Indicates a device is connected to the port
of the XGS-1024.
Blinking Indicates the port is transmitting or receiv-
ing data.
OFF Indicates the port is not connected to a
device.
1000Mbps ON Indicates the XGS-1024 is connected to
device at 1000Mbps.
OFF Indicates the device likely does not support
1000Mbps and is connected at something
less than1000Mbps.
Rear Panel Layout
The rear panel has 1 AC power port and power switch.
luxul.com | a: 14203 Minuteman Drive, Suite 201, Draper, UT 84020-1685 | p: 801-822-5450 | f: 801-822-5460
Quick Install Guide
5
100-240V~ 0.6A(Max) 50/60Hz

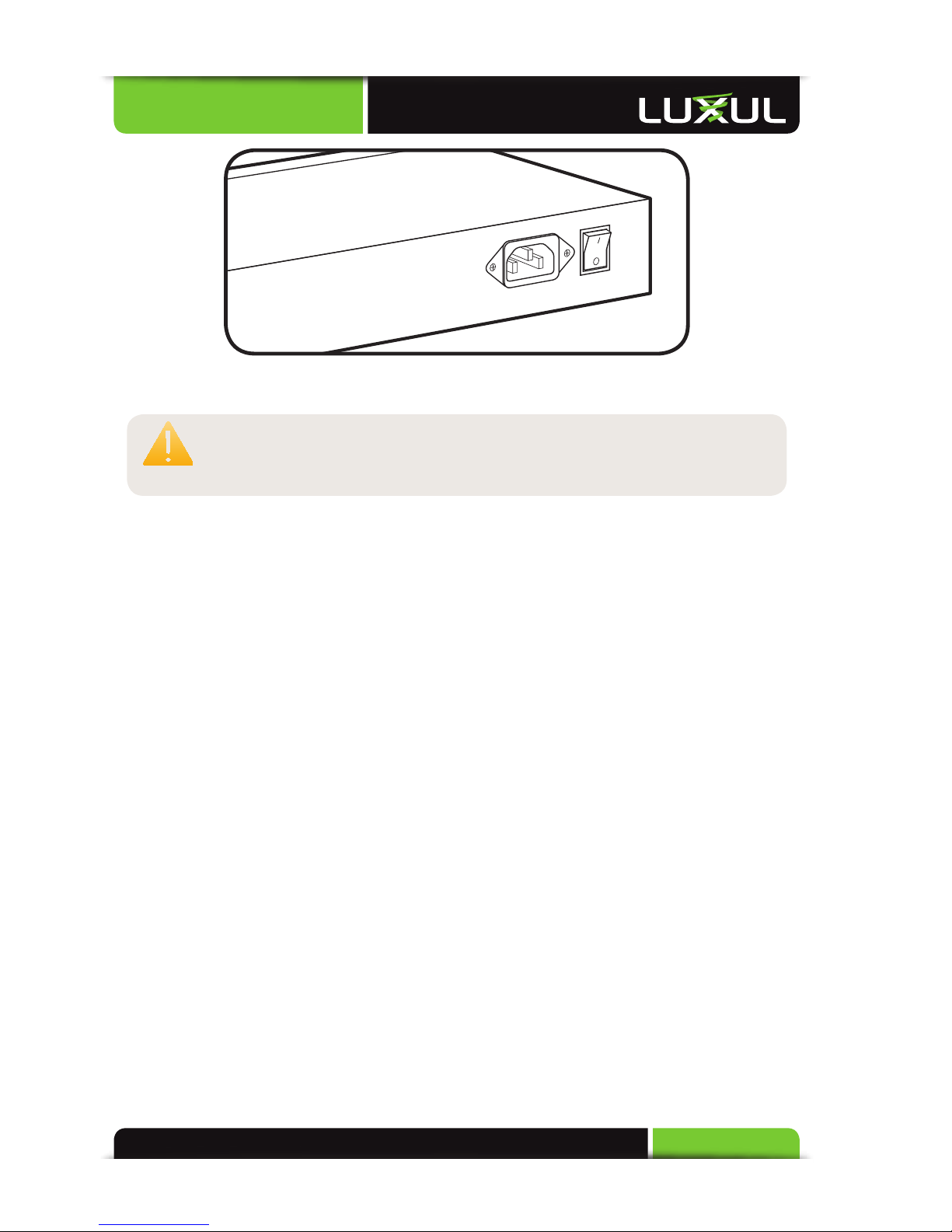

XGS-1024 Rear Panel View
CAUTION: Please use the correct power cord for your environment. If
any voltage other than 100/240 is applied, it will result in
damage to the XGS-1024.
PREPARING FOR INSTALLATION
System Requirements
Network Connections: Ethernet Enabled Computer
Web Browsers: Internet Explorer 6.0 or higher, Mozilla 1.0 or higher, Safari 1.0
or higher
Internet: Broadband Internet Service (depending on the service provider, a
separate modem may be required)
Before Connecting to the Network
The XGS-1024 can be rack-mounted or used as a desktop switch. Before connecting
to the network, please be aware of the following requirements:
Install the XGS-1024 in a stable/safe place to avoid any possible damage
Make sure there is adequate space around the XGS-1024 for adequate ventilation
and proper heat dissipation.
Do not place heavy articles on the XGS-1024.
Power outlets should be within 5 feet of the XGS-1024.
Check the power cord to confirm a secure connection.
Ensure there is sufficient space around the XGS-1024 for proper ventilation and
heat dissipation. It is recommended to have at least 4-6 inches around all sides.
When installing the XGS-1024 on a surface, attach the rubber feet to the bottom
of the device to avoid scratching the surface.
Quick Install Guide
6© Copyright 2012 Luxul. All rights reserved. Trademarks & Registered Trademarks are property of respective holders.
XGS-1024 INSTALLATION
Installing the XGS-1024 in a Rack
The XGS-1024 can easily be installed in a standard 19” rack. The XGS-1024 includes two
mounting ears for installing and stabilizing the switch. For attaching the mounting ears
and installing the switch within a rack, please refer to the following illustration:
Rack-Mounting the XGS-1024
Using the included screws, attach the mounting ears to each side of the switch.
Mount the switch in the rack with the LEDs facing outwards. Be sure the switch is
level and properly secured within the rack.
Desktop Setup
For use as a desktop device, position and apply the included rubber feet to the
bottom of the XGS-1024.
Attaching the Rubber Feet to the XGS-1024
Connecting Devices
Use standard Ethernet CAT5, CAT5e, or CAT6 cable to connect the XGS-1024 to
a device as described below (CAT6 must be used in order to achieve full Gigabit
bandwidth). The XGS-1024 will automatically adjust to the characteristics (speed/
duplex) of the device to which it is connected.
luxul.com | a: 14203 Minuteman Drive, Suite 201, Draper, UT 84020-1685 | p: 801-822-5450 | f: 801-822-5460
Quick Install Guide
7

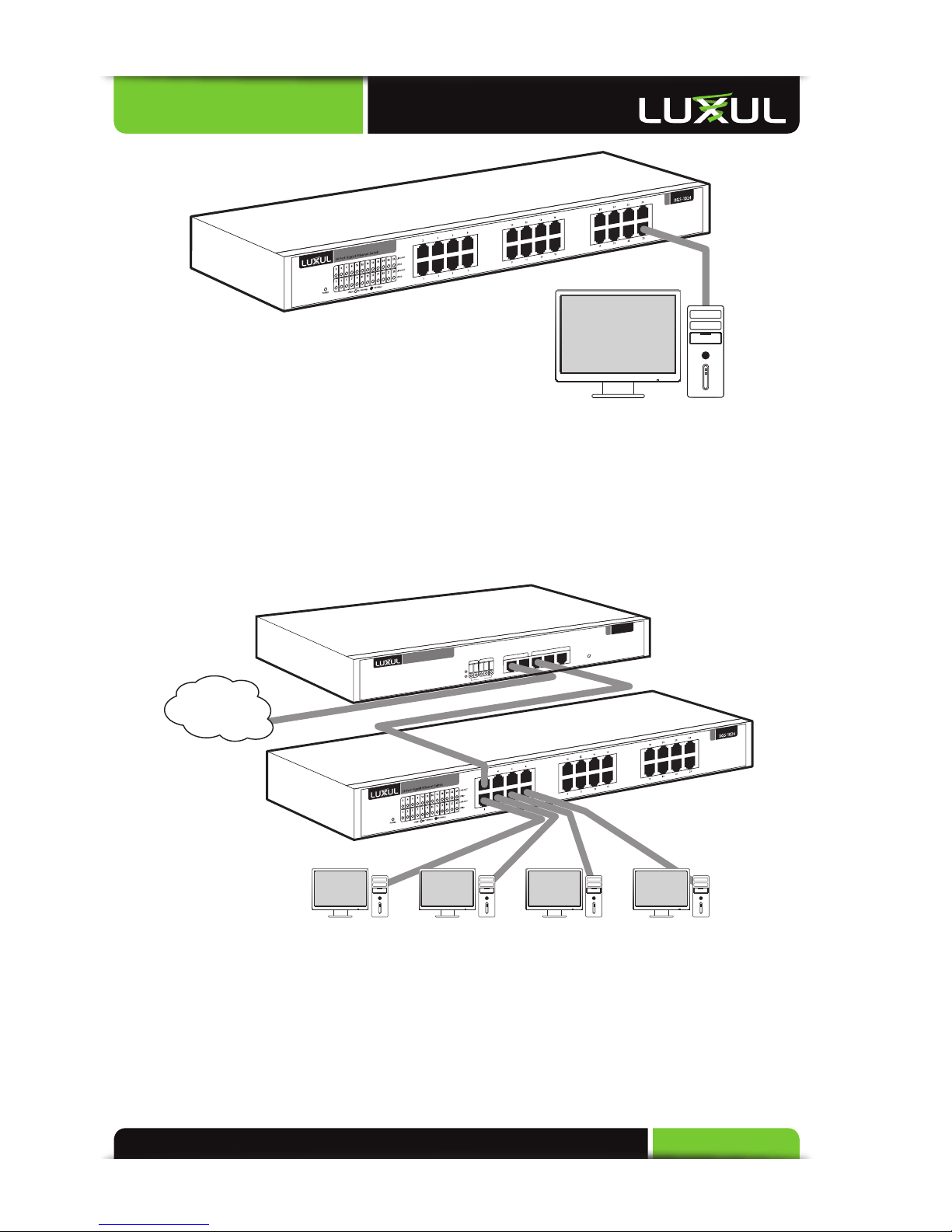

Connecting the XGS-1024 to a Device
When a device is properly connected, the Link/Activity LED for each port lights
up green. Please refer to the LED Indicators section for indicator definitions and
troubleshooting.
Connecting to a Router or Other Switch
XBR-2300
Enterprise Dual-WAN Router
POWER
100M
RESET
SYS
1 2 1 2 3
LANWAN
LAN
WAN
12123
Internet
Connecting the XGS-1024 to Router or Switch
When a device is properly connected, the Link/Activity LED for each port lights
up green. Please refer to the LED Indicators section for indicator definitions and
troubleshooting.
LUX-QIG-XGS-1024
081120919
a: 14203 Minuteman Drive, Suite 201, Draper, UT 84020-1685
p: 801-822-5450 | f: 801-822-5460
Information on this document supersedes all previous versions.
Products and documents subject to change without notice.
Products may be discontinued without notice.
luxul.com
FCC Statement:
This equipment has been tested and found to comply with the limits for a
Class A digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment uses and can radiate radio frequency
energy, and if not installed and used in accordance with the instructions may
cause harmful interference to radio communications. However; there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the follow-
ing measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
